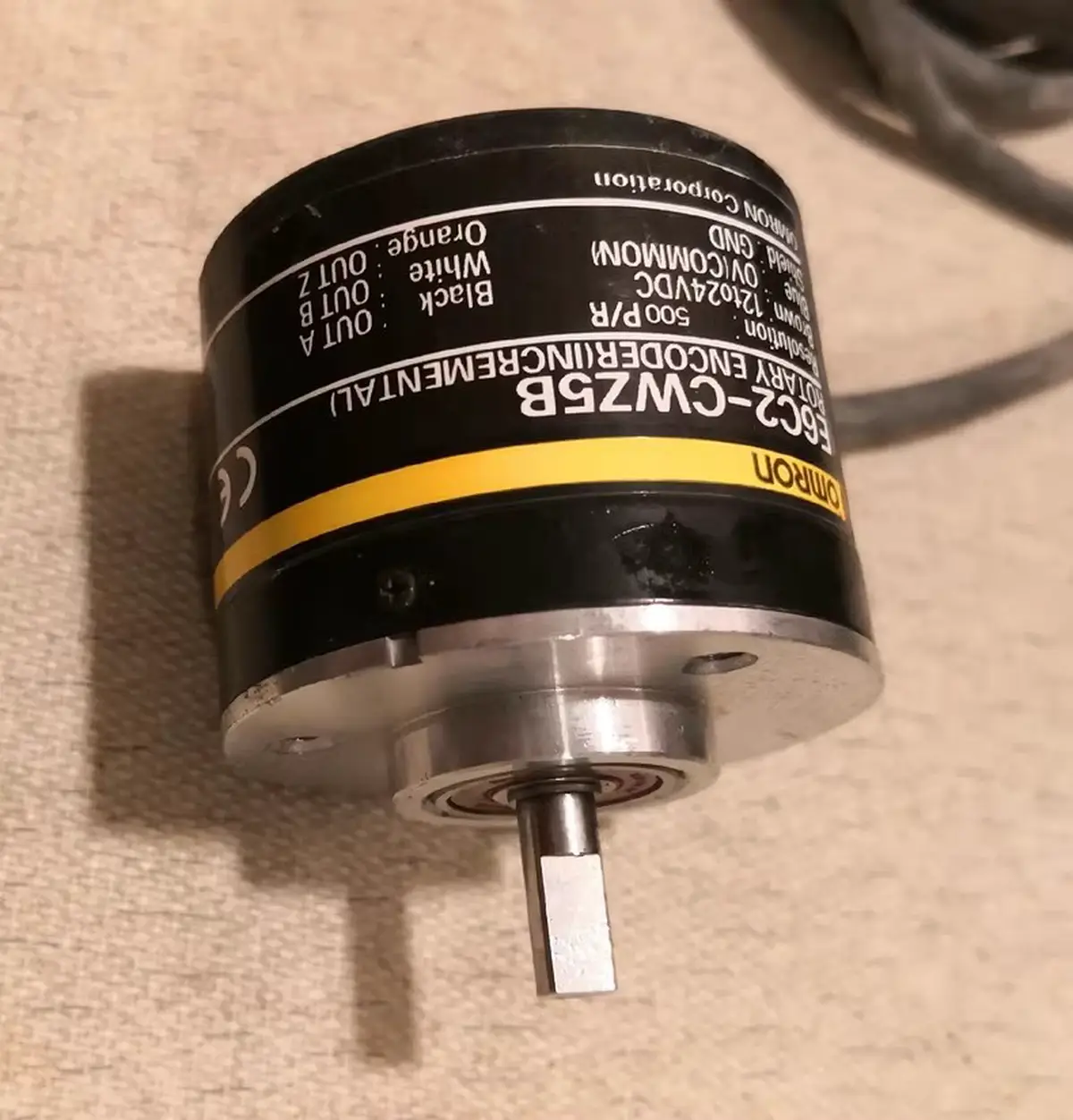

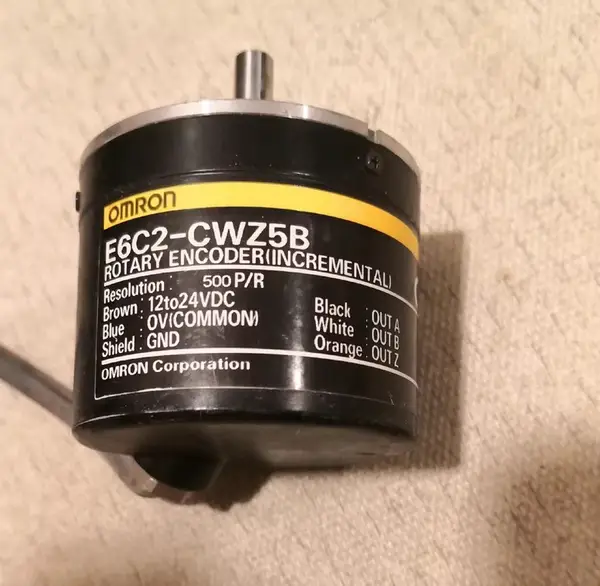

Omron E6C2-CWZ5B 500P-R 2M Rotary Encoder 500P/R DC5-24V Voltage Output 2m Cable — front view

Omron E6C2-CWZ5B Incremental Rotary Encoder, 500 P/R, Voltage Output, 2 m Cable

SKU: E6C2-CWZ5B 500P- R 2M

USD 43.00

Omron E6C2-CWZ5B 50 mm incremental rotary encoder, 500 P/R, complementary voltage output, 5–24 VDC, 2 m pre-wired cable, for medium-resolution position and length feedback.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E6C2-CWZ5B is a 50 mm-body incremental rotary encoder in the E6C2 family. The "CWZ5B" suffix denotes a complementary voltage output (push-pull, not open-collector) on phases A, B and Z, with a 5–24 VDC supply. The voltage output is more noise-resistant than an open-collector over long cable runs and connects directly to the high-speed counter inputs of most Omron PLCs.

The 500 P/R resolution lands in the middle of the E6C2 range — between the 100 / 200 P/R low-resolution parts and the 1,024 / 2,000 P/R high-resolution parts. At 5,000 rpm maximum shaft speed, the output frequency tops out at ≈ 42 kHz, which sits comfortably inside the counting bandwidth of any modern PLC.

The 50 mm body gives a beefier bearing and shaft than the 40 mm E6B2 family: the shaft is 8 mm diameter, and the rated shaft loads are correspondingly higher (radial 50 N, axial 30 N). This makes the E6C2 a better fit for direct-coupling to a small gearbox output or a measuring wheel, where side load is real.

Common uses: medium-resolution length measurement on converting machinery, elevator and lift position feedback, cut-to-length systems, moderate-precision indexing tables. The "2M" suffix indicates a 2 m pre-wired cable, which is the typical drop from the encoder to a nearby terminal box.

Key Features

  • 500 P/R resolution — ≈ 42 kHz output at max 5,000 rpm
  • Complementary voltage output on A, B, Z — noise-resistant for long cable runs
  • 5–24 VDC supply — works with 12 V and 24 V systems
  • 50 mm body, 8 mm shaft
  • 2 m pre-wired cable
  • Maximum shaft speed 5,000 rpm
  • Shaft load rating: radial 50 N / axial 30 N
  • IP50 protection
  • SKU: E6C2-CWZ5B 500P- R 2M
  • Series: E6C2-C
  • Voltage: 24 VDC

Best-Fit Applications

  • Medium-resolution length measurement on converting machinery
  • Elevator / lift position feedback
  • Cut-to-length systems with 1–2 mm resolution
  • Indexing tables in light assembly automation
  • Measuring-wheel feedback where some side load is expected

Buying Checklist

  • Confirm voltage (CWZ5B) vs open-collector (CWZ6C) — voltage output is better for long cable runs
  • Verify the P/R code matches the resolution you programmed into the counter module
  • For 1,024 P/R or higher, use the E6C2-CWZ6C 1024P-R variant
  • If the encoder will see significant side load, the 50 mm body's higher shaft-load rating is worth the extra cost over the 40 mm E6B2
  • For washdown mounting, use the IP65-sealed variant — this is IP50

Technical Specifications

Series E6C2-C
Model E6C2-CWZ5B (500 P/R, 2 m cable)
Body diameter 50 mm
Shaft diameter 8 mm
Resolution 500 pulses per revolution
Output phases A, B, Z (complementary voltage)
Output type Voltage (push-pull, complementary)
Supply voltage 5–24 VDC ±10%
Current consumption 100 mA max
Max response frequency 50 kHz
Max rotational speed 5,000 rpm
Shaft load (radial) 50 N max
Shaft load (axial) 30 N max
Cable 2 m pre-wired
Protection rating IP50
Operating temperature -10 °C to +70 °C

FAQ for E6C2-CWZ5B 500P- R 2M

What does "voltage output" mean?
A voltage output actively drives the signal high or low at each transition (push-pull), unlike an open-collector output which only pulls low. Voltage output gives cleaner edges and is more tolerant of long cables and electrical noise.
Can I substitute this for an E6B2-CWZ6C?
Mechanically, no — the bodies are different sizes (50 mm vs 40 mm) and the shafts are different diameters (8 mm vs 6 mm). Electrically, the voltage output is a direct upgrade for noise immunity, but you will need a different mounting bracket.
What's the smallest length change I can detect?
With a 200 mm measuring wheel, 500 P/R gives ≈ 1.25 mm per pulse. With quadrature decoding (×4) on the receiving PLC, effective resolution is ≈ 0.3 mm — fine for most cut-to-length applications.
