G6B-47BND

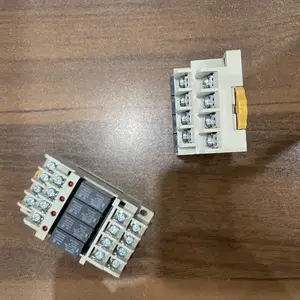

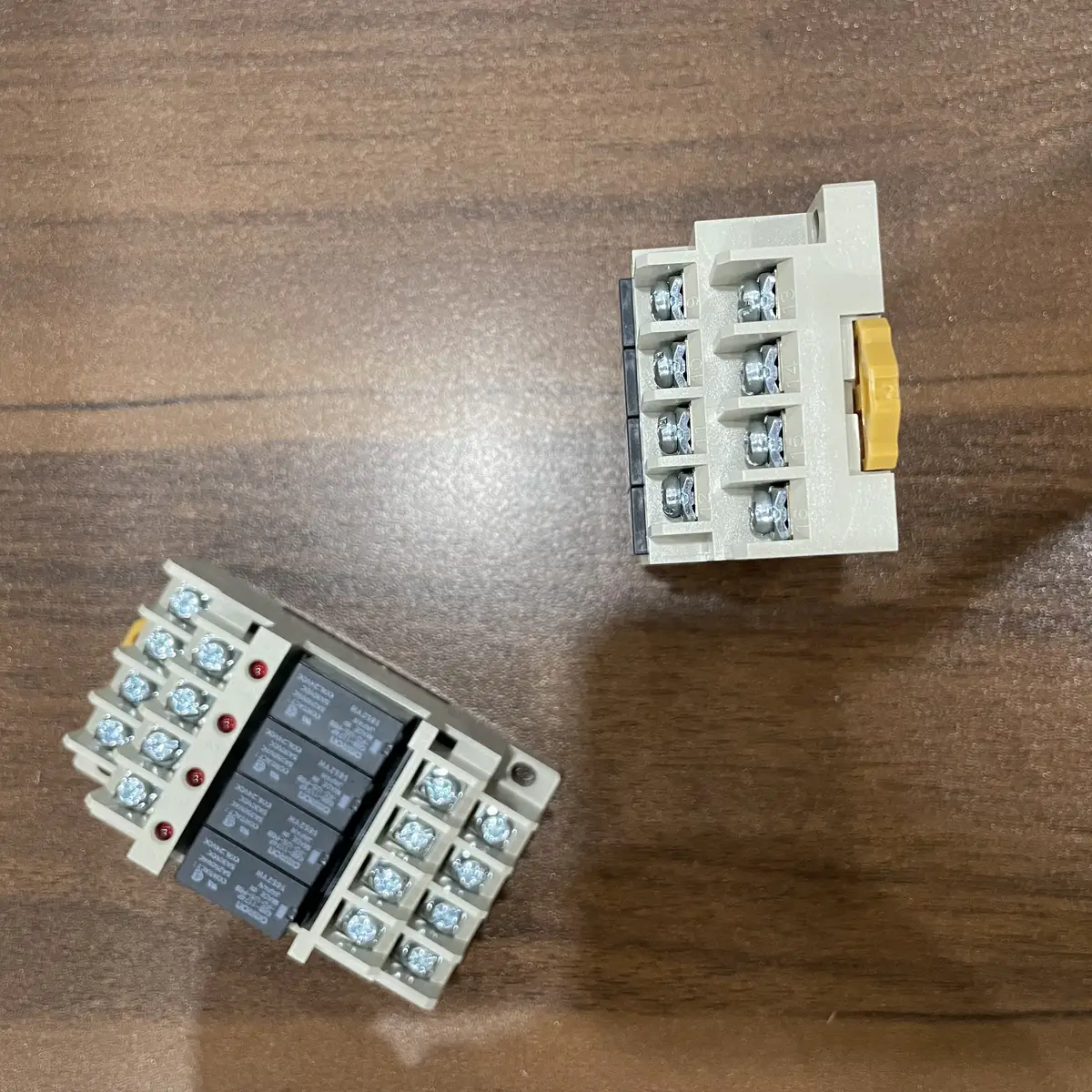

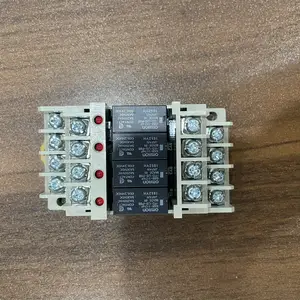

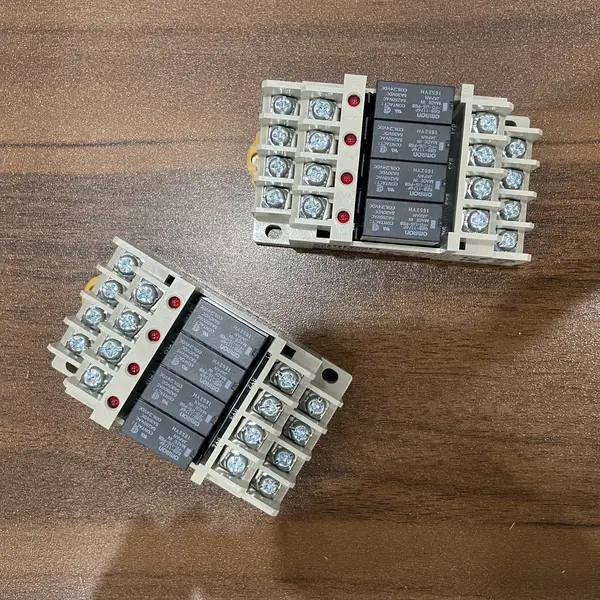

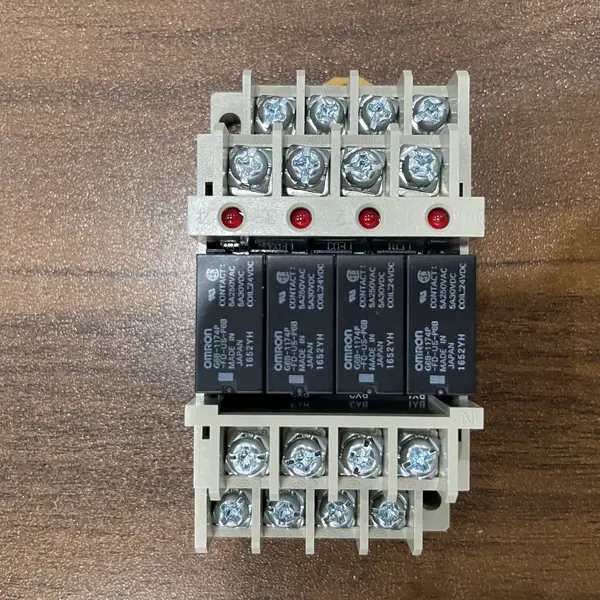

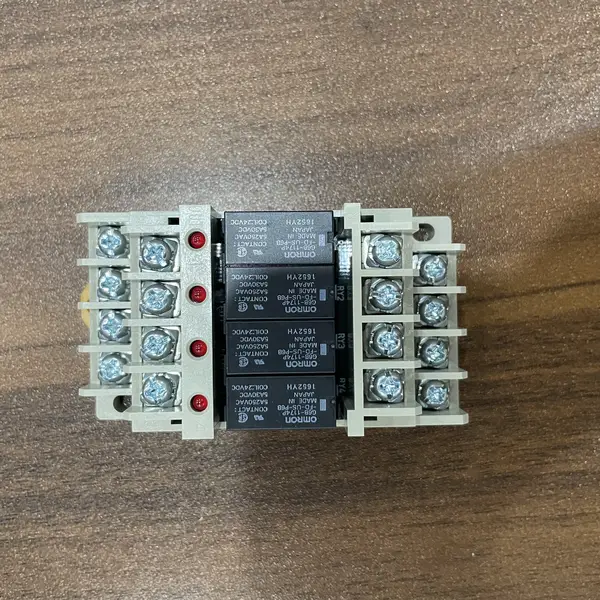

Omron G6B-47BND PCB Relay Module 4-Pole 4NO DC24V Coil

SKU: G6B-47BND

USD 18.50

Omron G6B-47BND is a 4-pole PCB relay module with 4NO contacts, DC24V coil, screw terminal wiring for industrial control panel applications.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The G6B-47BND provides a practical relay interface layer between PLC outputs and field-side control circuits. Its multi-point format helps reduce wiring complexity while improving panel organization in compact enclosures. This unit is commonly used where electrical isolation, load interfacing, and easy maintenance are required, including OEM machinery and retrofit control cabinets.

  • SKU: G6B-47BND
  • Series: G6B
  • Voltage: 250VAC

Best-Fit Applications

  • Interfacing PLC transistor outputs to relay-switched loads
  • Isolating control circuits in compact machine panels
  • Driving auxiliary signaling and low-power actuators
  • Building modular relay banks for OEM equipment
  • Retrofitting older panels with standardized relay interfaces
  • Improving serviceability through grouped relay output architecture

Buying Checklist

  • Consolidates multiple relay channels in a compact footprint
  • Simplifies PLC-to-load interfacing and isolation strategy
  • DC24V standard supports broad compatibility
  • Screw terminals aid installation and field maintenance
  • Practical component for maintainable control panel design

Technical Specifications

Model G6B-47BND
Series G6B
Type PCB Relay Module with Terminal Block
Contact Configuration 4NO (4 Form A)
Coil Voltage DC24V
Coil Power 360mW
Contact Rating 5A at 250VAC, 5A at 30VDC
Max Switching Voltage 250VAC, 125VDC
Operating Time 10ms max
Release Time 5ms max
Mechanical Life 20 million operations
Electrical Life 100,000 operations (at rated load)
Terminal Type Screw terminals (M3)
Mounting Panel or DIN rail mount
LED Indicator Yes (coil energization)
Operating Temperature -40 to +70°C
Dimensions 78 x 70 x 55mm
Mass Approx. 180g
Certifications CE, UL, CSA, VDE

FAQ for G6B-47BND

What's the difference between G6B-47BND and G6B-4BND?
G6B-47BND has 4NO (4 normally open) contacts. G6B-4BND has 4PDT (4 Form C, 4NO+4NC) contacts. Choose 47BND for simple switching applications, 4BND when you need both NO and NC contacts for each pole.
What wire size can I connect to the terminals?
Screw terminals accept 22-14 AWG (0.5-2.5mm²) solid or stranded wire. Use ferrules for stranded wire to prevent fraying. Torque: 0.5-0.6 N·m.
Can I use this relay for motor control?
For small motors under 5A, yes. For larger motors, use relay contacts to control a contactor. Motor loads are highly inductive - consider snubber circuit or varistor for contact protection.
What's the advantage of PCB relay module vs discrete relay?
PCB module includes: terminal block (no separate socket needed), LED indicator, mounting base, and pre-wired connections. Faster installation, cleaner panel layout, easier troubleshooting.
How do I wire the coil and contacts?
Coil terminals: A1 (+) and A2 (-). Contact terminals: numbered per pole (e.g., 11-14 for pole 1). Refer to wiring diagram on relay side. Always use flyback diode across DC coil to suppress voltage spikes.
