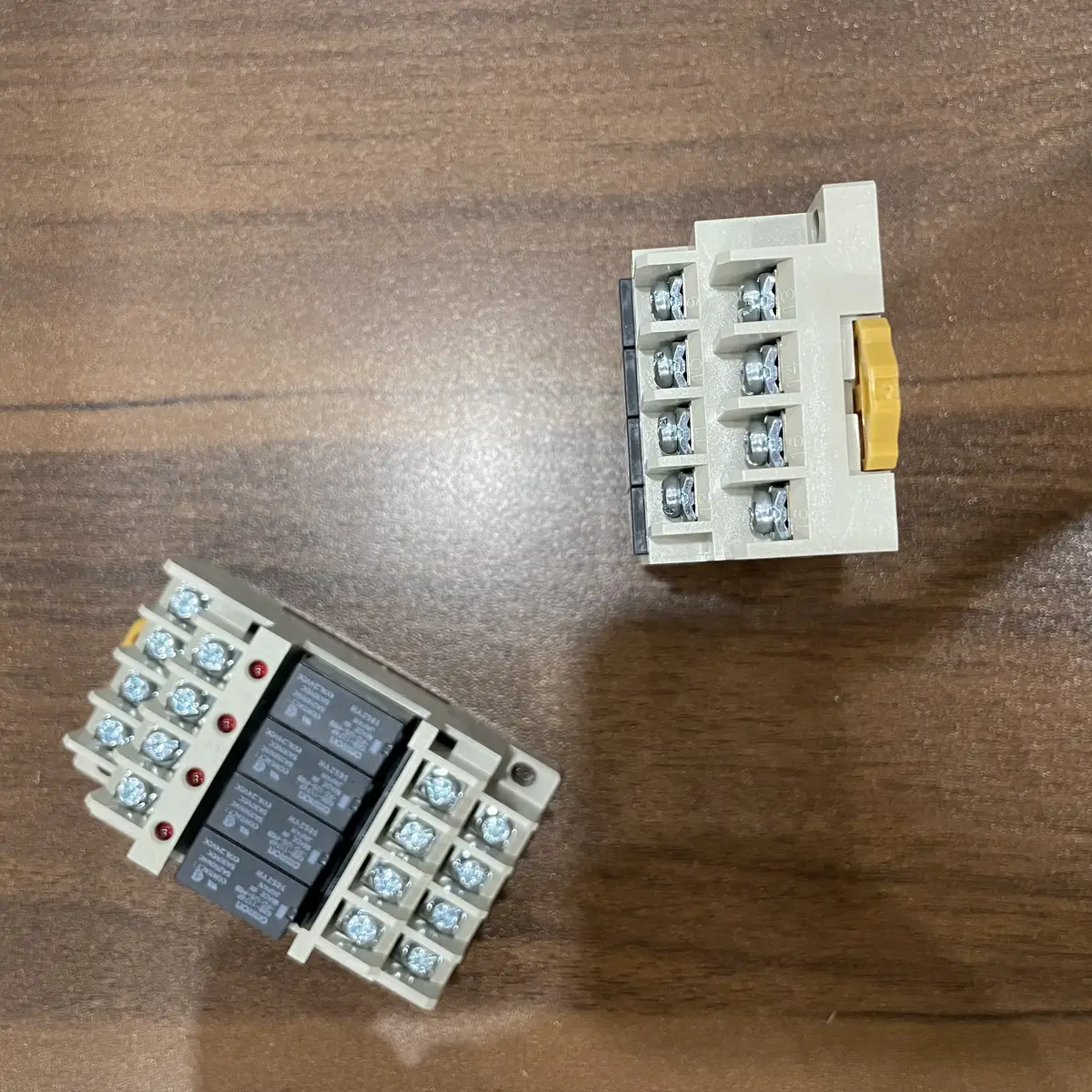

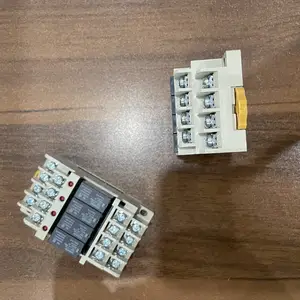

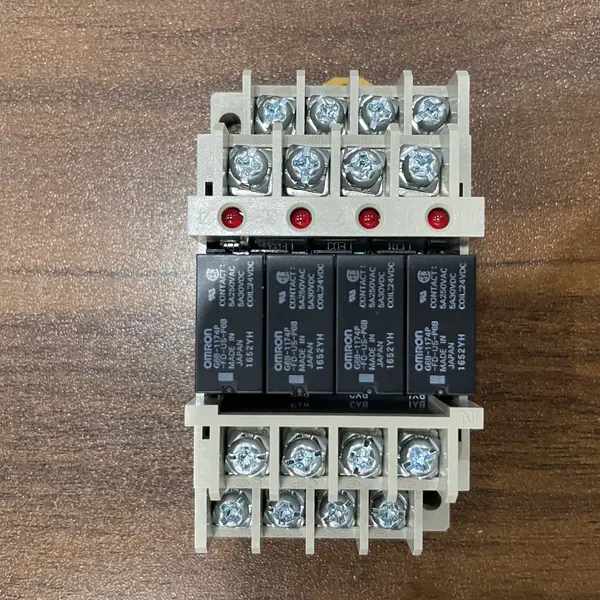

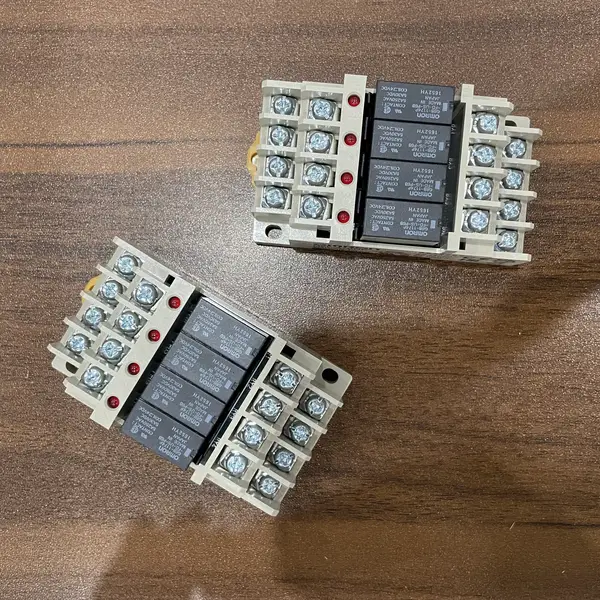

Omron G6B-47BND DC24V PCB Relay Module 4-Pole 4NO
SKU: G6B-47BND DC24VUSD 23.00
Omron G6B-47BND DC24V is a 4-pole PCB relay module with 4NO contacts, DC24V coil, screw terminal wiring for industrial control.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G6B-47BND DC24V provides a practical interface between controller outputs and field loads. In high-cycle or uptime-sensitive applications, this class of component supports cleaner switching behavior, reduced wear concerns, and easier panel-level standardization.
Controller-to-Load Interface Reliability
Relay/SSR devices isolate control electronics from field-side switching demands and provide a practical interface layer in mixed-load control systems.
High-Cycle Switching Practicality
For frequent switching duty, proper relay/SSR selection improves panel reliability and can reduce maintenance compared with under-rated or mismatched alternatives.
Panel Standardization Benefits
Using consistent relay/SSR classes across equipment simplifies wiring conventions, spare inventory, and technician troubleshooting workflows.
Key Features
- Contact Configuration: 4NO (4 Form A)
- Coil Voltage: DC24V
- Coil Power: 360mW
- Contact Rating: 5A at 250VAC, 5A at 30VDC
- Max Switching Voltage: 250VAC, 125VDC
- Operating Time: 10ms max
- SKU: G6B-47BND DC24V
- Series: G6B
- Voltage: 250VAC
Best-Fit Applications
- Isolates controller outputs from field loads
- Provides reliable switching for control branches
- Supports higher cycle operation with proper selection
- Improves panel maintainability and spare planning
- Reduces unplanned downtime from contact wear issues
- Enables cleaner wiring architecture in control cabinets
Buying Checklist
- Practical controller-to-load interface
- Supports high-duty panel switching
- Improves reliability with proper sizing
- Aids standardization of control wiring
- Strong lifecycle service value
Technical Specifications
| Model | G6B-47BND DC24V |
|---|---|
| Series | G6B |
| Type | PCB Relay Module with Terminal Block |
| Contact Configuration | 4NO (4 Form A) |
| Coil Voltage | DC24V |
| Coil Power | 360mW |
| Contact Rating | 5A at 250VAC, 5A at 30VDC |
| Max Switching Voltage | 250VAC, 125VDC |
| Operating Time | 10ms max |
| Release Time | 5ms max |
| Mechanical Life | 20 million operations |
| Electrical Life | 100,000 operations (at rated load) |
| Terminal Type | Screw terminals (M3) |
| Mounting | Panel or DIN rail mount |
| LED Indicator | Yes (coil energization) |
| Operating Temperature | -40 to +70°C |
| Dimensions | 78 x 70 x 55mm |
| Mass | Approx. 180g |
| Certifications | CE, UL, CSA, VDE |
Resources & Downloads
FAQ for G6B-47BND DC24V
Is this the same as G6B-47BND?
Yes, G6B-47BND DC24V is the full model name specifying DC24V coil. Some listings shorten to G6B-47BND. Both refer to the same 4-pole 4NO DC24V relay module.
What coil voltages are available?
G6B-47BND series available in: 5, 12, 24, 48, 110, 220VDC. Select coil voltage matching your control circuit. 24VDC is most common for PLC interfacing.

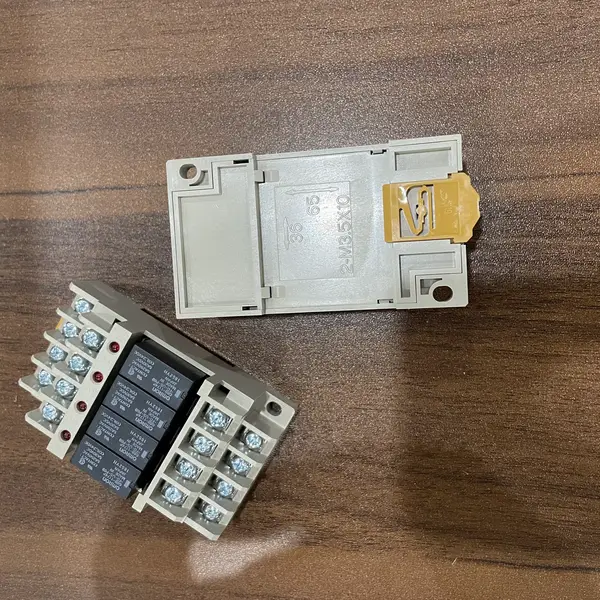

Can I mount this on DIN rail?
Yes, includes DIN rail mounting clip. Also supports direct panel mounting with screws. DIN rail mounting is faster and allows easy repositioning.
What's the coil inductance?
Approximately 1.6H for 24VDC coil. When switching DC coil, always use flyback diode or RC snubber to suppress voltage spike that can damage PLC outputs.
