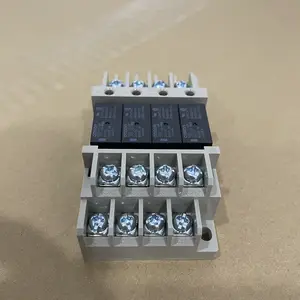

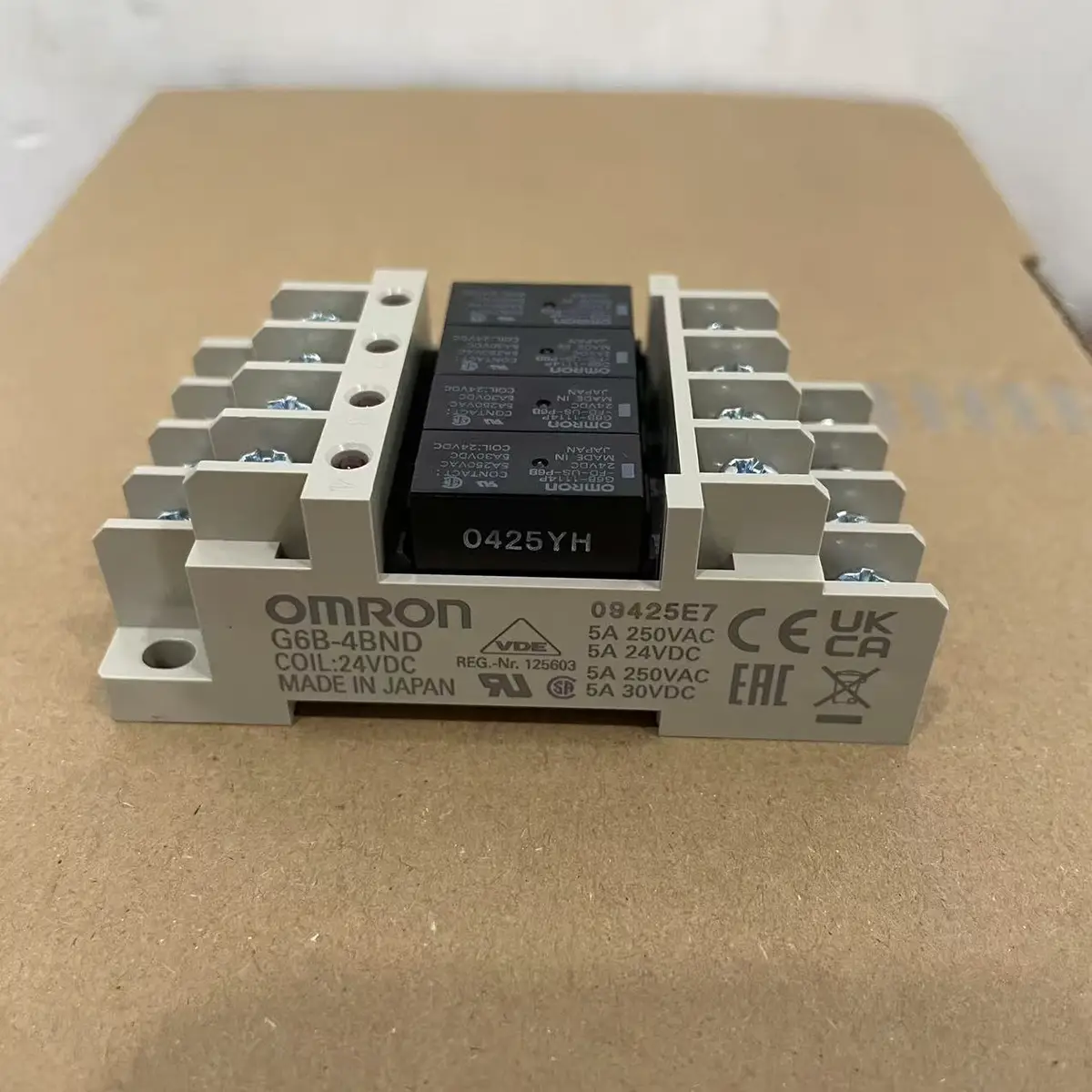

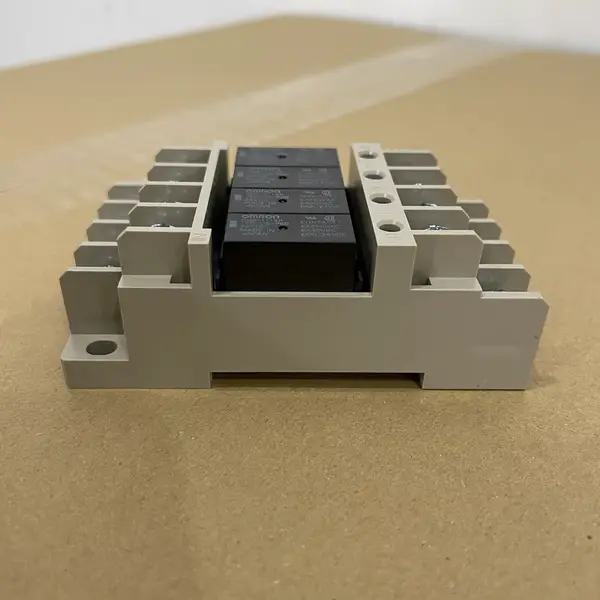

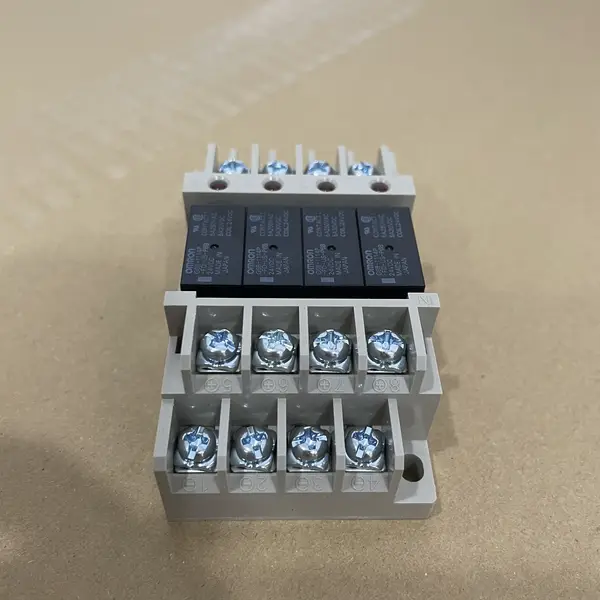

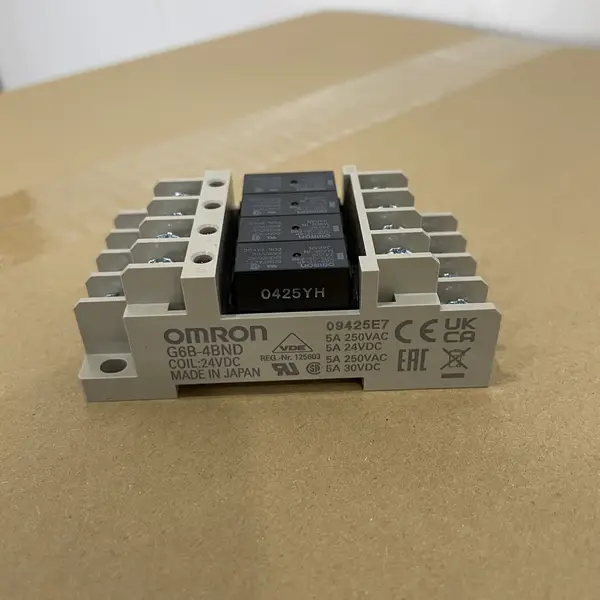

Omron G6B-4BND DC24 PCB Relay Module 4-Pole 4PDT DC24V
SKU: G6B-4BND DC24USD 18.00
Omron G6B-4BND DC24 is a 4-pole PCB relay module with 4PDT (4NO+4NC) contacts, DC24V coil for versatile industrial control switching.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G6B-4BND DC24 supports grouped load switching where PCB-mounted relay integration is preferred for compact control assemblies. Its multi-pole contact configuration and 24VDC control make it suitable for PLC interface boards, auxiliary switching modules, and panel subassemblies. This relay is widely used in machine control systems requiring dependable electromechanical switching behavior.
- SKU: G6B-4BND DC24
- Series: G6B
Best-Fit Applications
- Switching multiple auxiliary loads from control logic
- Building compact relay interface PCB modules
- Interfacing PLC signals to isolated load channels
- Implementing grouped relay outputs in machine controllers
- Replacing failed relay channels on board-level assemblies
- Standardizing relay channels in OEM electrical designs
Buying Checklist
- Multi-pole format reduces component count in grouped switching
- 24V coil aligns with standard control panel voltage
- PCB mount supports compact, efficient control hardware
- Reliable option for recurring industrial switching tasks
- Practical for maintenance of relay-based board assemblies
Technical Specifications
| Model | G6B-4BND DC24 |
|---|---|
| Series | G6B |
| Contact Configuration | 4PDT (4 Form C, 4NO+4NC) |
| Coil Voltage | DC24V |
| Contact Rating | 5A at 250VAC |
| Mechanical Life | 20 million operations |
| Electrical Life | 100,000 operations |
| Terminal Type | Screw terminals |
| LED Indicator | Yes |
| Mounting | Panel or DIN rail |
| Operating Temperature | -40 to +70°C |
Resources & Downloads
FAQ for G6B-4BND DC24
What does 4PDT mean?
4-Pole Double Throw: 4 independent circuits, each with common (C), normally open (NO), and normally closed (NC) contacts. Provides maximum switching flexibility in one module.
How many terminals does this relay have?
14 terminals: 2 for coil (A1, A2), 12 for contacts (4 poles × 3 terminals each: C, NO, NC). Terminal numbers are marked on relay housing.
Can I use NO and NC contacts simultaneously?
Yes, each pole's NO and NC can be used independently. Common application: NO for control circuit, NC for monitoring/feedback to PLC.
What's the contact gap?
Minimum 1.5mm contact gap provides good dielectric strength and arc suppression. Suitable for switching inductive loads with proper protection.
