Omron H3DS-ML — 8-Mode Multi-Function Timer
SKU: H3DS-MLUSD 30.00
H3DS-series 17.5 mm DIN-rail multi-function timer, 8 timing modes, 0.1 s to 120 h range, 24–230 VAC / 24–48 VDC supply, SPDT output, dial-locking — only multi-mode timer in the catalog.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

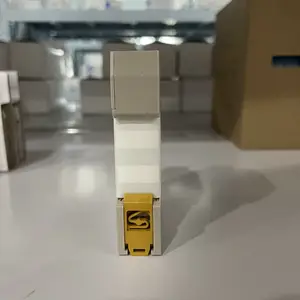

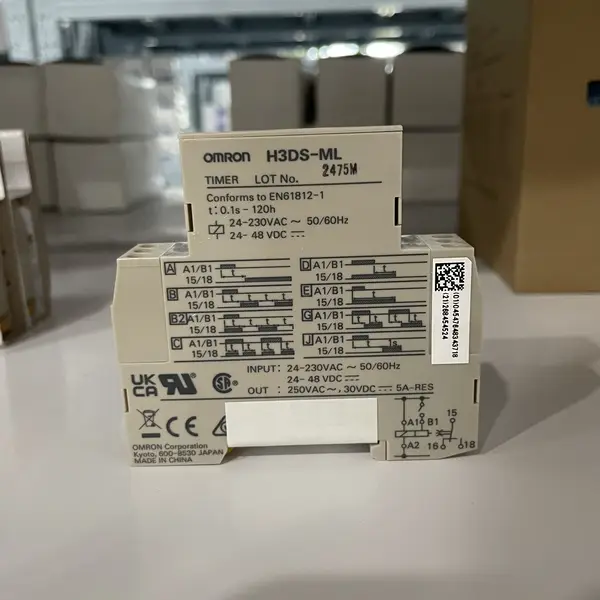

The H3DS-ML is a compact 17.5 mm DIN-rail multi-mode timer from the Omron H3DS family. It is the broadest-coverage timer in the Hengyixin catalogue — eight timing functions selectable from the front dial, eight overlapping time ranges from 0.1 s to 120 hours, and a single universal supply that accepts 24 to 230 VAC or 24 to 48 VDC. The 'ML' suffix decodes as: 'M' for multi-mode (eight timing functions), 'L' for the locking dial feature that prevents inadvertent change of the time-range or mode setting.
Eight timing modes from one unit
The H3DS-ML collapses what would otherwise be eight separate timing relays into one part number.
Time-range dial, eight overlapping ranges
The Time Range selector switches between 0.1 to 1 s, 1 to 10 s, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 h, 1 to 10 h, 0.1 to 1 h × 10 (i.e. 1 to 10 h × 10 = effectively 10 to 100 h), and 1 to 10 h × 10 (10 to 100 h). The latter two ranges stretch the timer to its 120 h ceiling for weekend off-delay applications and pump-station purge cycles.
Key Features
- 17.5 mm wide DIN-rail enclosure — half the width of standard H3 timers
- Eight selectable timing functions in one part number
- Eight overlapping time ranges from 0.1 s to 120 h, including star-delta transfer time
- Universal supply: 24 to 230 VAC and 24 to 48 VDC on the same unit
- SPDT output, 5 A at 250 VAC / 30 VDC resistive
- Time accuracy ±0.5 % FS at 25 °C, ±1 % at -10 to +55 °C
- Lockable mode and range dials — optional Y92S-2 lock key to prevent operator tampering
- Smart Dial: concentric inner/outer time-setting dials for fast range/setting without ambiguity
- SKU: H3DS-ML
- Series: H3DS (DIN-rail mounted solid-state timer)
- Voltage: 24 TO 230 VAC
- I/O: 1 I/O
Best-Fit Applications
- Star-delta motor starting — timer transfers from star winding to delta winding with adjustable transfer pause on 22 kW pumps.
- Conveyor restart time delay after E-stop — ON-delay prevents instant restarts that crowd workers into moving parts
- Pump station purge cycle — interval mode retriggers the timer every 24 hours to cycle solenoid flushing valves
- Heater pre-heat before machine start — long ON-delay on packaging-machine shrink tunnels
Buying Checklist
- Pick the H3DS-ML when you need any of the 8 timing functions in one part number — minimises stock-keeping
- Pick the H3DS-ML when panel space is tight — half-width 17.5 mm saves space vs the 22.5 mm H3CR series it replaces
- Pick the H3DS-ML when you need 230 VAC and 24 VDC supply acceptance on the same unit — only one SKU to stock
- Pick the H3DS-AL when you need AC-only timing without control input
- Pick the H3DS-SL when you need only 24 VAC/DC supply
- Pick the H3DS-FL for star-delta only with star-to-delta transfer
Technical Specifications
| Model | H3DS-ML AC/DC |
|---|---|
| Series | H3DS (DIN-rail mounted solid-state timer) |
| Mounting Width | 17.5 mm (W) × 80 (H) × 73 (D) mm |
| Operating Modes | 8 (ON-delay, ON-delay with control, OFF-delay, Flicker-OFF start, Flicker-ON start, Interval, One-shot, Star-delta) |
| Time Range | 0.1 s to 120 h across 8 ranges |
| Time Setting Range | 0.1 s to 1 s, 1 to 10 s, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 h, 1 to 10 h, 1 to 10 h, 10 to 120 h |
| Supply Voltage | 24 to 230 VAC 50/60 Hz and 24 to 48 VDC (one universal range) |
| Power Consumption | ≤ 4 VA at 230 VAC; ≤ 2 W at 24 VDC |
| Output | SPDT (1 Form C), 5 A / 250 VAC resistive, 5 A / 30 VDC resistive |
| Operating Temperature | -10 to +55 °C (no icing/condensation) |
| Storage Temperature | -25 to +65 °C |
| Certifications | UL, CSA, CCC, CE (EN 61812-1) |
Resources & Downloads
FAQ for H3DS-ML
How do I know which timing mode is currently selected on the H3DS-ML?
The mode dial is on the front face behind a flip-up window. The current mode is printed on the dial: 'A' = ON-delay, 'B' = ON-delay with control input, 'C' = OFF-delay, 'D' = Flicker-OFF start, 'E' = Flicker-ON start, 'F' = Interval, 'G' = One-shot, 'Y' = Star-delta. The label is printed in a window next to the dial, and the timer comes with a quick-reference card that lists the timing chart for each mode.
Can the H3DS-ML be used to start a 22 kW motor in star-delta?
Yes — the Star-delta mode (Y) is the classical motor starting sequence. Wire the SPDT contact in series with the delta contactor; the timer's transfer time is the star-to-delta pause and is settable on the 0.1 to 1 s range for typical 30–100 ms transitions. Set the time range to the slowest setting that ensures the motor has pulled into star synchronism — usually 5 to 8 seconds for 22 kW.
What replaces the older H3CR-H8L timer?
The H3DS-ML is the direct replacement for the discontinued H3CR-H8L (8-mode, 11-pin plug-in timer) and H3CR-A8 (8-mode, 11-pin with control input) — it offers identical 8 timing functions in a half-width 17.5 mm DIN-rail package instead of the H3CR's 22.5 mm plug-in body. If the panel was wired for 11-pin octal socket, add the Y92F-78 8-pin to 11-pin adapter or move the wiring to a screw-terminal block.
Why is there a 230 VAC supply option on a 24 VDC timer?
Industrial panels commonly mix 24 VDC control circuits with 230 VAC power for contactor coils. The H3DS-ML AC/DC version accepts both, which means panel builders don't have to specify two different timers for each voltage. The internal power supply uses a switching regulator, so input voltage variation has negligible effect on timing accuracy.
