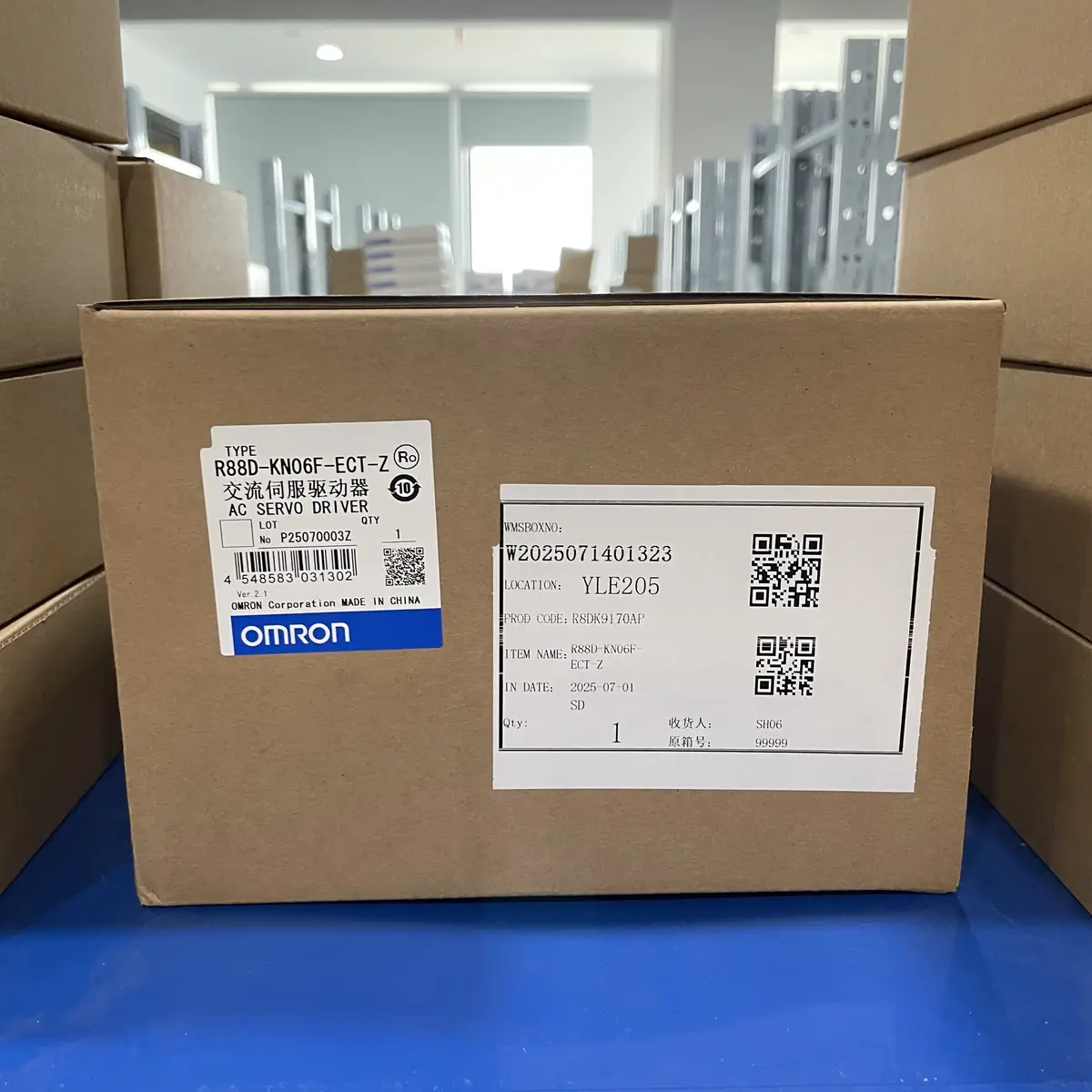

Omron R88D-KN06F-ECT-Z EtherCAT Servo Drive 600W Three-Phase 200V G5 Safety — front view

Omron R88D-KN06F-ECT-Z Accurax G5 Servo Drive, 600 W, 400 VAC, EtherCAT, with Safety

SKU: R88D-KN06F-ECT-Z

USD 515.00

Omron R88D-KN06F-ECT-Z Accurax G5 servo drive, 600 W output, three-phase 400 VAC, EtherCAT, with STO/SS1/SLS safety functions (-Z variant) for safety-rated motion axes.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron R88D-KN06F-ECT-Z is a 600 W, three-phase 400 VAC G5 servo drive with EtherCAT and the safety option. The "KN" prefix in the R88D ordering code denotes the 400 V class — the industrial three-phase supply used in most European panels. The "06" gives 600 W output, "F" denotes the three-phase 400 V input variant, "ECT" EtherCAT, and "-Z" the safety option.

The 400 V class is preferred for higher-power G5 axes (typically 1 kW and up) because the input current is roughly half of the equivalent 200 V drive — smaller breakers, smaller contactors, and thinner cable. At 600 W the 400 V class is borderline but is commonly used to standardise the cabinet on one input voltage across all servo drives.

The "-Z" safety option implements STO (Safe Torque Off), SS1 (Safe Stop 1) and SLS (Safely Limited Speed) per IEC 61800-5-2. STO cuts drive output torque without removing power; SS1 ramps the axis to a controlled stop and then cuts torque; SLS monitors shaft speed and trips if the configured limit is exceeded. These functions are activated over EtherCAT FSoE (Fail Safe over EtherCAT) and meet SIL 3 / PL e when wired into a suitable safety controller.

Matching motor: R88M-K40030H (no brake) or R88M-K40030H-B (with brake), both 200 V / 400 V class 3000 rpm. The 20-bit absolute encoder in the motor pairs with the drive's high-resolution feedback loop. The drive supports auto-gain tuning, manual tuning, and a full vibration-suppression mode for low-rigidity mechanisms.

Key Features

  • 600 W continuous output at 3000 rpm motor class
  • Three-phase 380–480 VAC input (industrial 400 V class)
  • EtherCAT CoE — CIA 402 drive profile
  • Integrated safety: STO, SS1, SLS per IEC 61800-5-2 (SIL 3 / PL e capable)
  • Safety activated over EtherCAT FSoE (Fail Safe over EtherCAT)
  • 20-bit absolute encoder feedback with the matching R88M-K motor
  • One-button auto-gain tuning plus manual tuning
  • Vibration-suppression mode for low-rigidity mechanisms
  • SKU: R88D-KN06F-ECT-Z
  • Series: Accurax G5 (R88D-KN)
  • Voltage: 480 VAC
  • I/O: 600 I/O

Best-Fit Applications

  • Safety-rated motion axes on robotic cells (with FSoE-capable safety controller)
  • Press and stamping machines requiring SLS-limited speed for setup mode
  • 400 V cabinet standardisation across all G5 axes
  • Indexing tables and rotary cutters with STO protection
  • High-inertia vertical axes where SS1 controlled-stop matters

Buying Checklist

  • Verify the input voltage is 400 V class (KN) and not 200 V class (SN/KT) — they are not interchangeable
  • The safety functions require an FSoE-capable safety controller (e.g. Omron NX-SL3300 / NX-SL3500) on the same EtherCAT network
  • For a standard drive without safety, order the R88D-KN06F-ECT (no -Z suffix)
  • Match the motor to the 400 V 600 W class
  • Use Omron's specified EtherCAT cable — generic Cat 5e is not rated for FSoE duty

Technical Specifications

Series Accurax G5 (R88D-KN)
Model R88D-KN06F-ECT-Z
Drive type EtherCAT servo drive with safety
Continuous output 600 W
Applicable motor R88M-K40030H / R88M-K40030H-B (3000 rpm)
Input voltage Three-phase 380–480 VAC, 50/60 Hz
Control method PWM sine-wave, IGBT
Encoder feedback 20-bit absolute serial encoder
Communication EtherCAT (CoE, CIA 402 drive profile)
Cycle time 250 µs / 500 µs / 1 ms / 2 ms / 4 ms
Safety functions STO, SS1, SLS per IEC 61800-5-2
Safety bus EtherCAT FSoE
Safety rating SIL 3 / PL e (with suitable safety controller and wiring)
Control modes PP, PV, PT, HM, IP, CSP, CSV, CST (per CIA 402)
Gain tuning Auto (one-button), manual, vibration-suppression
Protective functions Overcurrent, overload, overvoltage, undervoltage, overspeed, encoder error, regenerative discharge, communication error
Operating temperature 0 °C to +55 °C
Storage temperature -20 °C to +65 °C
Mounting DIN rail or panel mount

FAQ for R88D-KN06F-ECT-Z

What is the difference between -ECT and -ECT-Z?
The -Z variant adds the safety option: STO, SS1, SLS per IEC 61800-5-2, activated over EtherCAT FSoE. The -Z drive is more expensive but required for any application where the drive participates in a functional safety circuit.
What safety controller do I need?
An FSoE-capable safety controller on the same EtherCAT network. The Omron NX-SL3300 / NX-SL3500 safety slices paired with an NX102 / NX502 controller are the typical choice. Third-party FSoE masters are also supported.
Can I retrofit a -Z drive into an existing line that uses standard drives?
Yes — the standard CIA 402 motion control behaviour is identical between the -ECT and -ECT-Z variants. The -Z just adds the FSoE safety layer. Existing motion programs do not need to change.
What is FSoE?
Fail Safe over EtherCAT — a black-channel safety protocol carried as a separate EtherCAT frame. The safety controller and the -Z drive exchange safety PDOs over FSoE while normal motion PDOs continue to flow on the same bus. It is standardised in IEC 61784-3.
