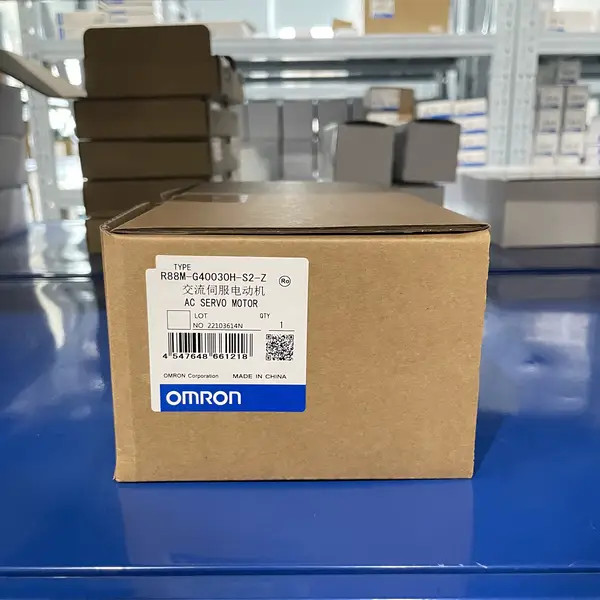

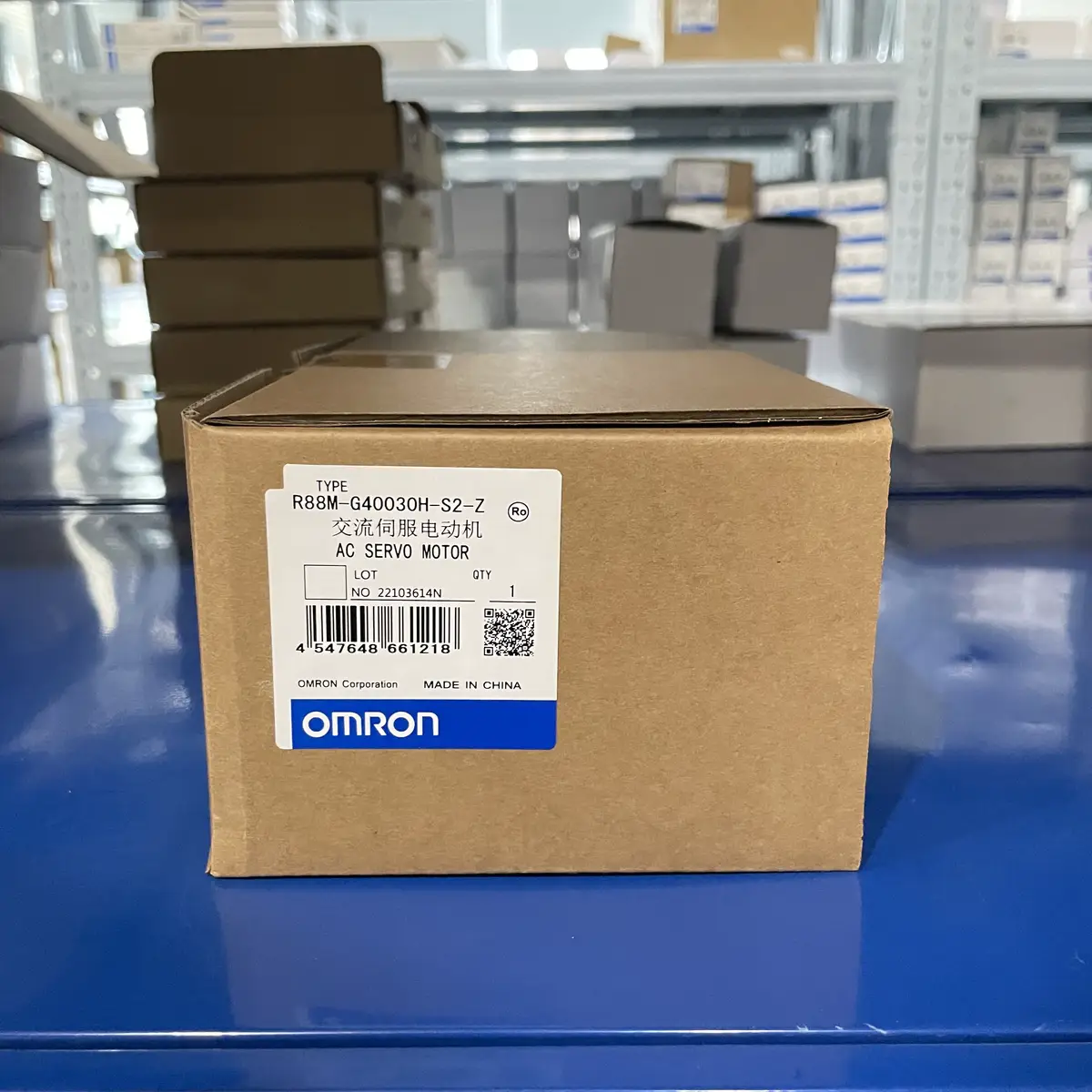

Omron R88M-G40030H-S2-Z AC Servo Motor 400W 3000rpm G5 Series with Safety… — front view

Omron R88M-G40030H-S2-Z G-Series Servo Motor, 400 W, 200 VAC, 3000 rpm, with Brake and Safety Companion

SKU: R88M-G40030H-S2-Z

USD 188.00

Omron R88M-G40030H-S2-Z G-series AC servo motor, 400 W, 200 VAC, 3000 rpm, with 24 VDC electromagnetic brake and oil seal. The "-Z" suffix denotes the safety companion variant, paired with a -Z suffix Accurax G5 drive.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron R88M-G40030H-S2-Z is a 400 W, 200 VAC, 3000 rpm member of the Accurax G5 G-series servo motor family, with electromagnetic brake and oil seal, in the safety companion variant. The "R88M-G" prefix denotes the older G-series motor in the G5 family — distinct from the more recent R88M-K series, although both are part of the Accurax G5 platform.

The "H" in the code denotes the 200 V class. "40030" is 400 W at 3000 rpm. The "-S2" suffix indicates a smooth shaft with brake, and the trailing "-Z" is the safety companion variant: the motor is mechanically and electrically identical to the non-Z R88M-G40030H-S2, but it is qualified by Omron to operate with the -Z safety drives in functional-safety applications.

The oil seal (the "S2" also covers the oil-seal option in this code line) is important for gear-coupled or oil-lubricated applications where the bare shaft would otherwise be exposed to lubricant or coolant. The 24 VDC brake is spring-applied and electrically released — fail-safe on power loss.

This motor is a good fit for safety-rated vertical axes and press / shear applications where the load must be held when the servo is off, and where the application needs STO / SS1 / SLS from the drive. The matching drive is the R88D-KN04H-ECT-Z (400 W, 400 V, EtherCAT, safety) — note the voltage class may differ (G-series motor is 200 V, the typical Z drive is 400 V); Omron's selection tables map motor to drive explicitly.

Key Features

  • 400 W continuous output at 3,000 rpm rated speed
  • 200 VAC class
  • Smooth shaft with 24 VDC electromagnetic brake (spring-applied)
  • Oil seal for gearbox- or oil-lubricated mounting
  • 20-bit incremental encoder (compatible with the G5 G-series drive)
  • Qualified as the safety companion variant for -Z suffix drives
  • 60 mm frame (square flange)
  • IP65 body, IP67 shaft seal
  • SKU: R88M-G40030H-S2-Z
  • Series: Accurax G5 (R88M-G, G-series)
  • Voltage: 200 VAC
  • I/O: 400 I/O

Best-Fit Applications

  • Vertical-axis applications with safety-rated drive pairing
  • Press and stamping machine feed axes
  • Gear-coupled axes in oil-lubricated gearboxes
  • Safety-rated Z-axis on robot cells
  • Replacement of legacy G-series motors in existing G5 installations

Buying Checklist

  • Confirm the matching drive from the Omron selection table — the -Z motor pairs with a specific -Z drive, not with a non-Z drive
  • For vertical / Z-axis duty, the brake is essential — never run a vertical axis on a brake-less motor
  • The oil seal adds drag and reduces continuous torque by a small amount — account for that in sizing
  • Verify the 200 V motor class against the drive's voltage class — G-series motors are 200 V class, but they are commonly driven by 400 V G5 drives via the encoder interface
  • If you are designing a new system, prefer the R88M-K series over the older R88M-G series

Technical Specifications

Series Accurax G5 (R88M-G, G-series)
Model R88M-G40030H-S2-Z
Motor type AC servo motor, medium-inertia
Rated output 400 W
Rated speed 3,000 rpm
Rated voltage 200 VAC class (200–230 VAC)
Rated torque 1.27 N·m
Peak torque 3.82 N·m (3× rated)
Encoder Incremental serial encoder (20-bit compatible)
Shaft Smooth
Oil seal Yes
Brake 24 VDC spring-applied electromagnetic brake
Brake holding torque ≥ rated torque
Frame size 60 mm square flange
Shaft diameter 14 mm
Mass ≈ 1.4 kg (with brake)
Protection IP65 (body), IP67 (shaft)
Insulation class Class F
Operating temperature 0 °C to +40 °C
Safety variant Qualified companion to -Z suffix drives

FAQ for R88M-G40030H-S2-Z

What is the difference between R88M-G and R88M-K?
Both are Accurax G5 servo motors. The R88M-G is the older G-series (medium-inertia); the R88M-K is the newer K-series (low-inertia). They are not interchangeable: the encoder interface, shaft dimensions and mounting details differ. For new designs, prefer the R88M-K series.
Why is the motor marked "-Z"?
The trailing -Z is the safety companion designation. The motor itself is mechanically and electrically identical to the non-Z R88M-G40030H-S2, but Omron has qualified it as suitable for use with -Z suffix safety drives in functional-safety applications.
What drive pairs with this motor?
An -Z suffix Accurax G5 drive at the matching power: R88D-KN04H-ECT-Z (400 W, 400 V, EtherCAT, safety) is the common choice. Always confirm with the Omron selection table for your specific safety function.
