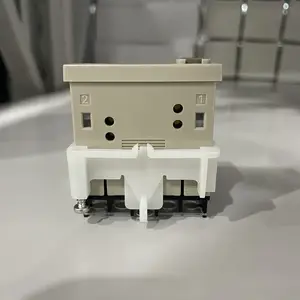

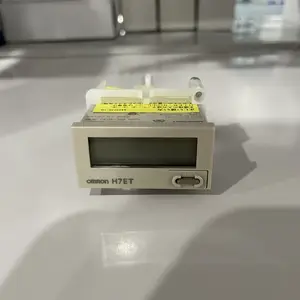

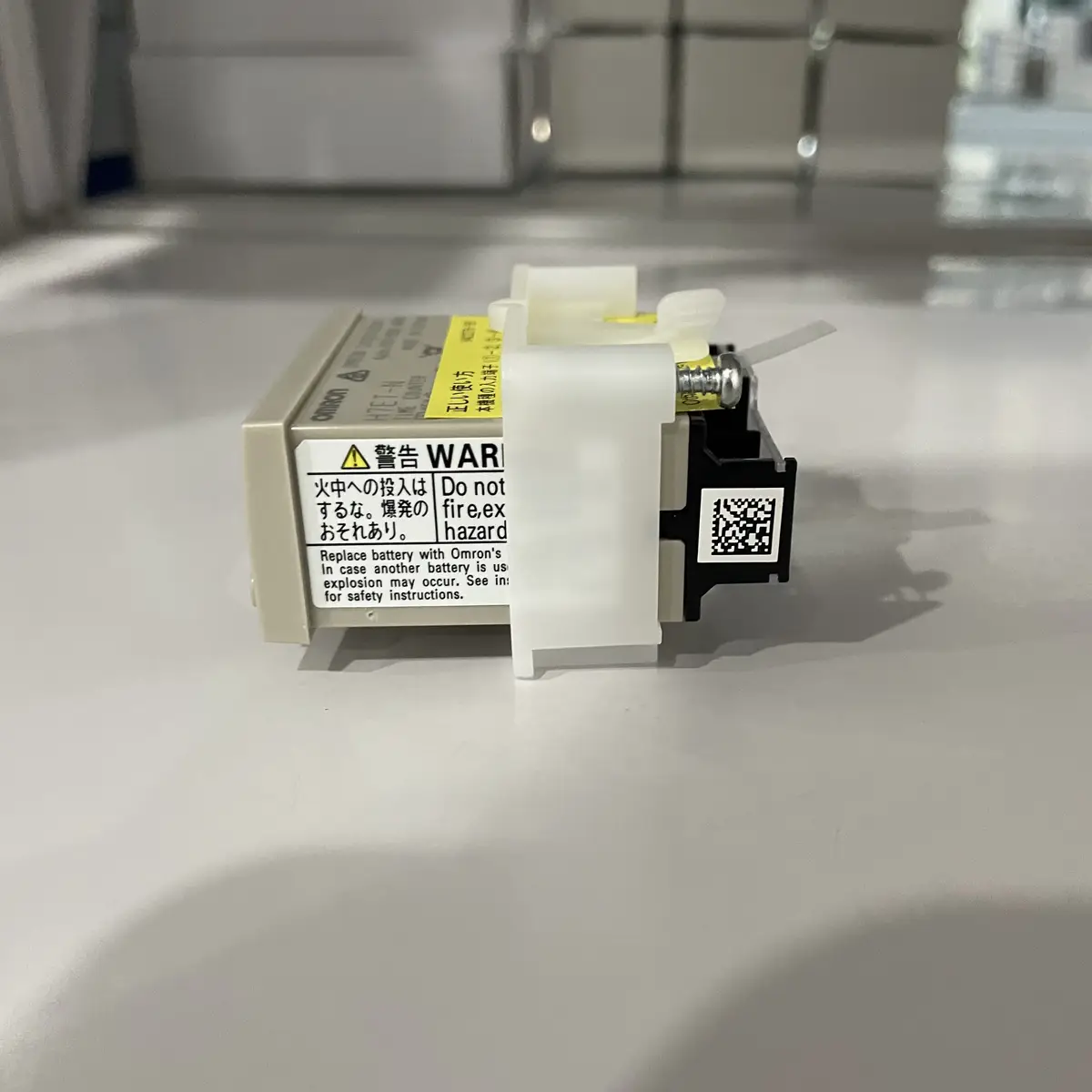

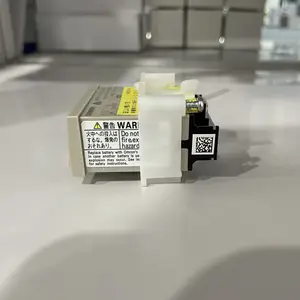

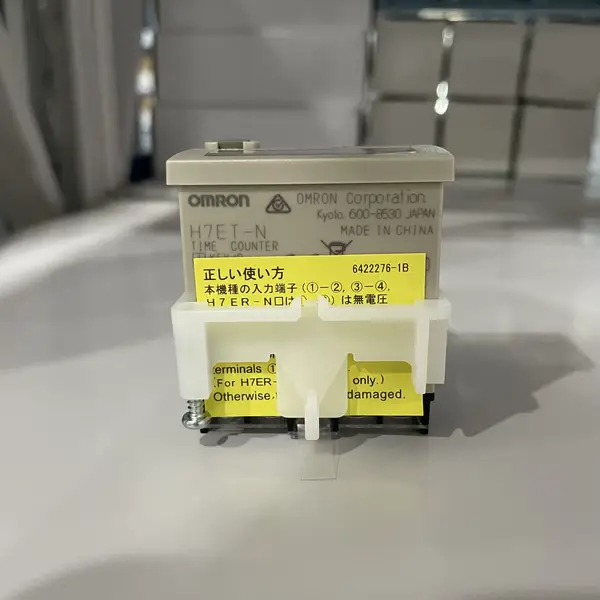

Omron H7ET-N — Hour Meter, Self-Powered, 7-Digit
SKU: H7ET-NUSD 25.00
self-powered hour meter, 1/32 DIN, 7-digit LCD, 0-999999.9 h, no-voltage input. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron H7ET-N is the H7ET-series self-powered hour meter for panel mounting It is manufactured by Omron Corporation. Hengyixin Automation stocks this timer / counter at our Xiamen warehouse; orders placed before 14:00 CST ship same business day. It runs from an internal lithium battery, so no external supply is needed. The 7-digit LCD shows 0 to 999999.9 hours or 0.0 to 3999 days 23.9 hours, with 8.6 mm tall characters. The flush-mount adapter Y92F-35 or Y92F-75 is sold separately. Key specs: Counting Range 0 to 999999.9 hours or 0.0 to 3999 days 23.9 hours (dual range, selected by front-panel switch); Display 7-digit 7-segment LCD, 8.6 mm character height, no backlight; Count Input No-voltage input from dry contact or open-collector, max 0.5 Hz (1 sec min pulse width); Power Self-powered by internal lithium battery (no external supply), approximately 10-year battery life at 25 C ambient; Reset External reset terminal and front-panel reset button; Body / Cut-out 1/32 DIN, 48 (W) x 24 (H) x 48.5 (D) mm, panel cut-out 45.00 x 22.20 mm, light grey bezel; Environment -10 to 55 C operating, 25 to 85 percent humidity (no condensation); Front Face.
Key Features
- H7ET-series self-powered hour meter / time counter, internal lithium battery, no external supply needed
- 7-digit LCD with 8.6 mm character height, range 0 to 999999.9 h or 0.0 to 3999 d 23.9 h, no backlight
- No-voltage count input from a dry contact or open-collector, 0.5 Hz max count rate
- 1/32 DIN body, 48 x 24 x 48.5 mm, IP66 front face, panel cut-out 45.00 x 22.20 mm
- SKU: H7ET-N
- Series: Omron H7ET-series self-powered time counter / hour meter
Best-Fit Applications
- Generator run-time tracking where the H7ET-N counts contactor-closure pulses and shows hours on the panel for the maintenance log
- Pump runtime monitoring where the H7ET-N is wired to a flow-switch dry contact and counts hours for service-interval scheduling
- Spare replacement for a worn H7CC-ASD preset counter swapped for the simpler self-powered H7ET-N hour meter
Buying Checklist
- Pick the H7ET-N for a self-powered hour meter with no external wiring and a 0-999999.9 h range on a 1/32 DIN panel.
- Pick the H7ET-NFV instead when the cabinet has an available AC or DC voltage output and the panel needs a powered counter with voltage input.
- Pick the H7EC-N instead when the panel can fit the wider 8-digit display and the application needs the larger character height on the same 1/32 DIN body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron H7ET-series self-powered time counter / hour meter |
| Model / SKU | H7ET-N |
| Counting Range | 0 to 999999.9 hours or 0.0 to 3999 days 23.9 hours (dual range, selected by front-panel switch) |
| Display | 7-digit 7-segment LCD, 8.6 mm character height, no backlight |
| Count Input | No-voltage input from dry contact or open-collector, max 0.5 Hz (1 sec min pulse width) |
| Power | Self-powered by internal lithium battery (no external supply), approximately 10-year battery life at 25 C ambient |
| Reset | External reset terminal and front-panel reset button |
| Body / Cut-out | 1/32 DIN, 48 (W) x 24 (H) x 48.5 (D) mm, panel cut-out 45.00 x 22.20 mm, light grey bezel |
| Environment | -10 to 55 C operating, 25 to 85 percent humidity (no condensation) |
| Front Face | IP66 with Y92S-P6 waterproof packing; weight approximately 60 g |
| Sister Models | H7ET-N-B (black case), H7ET-N1 (0-10000 h range), H7ET-NFV (AC / DC voltage input), Y92F-35 / Y92F-75 flush-mount adapter |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for H7ET-N
What is the Omron H7ET-N used for?
It is the H7ET-series self-powered hour meter / time counter. It runs from an internal lithium battery, so no external supply is needed. It counts no-voltage pulses from a dry contact or open-collector at up to 0.5 Hz and shows 0 to 999999.9 hours or 0.0 to 3999 d 23.9 h on the 7-digit LCD. Typical uses are generator run-time tracking, pump runtime, and service-interval counters.
H7ET-N vs H7ET-NFV - what is the difference?
Both share the same 1/32 DIN body, 7-digit LCD, and 0-999999.9 h range. The -N is self-powered by an internal lithium battery (no external supply); the -NFV takes an AC or DC voltage input as the count signal. Pick the -N when the panel only has a dry contact; pick the -NFV when the panel already runs a 24 VDC signal that needs to be counted directly.
How long does the H7ET-N battery last?
Approximately 10 years at 25 C ambient. The battery is internal and is not user-replaceable; when the LCD dims or the count stops incrementing, swap the entire H7ET-N unit. Spare units ship from the Hengyixin Xiamen warehouse.
Does the H7ET-N have an external reset?
Yes. The H7ET-N has an external reset terminal on the rear that accepts a no-voltage pulse, plus a front-panel reset button behind the bezel. The reset clears the displayed count to zero without interrupting the battery.
