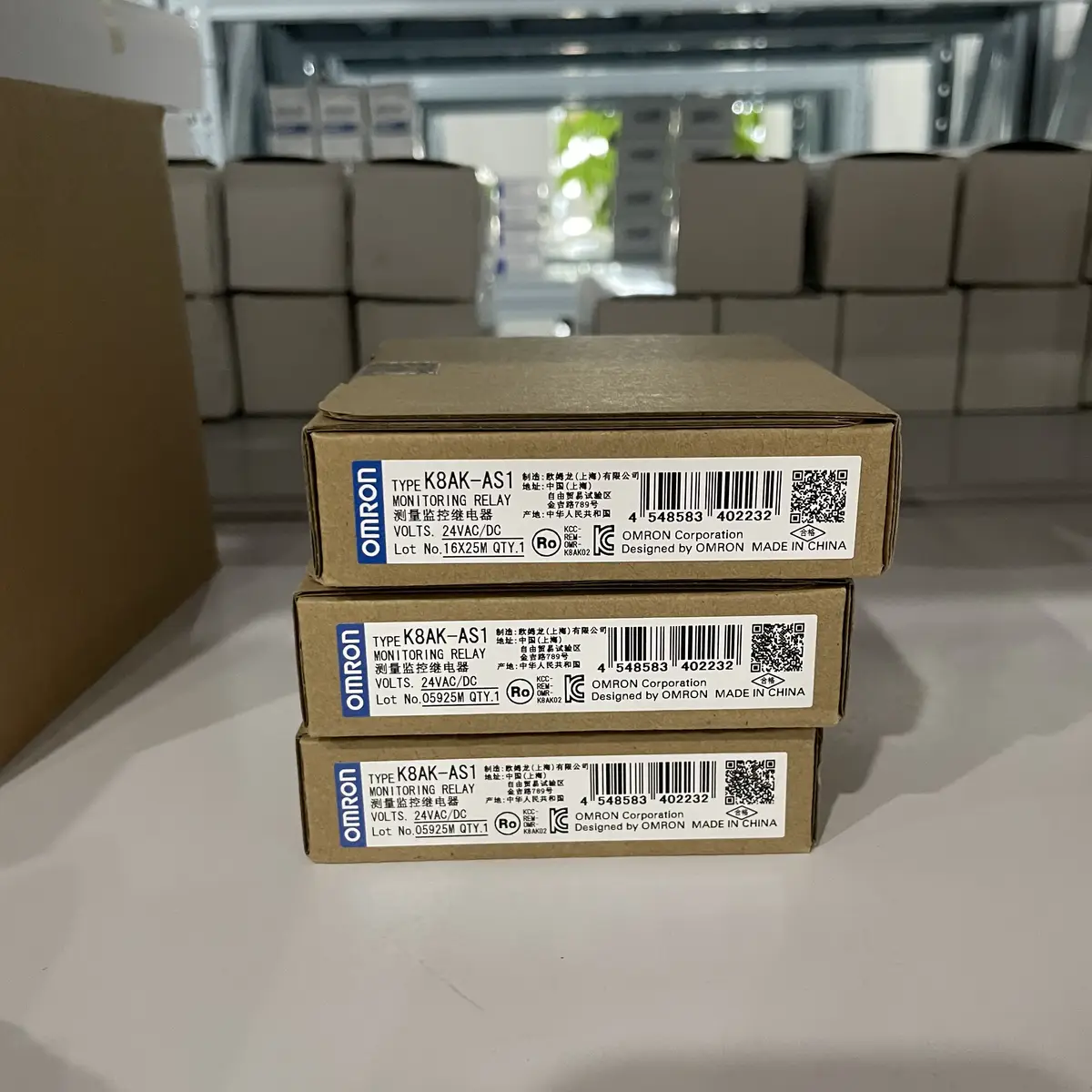

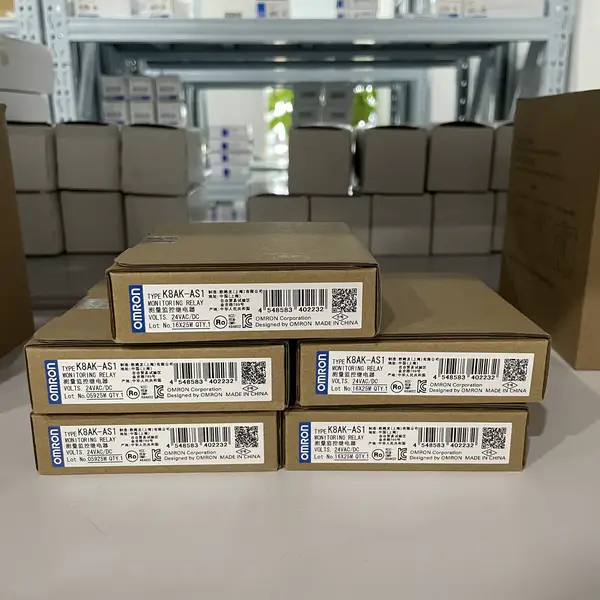

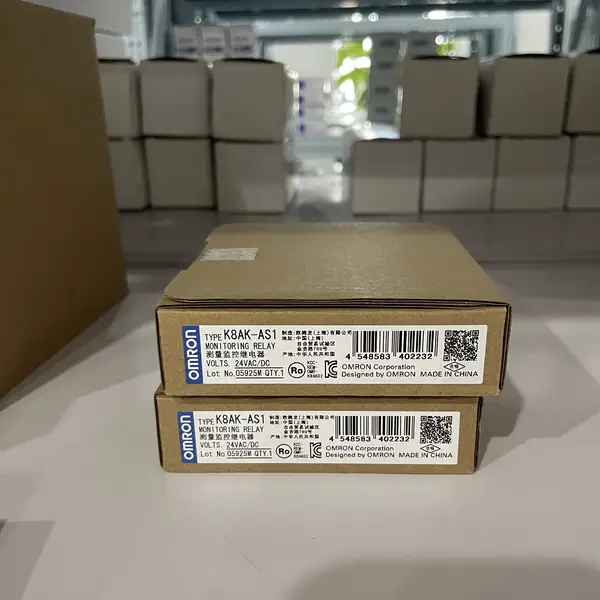

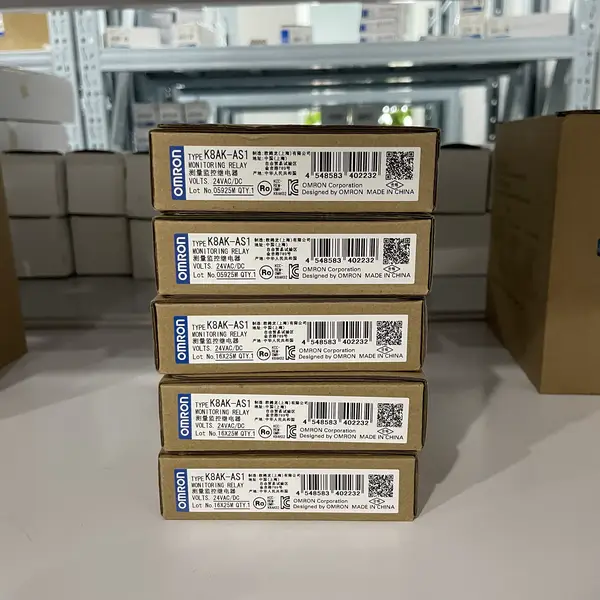

Omron K8AK-AS1 24VAC-DC — Current Monitoring Relay, 2-500 mA
SKU: K8AK-AS1 24VAC-DCUSD 58.00
K8AK single-phase current monitoring relay, 2-500 mA over three DIP-switched ranges, SPDT 5 A output, DIN-rail, 24 VAC/DC supply.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron K8AK-AS1 24VAC-DC is a single-phase current monitoring relay from the K8AK series of DIN-rail monitoring relays. The "AS" suffix means current monitoring (overcurrent or undercurrent, selectable on the front panel); the "AW" suffix covers undercurrent + overcurrent in one unit. The "1" in K8AK-AS1 picks the low-current sub-family, with three DIP-switched current ranges from 2 mA to 500 mA. This SKU runs on 24 VAC/DC, which fits neatly next to other 24 V control gear in a cabinet.
Where the K8AK-AS1 earns its keep
Use a K8AK-AS1 to watch a low-current load and trip when the current goes too high (overcurrent) or falls too low (undercurrent). Typical uses include heater-band open detection, signal-lamp burnout detection, small-pump dry-run detection (via the undercurrent side), and conveyor current-stall detection on a sub-amp drive. The adjustable operating time and start-up lock let you suppress nuisance trips at machine start, where inrush current is normal. For 1 A through 8 A loads, step up to the K8AK-AS2; for 10 A through 200 A with a current transformer, use the K8AK-AS3.
Setting up the relay
Setup is via four front-panel elements: a current-range DIP switch (I1 / I2 / I3), an operating-value knob (10-100% of the chosen range), a hysteresis knob (5-50% of the setpoint), and an operating-time knob (0.1-30 s). The start-up lock (0-30 s) deliberately ignores overcurrent during the first seconds of machine start. Output is a single SPDT contact rated 5 A at 250 VAC, wired to a contactor, alarm lamp, or PLC input. Manual reset vs auto reset is a front-panel switch.
Before ordering
Plan a 22.5 mm wide slot on the DIN rail — K8 series relays slot in neatly next to each other and next to K8DS series monitoring relays. Power consumption is about 2 VA / 1.1 W at 24 V. For a higher-current load, pick a K8AK-AS2 (up to 8 A direct) or K8AK-AS3 (10-200 A with the K8AC-CT200L current transformer). For phase-loss and phase-sequence protection of a three-phase motor, use the K8DS-PM or K8DS-PH series instead.
Key Features
- K8AK series single-phase current monitoring relay
- Overcurrent or undercurrent selectable on the front panel
- Three input ranges via DIP switches: 2-20 mA / 10-100 mA / 50-500 mA
- Operating-value knob 10-100% of the chosen range
- Operating time 0.1-30 s; start-up lock 0-30 s (overcurrent only)
- SPDT output, 5 A at 250 VAC
- Manual reset or auto reset — front-panel switch
- DIN-rail mount, 22.5 x 100 x 95 mm
- 24 VAC/DC supply; K8AK-AS1 100-240 VAC variants also exist
- SKU: K8AK-AS1 24VAC-DC
- Series: K8AK single-phase current monitoring relay
- Voltage: 24 VAC
- I/O: 1 I/O
Best-Fit Applications
- Heater-band open detection or signal-lamp burnout detection in a sub-amp control loop
- Dry-run protection on a small pump where a falling current under-load signals an empty tank
- Conveyor motor-stall detection on a sub-amp gearmotor (current rises when the belt jams)
- Light-load process alarming on a small mixer or stirrer where the in-process current should sit in a band
- PLC-side current limit check on a small packaging machine's vacuum or solenoid circuit
Buying Checklist
- Choose K8AK-AS1 for a low-current (2-500 mA) single-phase current monitor; step up to K8AK-AS2 for 1-8 A direct, or K8AK-AS3 for 10-200 A with a CT.
- Use the start-up lock (0-30 s) to ignore the inrush at machine start, especially on motor loads with capacitor banks or heater bands.
- Pick the K8AK-AW1 if you need both overcurrent and undercurrent tripping from one unit; the K8AK-AS trips on one direction only.
- Plan DIN-rail space — the K8AK is 22.5 mm wide and 95 mm deep, and slots in next to K8DS phase monitors and other 22.5 mm-wide K8-series relays.
- Verify the 24 VAC/DC supply is available in the cabinet; for 100-240 VAC, order the K8AK-AS1 100-240VAC SKU instead.
Technical Specifications
| Model | K8AK-AS1 24VAC-DC |
|---|---|
| Series | K8AK single-phase current monitoring relay |
| Monitoring Function | Overcurrent or undercurrent (front-panel switch) |
| Input Range (DIP-switched) | I1: 2-20 mA (~5 Ω) / I2: 10-100 mA (~1 Ω) / I3: 50-500 mA (~0.2 Ω) |
| Setpoint / Hysteresis | 10-100% of full-scale; hysteresis 5-50% of setpoint |
| Operating Time | 0.1 to 30 s adjustable |
| Start-Up Lock Time | 0 to 30 s (overcurrent only) |
| Reset | Manual or auto reset (front-panel switch) |
| Output | SPDT (1 Form C), 5 A at 250 VAC |
| Power Supply | 24 VAC/DC (this SKU); 100-240 VAC variants also exist |
| Mounting / Size | DIN-rail, 22.5 (W) x 100 (H) x 95 (D) mm |
| Approvals | UL, CSA, CE, CCC |
Resources & Downloads
FAQ for K8AK-AS1 24VAC-DC
What is the difference between K8AK-AS1 and K8AK-AW1?
K8AK-AS1 monitors for either overcurrent OR undercurrent — the direction is set on the front-panel switch. K8AK-AW1 monitors for both overcurrent AND undercurrent at the same time, with separate setpoints. Pick AS when you only need a single-direction trip; pick AW when you need to detect both an upper and a lower bound on the load current.
How does the K8AK-AS1 measure current?
Direct input — the load current passes through the relay's input terminals (I1 / I2 / I3 depending on range). For low-current ranges, the internal impedance is high enough that no shunt or CT is required. For higher currents, the K8AK-AS2 handles 1-8 A direct, and the K8AK-AS3 takes a current-transformer signal (10-100 A or 20-200 A with the K8AC-CT200L CT).
What supply voltage does the K8AK-AS1 need?
This SKU runs on 24 VAC/DC (the "24VAC-DC" suffix in the part number). If your cabinet supply is 100-240 VAC, order the K8AK-AS1 100-240VAC variant instead. Power draw is around 2 VA at 24 V and 4.6 VA at 100-240 V.
Can the K8AK-AS1 ignore inrush current at start-up?
Yes. The start-up lock timer (0-30 s) is set on the front panel and ignores overcurrent for that many seconds after power-on. After the lock expires, normal monitoring resumes. This is useful for heater-band or motor loads where the inrush is much higher than the steady-state current.
