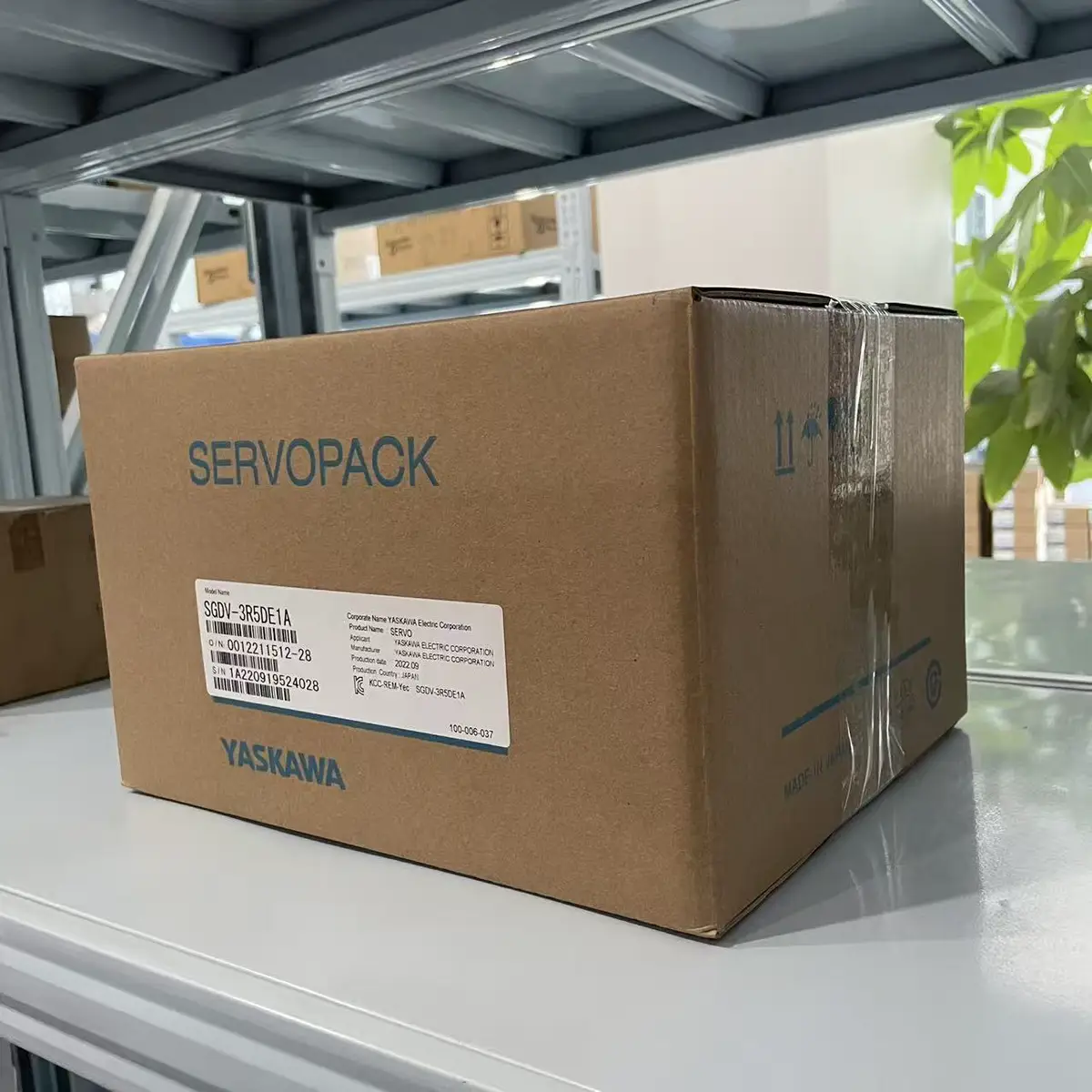

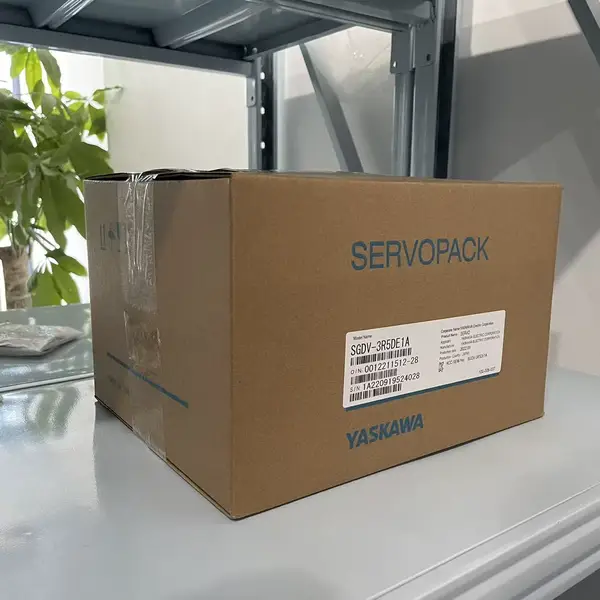

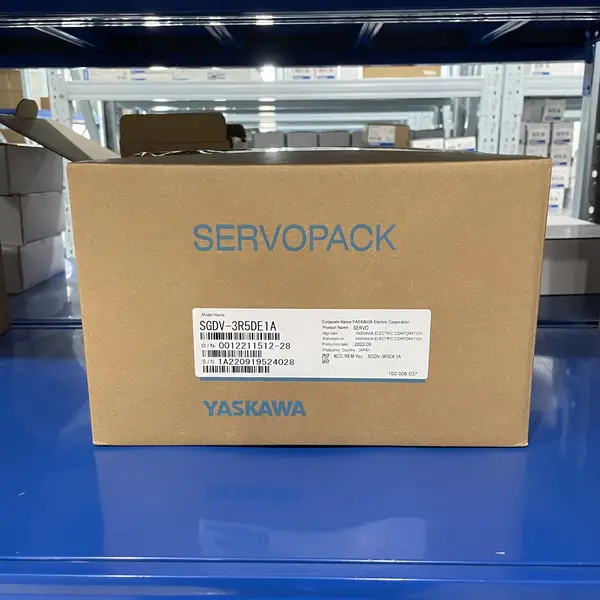

Omron SGDV-3R5DE1A — Sigma-V Drive, 1 kW, 400 V
SKU: SGDV-3R5DE1AUSD 390.00
Yaskawa Sigma-V servo drive, 400 V 3-phase, 3.5 A (1 kW), analog / pulse command. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron SGDV-3R5DE1A is a Yaskawa Sigma-V (SGDV) series servo drive sold through the Omron channel, manufactured by Yaskawa Electric. It is manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below.
Maximum applicable motor capacity is 1 kW at a rated output current of 3.5 A. Supply is 3-phase 400 VAC, 480 VAC maximum.
For a Sigma-V cabinet on the same backplate, pair with the R88M-1M40030T-S2 1S-series 400 W motor. Key specs: Maximum Motor Capacity 1 kW; Rated Output Current 3.5 A rms; Power Supply Voltage 3-phase 400 VAC, 480 VAC max; Command Interface Analog voltage + pulse-train for rotary servo motor; Encoder Feedback 13-bit / 17-bit / 20-bit serial encoder (motor dependent); Hardware Style Base-mount, design sequence A; Operating Temperature 0 to +55 degC ambient; Storage Temperature -20 to +85 degC.
Key Features
- Yaskawa Sigma-V (SGDV) servo drive, 3.5 A rated / 1 kW max motor
- 3-phase 400 VAC supply, 480 VAC max, analog / pulse command
- Design sequence A, base-mount hardware, IP10 panel enclosure
- Pairs with SGMGV-1A3D 750 W or SGMPS-04 850 W Sigma-V motor
- SKU: SGDV-3R5DE1A
- Series: Yaskawa Sigma-V (SGDV) series servo drive
- Voltage: 400 VAC
Best-Fit Applications
- 400 V retrofit on a CNC tool magazine where the Sigma-V 3.5 A drive replaces an older Yaskawa SGD drive on the same cabinet
- Conveyor indexer on a European packaging line where the 400 V 3-phase supply matches the plant distribution and the analog command replaces a MECHATROLINK cable
- Spare replacement on a Sigma-V cabinet where the original drive failed and the new one drops onto the same base plate
Buying Checklist
- Pick the SGDV-3R5DE1A for a Sigma-V 400 V 3-phase analog / pulse drive up to 1 kW with a 3.5 A output.
- Pick the SGDV-3R5AE1A instead when the cabinet runs on 200 V 3-phase on the same Sigma-V analog / pulse body.
- Pick the R88D-KT04H-Z instead when the application needs an Accurax G5 400 W analog / pulse drive on 200 V.
Technical Specifications
| Manufacturer | Yaskawa Electric, sold through Omron |
|---|---|
| Series | Yaskawa Sigma-V (SGDV) series servo drive |
| Model / SKU | SGDV-3R5DE1A |
| Maximum Motor Capacity | 1 kW |
| Rated Output Current | 3.5 A rms |
| Power Supply Voltage | 3-phase 400 VAC, 480 VAC max |
| Command Interface | Analog voltage + pulse-train for rotary servo motor |
| Encoder Feedback | 13-bit / 17-bit / 20-bit serial encoder (motor dependent) |
| Hardware Style | Base-mount, design sequence A |
| Operating Temperature | 0 to +55 degC ambient |
| Storage Temperature | -20 to +85 degC |
| Protection / Insulation | IP10 panel enclosure, Class F insulation |
FAQ for SGDV-3R5DE1A
What motor pairs with the SGDV-3R5DE1A?
Any Yaskawa Sigma-V SGMGV, SGMPS, SGMJV or SGMAV servo motor up to 1 kW. Common matches are the SGMGV-1A3D (750 W SGMGV), SGMPS-04 (850 W SGMPS) and SGMJV-A5A (850 W SGMJV).
Is the SGDV-3R5DE1A 200 V or 400 V?
400 V class, 3-phase 400 VAC. The D in the SGDV-3R5D part number marks 400 V class. For 200 V class, use the SGDV-3R5AE1A in the same Sigma-V analog / pulse family.
What software configures the drive?
Sigma-Win+, the Yaskawa PC tool for Sigma-V drives. Set up via the USB port on the front panel, or through the analog / pulse wiring on a new install.
Does the SGDV-3R5DE1A support safety functions?
Not in this base DE1A configuration. The STO / SS1 / SS2 / SLS safety functions require the safety module option, ordered as a separate suffix (the 002000 option code). For built-in STO on the same 400 V Sigma-V body, order the SGDV-3R5DE1A002000.
