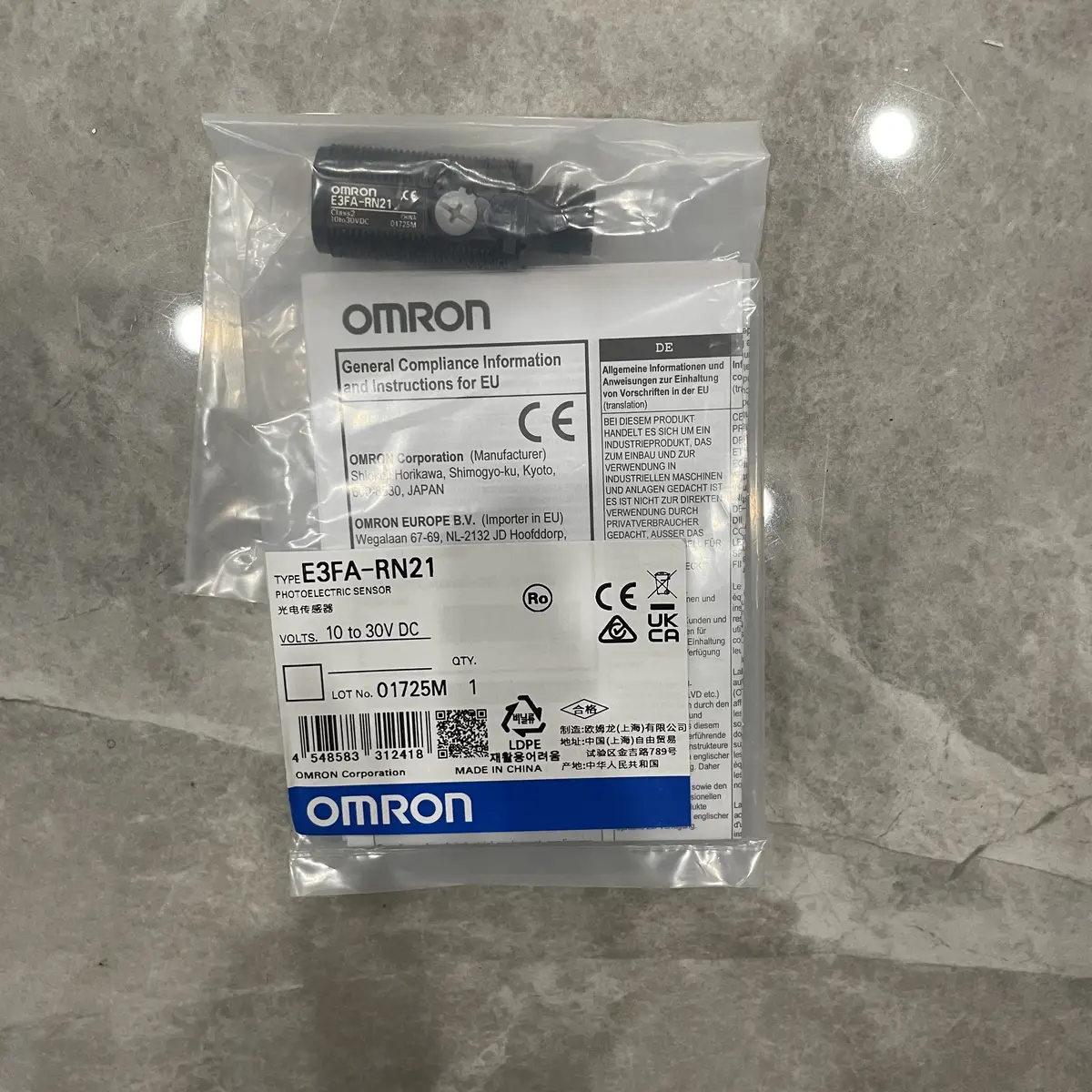

Omron E3FA-RN21 — M18 Retro Reflective Sensor, NPN, M12
SKU: E3FA-RN21USD 16.00
E3FA M18 retro-reflective photoelectric sensor, NPN, polarized red LED with M.S.R. for transparent-bottle detection. 0.1-4 m, M12, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3FA-RN21 is an M18 cylindrical retro-reflective photoelectric sensor with a built-in amplifier. manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
Pick it when the line needs object detection at 0.1 to 4 m via a single M18 sensor + E39-R1 reflector, with reliable reading of shiny or transparent bottles and reflective film. The sensor runs at 0.1 to 4 m on white-paper targets (100 mm minimum sensing distance, 4 m max with the E39-R1S 40 x 60 mm reflector).
The E3FA-RN21 ships from Xiamen with full datasheet documentation. The pre-wired 2 m cable variant is the E3FA-RN11; the PNP (sourcing) twin in the same M12 connector body is the E3FA-RP21.
Key Features
- 0.5 ms or less response time
- 10 to 30 VDC supply at 25 mA max
- M18 threaded flush-mount ABS plastic body, 45 mm length
- NPN open-collector output, 100 mA max at 30 VDC, Light-ON / Dark-ON selectable by wiring
- SKU: E3FA-RN21
- Series: E3FA-series compact cylindrical retro-reflective photoelectric sensor with built-in amplifier
- Voltage: 10 TO 30 VDC
Best-Fit Applications
- Replace a worn-out diffuse-reflective sensor on a washdown-light station where the ABS plastic IP67 body is acceptable
- Quick-disconnect build with an XS2F / XS2W M12 4-pin cordset routed to a CJ / CP1 / NX digital input card
- Detect PET bottles on a beverage conveyor where the M.S.R. filter rejects shiny reflections from the bottle surface
Buying Checklist
- Pick the E3FA-RN11 instead for the pre-wired 2 m cable variant (no M12 connector required)
- Pick the E3FA-RP21 instead for the PNP (sourcing) twin in the same M12 connector body
- Pick the E3FB-RN11 / E3FB-RP11 instead for an IP69K stainless steel retro-reflective sensor in food / beverage washdown
Technical Specifications
| Series | E3FA-series compact cylindrical retro-reflective photoelectric sensor with built-in amplifier |
|---|---|
| Model | E3FA-RN21 |
| Sensing Principle | Retro-reflective with M.S.R. (Mirror Surface Rejection) function, M18 threaded body |
| Sensing Range | 0.1 to 4 m (100 mm minimum distance, 4 m max with E39-R1S reflector) |
| Light Source | Polarized red 624 nm LED with M.S.R. function |
| Output Type | NPN open-collector, 100 mA max at 30 VDC |
| Output Mode | Light-ON / Dark-ON selectable by wiring |
| Response Time | 0.5 ms or less |
| Supply Voltage | 10 to 30 VDC at 25 mA max |
| Connector | M12 4-pin connector on rear face (suffix -21 = M12 connector variant) |
| Protection Rating | IP67 and IP69K |
| Operating Temperature | -40 to +55 degrees Celsius; ABS plastic housing, 45 mm length |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for E3FA-RN21
What does M.S.R. mean on the E3FA-RN21?
M.S.R. = Mirror Surface Rejection. The sensor uses a polarized red 624 nm LED plus a polarizing filter so the receiver only sees light that has been depolarized by the target object (true diffuse reflection) and ignores the bright first-surface mirror reflection from glass or shiny labels. The result: reliable detection of clear PET bottles, shrink-wrapped packs, and reflective film without false triggers.
Is the E3FA-RN21 rated IP69K?
Omron lists IP67 and IP69K for the E3FA-RN21 (IEC IP67, DIN 40050-9 IP69K), so it suits high-pressure, high-temperature washdown as well as the E3FB stainless line stainless steel sensor line (E3FB-RN11 NPN / E3FB-RP11 PNP). For a washdown-grade retro-reflective sensor in a food / beverage plant, pick the E3FB-RN11 or E3FB-RP11 with the matching E39-RB reflector.
What is the difference between E3FA-RN11 and E3FA-RN21?
Wiring. The E3FA-RN11 ships with a pre-attached 2 m oil-resistant PVC cable pigtail -- no M12 connector needed. The E3FA-RN21 (this SKU) ships with an M12 4-pin connector on the rear face; the field cable is attached with a separate XS2F / XS2W M12 4-pin cordset. Both sensors are otherwise identical: NPN retro-reflective, 0.1 to 4 m range, M18 ABS body, IP67.
Which reflector should I use with the E3FA-RN21?
The E39-R1S (40 x 60 mm ABS / acrylic rectangle) is the standard pick and reaches the full 4 m range. The E39-R7 round 84 mm reflector reaches about 1 m and is a low-cost tube-fitting option. The E39-R40 large 84.5 x 84.5 mm reflector reaches about 1.5 m and is the right pick when the target is more than 200 mm away and the reflector is mounted on a wide conveyor side. For tape-style applications on small parts, the E39-RS1 / RS25 / RS50 reflective tape works in place of a rigid reflector.
