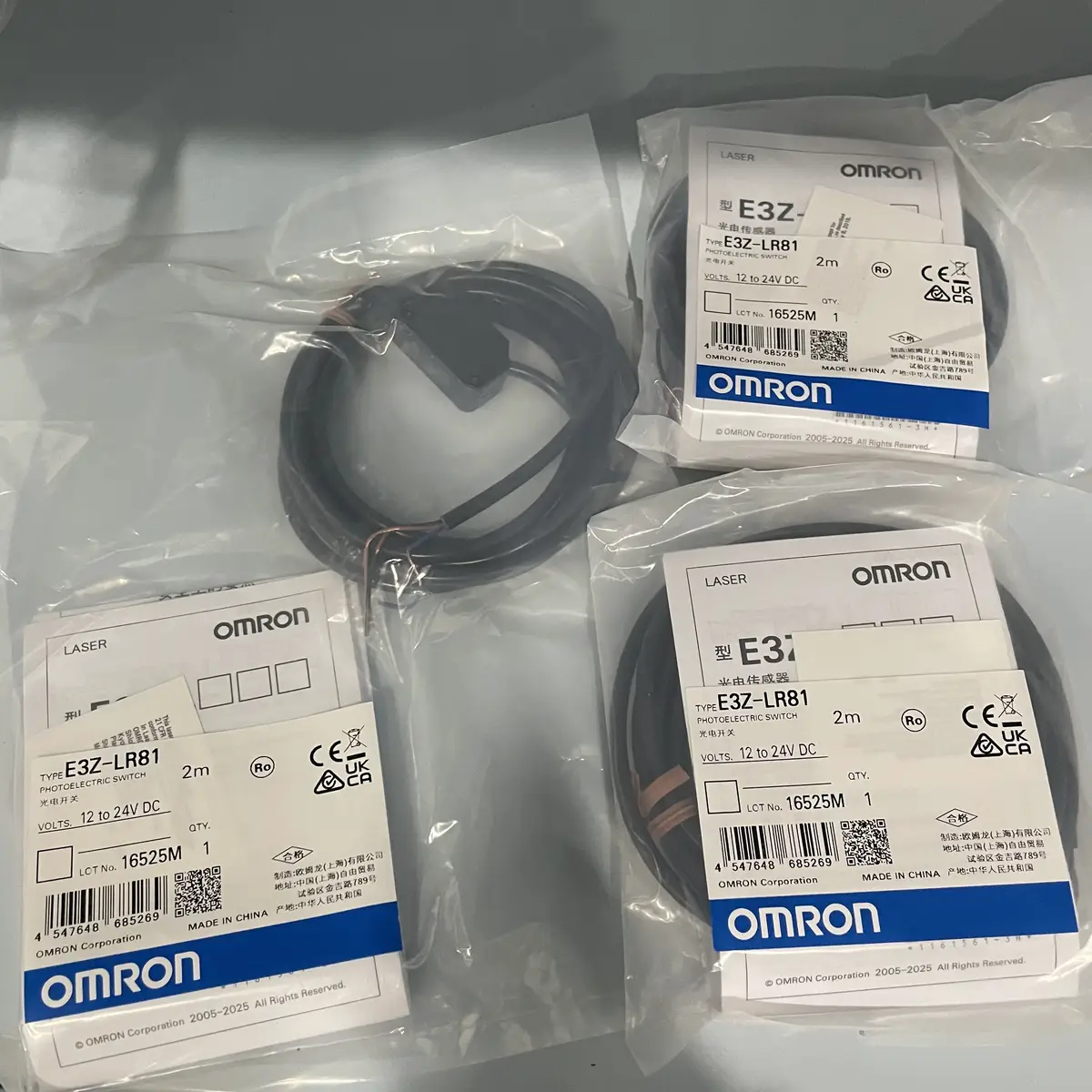

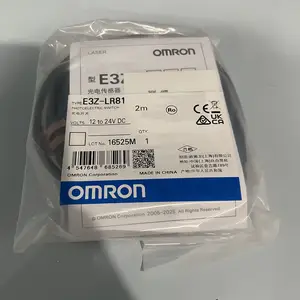

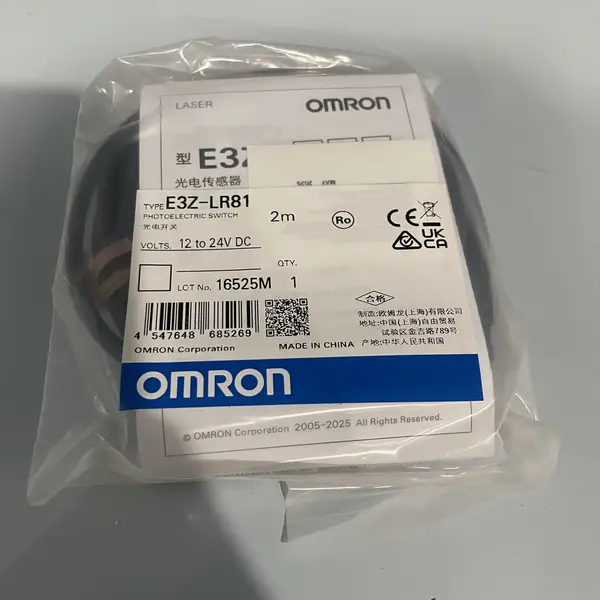

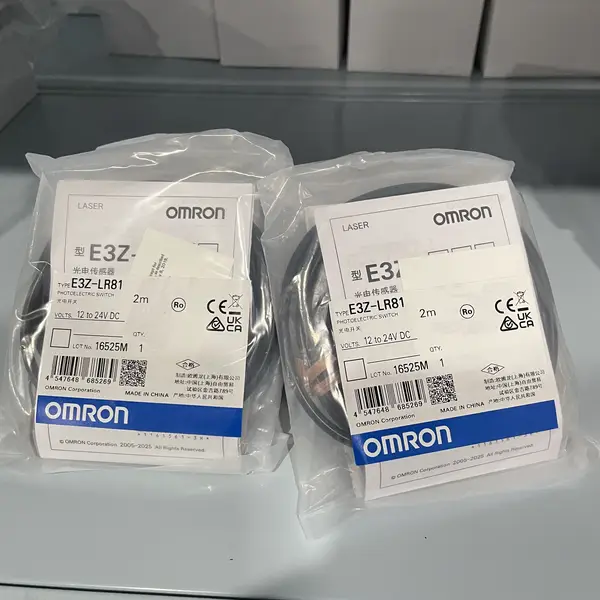

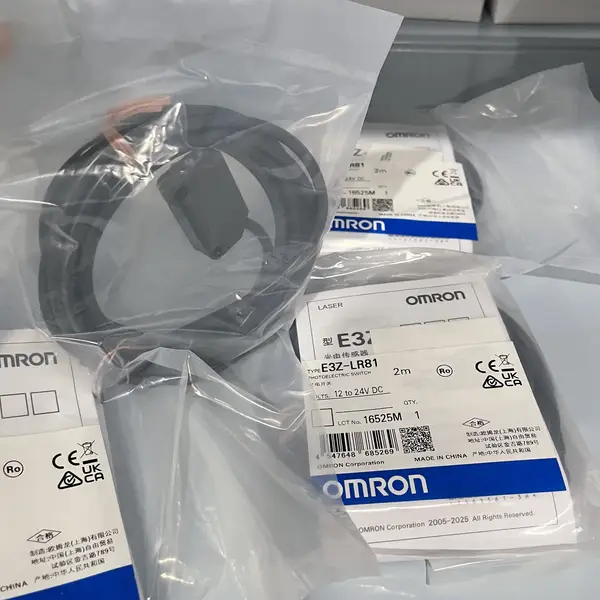

Omron E3Z-LR81 — Laser Retro Sensor, PNP, 15 m, 2 m
SKU: E3Z-LR81USD 103.00
E3Z-LR compact laser retro-reflective sensor with MSR, 15 m range with E39-R1, PNP open collector, pre-wired 2 m cable, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3Z-LR81 is a compact laser retro-reflective photoelectric sensor from the E3Z-LR family, designed to detect objects that defeat a standard retro sensor — shiny foil labels, polished metal cans, glossy cartons, and small surface-mount components. It uses a Class 1 visible red laser (660 nm), paired with a polarising MSR (Mirror-Surface Rejection) filter that ignores the specular reflection from a flat shiny surface and only registers the diffuse return from a reflector placed directly behind the target.
Picking the right code
E3Z-LR is the laser retro family. The third digit picks the output and connector: 1 is PNP open-collector with a pre-wired 2 m cable, 6 is PNP with an M8 4-pin connector, 8 is NPN with an M8 4-pin connector. NPN pre-wired is the E3Z-LR11 2M. Reach 15 m with the standard E39-R1 reflector at a 5 mm spot, or use the E39-R2 / E39-R6 for a 200 mm spot and 7 m range — useful when the target path is small and a wider beam avoids aiming errors.
Before ordering
Power the sensor from a 12-24 VDC ±10 % supply. Set Light-ON / Dark-ON on the rear switch; for shiny-foil detection on a conveyor, Dark-ON usually works better because the polarising filter rejects the direct mirror return. Verify the M.S.R. reflector side faces the sensor (the opposite side from a normal reflector mark). For transparent bottles, switch to E3Z-B61 2M; for a clear-PET line, plain retro reflex cannot tell PET from air.
Key Features
- E3Z-LR compact laser retro-reflective photoelectric sensor
- Polarising M.S.R. (Mirror-Surface Rejection) for shiny / metal targets
- Class 1 visible red laser, 660 nm
- Sensing range 15 m with E39-R1 reflector (5 mm spot at 3 m)
- 7 m range and 200 mm spot with E39-R2 / E39-R6 reflector
- PNP open-collector output, 100 mA max load
- Light-ON / Dark-ON selectable on the rear switch
- Pre-wired 2 m oil-resistant PVC cable
- 12-24 VDC ±10 % supply, 30 mA current draw
- 1 ms response time
- IP67 PBT housing, -25 to 55 °C operating temperature
- SKU: E3Z-LR81
- Series: E3Z-LR compact laser retro-reflective sensor
- Voltage: 12-24 VDC
- I/O: 100 I/O
Best-Fit Applications
- Detect blister packs and foil-wrapped pharma cartons on a conveyor
- Trigger on polished metal cans or magnetic components leaving a wash station
- Pick-and-place verification on a glossy PCB panel before reflow
- Count glossy ceramic or glass-fronted appliances on an end-of-line conveyor
- Position check on a small shiny part where a wide 200 mm beam avoids alignment drift
Buying Checklist
- Pick E3Z-LR86 with an M8 connector instead if you prefer a quick-disconnect flying lead.
- Pick E3Z-LR61 with an M8 connector instead if your PLC expects NPN inputs.
- Pick E3Z-R61 2M non-laser polarised retro instead if a 4 m LED retro works on your labels.
- Pick E3Z-B61 2M clear-PET retro if your line runs clear plastic bottles.
- Pick E3Z-LL86 if you need BGS laser distance sensing instead of through-beam-style detection.
- Order at least one E39-R1 reflector (sold separately) — the sensor alone does not include the reflector.
Technical Specifications
| Series | E3Z-LR compact laser retro-reflective sensor |
|---|---|
| Sensing Principle | Retro-reflective with M.S.R. polarising filter |
| Light Source | Class 1 red laser, 660 nm |
| Sensing Range | 15 m with E39-R1 reflector; 7 m with E39-R2 / E39-R6 |
| Output | PNP open-collector, 100 mA max at 26.4 VDC |
| Operating Modes | Light-ON / Dark-ON selectable |
| Connection | Pre-wired 2 m PVC cable |
| Supply Voltage | 12-24 VDC ±10 %, 30 mA max |
| Response Time | 1 ms |
| Protection | IP67 PBT housing |
| Operating Temperature | -25 to 55 °C |
Resources & Downloads
FAQ for E3Z-LR81
What is the actual sensing range, and what does 350 mm in the old listing mean?
The official range is 15 m with the standard E39-R1 reflector. Older stock listings quoting "350 mm" were confusing this SKU with the short-range diffuse E3Z-D8x series; the E3Z-LR81 has always been a long-range retro sensor. Use the E39-R1 reflector (5 mm spot at 3 m) for accurate aiming, or step up to the E39-R2 / E39-R6 reflector (200 mm spot) if the target is small or the alignment drifts.
Can the E3Z-LR81 see through a clear PET bottle?
No. The polarising M.S.R. filter rejects the double-refraction return from a transparent object, so a clear PET or clear glass bottle will not register reliably. For clear-bottle detection on a filling line, choose the E3Z-B61 2M clear-PET retro-reflective sensor.
Is the E3Z-LR81 a Class 1 or Class 2 laser product?
It is a Class 1 laser product, the safest classification — no laser safety eyewear or protective enclosure is required under normal use. Eye-safe even through optics within the beam for short-duration exposure.
