Omron G3NA-210B-UTU DC5-24V — 10 A Solid State Relay
SKU: G3NA-210B-UTU DC5-24VUSD 16.50
Omron G3NA-210B-UTU DC5-24V 10 A SSR, 24-240 VAC, 5-24 VDC, zero-cross. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

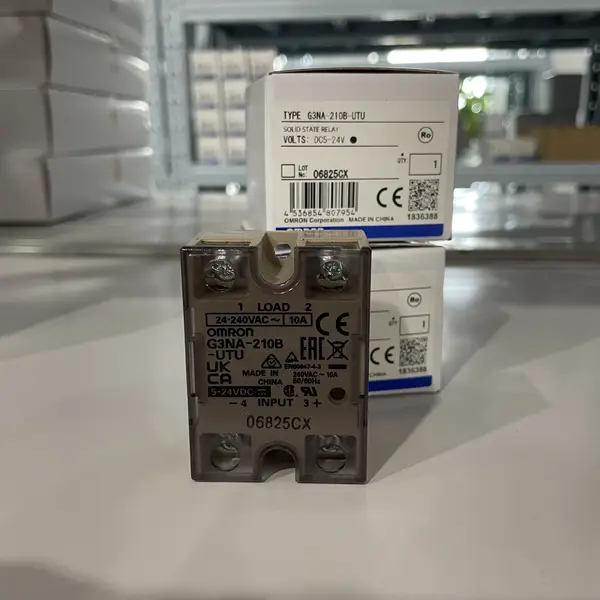

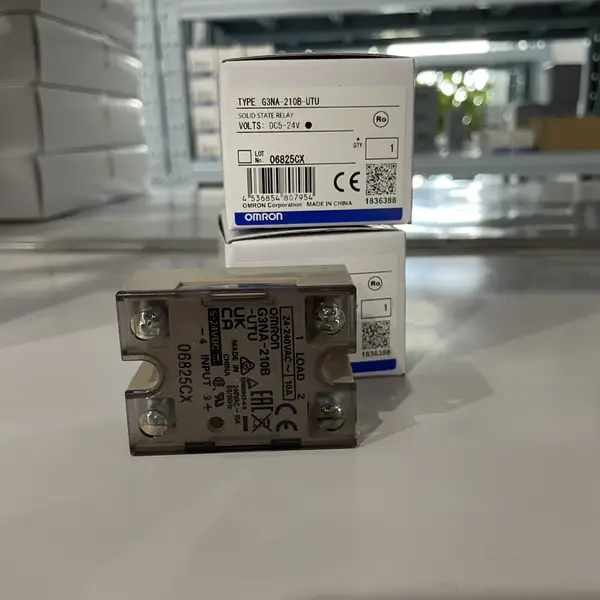

The Omron G3NA-210B-UTU DC5-24V is a 10 A solid state relay from the G3NA series, manufactured by Omron Corporation. Hengyixin Automation stocks this solid-state relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.
The relay switches a 24-240 VAC load (operating range 19-264 VAC) at 10 A rated, single-pole SPST-NO. Control input is 5 to 24 VDC at 7 mA max, with a must-operate voltage of 4 V max and a must-release voltage of 1 V min. Switching is zero-cross to limit electrical noise on the AC line. Output ON voltage drop is 1.6 V RMS max.
Phototriac coupler isolation between the DC control circuit and the AC load. Built-in varistor absorbs external surges. The 58 x 43 x 27 mm hockey-puck body mounts to a panel with screws. Heat sink is required for continuous full-load operation. The G3NA-D210B-UTU sibling switches DC loads 5-200 VDC; the G3PA-220B-VD-X is the 3-phase 20 A equivalent.
Key Features
- G3NA-series solid state relay, 1-pole SPST-NO, 10 A rated load current at 24-240 VAC (operating range 19-264 VAC)
- 5 to 24 VDC control input, 7 mA max control current, must-operate 4 V max, must-release 1 V min
- Zero-cross switching, phototriac isolation, built-in varistor surge absorber, 1.6 V RMS max output ON drop
- Hockey-puck panel-mount, 58 x 43 x 27 mm, LED operation indicator, -30 to +80 C operating
- SKU: G3NA-210B-UTU DC5-24V
- Series: Omron G3NA-series solid state relay
- Voltage: 24 TO 240 VAC
Best-Fit Applications
- Resistive heater band control on a plastic injection molding extruder barrel driven by a 24 VDC PLC temperature controller through PWM at high cycle rates
- Shrink-wrap tunnel seal bar heater where zero-cross switching keeps electrical noise low on a 10 A 240 VAC load controlled from a 5 VDC signal
- Spare replacement on a packaging panel where the previous 10 A SSR has failed and a like-for-like hockey-puck relay is needed on the same footprint
Buying Checklist
- Pick the G3NA-210B-UTU DC5-24V for a 10 A 24-240 VAC solid state relay driven from a 5-24 VDC control signal with zero-cross switching.
- Pick the G3NA-D210B-UTU instead when the load is a DC circuit at 5-200 VDC, such as a DC heating element or DC solenoid.
- Pick the G3PA-220B-VD-X instead when the panel needs a 3-phase 20 A solid state relay with built-in heat sink.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G3NA-series solid state relay |
| Model / SKU | G3NA-210B-UTU DC5-24V |
| Application | ON / OFF control, 1 phase |
| Rated Load Voltage | 24 to 240 VAC (operating range 19 to 264 VAC) |
| Rated Load Current | 10 A (heat sink required for continuous full-load operation) |
| Control Voltage | 5 to 24 VDC |
| Control Current | 7 mA max, must-operate 4 V max, must-release 1 V min |
| Switching Type | Zero-cross switching |
| Isolation | Phototriac coupler isolation |
| Output ON Drop / Operate Time | 1.6 V RMS max, less than 1 ms operate time |
| Environment / Mounting | 58 (H) x 43 (W) x 27 (D) mm, panel-mount hockey puck, LED indicator, -30 to +80 C operating |
FAQ for G3NA-210B-UTU DC5-24V
What is the Omron G3NA-210B-UTU DC5-24V used for?
It is a panel-mount solid state relay for ON/OFF switching of a 24-240 VAC load at 10 A, such as resistive heaters, lighting arrays, or small motors. The 5-24 VDC control input is driven directly from a PLC sourcing output.
Does the G3NA-210B-UTU DC5-24V need a heat sink?
For continuous duty at the full 10 A rating, yes - a heat sink is required to keep the case within its -30 to +80 C rating. For intermittent or low-current loads below 4 A no heat sink is needed and the relay can operate at full rated life.
G3NA-210B-UTU vs G3NA-D210B-UTU - what is the difference?
The G3NA-210B-UTU switches AC loads 24-240 VAC at 10 A. The G3NA-D210B-UTU switches DC loads 5-200 VDC at 10 A. Both share the same hockey-puck body and 5-24 VDC control input.
Is the G3NA-210B-UTU zero-cross switching?
Yes. The UTU model is zero-cross, which means the relay turns the AC load on at the next zero-voltage crossing of the AC line. This reduces inrush current and electrical noise for resistive and lightly inductive loads.
How does the G3NA-210B-UTU isolate the control circuit from the load?
Phototriac coupler isolation between the DC control input and the AC load. The unit also carries a built-in varistor that clamps surge voltage from the AC line to protect downstream components.
