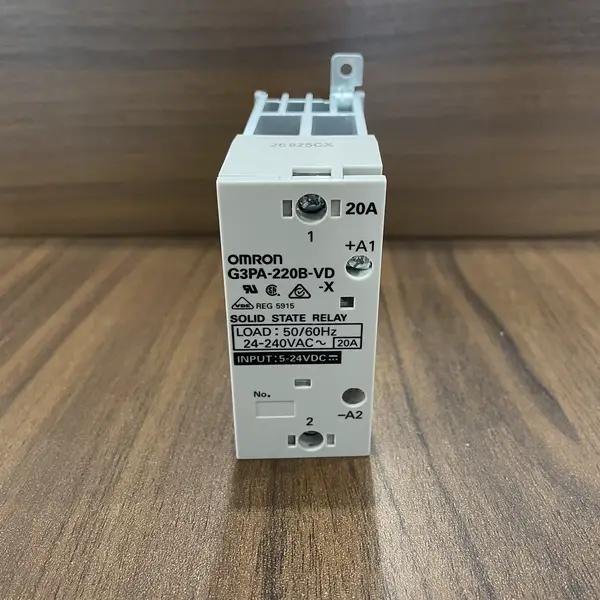

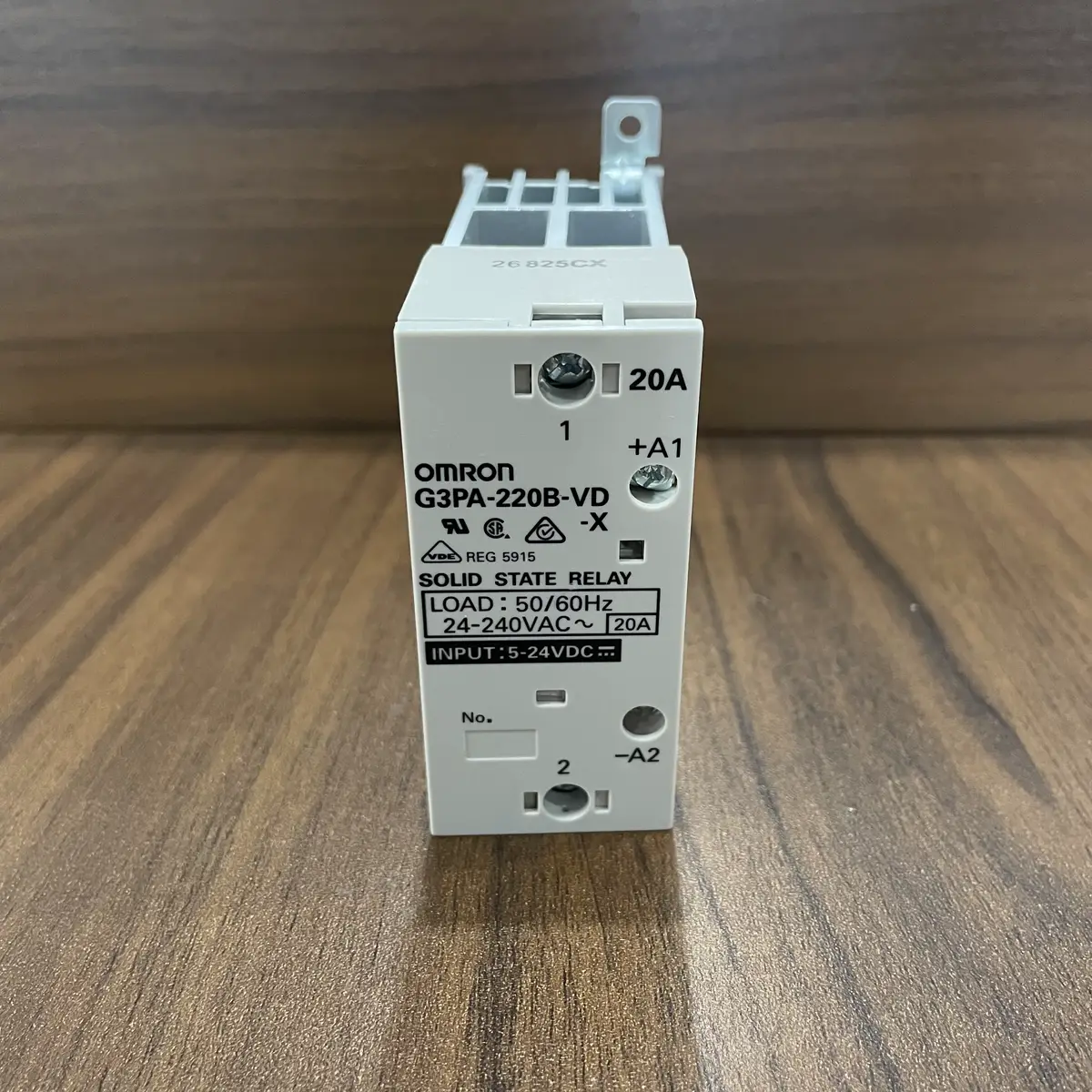

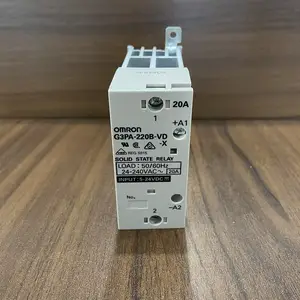

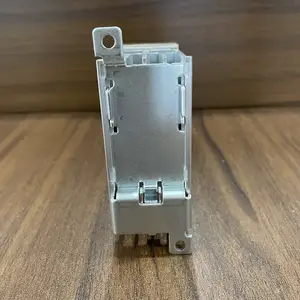

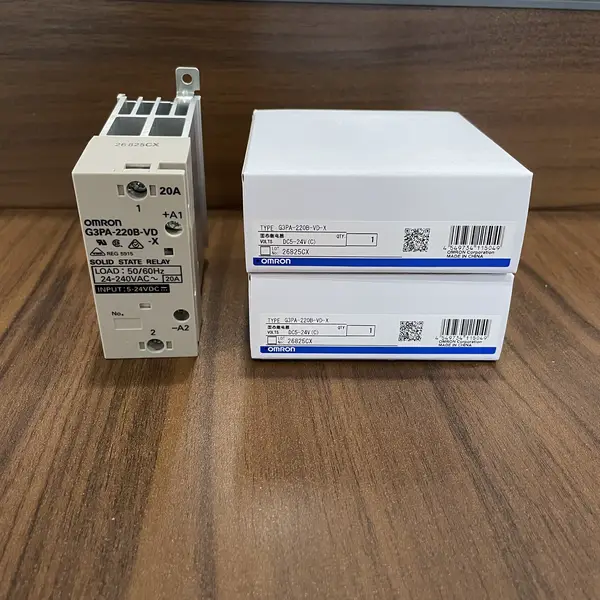

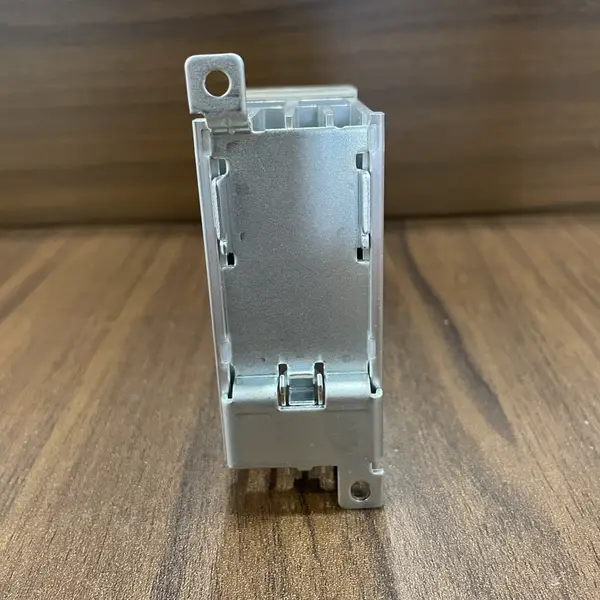

Omron G3PA-220B-VD-X DC5-24V — 20 A Solid State Relay
SKU: G3PA-220B-VD-X DC5-24VUSD 26.00
Controls resistive AC heaters from a PLC or temperature controller, with zero-cross switching and an integrated heatsink.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G3PA-220B-VD-X DC5-24V is a 20 A solid state relay for ON/OFF control of electric heaters and other resistive AC loads. It accepts a low-voltage DC signal from a PLC or temperature controller and switches loads operating from 24 to 240 VAC. Its integrated heatsink simplifies panel installation by removing the need to select and mount a separate heatsink.
Built for industrial heater control
This Omron solid state relay is suited to applications that switch heating elements repeatedly during production. Typical uses include heater bands on plastic-processing machines, heat-seal jaws in packaging equipment, and temperature control in industrial ovens.
The zero-cross function switches the load near the AC waveform's natural zero point. This provides smoother ON/OFF control for resistive heaters and can reduce switching noise. An input-status LED also helps technicians confirm that the relay is receiving a control signal during commissioning or troubleshooting.
Choosing the right G3PA variant
Choose the G3PA-220B-VD-X when the application needs a 5 to 24 VDC control input, a 24 to 240 VAC load range, and up to 20 A of switching capacity. Screw terminals and DIN-rail or panel mounting make it practical for new control panels and replacement work.
The closest alternative is the G3PA-220BL-VD-X, which does not include zero-cross switching. Select that version only when the load and control method require non-zero-cross operation. For lower-current heater circuits, the G3PA-210B-VD-X is the 10 A option in the same family.
What to confirm before ordering
Check the heater's voltage, current, and load type before selecting this relay. The 20 A rating is not available under every cabinet condition: high ambient temperatures and close side-by-side mounting can require current derating. The enclosure must also provide suitable airflow around the integrated heatsink.
Confirm that the controller provides a compatible DC voltage output and enough current to operate the relay. This model uses the replaceable G32A-A20-VD power element, which may also be relevant when maintaining an existing G3PA installation.
Finally, verify the complete suffix and required approvals. The -VD designation identifies the listed UL, CSA, and VDE certifications, while the -X version does not carry a CE mark. If CE compliance is required for the destination market, confirm a suitable alternative before ordering.
Key Features
- 20 A solid state relay for 24 to 240 VAC resistive loads
- 5 to 24 VDC rated control input
- Zero-cross switching for ON/OFF heater control

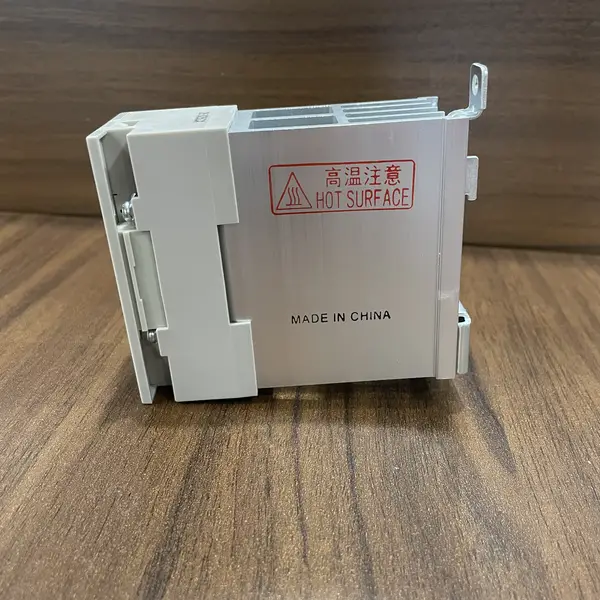

- Integrated heatsink for compact panel installation
- 35 mm DIN-rail or panel mounting
- Screw terminals and input-status LED
- Replaceable G32A-A20-VD power element
- UL, CSA, and VDE certified; -X version has no CE mark
- SKU: G3PA-220B-VD-X DC5-24V
- Series: Omron G3PA
- Voltage: 24 TO 240 VAC
- I/O: 5 I/O
Best-Fit Applications
- Heater-band switching on plastic-processing equipment
- Heat-seal temperature control in packaging machines
- Heating-element control in food-processing ovens
- Infrared heater switching in drying and curing systems
Buying Checklist
- Confirm the resistive AC load operates within 24 to 240 VAC and does not exceed 20 A.
- Verify that the PLC or temperature controller provides a compatible DC voltage output.
- Choose the G3PA-220BL-VD-X only when the application requires non-zero-cross switching.
- Allow for current derating in hot enclosures or closely spaced multi-relay installations.
- Check whether the destination market requires CE marking; this -X version has no CE mark.
- Verify whether the replaceable G32A-A20-VD power element is required for maintenance stock.
Technical Specifications
| Model | G3PA-220B-VD-X DC5-24V |
|---|---|
| Series | Omron G3PA |
| Product Type | Solid state relay with integrated heatsink |
| Rated Load Voltage | 24 to 240 VAC |
| Rated Load Current | 20 A |
| Rated Input Voltage | 5 to 24 VDC |
| Input Operating Range | 4 to 30 VDC |
| Input Current | 7 mA max. |
| Switching Function | Zero-cross |
| Isolation | Phototriac; 4,000 VAC dielectric strength |
| Terminal Type | M3.5 screw terminals |
| Mounting | 35 mm DIN rail or panel mount |
| Replaceable Power Element | G32A-A20-VD |
| Operating Temperature | -30 to 80 °C (derating may apply) |
| Dimensions | Approx. 50 × 90 × 100 mm |
| Certifications | UL, CSA, VDE; no CE mark on -X version |
Resources & Downloads
FAQ for G3PA-220B-VD-X DC5-24V
What is the G3PA-220B-VD-X used for?
The G3PA-220B-VD-X is used for ON/OFF control of resistive AC heaters. Common applications include heater bands, packaging-machine heat-seal jaws, industrial ovens, and drying equipment controlled by a PLC or temperature controller.
Can the G3PA-220B-VD-X be driven by a temperature controller?
Yes, when the temperature controller provides a compatible DC voltage output. The relay has a 5 to 24 VDC rated input and draws up to 7 mA. Confirm the controller output voltage, available current, and polarity before connection.
Does the G3PA-220B-VD-X need a separate heatsink?
No. The heatsink is integrated into the G3PA housing, and the relay can be mounted on a 35 mm DIN rail or directly to a panel. Cabinet temperature, airflow, and spacing still matter because current derating may apply.
What is the difference between G3PA-220B-VD-X and G3PA-220BL-VD-X?
The G3PA-220B-VD-X includes zero-cross switching for ON/OFF control of resistive heaters. The G3PA-220BL-VD-X is the corresponding non-zero-cross model. Choose between them according to the load and the required control method.
