Omron G3NA-D210B-UTU DC5-24 — DC SSR, 10 A at 5–200 VDC
SKU: G3NA-D210B-UTU DC5-24USD 20.00
Solid State Relay with DC output, 10 A load at 5 to 200 VDC, DC input 5 to 24 VDC control, photocoupler isolation, screw terminals, hockey-puck style with built-in LED indicator, UL/CSA/TÜV certified.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h

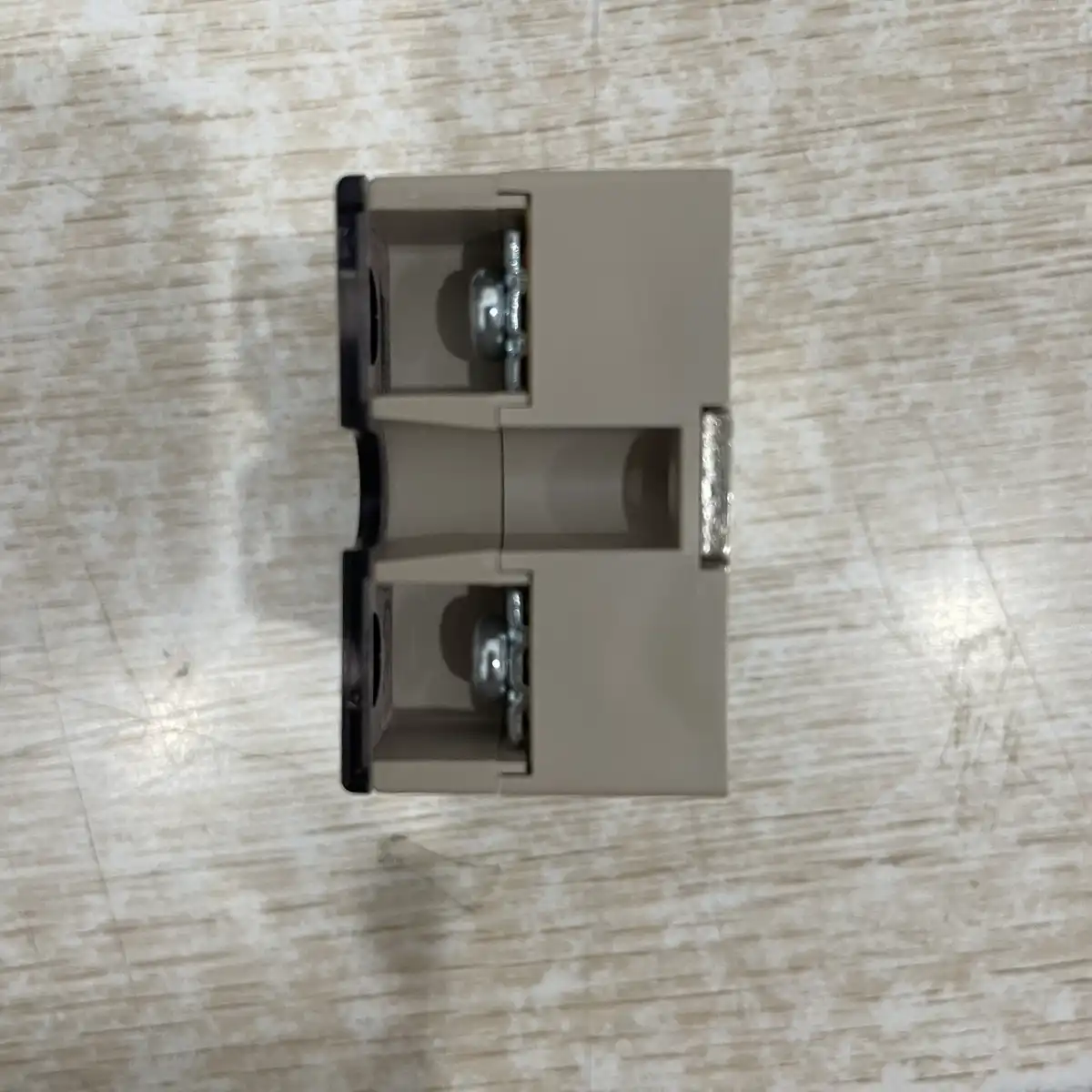

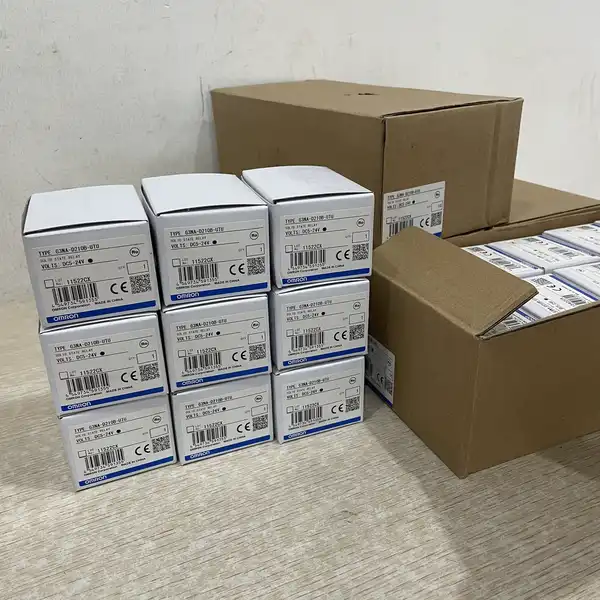

In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G3NA-D210B-UTU DC5-24 is Omron's 10 A DC-output Solid State Relay in the G3NA hockey-puck family, designed to switch DC loads such as solenoid valves, DC heating elements, brushless DC motor coils, and LED lighting arrays from a low-current DC control signal. Unlike AC-output SSRs which use a triac and benefit from zero-cross switching, the G3NA-D uses a power MOSFET output stage that switches the DC load on and off cleanly in both directions — there is no AC zero-cross concept for DC loads.
Where the G3NA-D fits in the Omron SSR lineup
The G3NA family is Omron's hockey-puck-style SSR, sharing a uniform mounting pitch so panels can hold a mix of AC and DC output units without drilling new holes. Within the G3NA-D sub-family (DC output), the part number breaks down as: G3NA = family, -D = DC output, 2 = 200 V class load voltage, 10 = 10 A rated load current, B = screw terminals, UTU = UL + CSA + TÜV certified. Pick the G3NA-D210B-UTU DC5-24 (this SKU) for 10 A DC loads up to 200 VDC.
Wiring and thermal considerations

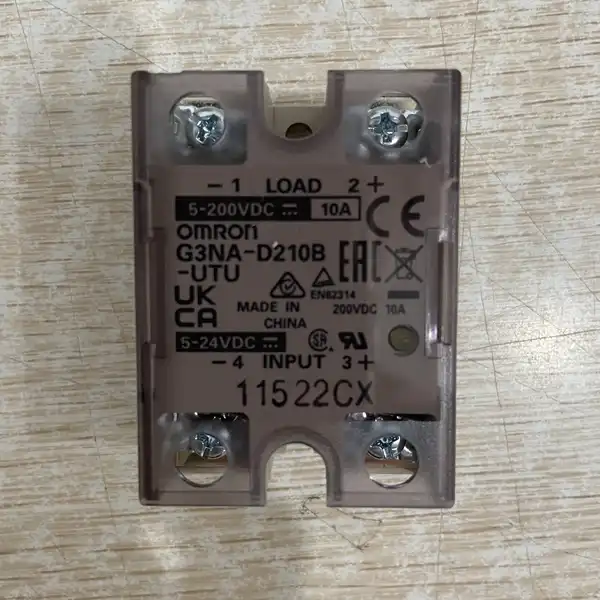

The control input is on terminals 3 (+, blue or positive) and 4 (-, white or negative); wire the 5 to 24 VDC control signal here, typically a PLC transistor output or a 24 VDC auxiliary relay. The load is on terminals 1 and 2 (LOAD, polarity-insensitive since the MOSFET output is bidirectional). Mount the SSR to a metal heatsink or chassis with thermal compound if the load current exceeds about 5 A continuously — a 10 A DC load at 100 % duty cycle dissipates around 12 to 15 W in the MOSFETs and the unit will thermal-limit without a heatsink.
Applications in industrial panels
Common applications include switching 24 VDC solenoid valves on a packaging line from a PLC output (silent, fast, no mechanical wear), switching 48 VDC or higher heating elements in a process heater (PWM for proportional control), switching DC indicator lamps in a control panel from a low-current logic signal, and switching brushless DC motor phase windings in a small motion axis (in combination with the appropriate brushless-drive logic). On a printing press, G3NA-D210B units switch the ink-fan DC motors that control ink supply to each print station. On a battery formation line, the same SSR switches the charging current to individual battery cells under test.
Key Features
- DC-output Solid State Relay, 10 A at 5 to 200 VDC
- DC input control, 5 to 24 VDC at 7 mA max
- Photocoupler isolation between input and load
- MOSFET output stage, no moving parts, silent switching
- Microsecond switching speed for PWM proportional control
- Screw terminals for both input and load
- Built-in operation indicator LED
- Surface-mount hockey-puck housing, 43 × 58 mm
- SKU: G3NA-D210B-UTU DC5-24
- Series: G3NA (Hockey-puck SSR)
- Voltage: 5 TO 200 VDC
- I/O: 5 I/O
Best-Fit Applications
- Switching 24 VDC solenoid valves on a packaging line from PLC transistor outputs
- PWM proportional control of a 48 VDC process heater from a temperature controller
- Switching brushless DC motor phase windings in a small motion axis via PLC logic
- Switching DC indicator lamps in a control panel from a 24 VDC logic signal
Buying Checklist
- Pick G3NA-D210B-UTU DC5-24 for 10 A DC switching up to 200 VDC
- Pick G3NA-D220B for 20 A DC, or G3NA-D240B for 40 A DC at the same 200 VDC rating
- Pick G3NA-210B-UTU AC100-240 if the load is an AC device
- Pick G3PE-225B for higher inrush surge
- Pick G3PA-220B-VD for three-phase heater control with built-in heatsink
- Mount to a metal chassis with thermal compound if continuous current exceeds 5 A
Technical Specifications
| Model | G3NA-D210B-UTU DC5-24 |
|---|---|
| Series | G3NA (Hockey-puck SSR) |
| Type | DC-output Solid State Relay |
| Mounting Method | Surface mount with screws |
| Terminal Type | Screw terminals |
| Rated Load Voltage | 5 to 200 VDC |
| Operating Load Voltage Range | 4 to 220 VDC |
| Rated Load Current | 10 A |
| Peak Surge Current | 20 A (1 s) |
| Rated Input Voltage | 5 to 24 VDC |
| Operating Input Voltage | 4 to 32 VDC |
| Input Current | 7 mA max |
| Must-Operate Voltage | 4 VDC max |
| Must-Release Voltage | 1 VDC min |
| Output Stage | Power MOSFET (bidirectional) |
Resources & Downloads
FAQ for G3NA-D210B-UTU DC5-24
What is the difference between G3NA-D210B and G3NA-210B?
The D prefix means DC output (MOSFET, bidirectional load terminals, no zero-cross concept); the plain G3NA-210B is AC output (triac, zero-cross switching for low-noise AC loads). Pick the D version for DC solenoids, DC heaters, DC motors, and battery switching; pick the AC version for AC solenoids, AC heaters, AC lamps, and any AC mains-driven load.
Does the G3NA-D210B-UTU DC5-24 have a built-in heatsink?
No — the G3NA-D210B-UTU ships as a panel-mount hockey-puck module that requires an external heatsink for continuous high-current operation. Omron's Y92B-P series DIN-rail heatsinks accept the G3NA footprint, or you can mount the SSR directly to a metal chassis with thermal compound. At 10 A continuous DC load, expect about 12 to 15 W of dissipation; at 5 A the unit runs cool without a heatsink.
Can the G3NA-D210B-UTU do PWM proportional control?
Yes — the MOSFET output stage switches in microseconds, so a PWM signal at the input (e.g. from a temperature controller) gives proportional DC output power to the load. Typical PWM frequencies are 100 Hz to 1 kHz for DC heaters; for DC solenoid valves use on/off control rather than PWM to keep the valve fully seated or fully released.
Is the G3NA-D210B-UTU polarity-sensitive on the load side?
No — the MOSFET output stage is bidirectional, so you can connect either polarity of the DC load to terminals 1 and 2. The control input (terminals 3 and 4) is polarity-sensitive: connect +24 VDC to terminal 3 (+), 0 VDC to terminal 4 (-). Reverse input polarity will not turn on the LED and the SSR will not switch the load.
