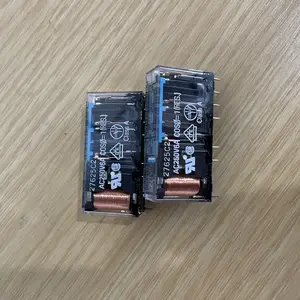

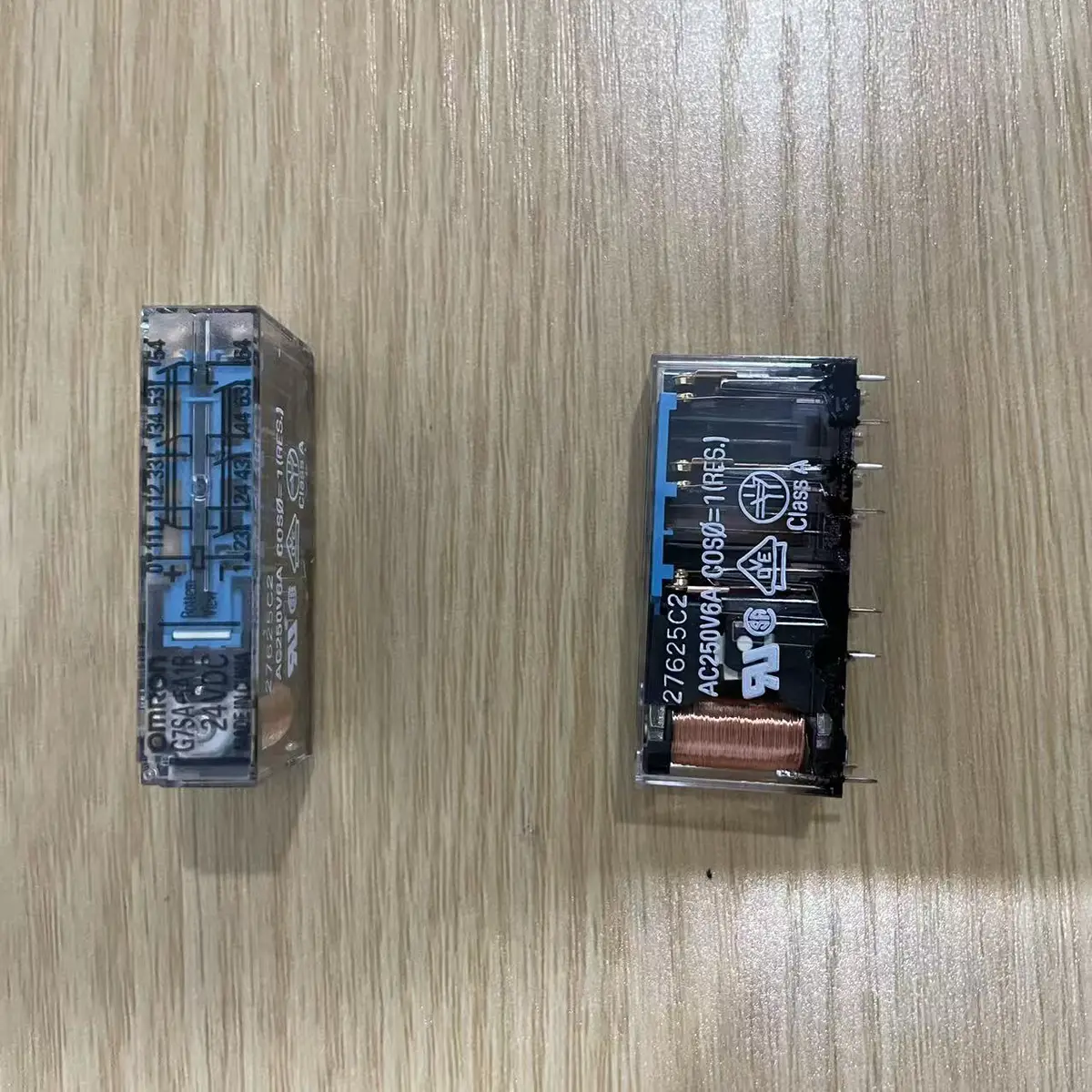

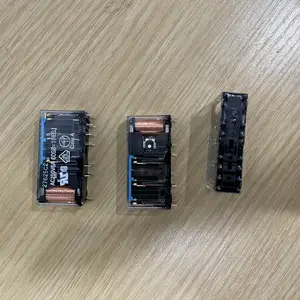

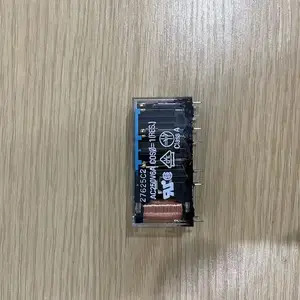

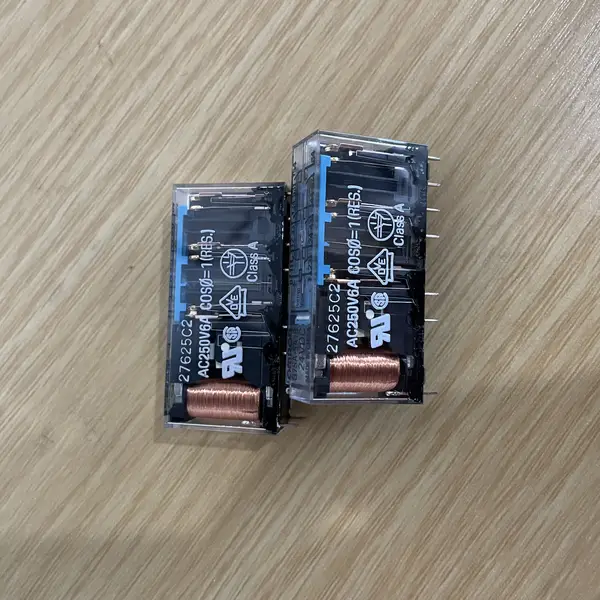

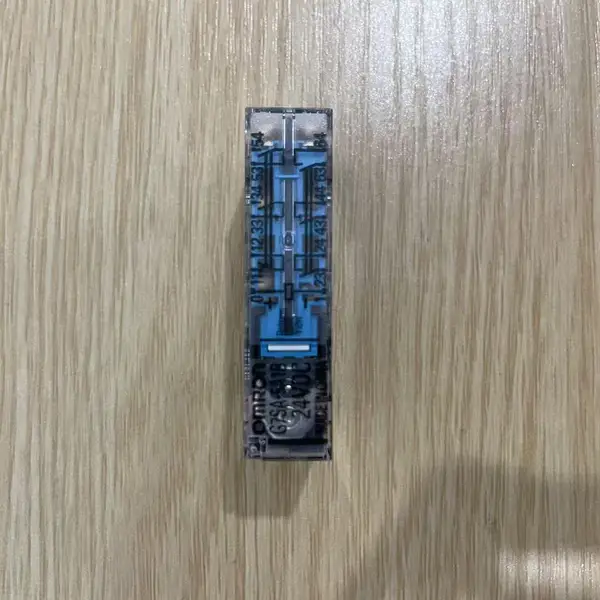

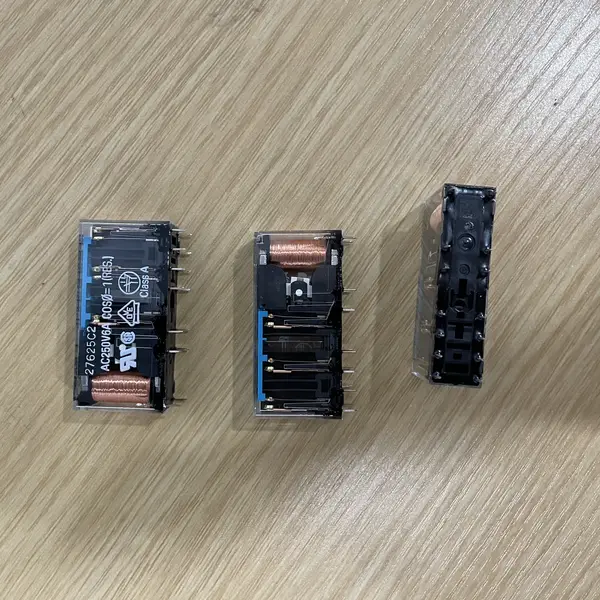

Omron G7SA-5A1B DC24 — 6-Pole Safety Relay, 5 NO + 1 NC
SKU: G7SA-5A1B DC24USD 6.50
6-pole forcibly-guided safety relay, 5 NO + 1 NC contacts rated 6 A / 250 VAC, 24 VDC coil (20.8 mA, 500 mW), EN 61810-3 VDE certified, PCB terminals, pairs with P7SA-14F socket. For Cat 4 / PL e / SIL 3.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G7SA-5A1B DC24 is the 6-pole member of the Omron G7SA slim forcibly-guided safety relay family, with five normally-open contacts and one normally-closed contact (5PST-NO + SPST-NC) all rated 6 A at 250 VAC or 6 A at 30 VDC resistive. The 24 VDC coil draws 20.8 mA (500 mW, coil resistance 1,152 Ω) and is diode-protected for reverse polarity.
Where the G7SA-5A1B fits in the G7SA family
The G7SA family is Omron's slim PCB-mount safety relay series, split into 4-pole (10-terminal) and 6-pole (14-terminal) variants. The 4-pole group is G7SA-3A1B (3 NO + 1 NC) and G7SA-2A2B DC24 (2 NO + 2 NC — already covered in this catalogue). The 6-pole group is G7SA-5A1B (5 NO + 1 NC, this SKU), G7SA-4A2B (4 NO + 2 NC), and G7SA-3A3B (3 NO + 3 NC).
Sockets and panel wiring
The G7SA-5A1B ships as a bare PCB-mount relay with through-hole pins (flux-tight sealing). For DIN-rail mounting, plug the relay into a P7SA-14F socket family — P7SA-14F (screw terminals), P7SA-14F-ND (screw terminals with operation-indicator LED + coil surge-absorbing diode), P7SA-14F-ND-PU DC24 (Push-In Plus terminals, reducing wiring time by about 60 %), or P7SA-14P (PCB-mount socket). The -ND variants include a coil-side green LED that lights when the coil is energised, useful for diagnostic on a populated safety panel.
Key Features
- 6-pole slim PCB-mount safety relay, 5 NO + 1 NC forcibly-guided contacts
- 6 A at 250 VAC / 6 A at 30 VDC rated contact
- 24 VDC coil, 20.8 mA, 500 mW power consumption, 1,152 Ω coil resistance
- EN 61810-3, UL, CSA, CCC
- Suitable for Cat 4 / PL e / SIL 3 safety functions when wired correctly
- Forcibly-guided contact structure — welded NO cannot let NC close
- Operating time 30 ms max, response time 10 ms max
- 4,000 VAC dielectric strength coil-to-contact, 2,500 VAC between poles
- SKU: G7SA-5A1B DC24
- Series: G7SA (Forcibly-Guided Safety Relay)
- Voltage: 24 VDC
Best-Fit Applications
- Five-axis robot-cell safety output stage — one NO per contactor, one NC for EDM
- Press safety circuit with five redundant outputs and one diagnostic NC
- Large-format packaging line guard interlock with multiple independent shutdown channels
- Compact safety controller or safety sub-assembly inside an OEM machine
Buying Checklist
- Pick G7SA-5A1B DC24 when you need 5 NO + 1 NC forcibly-guided safety relay with 24 VDC coil
- Pick G7SA-2A2B DC24 for 2 NO + 2 NC, G7SA-3A1B for 3 NO + 1 NC
- Pick G7SA-4A2B for 4 NO + 2 NC, G7SA-3A3B for 3 NO + 3 NC
- Pick G7SA-5A1B DC12 if your safety controller outputs 12 VDC instead of 24 VDC
- Order P7SA-14F-ND-PU DC24 socket for DIN-rail mount with Push-In Plus terminals
- Order P7SA-14F-ND DC24 socket if you prefer screw terminals plus operation-indicator LED
Technical Specifications
| Model | G7SA-5A1B DC24 |
|---|---|
| Series | G7SA (Forcibly-Guided Safety Relay) |
| Type | Slim PCB-mount safety relay |
| Contact Configuration | 5PST-NO + SPST-NC (5 NO + 1 NC) |
| Poles | 6 poles (14 terminals) |
| Rated Load (Resistive) | 6 A at 250 VAC / 6 A at 30 VDC |
| Rated Load (Inductive) | 2 A at 250 VAC (cos φ = 0.4) |
| Coil Rated Voltage | 24 VDC |
| Coil Rated Current | 20.8 mA |
| Must-Operate Voltage | 70 % of rated (16.8 VDC min) |
| Must-Release Voltage | 15 % of rated (3.6 VDC min) |
| Terminal Type | PCB through-hole |
| Mounting Option | PCB or P7SA-14F(-ND)(-PU) socket |
| Operating Temperature | -25 to +70 °C |
| Certifications | EN 61810-1, EN 61810-3 (VDE), UL, CSA, CCC |
Resources & Downloads
FAQ for G7SA-5A1B DC24
What does forcibly-guided contact mean on the G7SA-5A1B?
Forcibly-guided contacts (per EN 61810-3) are mechanically linked so that if one contact welds closed due to overcurrent or end-of-life, the opposite contact cannot close on its own.
When should I pick G7SA-5A1B over G7SA-2A2B?
Pick G7SA-2A2B DC24 for the common case of dual-channel output with EDM (2 NO for two contactors + 2 NC for diagnostics/monitoring). Pick G7SA-5A1B DC24 when you need five independent NO outputs and one NC for EDM feedback — typical of a five-axis robot cell where each axis has its own safety contactor. If you need four NO + two NC, pick G7SA-4A2B. If you need three NO + three NC, pick G7SA-3A3B.
What socket should I use for the G7SA-5A1B?
Use one of the P7SA-14F socket family — the suffix indicates the variant. P7SA-14F is the basic screw-terminal socket. P7SA-14F-ND adds an operation-indicator LED plus a coil surge-absorbing diode. P7SA-14F-ND-PU DC24 uses Push-In Plus screwless terminals, which reduce wiring time by about 60 % compared with the screw-terminal version. P7SA-14P is a back-mounting PCB socket for OEM applications where the relay is soldered onto a custom board. All four accept the G7SA-5A1B DC24 relay module.
What is the coil current draw of the G7SA-5A1B DC24?
The 24 VDC coil draws 20.8 mA (about 500 mW) at the rated voltage. Coil resistance is 1,152 Ω. Must-operate voltage is 70 % of rated (16.8 VDC minimum to pick up) and must-release voltage is 15 % of rated (3.6 VDC maximum dropout). The coil is diode-protected against reverse polarity, so it can be driven directly from a 24 VDC PLC transistor output without an external flyback diode.
