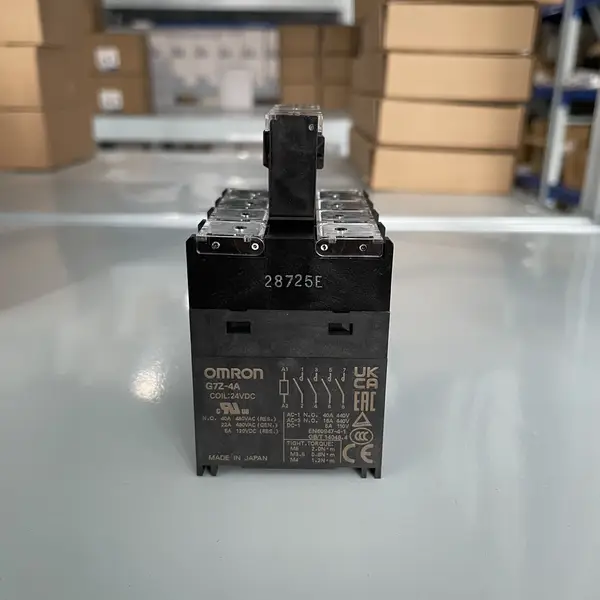

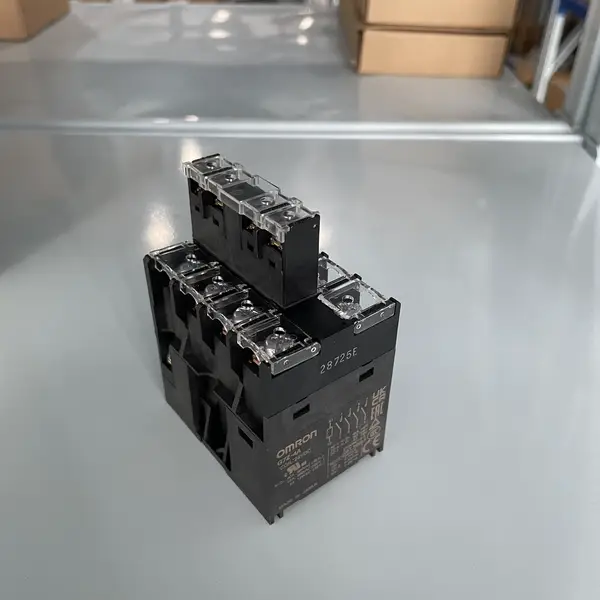

Omron G7Z-4A-02Z-R DC24V — front view of the power relay showing the 4 M5 contact screw terminals at the bottom (T1, T2, T3, T4), the coil M3.5 screw terminals on top (A1, A2) and the DPST-NC auxiliary contact block above the main body

Omron G7Z-4A-02Z-R DC24V — Power Relay, 40 A, 4PST-NO

SKU: G7Z-4A-02Z-R DC24V

USD 46.00

G7Z power relay, 40 A 4PST-NO + 1 A DPST-NC aux, 24 VDC coil, DIN-rail. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron G7Z-4A-02Z-R DC24V is a 40 A power relay from the G7Z series It is manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

The relay carries four Form A normally-open main poles rated 40 A each at 440 VAC resistive. The DPST-NC auxiliary contact block on top uses bifurcated-crossbar contacts rated 1 A at 440 VAC.

For a DIN-rail 4-pole safety relay at the same 24 VDC coil, see the G7SA-3A1B. Key specs: Contact Form 4PST-NO (4 Form A) main + DPST-NC auxiliary; Rated Carry Current NO 40 A; NC 25 A (at 70 degC derated); Rated Load (Resistive) NO 40 A at 440 VAC / 5 A at 110 VDC; aux 1 A at 440 VAC; Max Switching Power NO 17,600 VA resistive (9,680 VA inductive); aux 440 VA; Coil Voltage / Power 24 VDC; 156 ohm; 154 mA; 3.7 W; Operate / Release Must operate 18 VDC max; must release 2.4 VDC min; 50 ms each; Mechanical Life 1,000,000 operations minimum; Termination M5 screw (contacts); M3.5 screw (coil).

Key Features

  • G7Z power relay with 4PST-NO main contacts at 40 A each (440 VAC resistive)
  • DPST-NC 1 A bifurcated-crossbar auxiliary contact block on top
  • 24 VDC coil, 154 mA / 3.7 W, must-operate 18 V, must-release 2.4 V
  • DIN-rail or chassis mount, M5 contact + M3.5 coil screw terminals, 45 x 62 x 92.2 mm
  • SKU: G7Z-4A-02Z-R DC24V
  • Series: Omron G7Z-series power relay with auxiliary contact block
  • Voltage: 24 VDC

Best-Fit Applications

  • Inverter main contactor on a 400 V drive where the four NO poles switch the line-side power and the NC pole mirrors the contactor state
  • Solar DC string combiner on a 110 VDC array where the four NO poles carry 40 A continuous and the auxiliary feeds the PLC
  • Spare drop-in for an existing G7Z panel where the previous G7Z-4A-02Z-R failed and the wiring is 24 VDC coil with M5 contact terminals

Buying Checklist

  • Pick the G7Z-4A-02Z-R DC24V for a 40 A 4PST-NO power relay with a 24 VDC coil and a mirror-contact NC auxiliary.
  • Pick the G7Z-2A2B-11Z-R DC24V instead when only two NO poles at 25 A are needed with one NO + one NC auxiliary.
  • Pick the G7Z-4A-20Z-R DC24V instead when a DPST-NO auxiliary is preferred instead of DPST-NC.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron G7Z-series power relay with auxiliary contact block
Model / SKU G7Z-4A-02Z-R DC24V
Contact Form 4PST-NO (4 Form A) main + DPST-NC auxiliary
Rated Carry Current NO 40 A; NC 25 A (at 70 degC derated)
Rated Load (Resistive) NO 40 A at 440 VAC / 5 A at 110 VDC; aux 1 A at 440 VAC
Max Switching Power NO 17,600 VA resistive (9,680 VA inductive); aux 440 VA
Coil Voltage / Power 24 VDC; 156 ohm; 154 mA; 3.7 W
Operate / Release Must operate 18 VDC max; must release 2.4 VDC min; 50 ms each
Mechanical Life 1,000,000 operations minimum
Termination M5 screw (contacts); M3.5 screw (coil)
Dimensions / Approvals 45 (W) x 62 (H) x 92.2 (D) mm; EN 60947-4-1 mirror-contact with G73Z

FAQ for G7Z-4A-02Z-R DC24V

What is the Z-R suffix on the G7Z-4A-02Z-R?
Z marks the bifurcated-crossbar auxiliary contact mechanism (single break); R is the contact plating. The main 4PST-NO block uses Ag alloy contacts at 40 A; the auxiliary DPST-NC block uses gold-clad bifurcated crossbar contacts at 1 A for low-level signal reliability.
Does the G7Z-4A-02Z-R carry any safety certifications?
The relay itself is UL and CSA listed. When paired with the G73Z-02Z-R auxiliary contact block, the combination carries EN 60947-4-1 mirror-contact certification for use in safety-related control circuits on motor contactors.
How is the G7Z-4A-02Z-R mounted?
Chassis mount with the M5 contact screws and the M3.5 coil screws on the front face. On a DIN rail, use the P7LF-D DIN-rail mounting bracket. The auxiliary contact block snaps on top of the main relay before wiring.
What is the coil resistance of the G7Z-4A-02Z-R DC24V?
156 ohms at 23 degC. The coil draws 154 mA at 24 VDC (3.7 W). The must-operate voltage is 18 VDC max and the must-release voltage is 2.4 VDC min.
