Omron H3YN-4-B DC24 — Multi-Mode Timer, 4PDT, 0.1 s-10 min

SKU: H3YN-4-B DC24

USD 36.00

H3YN solid-state mini timer, 4 modes (ON-delay / interval / flicker), 4PDT, 0.1 s to 10 min, DC 24 V supply, MY-relay pinout.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron H3YN-4-B DC24 is a solid-state mini timer from the H3YN series, designed for panel- or socket-mount sequencing in industrial control cabinets. The "4" in the model number means 4PDT (four-pole double-throw) — four changeover contacts in one timer body — which is rare in this size class and lets you switch four independent loads from a single timing event. The "-B" suffix is the black housing variant; the standard ivory H3YN-4 DC24 has the same internals.

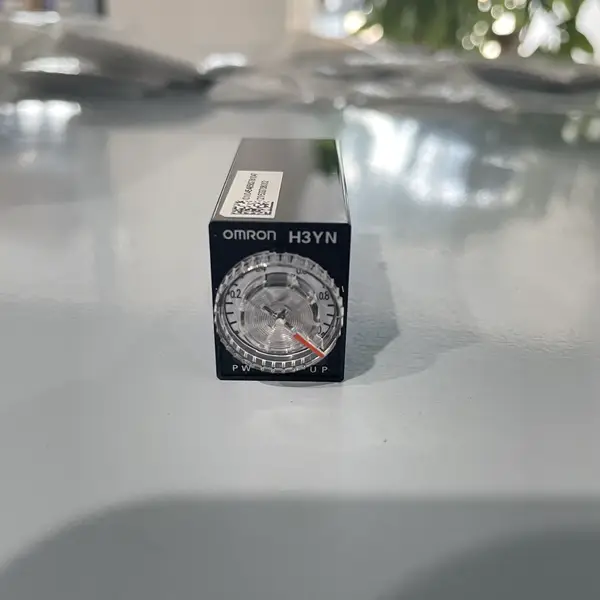

What "multi-mode" means in this timer

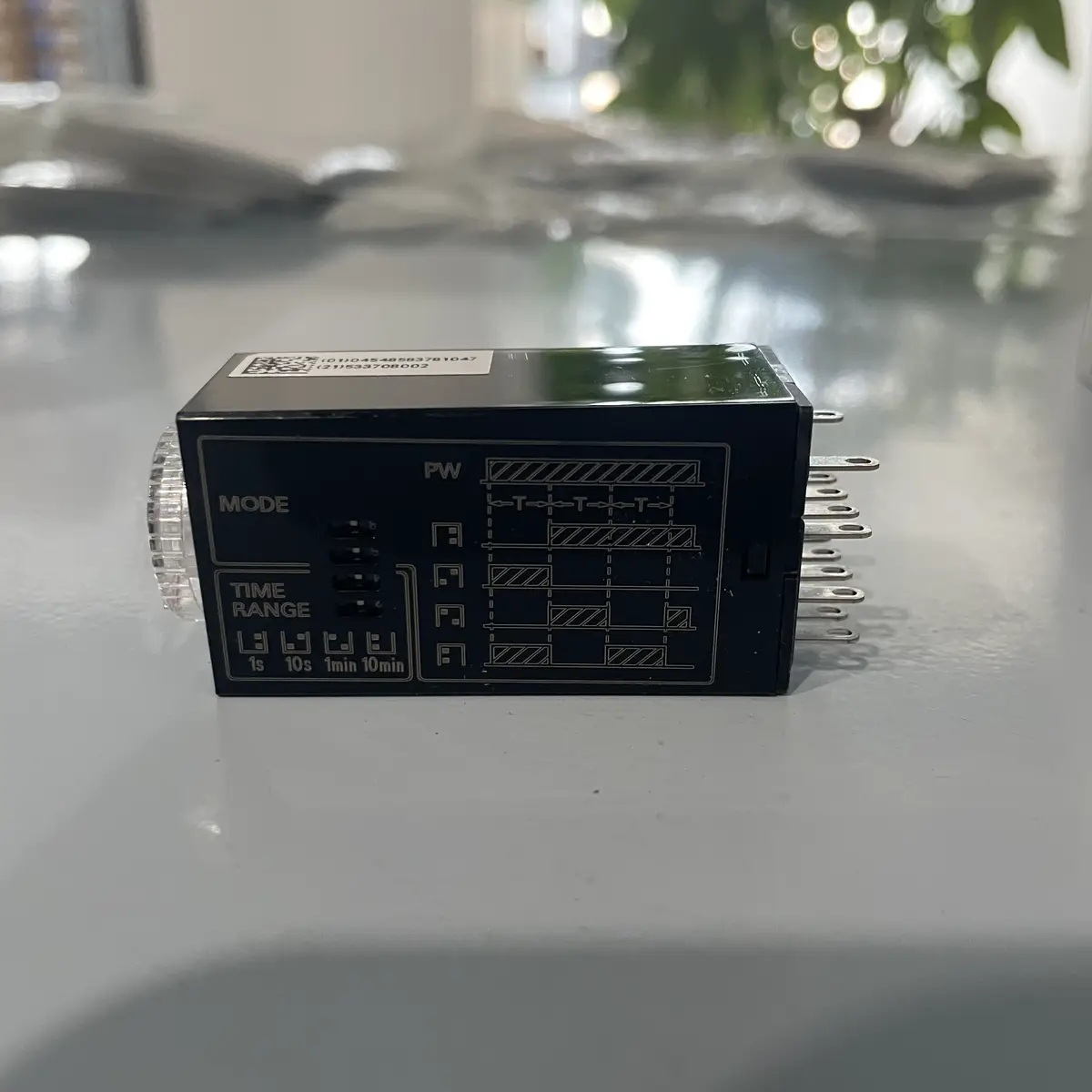

Unlike a single-function on-delay timer, the H3YN-4-B has a 4-position DIP switch on the front that selects the operating mode: ON-delay (output energises after the set time has elapsed), interval (output stays energised for the set time from a start input), flicker-OFF-start, and flicker-ON-start. Set the mode once at install and the timer behaves the same way for every cycle. The short-time range (the -4, no -1) covers 0.1 s to 10 min across four DIP-switched sub-ranges: 1 s, 10 s, 1 min, 10 min. For 0.1 min to 10 h timing, order the long-time H3YN-41-B instead.

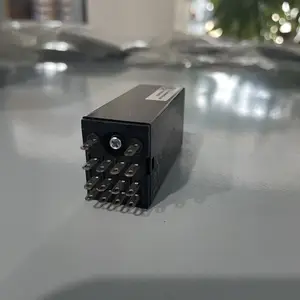

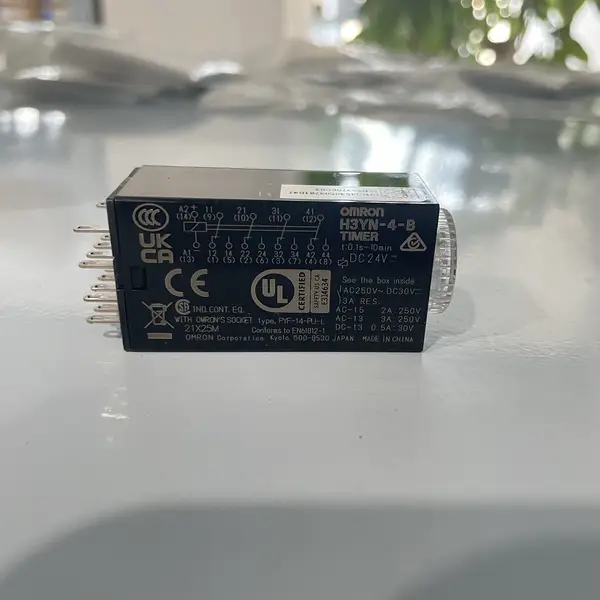

Wiring and pinout

The H3YN-4-B uses the same 14-pin layout as the Omron MY-series power relay, which means it plugs into the same PYF14A (panel-mount) or PYFZ-14 (DIN-rail) socket as an MY4 relay. This lets you swap an MY4 power relay for an H3YN-4-B timer without rewiring the socket, which is a useful upgrade path on machines that previously used an MY relay as a crude pneumatic or process timer. Power and contact terminals are split between the top row (coil) and bottom row (contacts) of the socket.

Before ordering

Pick a PYF14A or PYFZ-14 socket — the timer body alone is not usable without one. Confirm the DC 24 V supply is on the right pin (positive on terminal 13, negative on 14, per the Omron datasheet). For a 2PDT version in the same body, look at the H3YN-2-B DC24V (uses the 8-pin PYF08A / PYCZ-C08 socket). For a slimmer DIN-rail-mounted timer with display, look at the H3DT series.

Key Features

  • H3YN series solid-state mini timer
  • Multi-mode: ON-delay, interval, flicker-OFF-start, flicker-ON-start (DIP switch)
  • 4PDT (4c) contact output — switch four loads at once
  • Short-time range 0.1 s - 10 min across 4 sub-ranges (1 s, 10 s, 1 min, 10 min)
  • Pinout matches MY-series power relay (14-pin socket)
  • Compatible sockets: PYF14A (panel) or PYFZ-14 (DIN-rail)
  • Black housing (the "-B" suffix)
  • Repeat accuracy ±1% of full-scale; reset time <=100 ms
  • SKU: H3YN-4-B DC24
  • Series: H3YN solid-state mini timer
  • Voltage: 24 V

Best-Fit Applications

  • Sequential start delay on a packaging machine where the MY4 socket already exists (drop-in upgrade)
  • Flicker / pulse-train generation on a lubrication cycle where the timer cycles on and off
  • Four-channel load sequencing on a control panel where each timing event drives multiple relays
  • Spare-slot replacement for an MY4 power relay that needs real timing instead of a pneumatic RC delay
  • Machine build-up timer for OEM cabinets where the panel socket is the MY-relay type

Buying Checklist

  • Choose H3YN-4-B DC24 for a 4PDT multi-mode timer that fits an existing MY-relay socket; pick H3YN-2-B DC24V if you only need 2PDT.
  • Pick the long-time H3YN-41-B DC24 instead if your timing range is 0.1 min to 10 h rather than 0.1 s to 10 min.
  • Order a PYF14A (panel-mount) or PYFZ-14 (DIN-rail) socket — the timer body is not usable without one.
  • Use the multi-mode switch to pick ON-delay, interval, or flicker at install time — the timer is not a fixed on-delay only.
  • Consider the slim DIN-rail-mount H3DT series if the cabinet front panel is full and you need a snap-on 17.5 mm-wide timer.

Technical Specifications

Model H3YN-4-B DC24
Series H3YN solid-state mini timer
Operating Modes Multi-mode (4): ON-delay, interval, flicker-OFF-start, flicker-ON-start (DIP-switched)
Contact Configuration 4PDT (4c, four-pole double-throw)
Time Range (Short-Time) 0.1 s to 10 min (1 s / 10 s / 1 min / 10 min sub-ranges)
Repeat Accuracy ±1% of full-scale
Reset Time <=100 ms
Contact Rating AC 250 V / 3 A resistive load
Pinout / Socket MY-relay compatible 14-pin; PYF14A / PYFZ-14 sold separately
Supply Voltage (this SKU) DC 24 V (AC 100-120 / AC 200-230 / DC 12 / DC 48 / DC 100-110 / DC 125 V variants exist)
Operating Temperature -10 to +55 °C (no icing)
Approvals UL, CSA, EN 61812-1, CE, CCC

FAQ for H3YN-4-B DC24

Is the H3YN-4-B DC24 an on-delay timer only?
No. The H3YN-4-B is a multi-mode timer with four selectable modes on a front-panel DIP switch: ON-delay, interval, flicker-OFF-start, and flicker-ON-start. Pick the mode once at install time and the timer behaves that way for every cycle. Pick a single-function on-delay timer (such as H3DS-ML) if you only need ON-delay behaviour.
What is the difference between H3YN-4-B and H3YN-2-B?
H3YN-4-B has 4PDT (4c, four changeover contacts) and uses a 14-pin MY-relay-compatible socket. H3YN-2-B has 2PDT (2c) and uses an 8-pin socket. Both are multi-mode and otherwise electrically identical. Pick -4-B when you need four timed outputs from one event; pick -2-B when 2PDT is enough.
What time range does the H3YN-4-B cover?
Short-time version (the -4 / no -1 suffix): 0.1 s to 10 min across four DIP-switched sub-ranges — 1 s, 10 s, 1 min, 10 min. Long-time version (H3YN-41-B): 0.1 min to 10 h across 1 min, 10 min, 1 h, 10 h. The H3YN-4-B you have here is the short-time model.
Do I need a separate socket for the H3YN-4-B?
Yes. The H3YN-4-B plugs into a 14-pin OMROn PY-series socket — choose PYF14A for panel-mount or PYCZ-C14-protected PYFZ-14 for DIN-rail. The socket is sold separately. Pinout matches the Omron MY4 power relay, so an existing MY4 socket on your panel is a direct drop-in replacement candidate.
