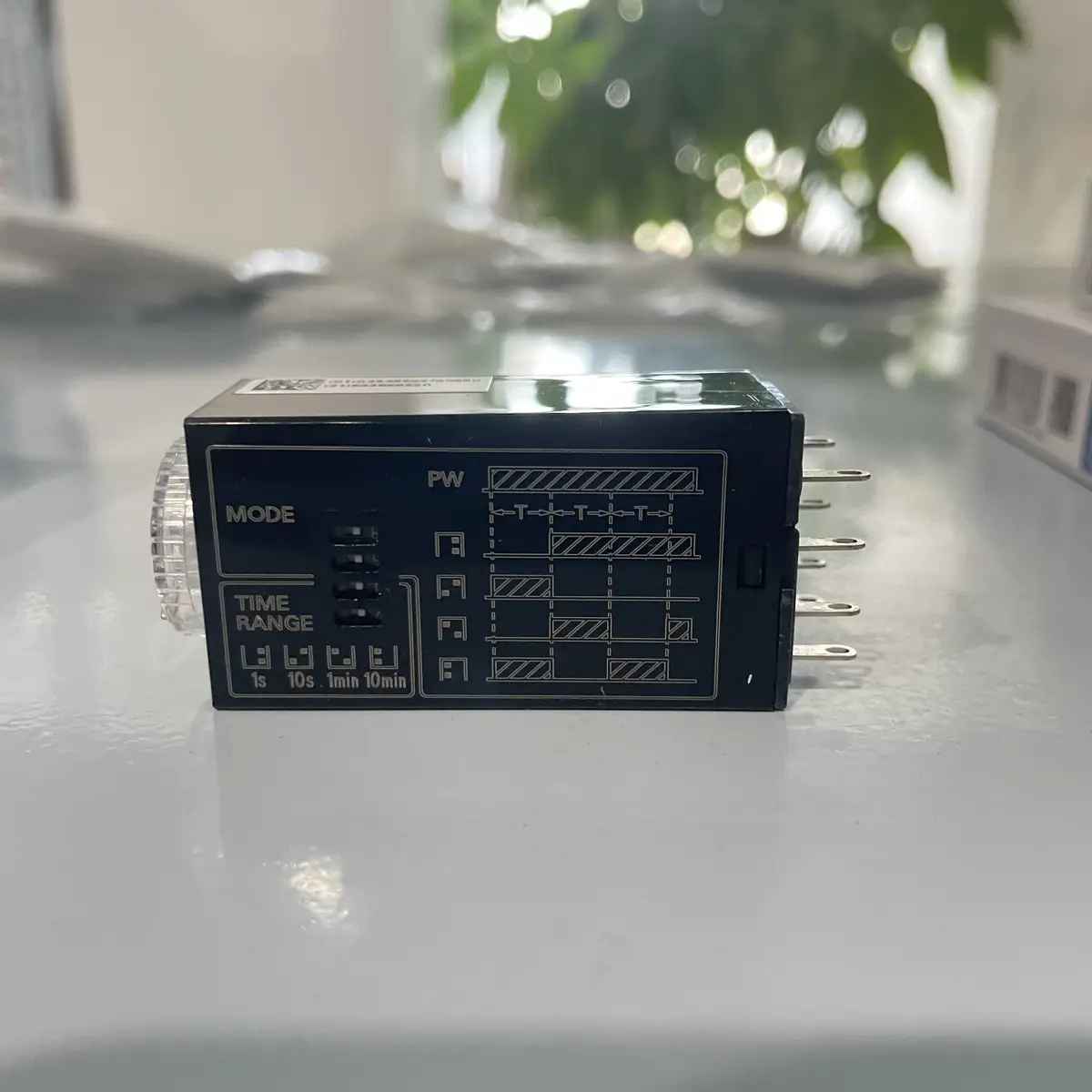

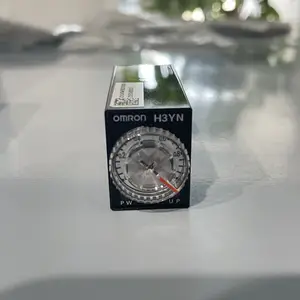

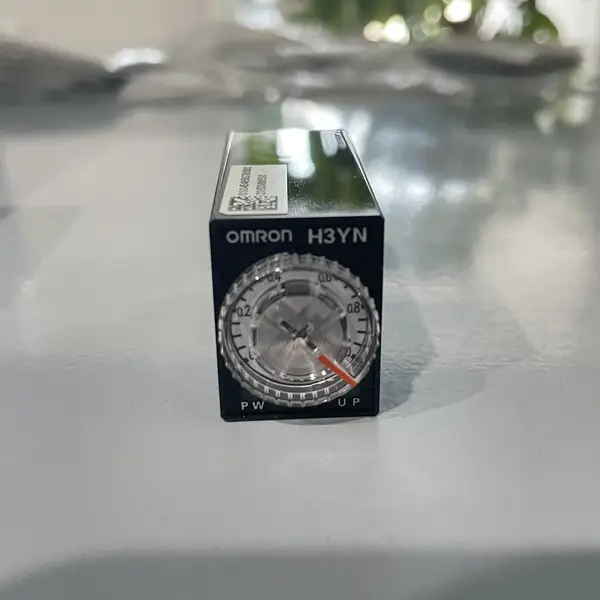

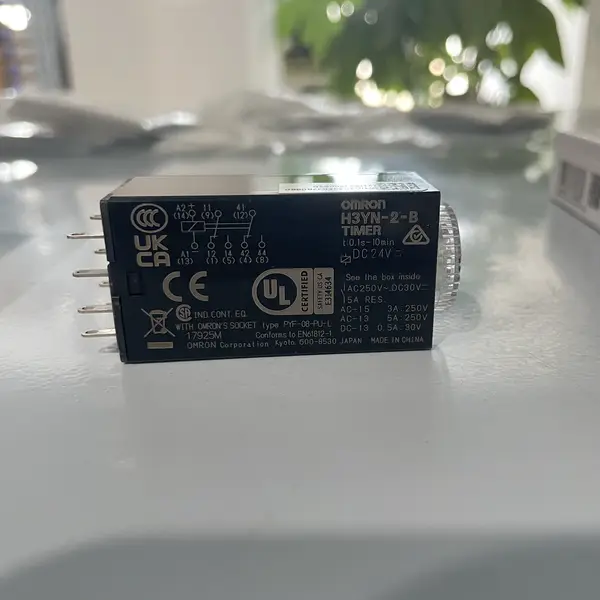

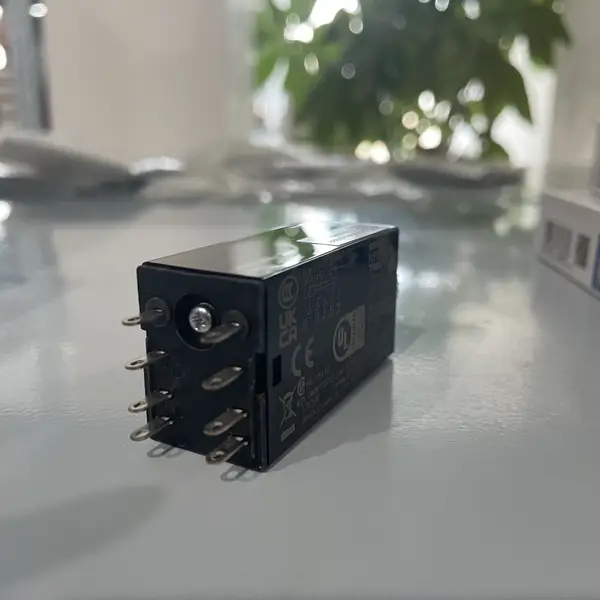

Omron H3YN-2-B DC24 solid-state timer -- 8-pin plug-in timer block with green POWER LED and red OUTPUT LED on the front face, DIP switch bank visible on the side.

Omron H3YN-2-B DC24 — Multi-Function Timer, DPDT, 24 VDC

SKU: H3YN-2-B DC24V

USD 36.00

8-pin plug-in multi-function timer, DPDT output, four modes (ON-delay, interval, flicker), 0.1 s to 10 min, 24 VDC supply.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The H3YN-2-B DC24 is an 8-pin plug-in timer that gives you four timing modes — ON-delay, interval, flicker-OFF-start, and flicker-ON-start — in one compact package. It runs on 24 VDC and provides two changeover (DPDT) relay contacts rated at 5 A, so you can drive a contactor and an indicator from the same time trigger. Set the range from 0.1 s to 10 min using the four-position DIP switch on the side and the dial on the front. A green power LED and a red output LED show the state at a glance; the timer draws about 1.2 W (50 mA) at 24 VDC.

Where it fits in a panel

Use the H3YN-2-B DC24 in any cabinet that already uses 8-pin plug-in relays. Common applications are ON-delay start of a conveyor or pump, interval timing on a sealing bar, and flicker mode for lubrication cycling. The four built-in modes cover almost any basic timing job on a small machine, and the 5 A contacts handle most motor contactor coils directly without an interposing relay.

Choosing the right version

Pick the H3YN-2-B DC24 (this SKU) when you need 24 VDC control power and DPDT (2 Form C) outputs. For 4PDT outputs (4 Form C), use H3YN-4-B DC24; for 10-hour ranges rather than 10-minute, use H3YN-21-B or H3YN-41-B; for direct DIN-rail mounting without a socket, step up to the H3DS-ML or H3DT series. You will also need an 8-pin socket such as PYF08A (screw) or PYF-08-PU-L (Push-In Plus for 60 % faster wiring).

Before ordering or installing

Order an 8-pin socket at the same time — the timer block does not wire directly. When replacing in service, photograph the existing DIP switch before removing the old timer so you can match the mode and time cap. Snubber diodes on 24 VDC coil loads and RC snubbers on 230 VAC contactor coils extend contact life.

Key Features

  • 8-pin plug-in multi-function timer, 24 VDC supply
  • Four selectable modes: ON-delay, interval, flicker-OFF-start, flicker-ON-start
  • 0.1 s to 10 min range across four time caps
  • DPDT relay output, 5 A at 250 VAC
  • ±0.5 % repeat accuracy
  • Green power LED and red output LED on front
  • Plugs into PYF08A or PYF-08-PU-L socket
  • SKU: H3YN-2-B DC24V
  • Series: H3YN-B plug-in timer
  • Voltage: 24 VDC
  • I/O: 2 I/O

Best-Fit Applications

  • ON-delay start of a conveyor or pump
  • Lubrication cycling in flicker mode
  • Sealing-bar dwell timing
  • Star-delta or autotransformer reduced-voltage start sequencing

Buying Checklist

  • Pick H3YN-2-B DC24 for 24 VDC DPDT plug-in timer with all four modes (this SKU)
  • Pick H3YN-4-B DC24 for 4PDT outputs
  • Pick H3DS-ML for DIN-rail mounting without a socket
  • Use PYF-08-PU-L socket for Push-In Plus screwless wiring
  • Match the DIP switch mode and time cap to the previous timer when replacing in service

Technical Specifications

Model H3YN-2-B DC24
Series H3YN-B plug-in timer
Modes ON-delay / interval / flicker-OFF-start / flicker-ON-start
Time Range 0.1 s to 10 min (4 caps: 1 s / 10 s / 1 min / 10 min)
Output DPDT (2 Form C), 5 A at 250 VAC
Supply Voltage 24 VDC
Pin Type 8-pin plug-in (socket sold separately)
Repeat Accuracy ±0.5 % of full scale
Indicators Green power LED, red output LED
Operating Temperature -10 to +50 °C

FAQ for H3YN-2-B DC24V

How do I switch between ON-delay and interval modes?
Use the DIP switch on the side. Switch 1 picks the time cap (1 s / 10 s / 1 min / 10 min). Switches 2 and 3 pick the mode: both off = ON-delay, 2 on = interval, 3 on = flicker-OFF-start, both on = flicker-ON-start. There is no software setting — the physical switch position is the only option.
What socket do I need?
An 8-pin PYF-family socket. PYF08A is the standard round socket with screw terminals. PYF-08-PU-L is the Push-In Plus version with screwless terminals and about 60 % faster wiring. For flush-mounting through a panel cutout, add a Y92F-30 adapter. For multi-timer panels with a uniform grid, PYP-1 or PYP-18 plates hold 1 or 18 sockets respectively.
What is the maximum load the contacts can switch?
5 A resistive at 250 VAC or 30 VDC, and 2 A inductive at 250 VAC. Mechanical life is 10 million operations no-load; electrical life is 100,000 at rated load. For a 24 VDC solenoid load, fit a flyback diode across the coil. For 230 VAC inductive loads, add an RC snubber.
Can I use this on a 230 VAC supply?
Not this SKU. The H3YN-2-B DC24 takes 24 VDC on pins 2 and 7. For 230 VAC control, order the H3YN-2-B AC200-230 (same timing and contact ratings, different coil). Connecting 230 VAC to a DC24 timer will damage the coil.
