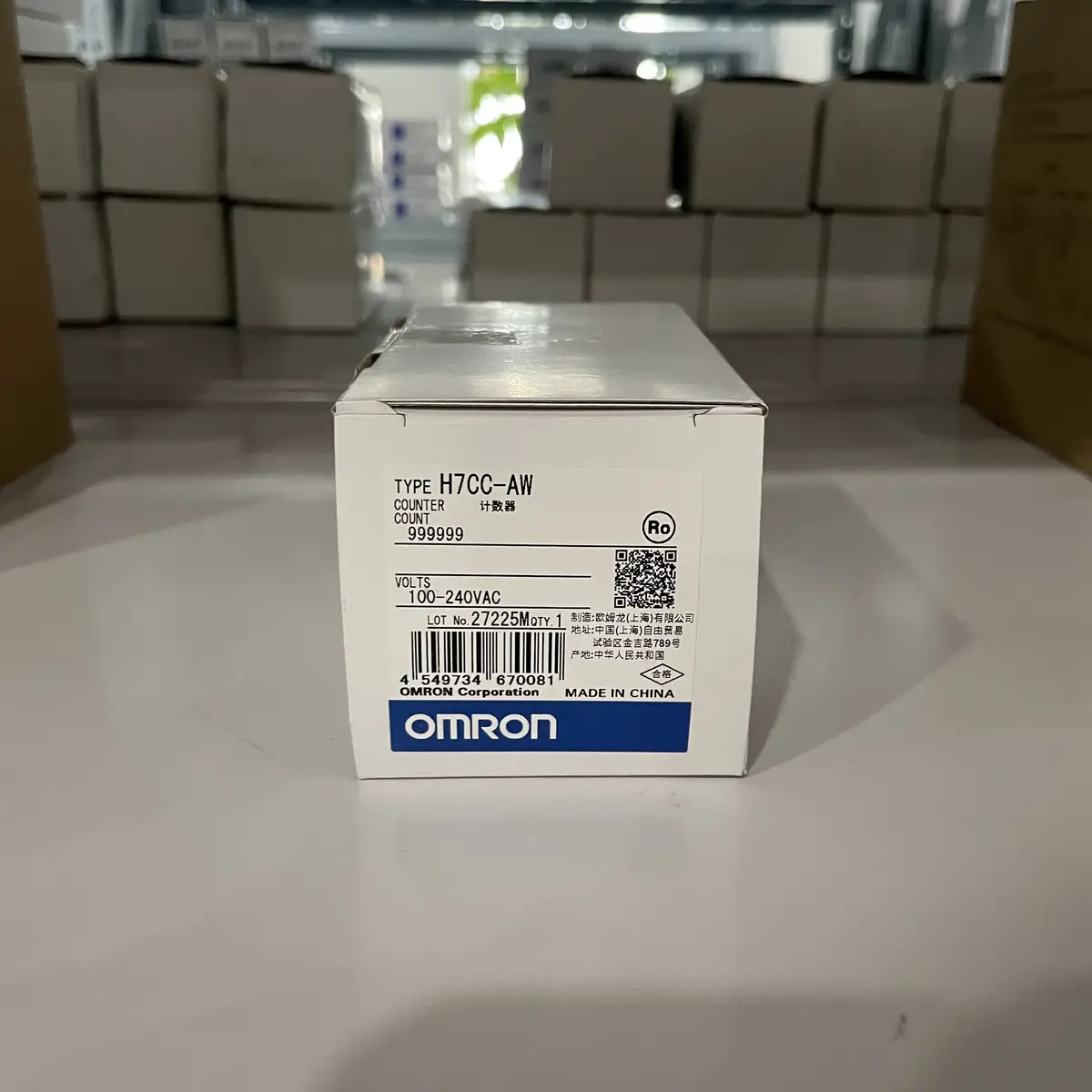

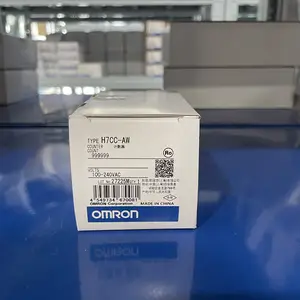

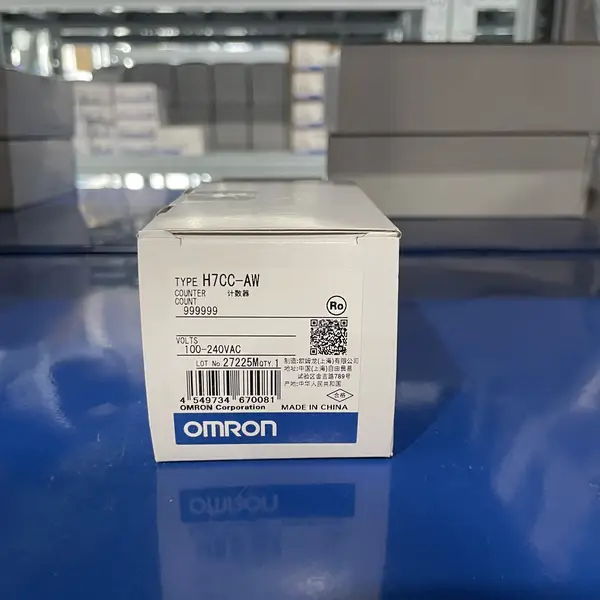

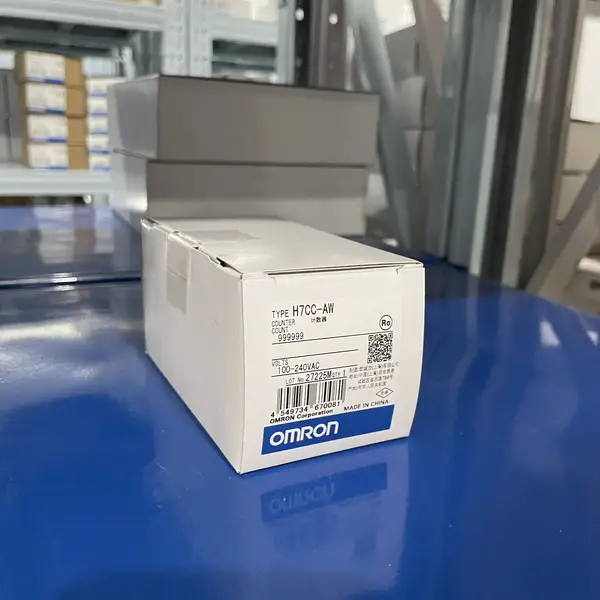

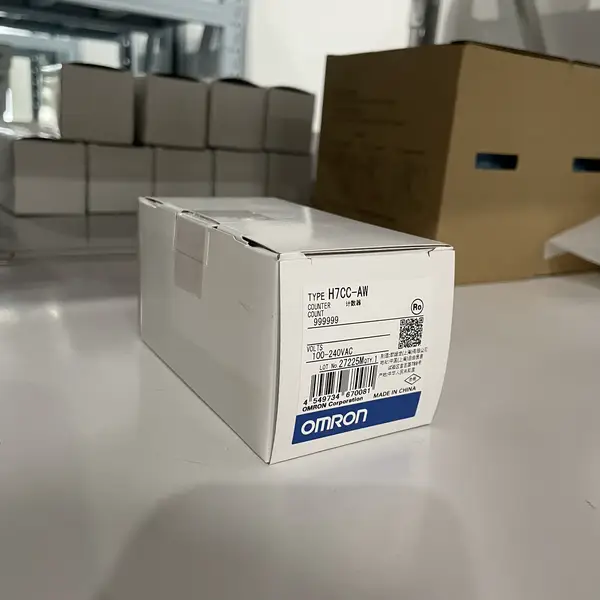

Omron H7CC-AW — Multifunction Counter, AC 100-240 V
SKU: H7CC-AWUSD 80.00
Omron H7CC-AW multifunction counter, 48x48 mm. 7 modes, 12 VDC aux, SPST+SPDT, IP66. In stock, datasheet, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron H7CC-AW is a multifunction digital counter and tachometer manufactured by Omron Corporation. Hengyixin Automation stocks this timer / counter at our Xiamen warehouse; orders placed before 14:00 CST ship same business day.
The H7CC-AW runs on AC 100-240 V mains at approximately 6.8 VA and offers seven counting modes (1-stage, 1-stage + batch, 1-stage + total, 2-stage, dual counter, tachometer, twin counter). The 6-digit LCD shows counts from -99,999 to 999,999. Two count inputs (CP1, CP2) and two reset inputs (Reset 1, Reset 2) accept NPN or PNP signals, switchable per input. A 12 VDC 100 mA auxiliary output feeds a nearby photoelectric or proximity sensor directly from the counter.
Two relay outputs (SPST-NO + SPDT) carry 3 A at 250 VAC or 30 VDC resistive. The 48 x 48 mm panel face is IP66 when seated with the Y92S-P6 waterproof packing. The simpler 1-stage cousin is the H7CC-AU; the DC-supply multifunction cousin is the H7CC-ASD.
Key Features
- Multifunction digital counter with 7 counting modes and AC 100-240 V supply
- 6-digit LCD with -99,999 to 999,999 count range, two count inputs + two reset inputs
- 12 VDC 100 mA auxiliary output feeds a nearby photoelectric or proximity sensor
- Two relay outputs (SPST-NO + SPDT) at 3 A 250 VAC / 30 VDC resistive
- SKU: H7CC-AW
- Series: Omron H7CC multifunction digital counter
- Voltage: 100-240 V
Best-Fit Applications
- 1-stage preset counter on a vertical-form-fill-seal machine to batch 24 filled bags per carton, tripping a SPST-NO relay to fire the carton sealer
- Tachometer mode on the head pulley of a 12 m inclined conveyor to display line speed in RPM, with a 12 VDC photoelectric sensor powered from the H7CC's aux output
- Twin-counter mode on a slitter-rewinder to track the current bobbin length and the cumulative cut length for shift-end reporting
Buying Checklist
- Pick the H7CC-AW when the cabinet is on 100-240 VAC and the counter needs the seven multifunction modes plus a 12 VDC sensor supply.
- Pick the H7CC-AU instead for a 1-stage preset counter on AC 100-240 V without the 12 VDC aux or the multifunction modes.
- Pick the H7CC-ASD or H7CC-AWD instead when the cabinet supply is 12-48 VDC or 24 VAC.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron H7CC multifunction digital counter |
| Model / SKU | H7CC-AW |
| Function | Multifunction counter / tachometer (7 modes) |
| Supply Voltage | AC 100-240 V 50/60 Hz, approx. 6.8 VA |
| Auxiliary Output | 12 VDC at 100 mA (sensor power supply) |
| Display | 6-digit negative transmissive LCD with backlight; count range -99,999 to 999,999 |
| Inputs | CP1, CP2, Reset 1, Reset 2 — NPN no-voltage / PNP voltage switchable per input |
| Count Speed | 30 Hz or 10 kHz (DIP-switch selectable) |
| Outputs | 1 x SPST-NO + 1 x SPDT relay, 3 A 250 VAC / 30 VDC resistive |
| Counting Modes | 1-stage / 1-stage + batch / 1-stage + total / 2-stage / dual counter / tachometer / twin counter |
| Body / Protection | 48 x 48 x 78 mm flush mount, 120 g, IP66 panel face with Y92S-P6 packing; -10 to +55 C operating |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for H7CC-AW
What is the Omron H7CC-AW?
The Omron H7CC-AW is a multifunction digital counter and tachometer in the H7CC family. It runs on AC 100-240 V mains, fits a 48 x 48 mm DIN / 1/16 DIN panel cutout, and offers seven counting modes, two relay outputs (SPST-NO + SPDT), and a 12 VDC 100 mA auxiliary output to feed a nearby sensor.
H7CC-AW vs H7CC-AU — what is the difference?
The H7CC-AW is the multifunction counter: seven counting modes, two relay outputs, and a 12 VDC 100 mA auxiliary output. The H7CC-AU is the simpler 1-stage preset counter with one SPDT relay output and no 12 VDC aux. Both share the same AC 100-240 V supply and the same 48 x 48 mm flush body. Pick the AW for a multifunction build; pick the AU for the lowest-cost 1-stage preset.
Can the H7CC-AW run on 24 VDC?
No — the H7CC-AW is AC 100-240 V only. For a 12-48 VDC / 24 VAC supply in the same H7CC multifunction family, pick the H7CC-ASD or the H7CC-AWD.
How many counting modes does the H7CC-AW have?
Seven: 1-stage (basic preset), 1-stage + batch, 1-stage + total, 2-stage, dual counter, tachometer, and twin counter. The mode is selected from the front-panel mode key, no PC required.
