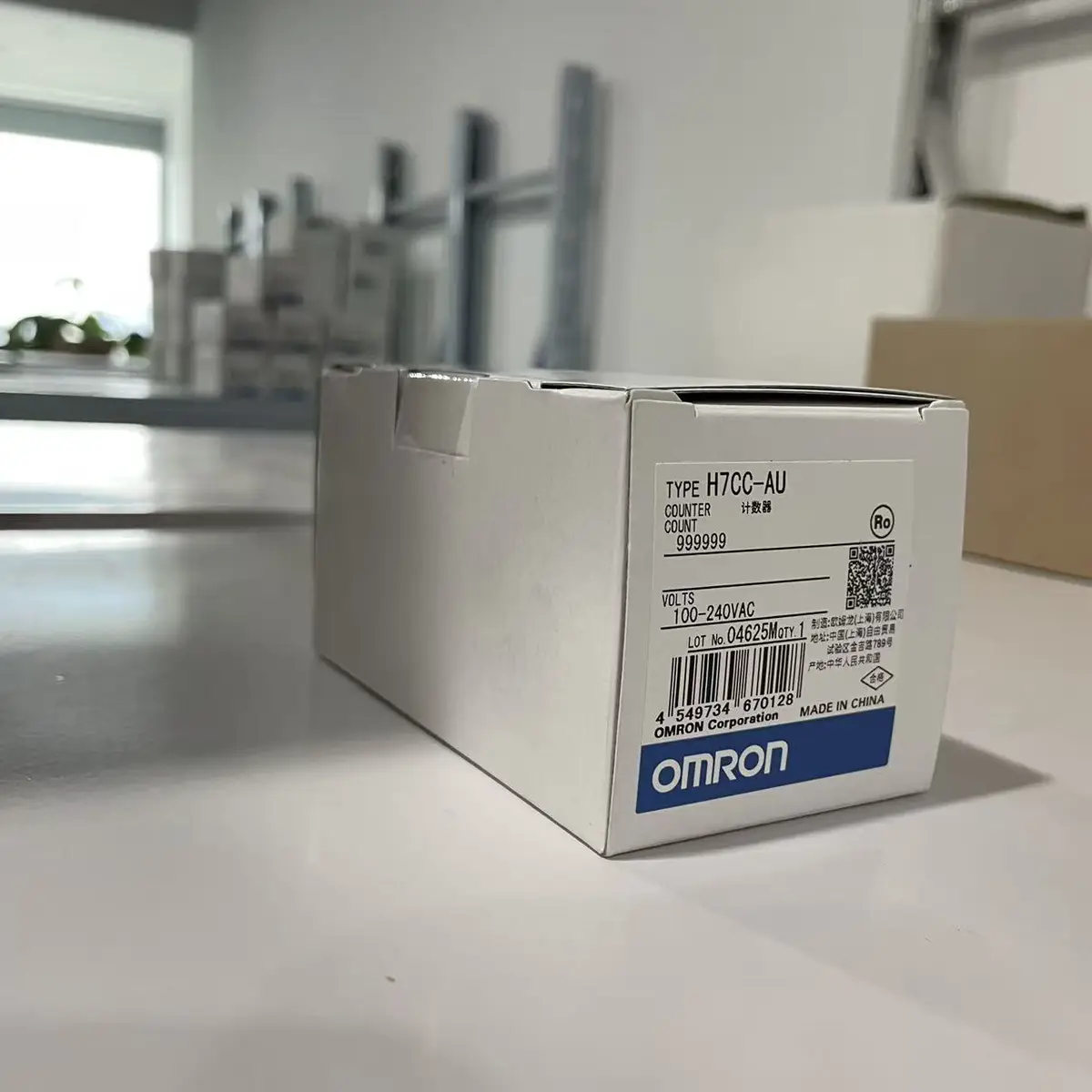

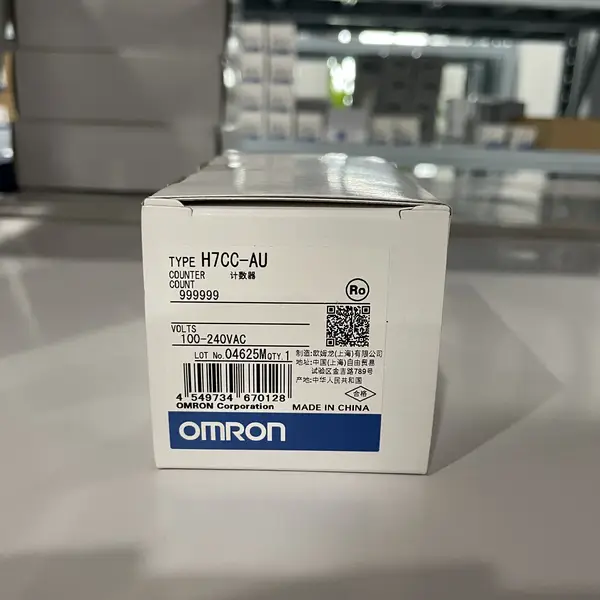

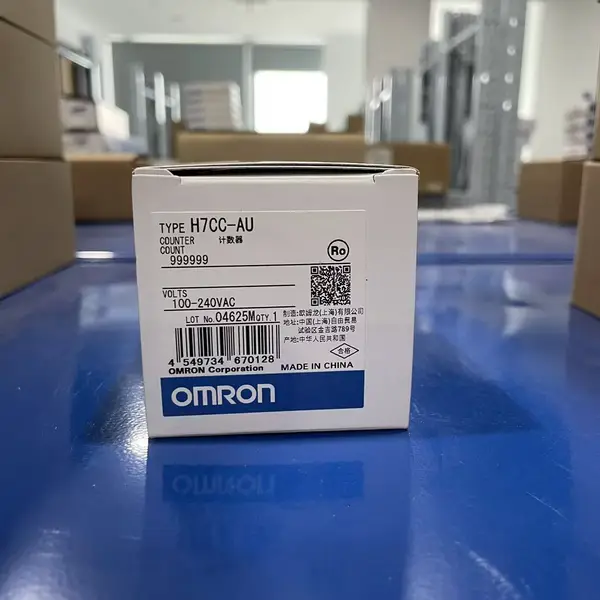

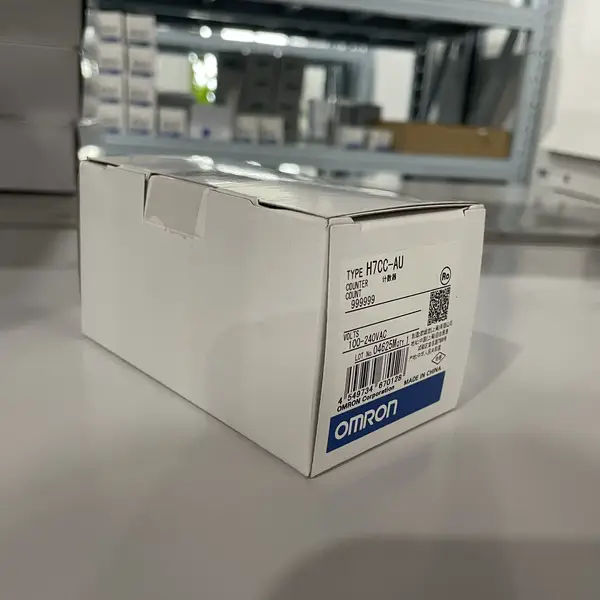

Omron H7CC-AU — 48×48 Counter / Tachometer, AC
SKU: H7CC-AUUSD 108.00
H7CC 48×48 mm digital counter and tachometer with screw terminals on AC100-240 V. Multifunction preset, 6-digit LCD, relay output.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron H7CC-AU is a digital counter and tachometer in the H7CC-A series. It fits the standard 45×45 mm panel cutout used across the H7CX / H7CC / K3HB lineup and gives a 6-digit (-99999 to 999999) 7-segment LCD with a 10 mm-tall count row and a 6 mm-tall setpoint row. It is a screw-terminal AC100-240 V unit with NPN / PNP input switchable from a rear DIP switch. In counter mode it runs 1-stage + 2-stage + total + batch + dual + double counter. In tachometer mode it runs pulse-period or pulse-width measurement with a 200 ms or continuous sampling switch. It is the standard pick when a single 48×48 mm device needs to act as a parts counter on one line and a shaft-speed indicator on another.
Where it fits in the H7C family
H7CC-A8 / H7CC-A11 use 8- or 11-pin socket connection for 1-stage + total counter only. H7CC-A runs screw terminals with full multifunction. H7CC-AU is the screw-terminal AC100-240 V variant of that line. Pick the H7CC-AU for a screw-terminal counter / tachometer on AC supply. Pick the H7CC-A8D for a 24 VAC / 12-48 VDC 8-pin socket plug-in. Pick the H7CX-A for a basic preset counter with a single SPDT + SPST output pair.
Why a multifunction counter rather than a simple preset
A simple 1-stage preset counter stops a line at a fixed batch quantity. The H7CC-AU adds 2-stage control (count up to pre-warn, then full stop), total counter for shift totals, batch control, dual counter for two separate parts on one panel, and tachometer when the same device is used on a rotating shaft. One SKU covers most panel jobs and simplifies spare stock.
Before ordering
Confirm the input type: NPN / PNP is set on a rear DIP switch. Wire the count input dry or with voltage. Use shielded cable for the input wiring in noisy cabinets, routed at least 100 mm from power lines. Set the count speed DIP to 30 Hz for mechanical switches or 10 kHz for proximity sensors. Provide the panel cutout at 45×45 mm and seat the unit with the supplied adapter and gasket for IP66 on the panel face.
Key Features
- H7CC-A series 48×48 mm digital counter and tachometer
- Screw terminals, AC100-240 V 50/60 Hz supply
- Multifunction counter (1-stage, 2-stage, total, batch, dual, double)
- Tachometer mode (pulse-period / pulse-width, max 10 kHz)
- NPN / PNP input switchable on rear DIP switch
- 30 Hz or 10 kHz count speed (DIP selectable)
- 6-digit -99999 to +999999 7-segment LCD, 10 mm count / 6 mm set
- SPDT relay output + transistor output pair
- Sensor wait time 290 ms or less, prescaling 0.001 to 99.999
- IP66 panel face with supplied gasket, cULus / EN61010-1 / RCM
- SKU: H7CC-AU
- Series: H7CC-A 48×48 mm digital counter / tachometer
- Voltage: 240 V
- I/O: 4 I/O
Best-Fit Applications
- Batch counting station on a packaging or filling line
- Parts counter on a conveyor reject diverter stack
- Tachometer readout on a conveyor drive motor shaft
- Two stage pre-warn and full stop control on a winder
- Replacement for old H7CX-A or H7CN-Y in retrofit cabinets
Buying Checklist
- Choose H7CC-AU for screw-terminal AC100-240 V multifunction counter / tachometer.
- Choose H7CC-A11 for an 11-pin socket 1-stage + total preset counter on 100-240 V.
- Choose H7CC-A8D for an 8-pin socket 24 VAC / 12-48 VDC counter.
- Choose H7CC-AUD for screw-terminal 24 VAC / 12-48 VDC multifunction.
- Choose H7CX-A when a tachometer is not needed and the panel only requires preset.
- Confirm 45×45 mm cutout, NPN / PNP input wiring, and output rating for the driven load.
Technical Specifications
| Series | H7CC-A 48×48 mm digital counter / tachometer |
|---|---|
| Function | Preset counter (1-stage / 2-stage / total / batch / dual / double) and tachometer |
| Supply Voltage | AC100-240 V 50/60 Hz (D suffix = AC24 V / DC12-48 V) |
| Power Consumption | Approx. 6.8 VA at AC100-240 V |
| Count Speed | 30 Hz or 10 kHz selectable (min pulse 0.05 ms at 10 kHz) |
| Count Range | -99999 to +999999 (6-digit) |
| Tachometer Range | 0.001 Hz to 10 kHz (1-input mode), pulse-width measurement |
| Input | NPN / PNP switchable, voltage 4.5-30 V "H" / 0-2 V "L" |
| Outputs | SPDT contact (AC250 V 3 A resistive) + transistor (DC30 V 100 mA) |
| Display | 7-segment LCD, 10 mm white count / 6 mm green setpoint |
| Memory | Non-volatile, 100,000 rewrite cycles, 10-year data retention |
| Panel Cutout | 45 × 45 mm, IP66 panel face with Y92S-P6 gasket |
Resources & Downloads
FAQ for H7CC-AU
What is the difference between H7CC-AU and H7CC-A8D?
The H7CC-AU is a screw-terminal unit on AC100-240 V with multifunction counter and tachometer (1-stage + 2-stage + total + batch + dual + double + tachometer). The H7CC-A8D is an 8-pin socket plug-in on AC24 V / DC12-48 V with simpler 1-stage + total counter only. Pick AU for a screw-wired multifunction device on AC mains; pick A8D for a quick-swap 24 VDC socket device with only basic counter.
Can the H7CC-AU read a tachometer as well as a counter?
Yes. Switch the function from counter to tachometer in the parameter menu, set the pulse-period or pulse-width measurement mode, and enter a prescale value. Maximum input frequency is 10 kHz in 1-input mode (5 kHz in other modes). The 6-digit display shows the speed directly in engineering units (rpm, m/min) once prescaling is set.
Does the H7CC-AU keep its count through a power loss?
Yes. The H7CC-AU uses non-volatile memory with 100,000 rewrite cycles minimum and 10-year data retention without power. On power restore, the count resumes from the retained value. Preset values, output-mode settings, and the prescale factor are all retained as well, so no reprogramming is needed after a brownout.
