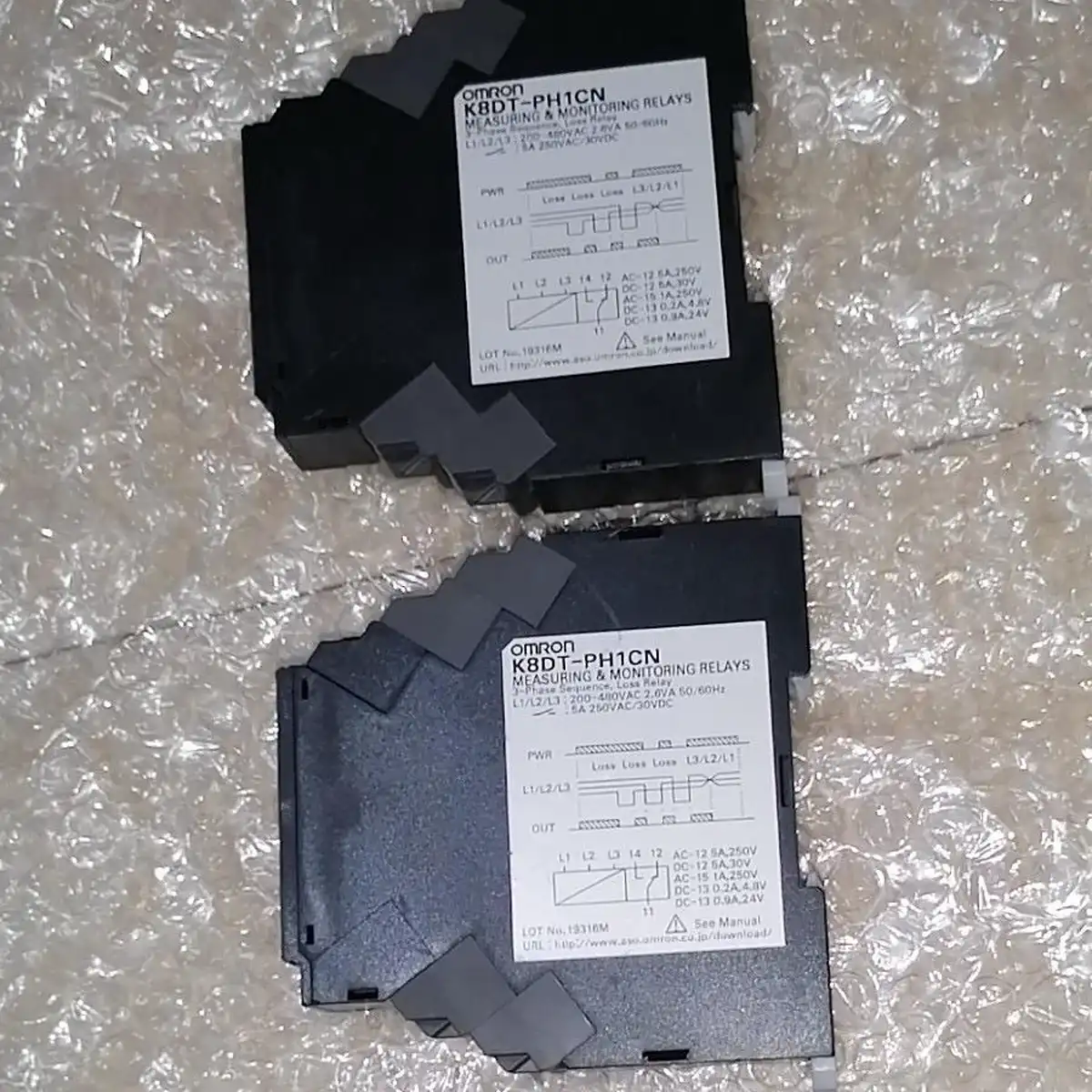

Omron K8DT-PH1CN — Phase-Seq / Phase-Loss Relay
SKU: K8DT-PH1CNUSD 32.00
K8DT 17.5 mm 3-phase reverse-phase + phase-loss monitoring relay on 200-480 VAC, SPDT 5 A relay output, Push-In Plus terminals.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron K8DT-PH1CN is a slim three-phase monitoring relay for the two most common motor-damaging supply faults: a swapped phase wiring hookup that reverses direction, and a lost phase after a fuse or contactor issue. It measures the phase-to-phase voltage on a 3-wire 3-phase 200-480 VAC supply, watching for sequence error or collapse to zero. On a fault it drops a single SPDT contact (5 A at 250 VAC) within 0.1 s. It is the standard pick to protect a 3-phase motor or compressor feed where a wrong phase sequence would drive the shaft backwards.
Where it fits in the K8D family
The K8D line is split by function and supply. K8DT-PH monitors reverse-phase + phase-loss on 200-480 VAC (this unit). K8DT-PM2 is the 3-phase voltage + reverse-phase + phase-loss relay at 380-480 VAC. K8DS-PU2 monitors undervoltage. K8DS-PZ monitors voltage imbalance. Pick the K8DT-PH1CN when the only job is to catch a swapped phase or a blown fuse. Pick the K8DS-PM2 when undervoltage and overvoltage tripping are also needed. Pick the K8DT-PM1 for a 200-240 VAC three-phase voltage relay.
Push-In Plus vs screw terminals
The CN suffix on this unit is the Push-In Plus terminal block. Use stranded wire with ferrules (AWG24 to AWG16, 0.25 to 1.5 mm^2), insert directly, and the contact closes without a screwdriver. Strip 8 mm of insulation. The TN sibling uses M3 screws for sites that already have ferruled wire and want the service pattern. Both terminal styles share the same body and DIN-rail mount.
Before ordering
Confirm the supply is a true 3-wire 3-phase (no neutral needed). Select the right unit for the supply voltage: 200-480 VAC covers most global industrial supplies. Wire 3-phase to the three input terminals. Mount on a DIN track (PFP-100N / PFP-50N) or with M4 screws. Allow the relay to drop any motor contactor or drive enable on its own fault trip.
Key Features
- K8DT-PH family 3-phase reverse-phase + phase-loss relay
- 3-phase 200-480 VAC input, 3-wire (no neutral)
- Input burden ~2.6 VA at rated voltage
- Reverse-phase trip 0.1 s +/- 0.05 s
- Phase-loss trip 0.1 s max on 100 % -> 0 % rapid collapse
- SPDT contact output 5 A at 250 VAC / 30 VDC resistive
- Auxiliary 24 VDC 50 mA transistor output
- Automatic reset, PWR green + OUT yellow LEDs
- Phase-loss detect level 80 % +/- 10 % of rated input
- 17.5 x 90 x 90 mm slim DIN-rail body, Push-In Plus terminals
- SKU: K8DT-PH1CN
- Series: K8DT-PH three-phase monitor
- I/O: 3 I/O
Best-Fit Applications
- Reverse-phase guard on an HVAC or air-compressor feed
- Phase-loss trip on a pump starter for agricultural irrigation
- Pre-charge interlock on a 3-phase battery or DC bus cabinet
- Motor protector on a conveyor or mixer main feed
- Direction-watch on a lift station or hoist controller
Buying Checklist
- Confirm the supply is 3-phase 200-480 VAC with no neutral needed.
- Choose K8DT-PM1 when monitoring 200-240 VAC three-phase voltage.
- Choose K8DT-PM2 when undervoltage and overvoltage are also needed.
- Choose K8DS-PU2 when the job is undervoltage-only protection.
- Choose K8DS-PH1 for the previous-generation 17.5 mm body with screw terminals.
- Confirm the 24 VDC transistor output is wired to a PLC input for fault logging.
Technical Specifications
| Series | K8DT-PH three-phase monitor |
|---|---|
| Function | Reverse-phase + phase-loss detection (3-wire) |
| Rated Input | 3-phase 200-480 VAC |
| Input Burden | ~2.6 VA at rated voltage |
| Operating Time | Reverse-phase 0.1 s +/- 0.05 s; phase-loss 0.1 s max on rapid collapse |
| Reset | Automatic reset |
| Output | SPDT relay 5 A at 250 VAC / 30 VDC + 24 VDC 50 mA transistor |
| Indicators | PWR green LED, OUT yellow LED |
| Mounting | DIN track (PFP-100N / PFP-50N) or M4 screws |
| Dimensions | 17.5 x 90 x 90 mm (W x D x H) |
| Operating Temperature | -20 to 60 degC (no icing, no condensation) |
| Degree of Protection | IP20 (terminals) |
Resources & Downloads
FAQ for K8DT-PH1CN
What is the difference between K8DT-PH and K8DS-PH?
Both are reverse-phase + phase-loss relays. The K8DT is the current generation 17.5 mm slim body with the same trip thresholds (0.1 s reverse-phase, 0.1 s phase-loss) and adds the Push-In Plus terminal option. The K8DS-PH is the previous-generation line with screw terminals. Pick K8DT-PH1CN for new designs; K8DS-PH1 for direct screw-terminal service of existing panels.
Does the K8DT-PH1CN monitor undervoltage?
No. The K8DT-PH only watches phase sequence and the loss of any phase to near-zero on the same 200-480 VAC range. For undervoltage protection on 380-480 VAC use K8DS-PU2. For voltage + reverse-phase + phase-loss on 380-480 VAC use K8DS-PM2. For voltage imbalance on three-phase supplies use K8DS-PZ.
How do I wire the Push-In Plus terminals?
Strip 8 mm of insulation and use stranded wire with a ferrule sized to AWG24-16 (0.25 to 1.5 mm^2). Insert directly into the terminal opening; the clamp closes without a screwdriver. Solid wire and ferruled stranded wire both fit. Up to 50 insertions per terminal. Remove with a flat-blade screwdriver (Omron XW4Z-00B or a 0.4 x 2.5 mm tip).
