Omron K8DS-PU2 — 3-Phase Undervoltage Monitor, 380–480 VAC
SKU: K8DS-PU2USD 23.00
17.5 mm slim 3-phase undervoltage, phase-sequence and phase-loss monitoring relay for 380–480 VAC supplies, one SPDT 5 A output, rotary switch setting, DIN-rail mount.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The K8DS-PU2 is the 380–480 VAC variant of Omron's K8DS-PU slim monitoring-relay family, designed to protect three-phase loads from undervoltage, phase loss, and phase-sequence (incorrect phase rotation) faults on industrial control panels. In a 17.5 mm DIN-rail housing — the same width as a single MCB — it integrates a three-in-one monitor that, in the past, would have required three separate relays or a custom PLC logic block. Its single SPDT output (5 A at 250 VAC / 5 A at 30 VDC resistive) trips a contactor, sounds a horn, or signals the PLC when any of the three fault conditions is detected.
What makes K8DS-PU2 different from siblings
The K8DS family splits along two axes: input voltage (K8DS-PU1 for 200–240 VAC, K8DS-PU2 for 380–480 VAC, this SKU) and monitored function. Within the PU family (undervoltage + phase-loss + phase-sequence), the only difference between -PU1 and -PU2 is the rated input voltage range. If your mains is 400 VAC nominal (Europe, most of Asia), pick the K8DS-PU2. If your mains is 230 VAC (older European or North-American single-phase stepped up with a transformer), pick the K8DS-PU1.
Setting and wiring the K8DS-PU2

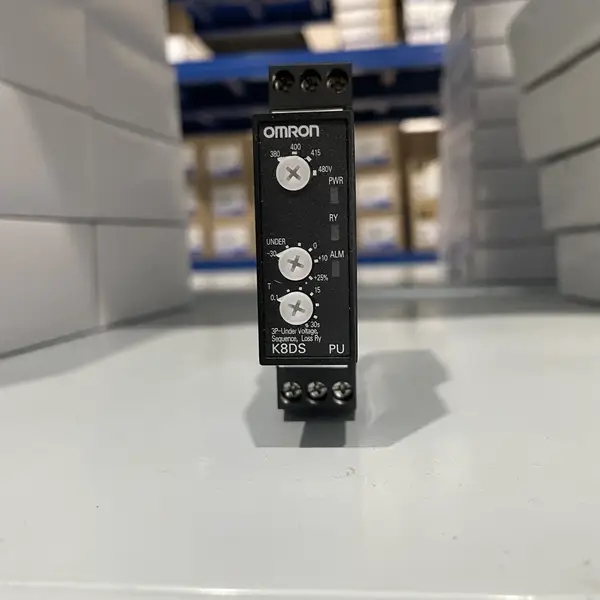

The K8DS-PU2 uses rotary switches on the front for configuration. The undervoltage setpoint dial covers -30 % to +25 % of the nominal rating — turn the dial to the undervoltage trip point you want (e.g., on a 400 VAC supply, set -20 % to trip at 320 VAC). The reset differential is fixed at 5 % of the operating value, so on a 400 VAC supply with -20 % undervoltage setpoint, the relay picks up at 320 VAC and resets at 340 VAC — this 20 VAC hysteresis prevents output chattering on borderline supplies.
Use cases and integration with PLCs
Wire the K8DS-PU2 SPDT output to a 24 VDC PLC digital input: route the COM to the 24 VDC supply and the NO contact to the input. A fault causes the relay to drop out, the input to read low, and the PLC to take action (e-stop the line, page the operator, log the fault). Alternatively, wire the K8DS-PU2 in series with a contactor's coil: when the relay trips, the contactor drops out and the motor stops. This is the classic wiring for a hard-wired protection circuit that operates even if the PLC is dead.
Key Features
- Slim 17.5 mm DIN-rail housing — same width as one MCB
- 3-in-1 monitor: undervoltage, phase loss, phase sequence in one unit
- 380–480 VAC rated input
- Rotary-switch setpoint — -30 % to +25 % of nominal
- Adjustable undervoltage operating time 0.1 to 30 s
- Phase-sequence trip time 0.1 s, phase-loss 0.1 s, power-ON lock 1 s
- One SPDT output relay, 5 A at 250 VAC / 5 A at 30 VDC resistive
- Higher inverter-noise immunity than older K8AK series
- SKU: K8DS-PU2
- Series: K8DS (Slim 17.5 mm monitoring relay)
- Voltage: 480 VAC
- I/O: 380 I/O
Best-Fit Applications
- Phase-sequence and undervoltage protection on a 400 V conveyor motor in a bottling plant
- Undervoltage trip on a 400 V chiller compressor to prevent low-voltage stall
- Phase-loss alarm on a pump station where a missing phase would damage the impeller
- Protection of a 400 V hydraulic power unit downstream of a soft-starter or VFD
Buying Checklist
- Pick K8DS-PU2 for 380–480 VAC supplies; pick K8DS-PU1 for 200–240 VAC supplies
- Pick K8DS-PU2 for 3-in-1 monitoring; pick K8DS-PH1 if you only need phase-sequence / phase-loss
- Pick K8DS-AS1 if you need a dedicated asymmetry setpoint instead of undervoltage
- Set the undervoltage dial before powering up — a wrong setting will trip on normal operation
- Allow 1 second power-ON lock to ride through transformer inrush
- Set operating time to 0.5–2 s for typical motors; ride through motor starting transients

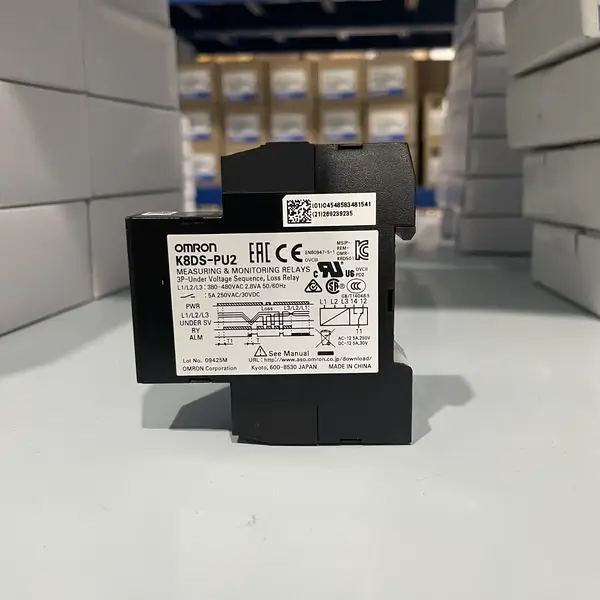

Technical Specifications
| Model | K8DS-PU2 |
|---|---|
| Series | K8DS (Slim 17.5 mm monitoring relay) |
| Functions | Undervoltage, Phase loss, Phase sequence |
| Rated Input Voltage | 380 / 400 / 415 / 480 VAC, 3-wire 3-phase |
| Input Load | Approx. 2.8 VA |
| Undervoltage Setting Range | -30 % to +25 % of rated input voltage |
| Reset Value | 5 % of operating value (fixed) |
| Reset Method | Automatic |
| Undervoltage Operating Time | 0.1 to 30 s (adjustable) |
| Output Relay | 1 × SPDT, 5 A at 250 VAC / 5 A at 30 VDC resistive |
| Terminal Type | M3 screw |
| Mounting | DIN rail |
| Operating Temperature | -20 to +60 °C |
| Certifications | UL, CSA, CE, CCC |
Resources & Downloads
FAQ for K8DS-PU2
What's the difference between K8DS-PU1 and K8DS-PU2?
Only the rated input voltage range. K8DS-PU1 covers 200/220/230/240 VAC three-phase supplies; K8DS-PU2 covers 380/400/415/480 VAC three-phase supplies. The functions (undervoltage, phase-loss, phase-sequence), output relay, and dimensions are identical. If your mains is 400 VAC nominal (Europe, most of Asia), pick the K8DS-PU2.
What's the difference between K8DS-PU2 and K8DS-PH1?
K8DS-PU2 monitors undervoltage + phase-loss + phase-sequence; K8DS-PH1 monitors only phase-loss + phase-sequence (no undervoltage threshold). If you only need to detect a missing or reversed phase without an undervoltage trip, the PH1 is cheaper and has a simpler setting. If you need full 3-phase protection including brownout detection, pick the PU2.
Can the K8DS-PU2 be used on a single-phase 230 VAC supply?
No — the K8DS-PU2 requires a three-phase 3-wire 380–480 VAC supply. For single-phase monitoring, use the K8AK-PA or K8AK-PW single-phase voltage monitor instead. For three-phase 200–240 VAC, use K8DS-PU1. Connecting the K8DS-PU2 to a single-phase supply will leave one terminal floating and the relay will not function correctly.
How long does the K8DS-PU2 take to detect phase loss?
0.1 s max. This is fast enough to protect most motors against the destructive heating that builds up within 1–2 seconds of running on two phases. The phase-sequence detection is 0.1 s ± 0.05 s. Power-ON lock time is 1 s ± 0.5 s, which means the relay ignores faults for the first second after power-on so it does not trip on the inrush of a large transformer or capacitor bank.
