Omron R88M-K20030H-S2 — Drive
SKU: R88M-K20030H-S2USD 166.00

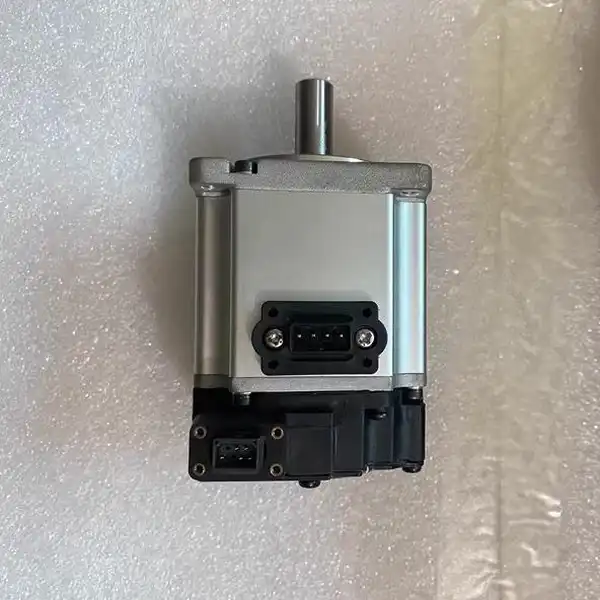

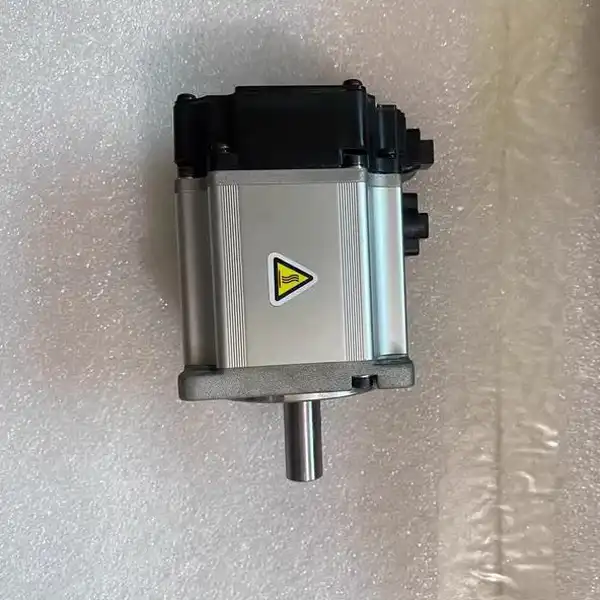

Accurax G5-series AC servo motor, 200 W at 3000 rpm, 0.64 Nm rated / 1.91 Nm peak torque, 200 V class, 20-bit incremental encoder, straight keyed shaft, no brake, single-phase 230 VAC drive.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The R88M-K20030H-S2 is the 200 W member of Omron's Accurax G5 servo-motor family — the entry point in the 200 V class lineup, sitting between the 100 W R88M-K10030H-S2 and the 400 W R88M-K40030H-S2. It delivers 0.64 Nm of rated torque at 3000 rpm with a peak torque of 1.91 Nm (300 % of rated) for fast acceleration and deceleration profiles, more than enough for the small-format packaging, labelling, indexing, and pick-and-place stations that typically use a 200 W axis.
S2 vs BS2 vs T-suffix siblings
The S2 suffix describes the shaft and brake: S2 = straight shaft with keyway, no brake. BS2 (e.g. R88M-K20030H-BS2) = straight keyed shaft with a 24 VDC holding brake for vertical-axis applications where the load must not drop when the motor is de-energised. The -T suffix (e.g. R88M-K20030T-S2) = 17-bit absolute encoder with battery backup so the axis retains position through power cycles. Pick the S2 for the common case of a horizontal axis that homes on every start. Pick BS2 for vertical axes (Z-axis on a pick-and-place, lift on a labelling machine).
Mechanical integration

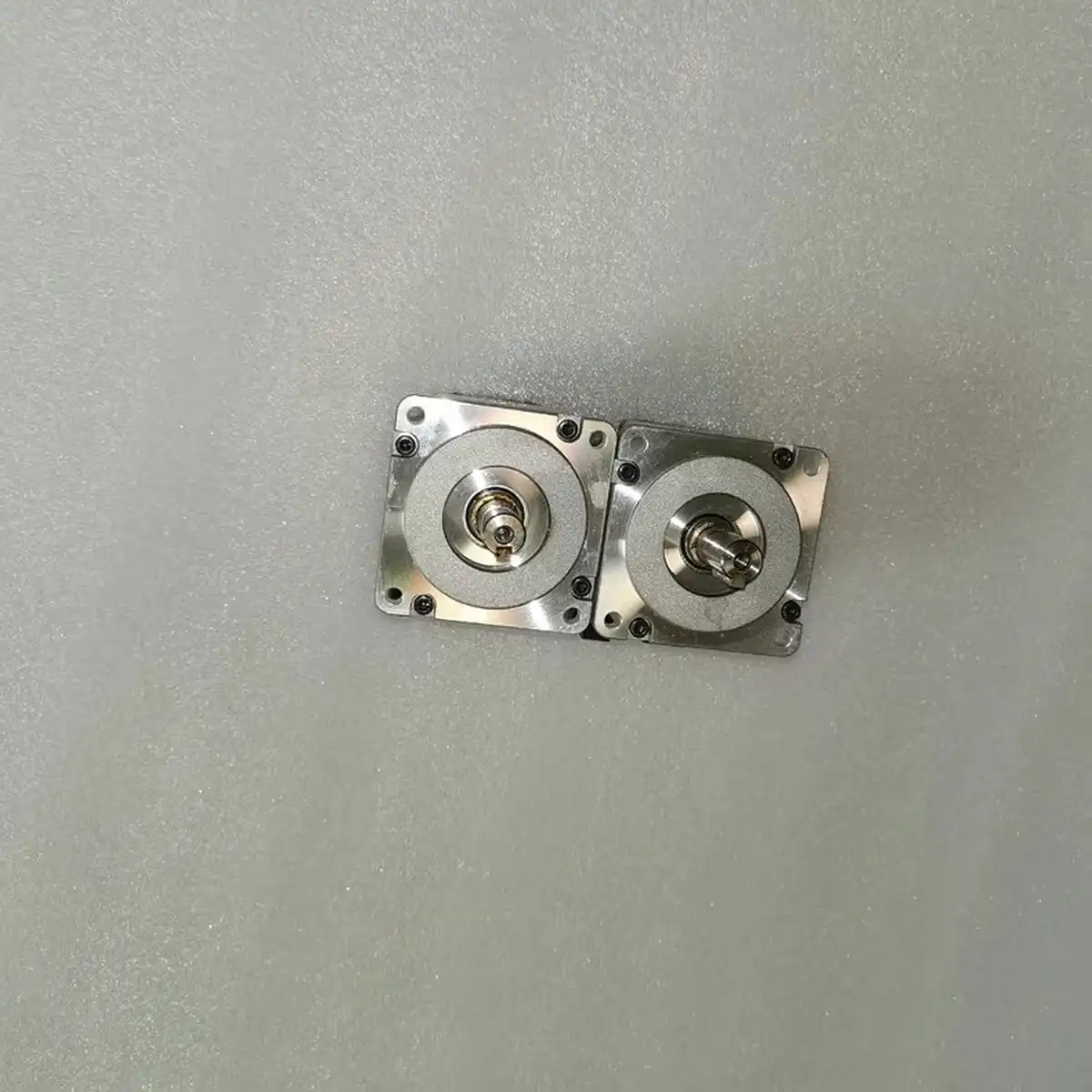

The R88M-K20030H-S2 has a 60 × 60 mm flange (LC dimension) and uses a 50 mm pilot diameter, the standard for 200 W class servo motors. Total length is approximately 110 mm without brake and weight is around 1 kg — small enough for a small Cartesian robot arm, the index drum on a labelling machine, the small slide on a desktop dispensing unit, or the conveyor-tracking axis on a small-format packaging line.
Pairing with the drive and controller
Pair the R88M-K20030H-S2 with an R88D-KN02H-ECT (EtherCAT) or R88D-KT02H (Mechatrolink-II / pulse-train) G5 servo drive from the same family. Through EtherCAT on an NJ501 or NX102 controller, the motor delivers position, velocity, and torque loops with a 1 kHz update rate. The drive's built-in safety STO reaches PL d per ISO 13849-1. For commissioning, load the G5-series electronic data sheet (EDS) in Sysmac Studio; the motor's torque, inertia, and encoder parameters populate automatically, and the auto-tuning routine adjusts the velocity / position gains in seconds once the motor is bolted to its load.
Key Features
- 200 W rated output at 3000 rpm, 0.64 Nm rated torque
- Peak torque 1.91 Nm for high-acceleration moves
- 20-bit incremental encoder, 1,048,626 pulses per revolution
- 200 V class drive, single-phase 230 VAC compatible
- Straight shaft with keyway and M3 tapped hole for coupling
- Pairs with R88D-KN02H-ECT EtherCAT drive or R88D-KT02H M-II drive
- Compatible with NJ501-1300 / NJ501-1400 / NX102-1000 controllers via EtherCAT
- 60 × 60 mm flange, 110 mm length, ~1 kg
- SKU: R88M-K20030H-S2
- Series: Accurax G5 (R88M-K)
- Voltage: 230 V
- I/O: 200 I/O
Best-Fit Applications
- Index drum drive on a small labelling machine positioning labels under the applicator
- Registration axis on a label applicator compensating for web-speed variations
- Cross-slide on a desktop dispensing unit moving the dispense head in X and Y
- Rotary table on a small assembly cell indexing parts between stations
Buying Checklist
- Pick R88M-K20030H-S2 for a 200 W 200 V axis with 20-bit incremental encoder and no brake
- Pick R88M-K20030H-BS2 if the axis is vertical and needs a 24 VDC holding brake
- Pick R88M-K20030T-S2 if you need absolute position retention through power cycles
- Pick R88M-K20030F-S2 if your drive bus is 400 V three-phase
- Pick R88M-K40030H-S2 for the next step up at 400 W
- Order the R88A-CSK08S flexible coupling or equivalent jaw-coupling matched to the 8 mm shaft
Technical Specifications
| Model | R88M-K20030H-S2 |
|---|---|
| Series | Accurax G5 (R88M-K) |
| Type | AC servo motor |
| Rated Output | 200 W |
| Rated Speed | 3000 rpm |
| Rated Torque | 0.64 Nm |
| Peak Torque | 1.91 Nm |
| Rated Current | 1.5 A rms |
| Instantaneous Max Current | 4.7 A rms |
| Drive Supply Voltage | 230 V single phase |
| Encoder Resolution | 1,048,626 pulses/rev |
Resources & Downloads
FAQ for R88M-K20030H-S2
What drive pairs with the R88M-K20030H-S2?
Any G5-series drive rated for 200 W at 200 V single phase. The most common pairings are R88D-KN02H-ECT (EtherCAT, for NJ501 / NX102 controllers) and R88D-KT02H (Mechatrolink-II or pulse-train, for CJ2 or standalone applications). For 400 V three-phase drives, order the 400 V variant R88M-K20030F-S2 and pair it with an R88D-KN02F-ECT drive.
Does the R88M-K20030H-S2 come with a brake?
No — the S2 suffix means straight keyed shaft, no brake. If the axis is vertical and you need a holding brake for power-off safety, order the R88M-K20030H-BS2 instead — same motor, but with a 24 VDC spring-engaged holding brake rated to hold the rated torque when de-energised.
What is the difference between H, T, F, and C encoder suffixes?
H = 200 V + 20-bit incremental encoder. T = 200 V + 17-bit absolute encoder with battery backup. F = 400 V + 20-bit incremental. C = 400 V + 17-bit absolute. Pick H for the most common case (a 200 V axis that homes on every start). Pick T when you want to skip homing at restart. Pick F or C if your drive bus is 400 V three-phase.
What IP rating is the R88M-K20030H-S2?
IP65 on the motor body and cable connector face — dust-tight and protected against low-pressure water jets. The shaft seal is splash-proof, not submersible. For food-processing or outdoor applications where the motor may be hosed down, fit an Omron IP67 cable gland kit and mount the motor with the connector facing down.
