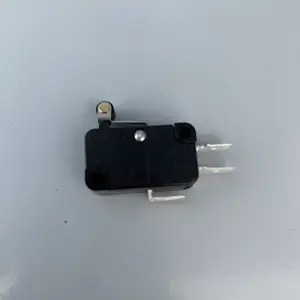

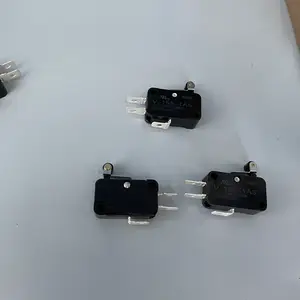

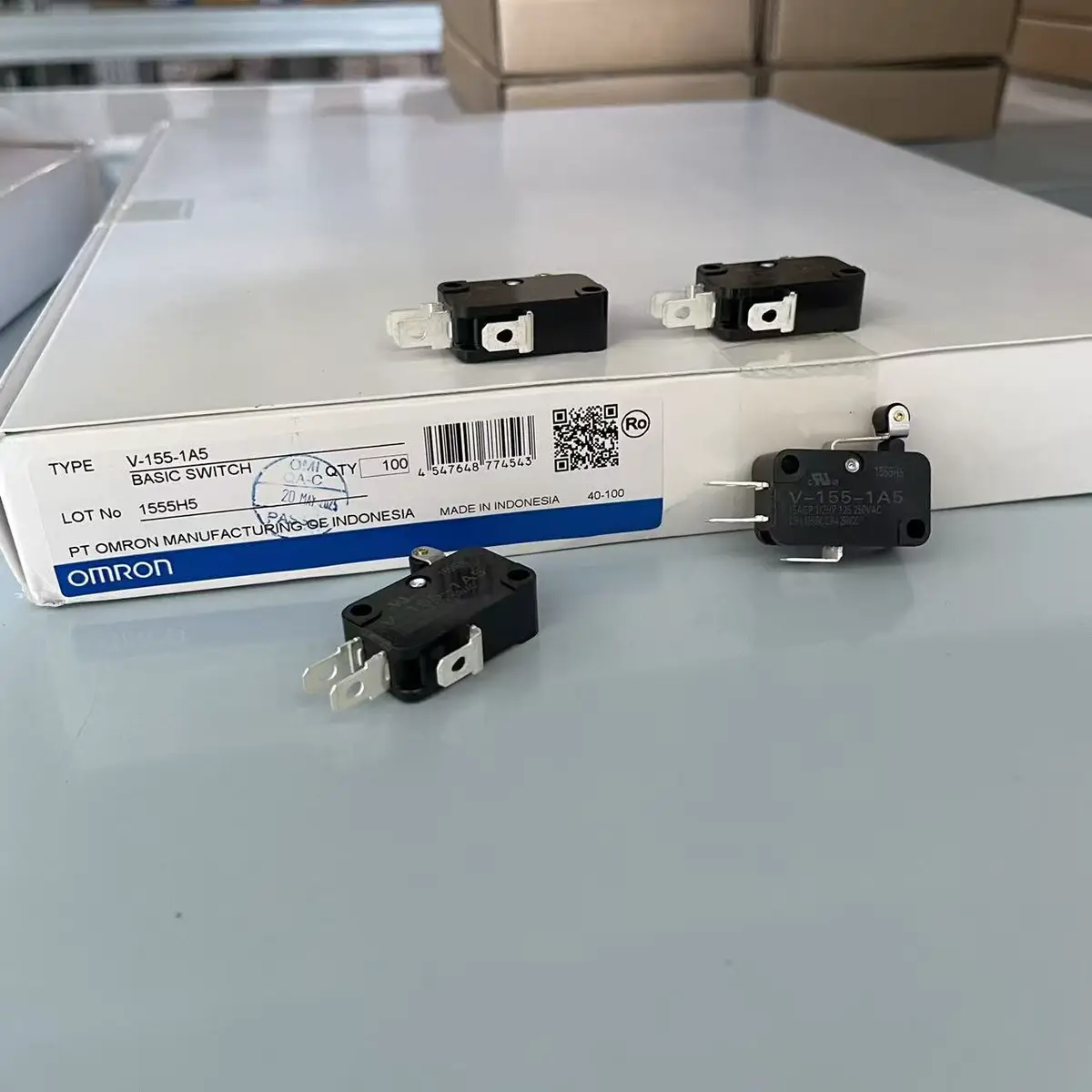

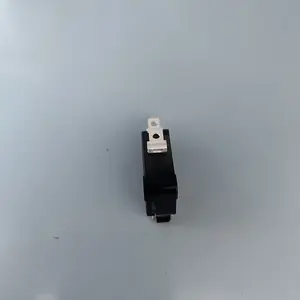

Omron V-155-1A5 — 15 A Subminiature Switch
SKU: V-155-1A5USD 1.20
V-series subminiature basic switch, 15 A / 250 VAC, SPDT, short hinge roller lever, solder terminals, 50 M ops.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron V-155-1A5 is a 15 A subminiature basic switch in the V-series family. It is manufactured by Omron Corporation. Hengyixin Automation ships this switch from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The SPDT snap-action contacts switch 15 A at 250 VAC or 600 mA at 125 VDC, with the short hinge roller lever giving 1.96 N (200 gf) operating force. The silver-alloy contacts handle the inrush of inductive loads (solenoids, motor starter coils) without welding.
For longer-reach lever on the same contact form, use the V-155-1A6 long-hinge variant. Key specs: Model V-155-1A5; Contact Form SPDT (single pole, double throw); Rated Load 15 A at 250 VAC / 600 mA at 125 VDC; Operating Force 1.96 N (200 gf) max; Pretravel / OT 1.6 mm max pretravel; 1.2 mm min overtravel; Actuator Short hinge roller lever (code 5); Termination Solder terminals (code A); Contact Material Silver alloy.
Key Features
- V-series subminiature basic switch, 15 A at 250 VAC, 600 mA at 125 VDC
- SPDT snap-action contacts with silver-alloy contact material
- Short hinge roller lever actuator, 1.96 N (200 gf) operating force
- Solder terminals, IP40 housing, 50 million mechanical operations
- SKU: V-155-1A5
- Series: V-series subminiature basic switch
Best-Fit Applications
- End-position detection on a pneumatic cylinder where the roller rides the rod end.
- Cam-driven limit switch on a conveyor transfer where the cam lobe passes the roller.
- Auxiliary status signal to a PLC where the SPDT gives both NO and NC in one switch.
Buying Checklist
- Choose V-155-1A5 when 15 A at 250 VAC is enough and the actuator rides a cam.
- Choose V-151-1A5 for a pin plunger (no lever) when the cam cannot ride the roller.
- Choose D4N-112G when the switch needs IP67 / conduit entry for outdoor use.
Technical Specifications
| Model | V-155-1A5 |
|---|---|
| Series | V-series subminiature basic switch |
| Contact Form | SPDT (single pole, double throw) |
| Rated Load | 15 A at 250 VAC / 600 mA at 125 VDC |
| Operating Force | 1.96 N (200 gf) max |
| Pretravel / OT | 1.6 mm max pretravel; 1.2 mm min overtravel |
| Actuator | Short hinge roller lever (code 5) |
| Termination | Solder terminals (code A) |
| Contact Material | Silver alloy |
| Mechanical Life | 50,000,000 operations min |
| Electrical Life | 100,000 operations at rated load |
| Protection | IP40; -25 to +80 degC operating |
FAQ for V-155-1A5
What does the V-155-1A5 model number decode to?
V- = V-series subminiature. 15 = 15 A at 250 VAC rating. 5 (after 15) = short hinge roller lever. 1 = SPDT contact form. A = solder terminals. 5 (trailing) = 1.96 N max operating force. Other variants in the V-15 family use different combinations of actuator, contact, and terminal.
Can the V-155-1A5 switch a 240 VAC solenoid directly?
Yes - the 15 A rating comfortably handles a single 240 VAC solenoid. For frequent switching of inductive loads, derate to 10 A or add an RC snubber / MOV across the load to extend contact life beyond 100,000 operations. The drive runs the motor ID read once per power-on and writes the parameters to its EEPROM so commissioning is one-touch on next boot.
Is the V-155-1A5 waterproof?
No. The IP40 rating means dust-protected but not water-protected. For outdoor, washdown, or coolant-exposed applications, step up to a D4N / D4V / WL limit switch with IP67 housing and conduit entry. The D4N and WL families also offer snap-action basic switch contacts with a sealed housing for harsher environments.
What is the difference between V-155-1A5 and V-155-1C5?
The terminal style. V-155-1A5 has solder terminals; V-155-1C5 has screw terminals for chassis wiring. Same actuator, same contacts, same ratings. Pick the A5 for tight PC-board chassis mounts; pick the C5 for field wiring with ring terminals. For absolute position retention, step up to the BOS2C variant with absolute encoder and battery backup on the drive side.
