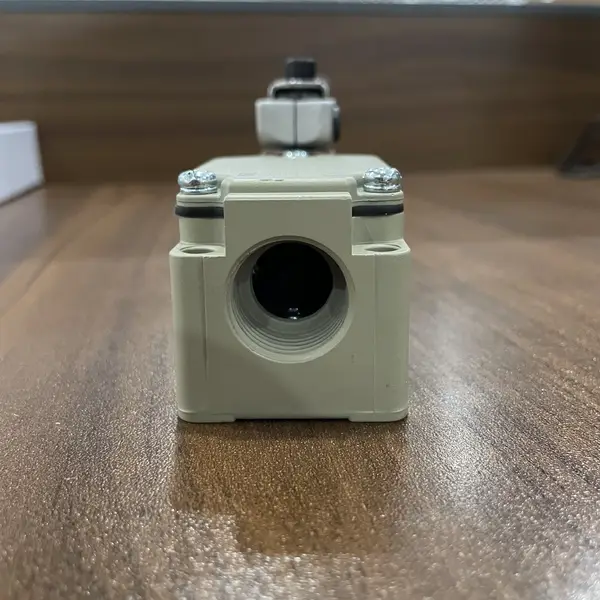

Omron WLCA12-2N-N — Limit Switch, Adj. Roller Lever, DPDT
SKU: WLCA12-2N-NUSD 15.00
Two-circuit limit switch with adjustable roller lever (25 to 89 mm length), 90° overtravel, DPDT (2 Form C / SPDT × 2) contact, 10 A at 250 VAC, IP67. Head mounts in any of 4 directions. -N = standard sensitivity, standard load.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The WLCA12-2N-N is the adjustable-roller-lever variant of Omron's WL-series two-circuit limit switch family — the workhorse position-feedback switch for industrial machinery, conveyor systems, and material-handling equipment. The lever length is adjustable from 25 to 89 mm via an Allen-head bolt on the lever hub, allowing the same SKU to be used across multiple actuator positions in a machine design without stocking different lever-length SKUs. The roller (R38 stainless steel standard, with R50 and R63 options) rolls smoothly across the cam or dog without friction, giving the 10-million-operation mechanical life even at high-cycle applications.
Where the WLCA12-2N-N sits in the WL family
The WL family is organized along four axes: sensitivity (WLC = standard, WLG = high sensitivity, WLH = low temperature / high temp), actuator type (WLCA = standard body, WLCL = adjustable rod lever, WL01 = horizontal-mount), overtravel (no suffix = 25° standard overtravel, -2 = 90° high overtravel), and circuit configuration (no suffix = SPDT / Form C, -2 = DPDT / two-circuit / 2 × SPDT, -N = standard load 10 A, -LD = low-current load 0.1 A). The WLCA12-2N-N (this SKU) sits at the standard-sensitivity / adjustable-roller-lever / 90°-overtravel / two-circuit / standard-load intersection.

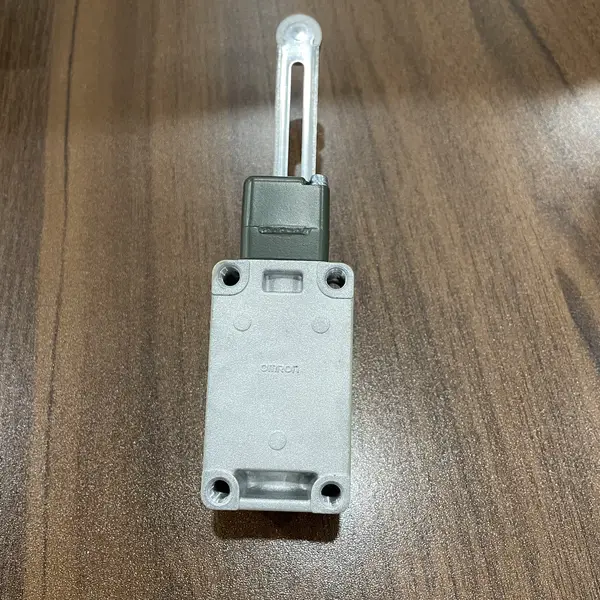

Adjustable roller lever setup, lever length, and roller options

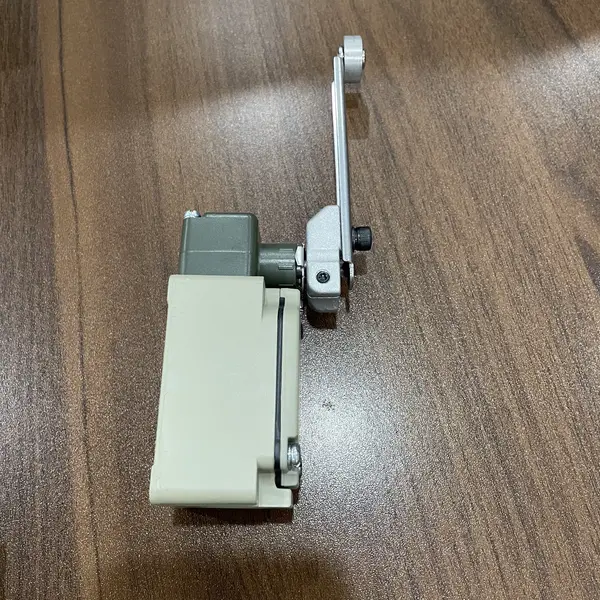

The adjustable roller lever is the key feature for OEM machine builders — one SKU covers multiple cam positions across the machine. Adjustment procedure: (1) loosen the Allen-head bolt on the lever hub with a 4 mm hex key; (2) slide the lever to the desired length (25 to 89 mm range from the hub center to the roller center); (3) re-tighten the Allen-head bolt to 2.5 N·m torque.
Two-circuit DPDT configuration and wiring
The WLCA12-2N-N is a two-circuit / DPDT switch — it has two independent SPDT (Form C) contact sets, each with a common (COM), normally-open (NO), and normally-closed (NC) terminal. This gives you 4 user-accessible terminals per switch (plus the ground terminal): COM1, NO1, NC1, COM2, NO2, NC2. Wire one circuit as the position-feedback signal to the PLC (typically NO + COM) and the other circuit as a hardwired interlock or indicator (typically NC + COM for 'actuator not engaged' signal).
Key Features
- Two-circuit / DPDT limit switch
- Adjustable roller lever
- Standard roller R38 stainless steel
- 90° overtravel — high-overtravel variant for cam-departure applications
- Standard sensitivity
- 10 A at 250 VAC standard load rating
- Mechanical life: 10 million operations minimum
- Electrical life: 200,000 operations at 250 VAC 10 A resistive load
- SKU: WLCA12-2N-N
- Series: WL-N / WLM-N Two-circuit Limit Switches
Best-Fit Applications
- Cam-actuated conveyor transfer position feedback — WLCA12-2N-N mounted on the conveyor frame, R38 roller riding on the cam plate; 90°.
- Pneumatic cylinder end-of-stroke detection — WLCA12-2N-N mounted on the cylinder body, cam dog on the rod end; adjustable roller lever.
- Safety door interlock — WLCA12-2N-N on the machine guard frame with WLRCA12 fork-lever-lock operation key on the door; wire both.
- Indexing table position confirmation — WLCA12-2N-N at each station on the rotary indexing table, R50 oversized roller rides on the.
Buying Checklist
- Pick WLCA12-2N-N for adjustable roller lever with 90° overtravel and DPDT two-circuit contacts
- Pick WLCA12-N for single-circuit version — pick if you only need one circuit and want lower cost
- Pick WLGA12-2N-N for high-sensitivity version — pick for low-force cam applications or precise positioning
- Pick WLCA12-2LD-N for low-current gold-contact version — pick for direct PLC input signaling
- Pick WLCA12-2N-G for G1/2 conduit entry — pick if your cabinet uses G1/2 conduit
- Pick WLRCA12-2N-N for fork-lever-lock variant — pick if the cam has sharp edges that would slip off a roller lever
Technical Specifications
| Model | WLCA12-2N-N |
|---|---|
| Series | WL-N / WLM-N Two-circuit Limit Switches |
| Type | Adjustable roller lever, two-circuit DPDT |
| Operating Mechanism | Snap-action (single-pole double-throw per circuit, two circuits total) |
| Pretravel | 15° max (standard sensitivity; WLG high-sensitivity = 10° max) |
| Overtravel | 90° min (the -2N suffix; standard = 25°) |
| Movement Differential | 10° max |
| Operating Force | 0.39 N·m max (5.88 N max linear at lever end) |
| Roller Lever Adjustment Range | 25 to 89 mm (lever length from hub center to roller center) |
| Head Mounting Direction | 4 directions (90° increments, M4 Allen-bolt lock) |
| Ambient Operating Temperature | -10 to +80 °C (no icing) |
| Mounting Holes | 2 × M5 bolt holes on 35 × 60 mm pattern (centered on body) |
| Certifications | UL listed (E76659), CSA, TÜV, CCC, CE |
Resources & Downloads
FAQ for WLCA12-2N-N
What's the difference between WLCA12-2N-N and WLCA12-N?
Both are adjustable-roller-lever WLCA12-series limit switches with the same 25-89 mm lever adjustment, same R38 roller, same 10 A load rating. The WLCA12-2N-N (this SKU) is the two-circuit / DPDT variant — it has two independent SPDT contact sets, allowing two simultaneous signals (e.g. one to PLC, one to indicator; or two in series for safety interlock). The WLCA12-N is the single-circuit / SPDT variant — only one contact set, allowing one signal.
Is the WLCA12-2N-N suitable for safety interlock applications?
The WLCA12-2N-N is NOT formally safety-rated — it does not have TÜV SÜD or BG certification for Cat 3/PL d or Cat 4/PL e applications. For low-risk safety interlocks (Cat 1 / PL c, single-channel) you can use the WLCA12-2N-N by wiring both NC circuits in series and monitoring both with a safety relay (G9SE-201 / G9SB-200-B) — this provides single-fault tolerance but not full Cat 3/PL d.
How do I adjust the roller lever length?
Loosen the M4 Allen-head bolt on the lever hub (located where the lever meets the switch head) with a 4 mm hex key. The lever can now slide axially in the hub. Slide to the desired length, measured from the hub center to the roller center — the adjustment range is 25 to 89 mm. Re-tighten the Allen-head bolt to 2.5 N·m torque (do not over-tighten, the bolt is steel but the hub is aluminum and the threads can strip).
Can the WLCA12-2N-N switch DC loads?
Yes — the WLCA12-2N-N is rated for DC loads up to 10 A at 30 VDC (10 A at 250 VAC, 6 A at 250 VAC inductive). The contact material is silver alloy which is suitable for both AC and DC loads. For higher DC voltages (> 30 VDC) the contact arcing becomes more severe and reduces electrical life — at 100 VDC the electrical life drops to ~50,000 operations; at 200 VDC to ~20,000 operations.
