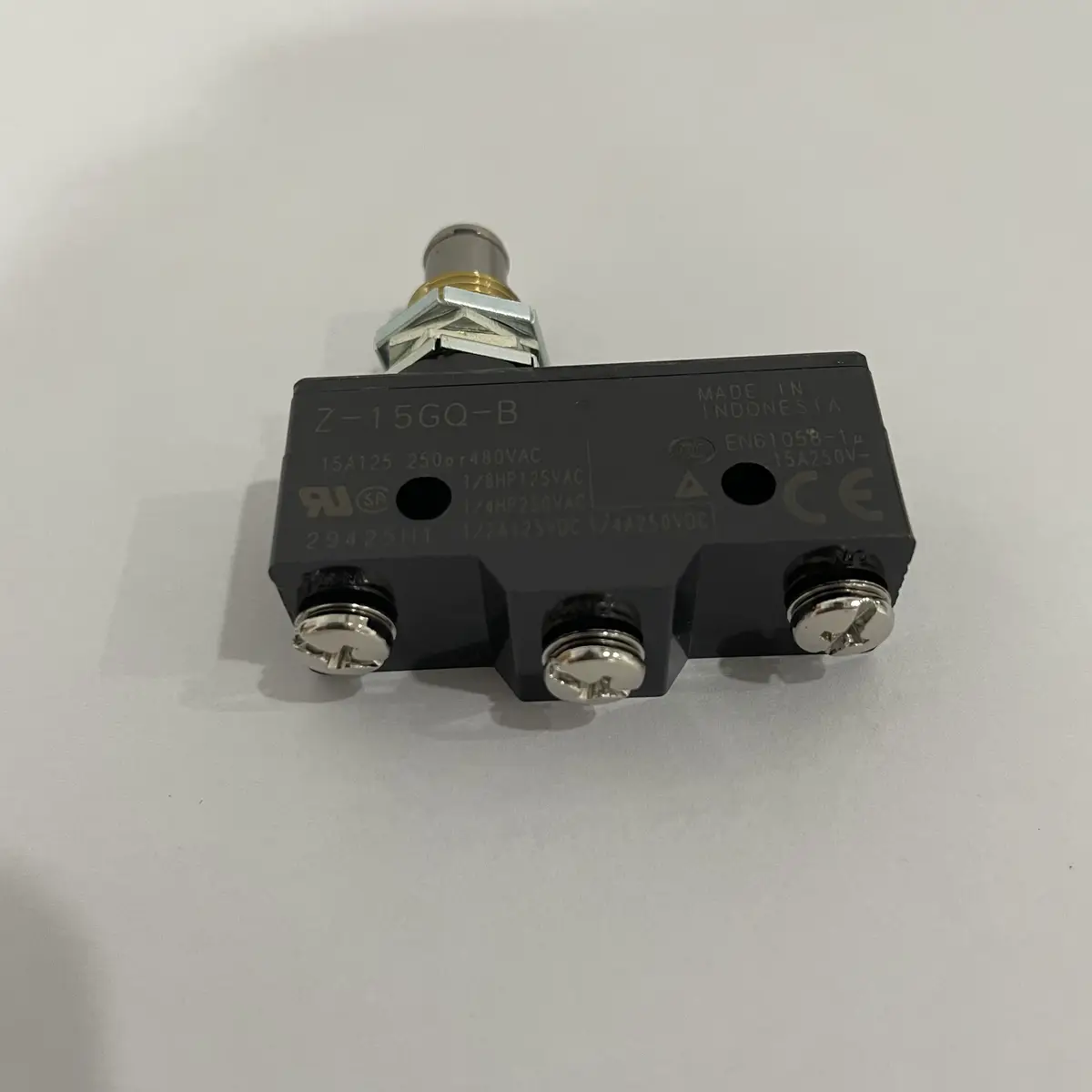

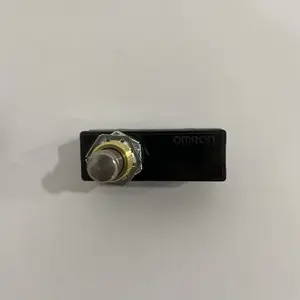

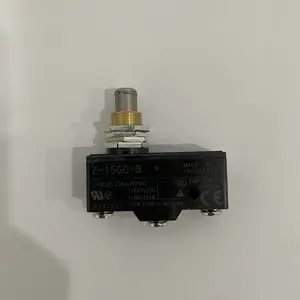

Omron Z-15GQ-B — 15 A SPDT Panel-Mount Plunger Switch
SKU: Z-15GQ-BUSD 4.00
Z-series general-purpose basic switch, 15 A SPDT (COM/NO/NC), panel-mount plunger, medium operating position, 250-350 gf operating force, 10 million mechanical operations, screw terminals. Sold in industrial automation since the 1950s.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Z-15GQ-B is a panel-mount plunger basic switch from Omron's Z-series — the workhorse general-purpose snap-action switch that has been in continuous production since the 1950s and is the de-facto standard for machine builders worldwide. The switch carries a 15 A resistive load at 250 VAC (or 15 A at 125 VDC, 6 A at 30 VDC inductive), uses an SPDT (Single Pole Double Throw) contact set with one common, one normally-open, and one normally-closed terminal, and snaps between states with a precise 0.05 mm differential travel.
Where the Z-15GQ-B fits in the Z-series family
The Z-series splits along four axes: contact rating (15 = 15 A, 10 = 10 A, 01 = 0.1 A microload), sensitivity grade (G = standard 250-350 gf, H = high sensitivity 60-90 gf, E = low operating force 150 gf), actuator type (Q = panel mount plunger, Q22 = panel mount roller plunger, W = hinge lever, etc.), and operating position (Q = medium OP 1.6-2.0 mm from mounting face, Q3 = low OP ~0.7 mm, Q8 = high OP ~2.5 mm).
Wiring, mounting, and the panel-mount body
The Z-15GQ-B has three screw terminals on the rear face: COM (common, typically the middle terminal), NO (normally-open), and NC (normally-closed). Wire the load in series with the COM and NO terminals for a normally-open contact that closes when the plunger is depressed, or wire COM and NC for a normally-closed contact that opens when the plunger is depressed. Use M4 ring terminals or fork terminals on the wire ends and tighten the M4 screw terminals to 0.6-0.8 N·m torque — over-tightening will crack the terminal block.
Common pitfalls and when NOT to use the Z-15GQ-B
Three pitfalls engineers hit with the Z-15GQ-B. First, the switch is IP00 — there is no protection against dust or water ingress. For washdown, outdoor, or dusty applications, use the D4B-4111N or D4B-4116N sealed safety limit switch (IP67) instead, or fit a rubber boot over the Z-15GQ-B plunger (Omron offers Z-A15-B boot kit). Second, the 15 A rating is for resistive loads only — for inductive AC loads (solenoids, motor contactor coils) derate to 6 A, and for inductive DC loads (relay coils, solenoids) derate even further because DC arcs do not self-extinguish at current zero.
Key Features
- Z-series general-purpose basic switch, in production since the 1950s
- 15 A rated contact current at 250 VAC / 125 VDC
- SPDT — COM, NO, NC terminals
- Panel-mount plunger body with hex-nut retention
- Medium operating position 1.6 to 2.0 mm from mounting face
- Operating force 250 to 350 gf
- Release force 114 gf minimum
- Pretravel 0.4 mm, overtravel 5.5 mm, differential travel 0.05 mm
- SKU: Z-15GQ-B
- Series: Z (General-purpose basic switch)
Best-Fit Applications
- Door interlock switch on a control cabinet — confirms the cabinet door is closed before allowing high voltage
- Limit switch position on a linear slide or pick-and-place axis — detects end-of-travel
- Cam-actuated index position sensor on a rotary indexing table — uses Z-15GQ22-B roller plunger sibling for cam applications
- Conveyor pallet-detect station — plunger depressed by the pallet passing over
Buying Checklist
- Pick Z-15GQ-B for a 15 A SPDT panel-mount plunger basic switch with medium operating position
- Pick Z-15GQ3-B for low operating position — early contact closure
- Pick Z-15GQ8-B for high operating position with field-adjustable plunger
- Pick Z-15GQ22-B for a panel-mount roller plunger — for cam-actuated applications
- Pick Z-15HQ-B for 60-90 gf high-sensitivity variant — low-force actuators
- Pick Z-15EQ-B for 150 gf low operating force variant — for delicate cam profiles
Technical Specifications
| Model | Z-15GQ-B |
|---|---|
| Series | Z (General-purpose basic switch) |
| Type | Basic switch, panel-mount plunger, SPDT |
| Contact Configuration | SPDT (COM / NO / NC) |
| Rated Load (Resistive) | 15 A at 250 VAC / 15 A at 125 VDC |
| Rated Load (Inductive) | 6 A at 250 VAC (cos φ = 0.4) |
| Operating Force (OF) | 250 to 350 gf |
| Release Force (RF) | 114 gf minimum |
| Terminal Type | M4 screw |
| Mounting Hole Pattern | 25.4 mm centres (M4 with plane washer) |
| Body Mounting Thread | M12 × 0.75 (panel-mount hex nut) |
| Operating Temperature | -25 to +80 °C |
| IP Rating | IP00 (no environmental protection) |
| Dimensions (Body) | Approx. 49.2 × 17.45 × 24.2 mm (without plunger) |
| Certifications | UL, CSA, CCC, CE |
Resources & Downloads
FAQ for Z-15GQ-B
What's the difference between Z-15GQ-B and Z-15GQ?
The Z-15GQ-B is the modern full-specification variant of the basic Z-15GQ. Mechanically and electrically they are nearly identical — same 15 A contact rating, same 250-350 gf operating force, same SPDT contact set, same panel-mount body. The -B version has slightly improved terminal marking, a tighter tolerance on the operating force window, and updated agency certifications (UL, CSA, CCC, CE on the -B version).
What is the maximum current the Z-15GQ-B can switch?
15 A resistive at 250 VAC or 15 A resistive at 125 VDC. For inductive AC loads (solenoids, contactor coils, motor windings), derate to 6 A at 250 VAC. For inductive DC loads, derate further — the Z-15GQ-B is rated for 6 A at 30 VDC inductive, and DC arcs do not self-extinguish at current zero so contact life drops rapidly with DC inductive loads.
Is the Z-15GQ-B waterproof or dustproof?
No — the Z-15GQ-B is IP00 rated, meaning it has no protection against dust or water ingress. The switch body has open screw terminals on the rear and a plunger opening on the front.
Can the Z-15GQ-B be used as a safety switch?
No — the Z-15GQ-B is a basic switch, not a safety-rated switch. It does not have positively-driven (force-guided) contacts, it is not certified to EN 60947-5-1 or ISO 13849-1, and it does not have the redundancy and monitoring features required for safety functions.
