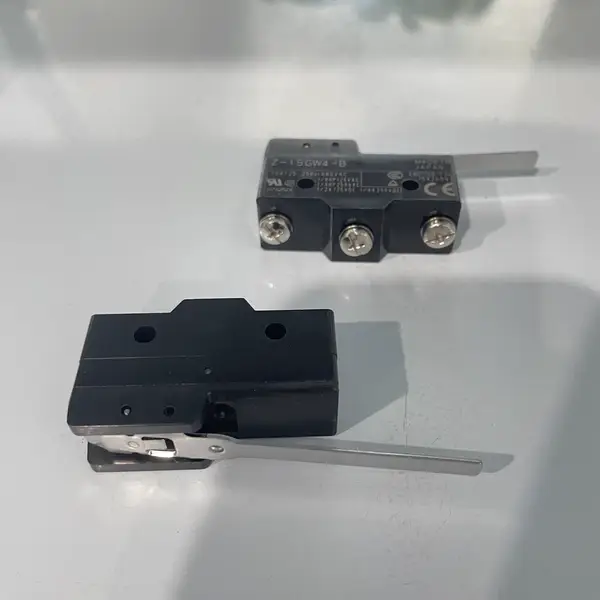

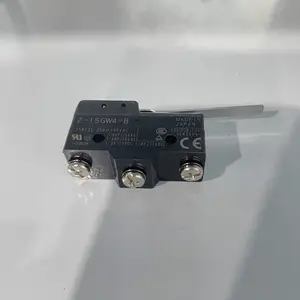

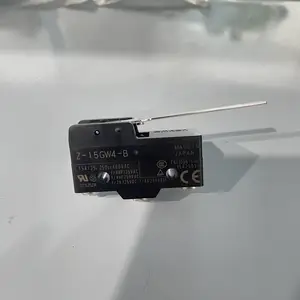

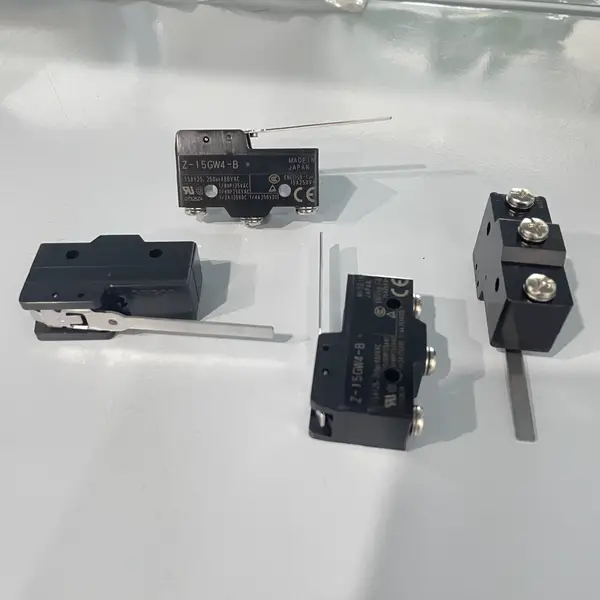

Omron Z-15GW4-B — Low-Force Hinge Lever Basic Switch
SKU: Z-15GW4-BUSD 4.50
Z-15 general-purpose basic switch with low-force hinge lever actuator, 15 A SPDT on screw terminals, 10 million mechanical operations.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron Z-15GW4-B is a general-purpose basic switch in the Z-15 family with the W4 low-force hinge lever actuator and screw terminals. It is rated 15 A at 250 VAC resistive, takes a 0.5 mm contact snap-action, and survives 10 million mechanical operations and 500,000 electrical operations. The hinge lever multiplies cam or dog mechanical advantage, so a small cam lift triggers a clean snap-action. The "W4" code is the low-force hinge lever variant, suited where the cam is light or the trigger stroke is short. It is the standard pick on conveyor side guards, vending payout arms, and small appliance interlocks where a 15 A load needs direct switching from a low-force mechanical input.
Where it fits in the Z-15 lineup
The Z family splits by contact gap and actuator. Z-15G is the 15 A standard with 0.5 mm gap. Z-15H is the high-sensitivity 0.25 mm variant. Z-15E is the high-capacity 1.8 mm variant. The GW codes select the lever: GW = hinge lever, GW2 = hinge roller lever, GW21 = short hinge lever, GW22 = short hinge roller lever, GW4 = low-force hinge lever. Pick the Z-15GW4-B when the cam cannot supply the standard hinge-lever force. Pick the Z-15GW-B for a standard hinge lever. Pick the Z-15GW22-B for a hinge roller lever for cam profiles.
Why a hinge lever rather than a pin plunger
A pin plunger takes the full cam force directly on the actuator face, which loads the cam and quickly wears the cam edge. A hinge lever rides on the cam, deflects under the lift, and converts that motion into the snap-action. Cam wear drops, the cam force drops, and the cam profile can be larger. Set the operating position at the rated pretravel rather than running close to the end of stroke.
Before ordering
Mount the switch with M4 screws with plane and spring washers, tightened to 1.18 to 1.47 Nm. Provide a cam with rounded edges so the lever rides onto the profile. Use the AP-B terminal cover on panels with nearby live parts. For inductive AC loads (motor, solenoid) derate to the inductive load rating, not 15 A.
Key Features
- Z-15 family general-purpose basic switch, 15 A rated
- Low-force hinge lever actuator (W4 in the Z lineup)
- 0.5 mm standard contact gap (G suffix)
- SPDT snap-action, single-pole double-throw
- 15 A at 250 VAC resistive, 1/3 HP at 250 VAC motor
- Screw terminal block (B suffix)
- 10 million mechanical / 500,000 electrical operations
- Silver rivet contacts, IP00, -25 to +80 °C
- UL / CSA / TÜV / CCC certified
- SKU: Z-15GW4-B
- Series: Z-15 general-purpose basic switch
Best-Fit Applications
- End-of-travel detection on a vending payout arm device
- Conveyor side guard or chute flap limit switch device
- Door position interlock on a small kiosk enclosure
- Cam position switch on a simple packaging machine line
- Direct load switching on a small appliance interlock
Buying Checklist
- Choose Z-15GW4-B when a low-force hinge lever is needed on 15 A screw terminals.
- Choose Z-15GW-B for a standard hinge lever with higher operating force.
- Choose Z-15GW22-B for a short hinge roller lever for cam profiles.
- Choose Z-15GQ-B for a panel-mount pin plunger in the same 15 A family.
- Check that inductive loads use the inductive rating, not the 15 A resistive figure.
Technical Specifications
| Series | Z-15 general-purpose basic switch |
|---|---|
| Contact Form | SPDT (single-pole double-throw) snap-action |
| Contact Rating | 15 A at 250 VAC resistive, 15 A at 14 VDC |
| Motor Load | 1/3 HP at 250 VAC, 1/8 HP at 125 VAC |
| Contact Gap | 0.5 mm (G suffix, standard) |
| Inrush Current | 30 A max. NC / 15 A max. NO |
| Terminal | M3.5 screw terminals (B suffix) |
| Mechanical Life | 10,000,000 operations min |
| Electrical Life | 500,000 operations min at rated resistive load |
| Operating Speed | 0.01 mm to 1 m/s |
| Operating Frequency | 240 operations/min mechanical / 20 electrical |
| Operating Temperature | -25 to +80 °C (no icing) |
Resources & Downloads
FAQ for Z-15GW4-B
What is the difference between Z-15GW4-B and Z-15GW-B?
Both are 15 A SPDT hinge-lever basic switches with screw terminals and 0.5 mm contact gap. The GW4 is the Low-force hinge lever variant and runs at a lower operating force than the GW (medium-OP standard hinge lever). Pick GW4 when the cam or dog can only supply a light trigger; pick GW for a standard cam with normal trigger force available.
Can the Z-15GW4-B switch DC and AC loads?
Yes. The same switch handles AC and DC up to the rated current at each voltage. AC rating is 15 A at 125 / 250 VAC resistive (1/3 HP at 250 VAC, 1/8 HP at 125 VAC motor). DC rating is 15 A at 8 / 14 VDC, dropping at higher DC voltage. For inductive DC loads, use the inductive load column, not the resistive, and add a contact protection suppressor across the coil.
How do I mount the Z-15GW4-B on a panel?
Mount the body with two M4 screws with plane and spring washers, tightened to 1.18 to 1.47 Nm each. If the switch mounts through a panel and the actuator hex nuts sit on the panel side, tighten those hex nuts to 2.94 to 4.9 Nm. Use the AP-B terminal cover to keep fingers and metal debris off the live terminals. Do not oil or grease the lever pivot.
