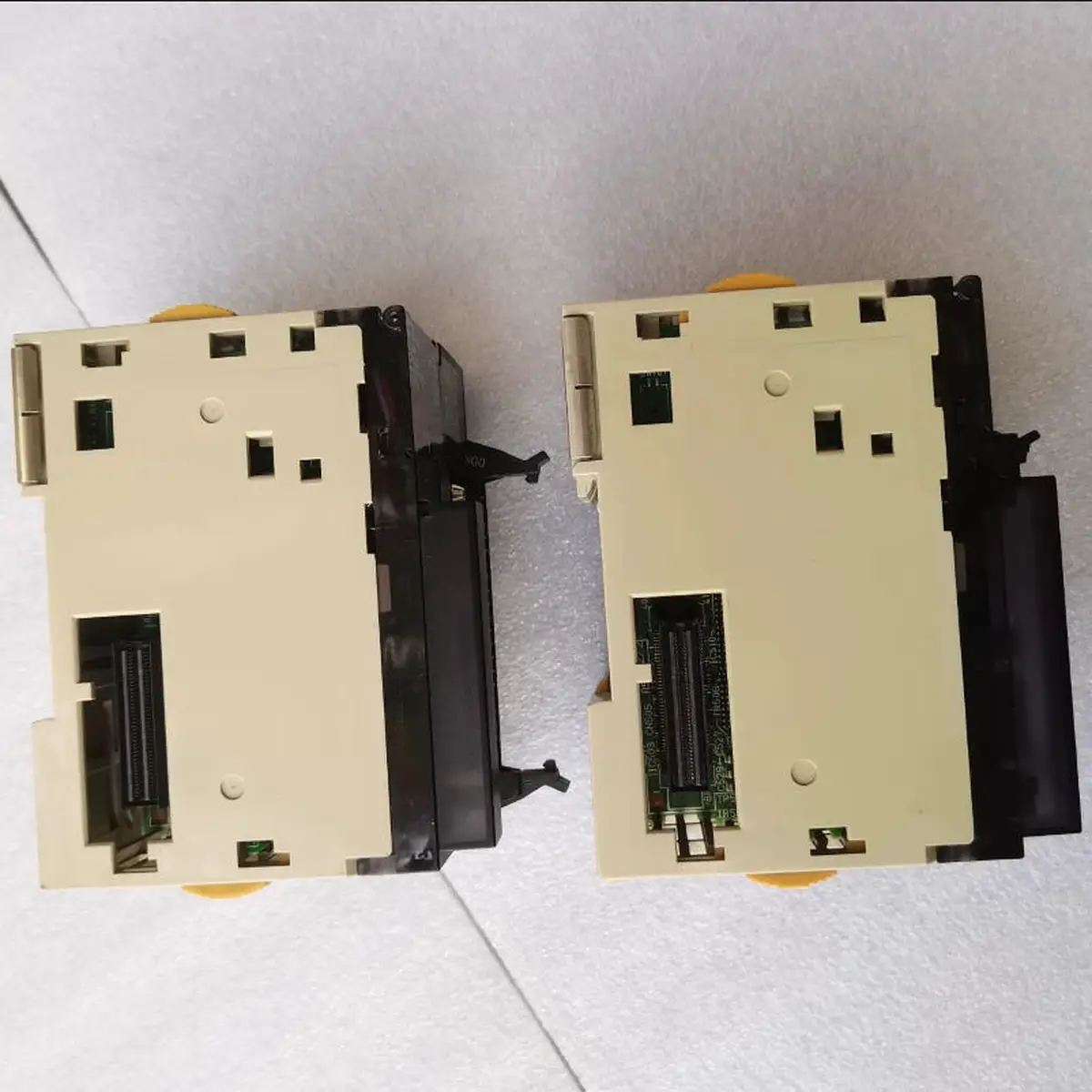

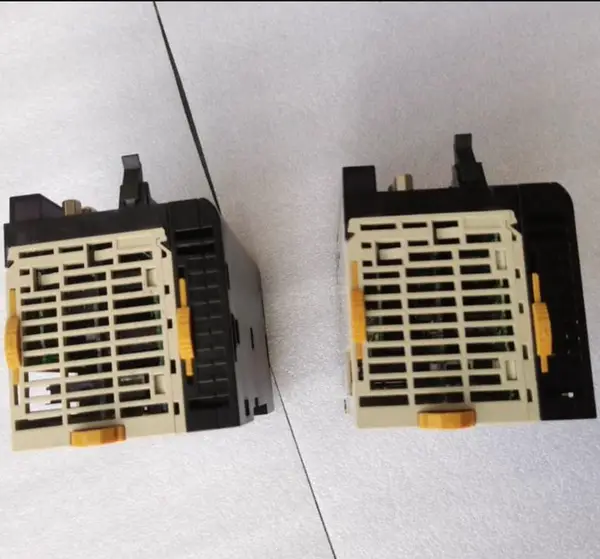

Omron CJ1W-CPU22 — CJ CPU, 10K Steps, Built-in I/O
SKU: CJ1W-CPU22USD 150.00
CJ-series built-in I/O CPU unit, 10K-step program, 32K data words, 320 I/O, 0.1 us LD, 10 in / 6 out.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

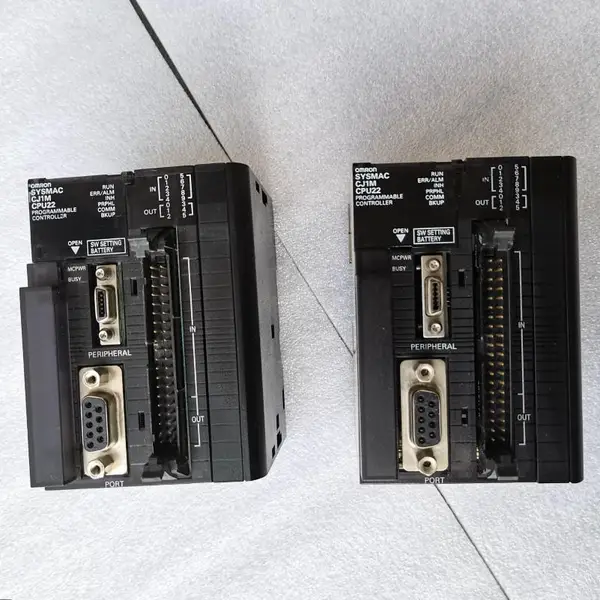

The Omron CJ1W-CPU22 (commonly listed by its CPU module code, CJ1M-CPU22) is a CJ-series CPU unit with ten built-in DC inputs and six built-in transistor outputs on the CPU slice itself. It runs a 10K-step program, holds 32K words of data memory, and executes a basic LD instruction in 0.1 microseconds. Up to ten CJ1W I/O modules can sit on the same rack for a maximum of 320 I/O points, with no expansion rack behind the CPU. The CPU drops onto any CJ-series power supply, such as the CJ1W-PA202 (14 W AC) or CJ1W-PD025 (DC), and is programmed with CX-Programmer. It is the standard pick for small packaging, material-handling, and filling machines where a handful of fast local inputs and outputs are needed without a separate I/O module.
Where the built-in I/O helps
A regular CJ1M-CPU11 has no I/O on the CPU; every signal lands on a CJ1W-ID / CJ1W-OD slice to its right. The CJ1W-CPU22 / CJ1M-CPU22 puts ten 24 VDC inputs and six sinking transistor outputs on the CPU itself, so a 20-point machine can run without buying a discrete input module. For anything past the built-in 16 points, add a CJ1W-ID211 (16-point input) or CJ1W-OD212 (16-point output) and the CPU treats it as just more I/O.
Choosing the right CJ CPU
The CJ1W-CPU22 sits at the middle of the CJ1M line. The smaller CJ1M-CPU11 / CPU12 cover 5K steps with no built-in I/O. The CJ1M-CPU13 / CPU23 step up to 20K steps and add a second serial port. For larger machines, the CJ2M-CPU33 (20K steps, EtherNet/IP) or CJ2M-CPU35 (60K steps) are the next move. Pick the CJ1W-CPU22 when the program fits in 10K steps and you want 10 inputs and 6 outputs on the CPU itself.
Before ordering
Confirm the cabinet supply: choose the CJ1W-PA202 for 100-240 VAC or CJ1W-PD025 for 24 VDC. Plan the rack space for up to ten CJ1W modules to the right of the CPU, and remember that the CJ1W-CPU22 does not support expansion racks. If the application needs remote I/O over EtherNet/IP, pick a CJ2M-CPU33 or higher instead.
Key Features
- CJ-series built-in I/O CPU, 10K-step program capacity
- 10 DC inputs and 6 transistor outputs on the CPU slice
- 0.1 microsecond LD execution, 32K-word data memory
- Up to 320 I/O points across ten CJ1W rack modules
- Single CJ rack, no expansion rack behind the CPU
- Compatible with CJ1W-PA202 / CJ1W-PD025 power supply
- Programmed with CX-Programmer on USB or RS-232C
- SKU: CJ1W-CPU22
- Series: CJ-series built-in I/O CPU
- I/O: 10 I/O
Best-Fit Applications
- Small packaging machines that need a handful of fast local inputs and outputs
- Filling and capping lines where the CPU also drives solenoid valves directly
- Material-handling conveyors with sensors and motor starters on the same PLC
- Index tables that need ten inputs for home and limit sensors on the CPU
- Compact machine cells where the built-in 16 I/O points save a separate slice
Buying Checklist
- Choose CJ1W-CPU22 (CJ1M-CPU22) for 10K steps and built-in 10 in / 6 out.
- Choose CJ1M-CPU11 for the same 5K-step base CPU without built-in I/O.
- Choose CJ2M-CPU33 when the application needs EtherNet/IP and 20K steps.
- Choose CJ1W-PA202 for 100-240 VAC supply or CJ1W-PD025 for 24 VDC supply.
- Confirm the program fits in 10K steps before locking in this CPU.
- Allow for up to 320 I/O points across ten CJ1W rack modules.
Technical Specifications
| Series | CJ-series built-in I/O CPU |
|---|---|
| Program Capacity | 10K steps |
| Data Memory | 32K words |
| LD Execution Time | 0.1 microseconds |
| Built-in Inputs | 10 DC inputs (24 VDC) |
| Built-in Outputs | 6 transistor outputs (sinking) |
| Maximum I/O | 320 points on the CPU rack |
| Rack Modules | Up to 10 CJ1W modules |
| Expansion Rack | Not supported |
| Programming Port | USB or RS-232C |
| Compatible PSU | CJ1W-PA202 (AC) or CJ1W-PD025 (DC) |
| Programming Software | CX-Programmer |
Resources & Downloads
FAQ for CJ1W-CPU22
What is the difference between CJ1W-CPU22 and CJ1M-CPU22?
The two names refer to the same CPU module. CJ1W is the rack-mount prefix used in some catalogue listings; the official Omron SKU is CJ1M-CPU22. Either way, the module drops onto any CJ-series rack and provides 10 built-in inputs, 6 built-in outputs, 10K-step program, and 32K data words.
Can the CJ1W-CPU22 sit on an expansion rack?
No. The CJ1M-CPU22 supports a single CPU rack with up to ten CJ1W I/O modules. For machines that need remote racks, move up to a CJ1M-CPU13 / CPU23 (with expansion) or a CJ2-series CPU. Up to three expansion racks are allowed on those higher CJ1M and CJ2 CPUs.
Which power supply pairs with the CJ1W-CPU22?
Either CJ1W-PA202 (14 W, 100-240 VAC) or CJ1W-PD025 (DC supply for 24 VDC cabinets) is the standard choice. The PA202 / PD025 sits to the left of the CPU and powers the whole rack. For larger racks that need 25 W, choose the CJ1W-PA205R with the RUN output contact.
