Omron CJ1W-PA202 — 14W AC Power Supply, 100-240 VAC
SKU: CJ1W-PA202USD 35.00
14 W AC power supply for CJ-series PLCs. 100-240 VAC input, 2.8 A at 5 V / 0.4 A at 24 V, slim 45 mm width.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock

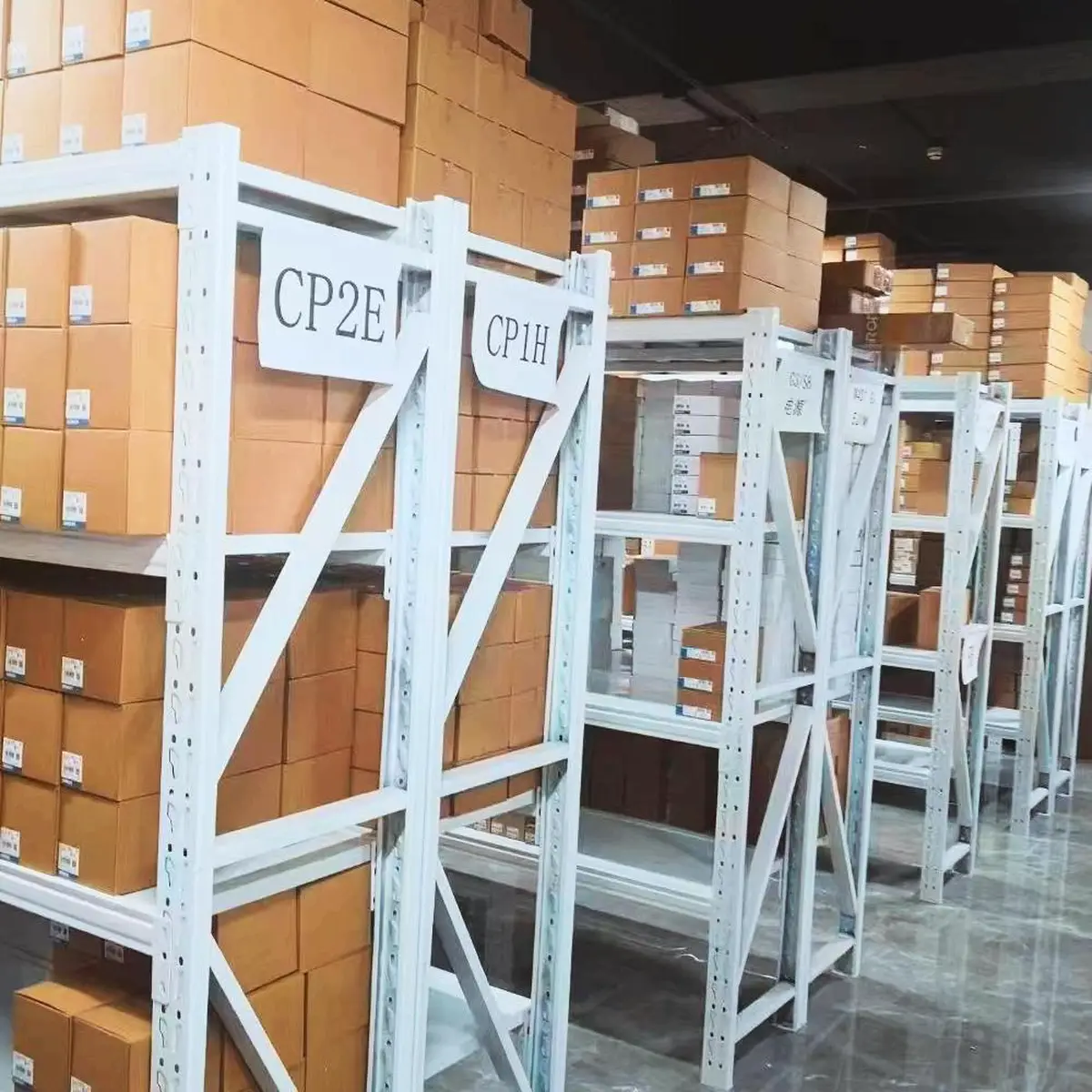

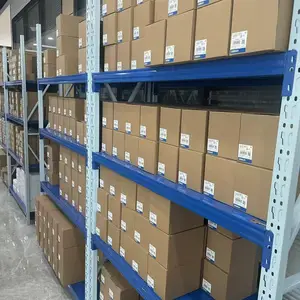

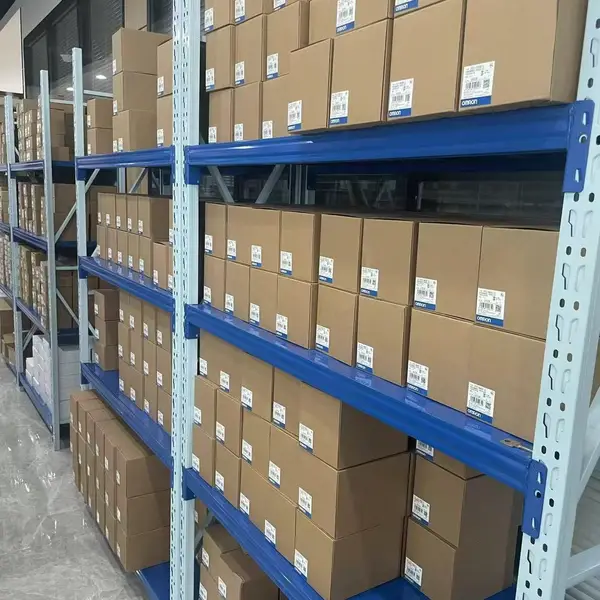

This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CJ1W-PA202 supplies power to a CJ-series PLC rack — CPU plus a handful of I/O units — from a 100-240 VAC mains input. It delivers 2.8 A at 5 VDC (to the CPU bus) and 0.4 A at 24 VDC (a small service supply for sensors or relay coils). This is the slim 45 mm value-tier PSU in the CJ-series family; pick it when the rack is small and the cabinet is tight.
Choosing between PA202, PA205R, and PA205C
The CJ-series AC PSU range has three models. PA202 (this SKU) is 14 W at 45 mm wide with no extra features. PA205R is 25 W at 80 mm wide and adds a RUN output — a relay contact that closes while the CPU is in RUN mode, useful when an external system needs to confirm CPU status. PA205C is also 25 W at 80 mm wide but adds a replacement notification function that warns when the PSU is nearing end of service life. PA202 fits a CPU plus 4-6 basic I/O units; step up to PA205R or PA205C when the rack needs more than 2.5 A at 5 V, when you need the RUN output, or when the cabinet has the room for the wider 80 mm body.
Before ordering
Add up the 5 V current draw of your CPU and I/O units. A typical CJ2M-CPU11 + 6 mid-power CJ1W units draws about 1.5 A — well under PA202's 2.8 A. If you expect more I/O or analog / special-I/O units, choose PA205R or PA205C instead. The PA202 also lacks the RUN output and the maintenance-forecast feature, so confirm those aren't required.
Key Features
- 14 W AC power supply for CJ-series PLCs (CPU + I/O)
- 100-240 VAC wide-range input (85-264 VAC operating range)
- 5 VDC output: 2.8 A (for CJ bus + CPU)
- 24 VDC service supply: 0.4 A (for sensors / small relay coils)
- Slim 45 mm DIN-rail width (vs 80 mm for PA205R / PA205C)
- No RUN output; no replacement-notification function
- Finger-safe input and output terminals
- Green DC ON status LED on front face
- Mounts as leftmost unit on the CJ CPU rack
- SEMI-F47 compliant; UL / cUL / CE / Lloyd's / RCM
- SKU: CJ1W-PA202
- Series: CJ1W-PA202
- Voltage: 100-240 VAC
- I/O: 100 I/O
Best-Fit Applications
- Small CJ-series rack with a CPU and 4-6 basic I/O units
- Benchtop or tabletop packaging / assembly machine where panel space is tight
- Migration replacement for the legacy C200HW-PA204 PSU on C200H systems
- OEM machine controller where the wider PA205R (80 mm) won't fit
- Standalone CJ rack powering sensors directly from the 24 VDC 0.4 A service supply
Buying Checklist
- Pick CJ1W-PA202 (this SKU) for a slim 14 W CJ-series PSU with no RUN output or maintenance forecast
- Pick CJ1W-PA205R for 25 W capacity and the RUN output (relay closes when CPU is in RUN)
- Pick CJ1W-PA205C for 25 W capacity and the replacement-notification function
- Pick CJ1W-PD025 (already done) for 25 W when only 24 VDC is available in the cabinet
- Confirm total rack 5 V current is below 2.5 A before choosing PA202
Technical Specifications
| Model | CJ1W-PA202 |
|---|---|
| Type | AC Power Supply Unit, 14 W |
| Input Voltage | 100-240 VAC, 50/60 Hz (85-264 VAC operating) |
| Output (5 VDC) | 2.8 A |
| Output (24 VDC Service) | 0.4 A |
| Total Output | 14 W |
| RUN Output | No |
| Dimensions (W x H x D) | 45 x 90 x 81.6 mm (45 mm DIN width) |
| Operating Temperature | 0 to 55 °C |
| Compatible CPUs | CJ1M / CJ1H / CJ2M / CJ2H / NJ-series |
| Certifications | UL 508, cUL, CE, Lloyd's, RCM; SEMI-F47 |
Resources & Downloads
FAQ for CJ1W-PA202
How do I choose between CJ1W-PA202, PA205R, and PA205C?
All three are CJ-series 100-240 VAC power supplies. PA202 (this SKU) is 14 W at 45 mm wide — pick it for small racks where 2.5 A at 5 V is enough and you don't need extra features. PA205R is 25 W at 80 mm wide and adds a RUN output (a relay that closes while the CPU is in RUN mode) — pick it when an external indicator or HMI needs to confirm CPU status. PA205C is also 25 W but adds a replacement-notification function that warns when the PSU is nearing end of life — pick it when the system uses predictive maintenance.
How many CJ1W I/O units can the CJ1W-PA202 power?
Roughly 10-12 mid-power I/O units plus a 0.5 A CPU. Most basic I/O units draw 90-180 mA at 5 V, so a typical 8-unit rack (CPU + 7 I/O) sits around 1.5 A — well below the 2.8 A limit. For a larger rack or one with CPU-bus units, step up to the PA205R or PA205C (5 A at 5 V).
Does the CJ1W-PA202 have a 24 VDC output?
Yes — a 24 VDC, 0.4 A service supply terminal. It's enough to power a handful of sensor LEDs, indicator lamps, or small relay coils directly from the PSU, so you don't need a separate 24 V supply for low-current loads. For higher-current 24 VDC loads (solenoid valves, contactors), add a separate S8VK-G06024 or S8VK-G12024 power supply.
Is the CJ1W-PA202 compatible with NJ-series CPUs?
Yes — it works on a CJ1W expansion rack behind an NJ101 / NJ301 / NJ501 CPU. For a new NJ installation, the dedicated NJ-PA3001 PSU is the preferred choice; use the PA202 when adding a CJ expansion rack to an existing NJ system or migrating from CJ2M.
