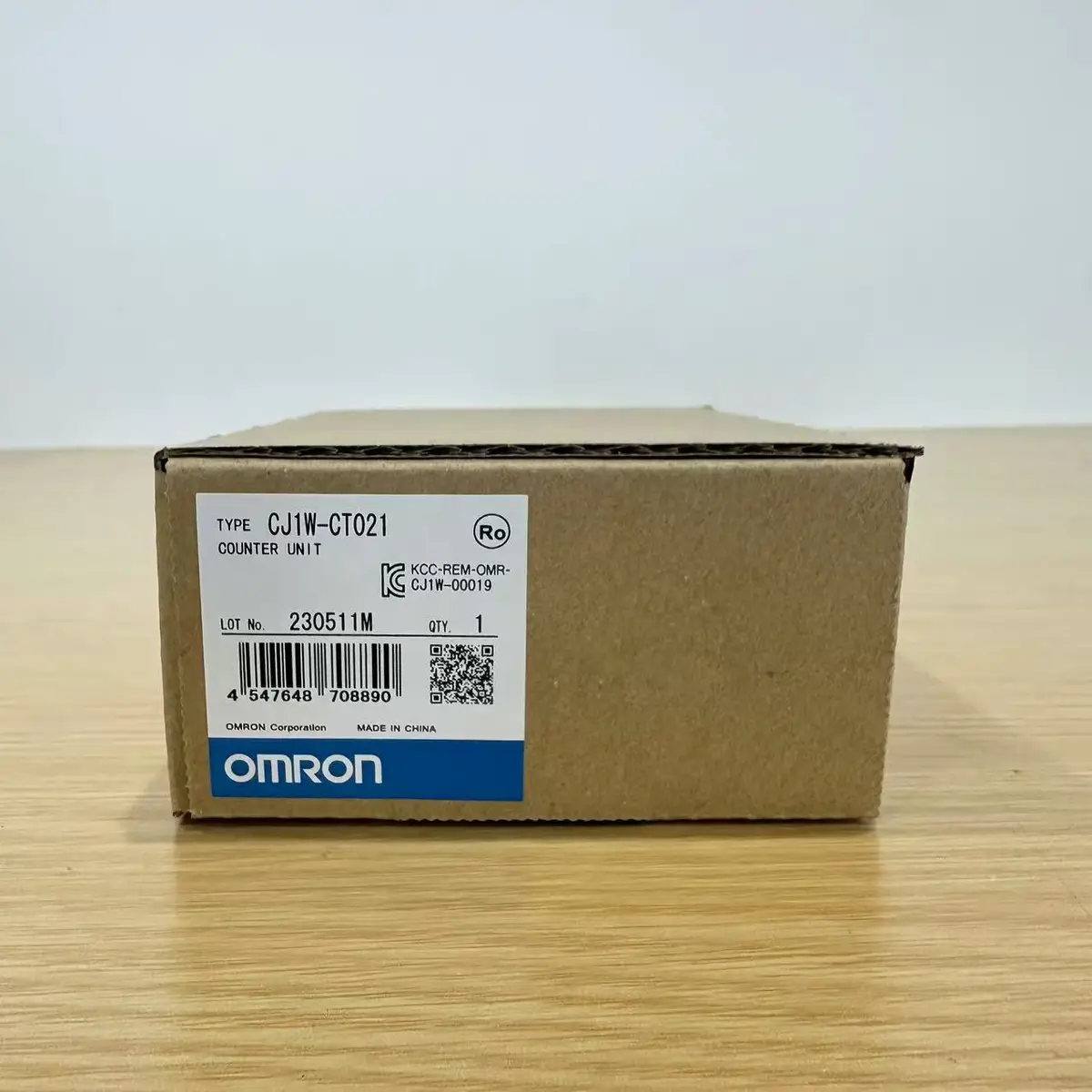

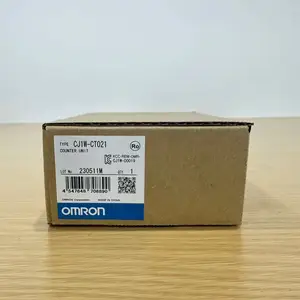

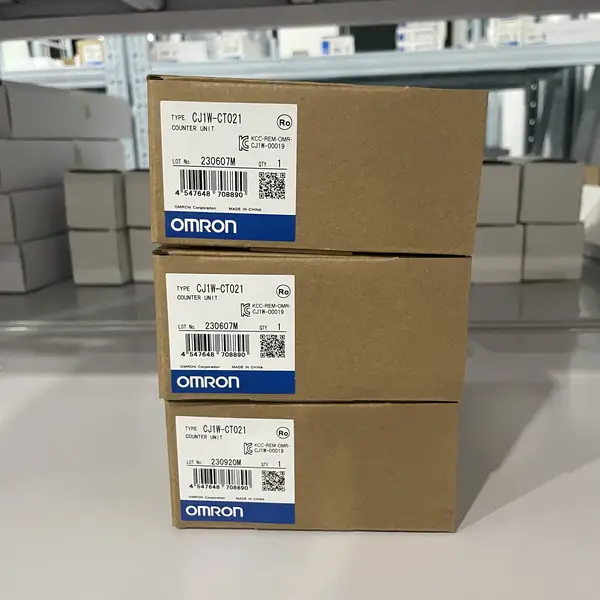

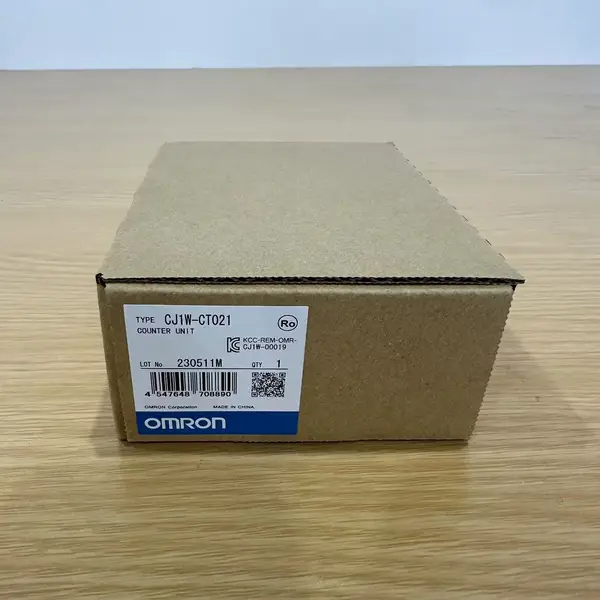

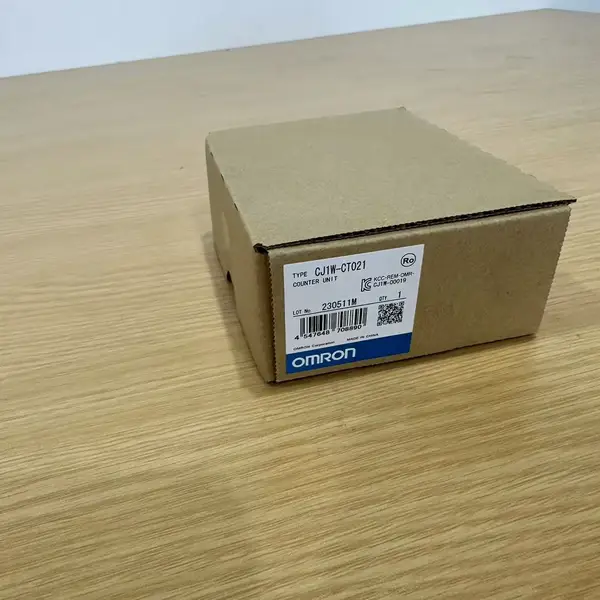

Omron CJ1W-CT021 — 2-Channel Counter Unit, 500 kHz
SKU: CJ1W-CT021USD 160.00
CJ-series 2-channel high-speed counter, 500 kHz line-driver / 50 kHz open-collector, 32-bit range, 2 in / 2 out.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-CT021 is a Special I/O unit that adds two independent 32-bit counters to any CJ-series PLC. Each channel counts encoder pulses at up to 500 kHz on a line-driver input or up to 50 kHz on an open-collector input, so one unit handles either one high-resolution encoder plus a low-resolution backup or two independent axes. Counter modes include simple up/down, ring (preset wrap), and linear (overflow flag). Two 24 VDC digital inputs and two NPN transistor outputs per channel give discrete I/O, and 30 internal "soft outputs" trigger inside ladder without using an output terminal. The CT021 sits in any CJ-series CPU or expansion rack slot and communicates with the CPU through a fixed CIO/DM area in CX-Programmer; a single CJ system can hold up to 24 CT021 units.
Choosing 2-channel vs 4-channel
The CT021 is the standard 2-channel pick. If your build needs more channels, step up to the CJ1W-CT041 (4 channels at 500 kHz line driver) instead of stacking two CT021 units. The CT021 matches the older C200H-CT021 on connector pinout and software, so it is a like-for-like drop-in across the CJ, CS, and C200H Alpha racks.
Wiring the encoder
A 24 VDC NPN open-collector encoder like the E6B2-CWZ6C uses terminal A8 for phase A, A10 for phase B, A12 for phase Z, and B9 / B11 / B13 for +V (encoder brown to +V, blue to common). Phase A and B feed counting and quadrature direction; Z is a configurable reset / preset / capture trigger. For RS-422 line-driver encoders, the dedicated high-speed pins on the front connector give the full 500 kHz rate. The CJ1M-CPU21 / CPU22 built-in HSC is fine for sub-100 kHz; anything faster should move to the CT021 to free the CPU for the program scan.
Before ordering
The CT021 on an NJ-series CPU drops most high-end features: pulse-rate measurement, capture values into the CIO area, and the IORD / IOWR instructions are not available. Pick a CJ1H / CJ1M / CJ2 CPU if you need those, or move to the NX-series pulse I/O for new builds. Confirm encoder type (line driver vs open-collector), count direction, and expected max frequency before ordering.
Key Features
- 2-channel high-speed counter for CJ-series Special I/O rack slot
- 500 kHz max input with RS-422 line driver, 50 kHz with open-collector
- 32-bit signed count range (-2,147,483,648 to +2,147,483,647)
- Simple / ring / linear counter modes with preset, gate, capture, reset
- 2 digital inputs + 2 NPN transistor outputs per channel
- 30 internal (soft) outputs trigger inside ladder without an output terminal
- 0.5 ms response for high-speed closed-loop control
- Up to 24 CT021 units across a CJ / NJ system
- SKU: CJ1W-CT021
- Series: CJ1W-CT021
- I/O: 500 I/O
Best-Fit Applications
- Encoder feedback for cut-to-length on extrusion and rolling lines
- Position control on rotary index tables driven by an E6B2 / E6C2 encoder
- Length / stroke measurement on linear cylinders with a tethered encoder
- RPM and line-speed measurement on rotating shafts
- Batch counting on filling, capping, and packaging lines
Buying Checklist
- Choose CJ1W-CT021 for 2 channels of high-speed counting (500 kHz line driver).
- Pick CJ1W-CT041 if you need 4 channels in one slot.
- Confirm encoder type (NPN open-collector vs PNP line driver) before ordering.
- Pair with a CJ1M-CPU21 / CPU22 or CJ2M-CPU11 / CPU35 host PLC in CX-Programmer.
- Allow up to 24 CT021 units across a single CJ / NJ PLC system.
- Pick an NJ CPU only if your application does NOT need pulse-rate or capture features.
Technical Specifications
| Unit Type | CJ-series Special I/O high-speed counter |
|---|---|
| Counter Channels | 2 independent |
| Maximum Input Frequency | 500 kHz line driver / 50 kHz open-collector |
| Count Range | 32-bit (-2,147,483,648 to +2,147,483,647) |
| Input Signal Levels | DC 5 V, 12 V, or 24 V (selectable per axis) |
| Digital Inputs | 2 per channel |
| Digital Outputs | 2 NPN transistor (sinking) per channel |
| Counter Modes | Simple, ring, linear |
| Current Draw | 280 mA at 5 VDC |
| Dimensions | 31 × 90 × 65 mm (W × H × D) |
| Weight | 100 g |
| Compatible PLCs | CJ1H, CJ1M, CJ2H, CJ2M, NJ |
Resources & Downloads
FAQ for CJ1W-CT021
What is the difference between the CJ1W-CT021 and the C200H-CT021?
The CJ1W-CT021 is the CJ-series Special I/O drop-in replacement for the C200H-CT021. Both are 2-channel 500 kHz high-speed counters with the same connector pinout, the same CX-Programmer counter-parameter map, and the same 32-bit count range. Use the CJ1W-CT021 on a CJ or CS rack; keep the C200H-CT021 only on legacy C200H Alpha or C200HS racks that are not slated for replacement.
Can the CJ1W-CT021 mount on an NJ-series PLC?
Yes, the CT021 mechanically fits and is recognised by an NJ-series CPU, but several advanced features are disabled on NJ: pulse-rate measurement, capture values into the CIO area, the external-control input capture / stop-capture-continue / stop-capture-reset-continue / capture-reset modes, the pulse-rate range control mode, and the IORD / IOWR ladder instructions. If you need those, drop back to a CJ1H / CJ1M / CJ2 CPU.
How does the CT021 connect to a 24 VDC NPN encoder like the E6B2-CWZ6C?
Terminal A8 is encoder phase A, A10 phase B, A12 phase Z. The encoder brown wire (V+) goes to terminal B9 / B11 / B13 and the encoder blue wire goes to common. Quadrature decoding is automatic: count direction follows phase A and phase B relative timing, and phase Z is the configurable reset / preset / capture trigger.
Can the CT021 replace the high-speed counter that is built into a CJ1M-CPU21 or CJ1M-CPU22?
Yes, when you exceed 100 kHz or need the linear / ring modes plus capture and preset that the CJ1M built-in HSC does not offer. The built-in HSC plus the CT021 can also run side-by-side: the built-in HSC keeps the legacy single-axis 100 kHz counter for the fast local inputs, and the CT021 takes over on a separate channel.
