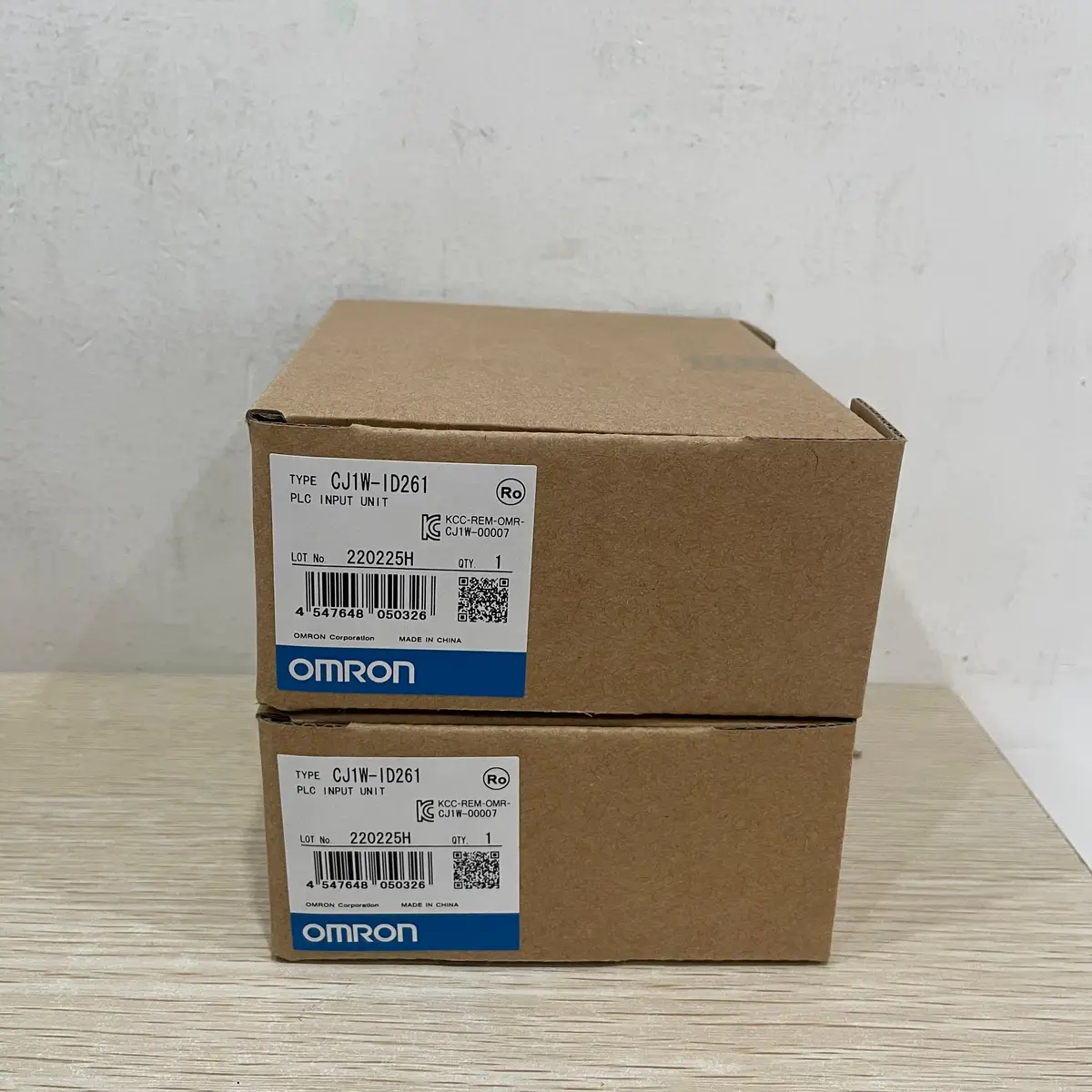

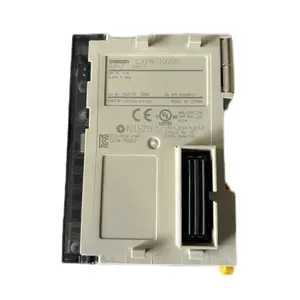

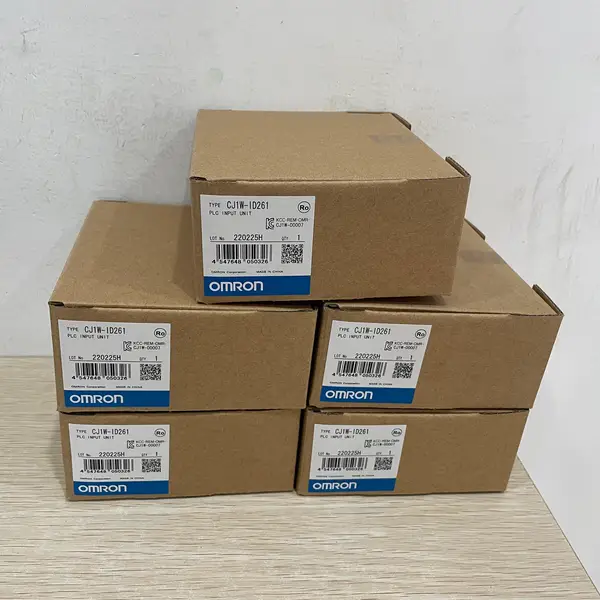

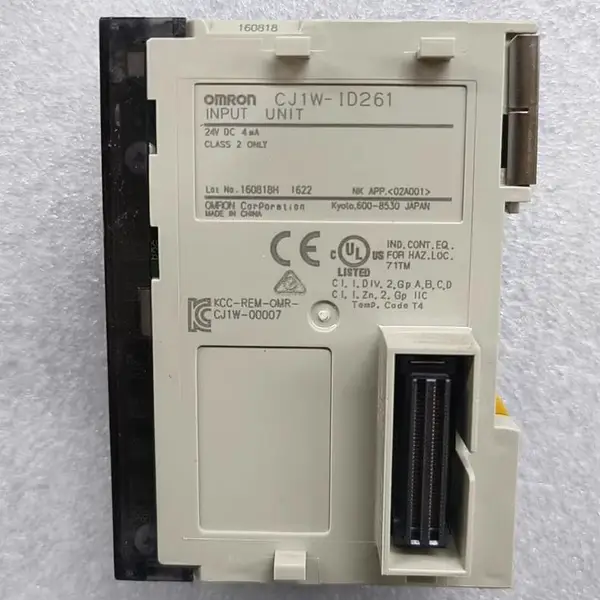

Omron CJ1W-ID261 — 64-pt DC24V Input, Fujitsu Connector
SKU: CJ1W-ID261USD 57.00
CJ-series 64-point DC24V digital input unit with 4.1 mA per point, Fujitsu-compatible connector, for CJ1/CJ2 CPUs.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-ID261 is a 64-point DC24V digital input unit for the CJ-series PLC rack, used with CJ1M, CJ1, and CJ2 CPU units. It carries 64 inputs on a single 31 mm wide slice, drawing about 110 mA at 5 VDC. Wiring lands on a Fujitsu-compatible connector (one connector covers 32 points), so a single 64-pt module replaces two 32-pt blocks. The rated input current is 4.1 mA at 24 VDC, with ON at 15 VDC minimum and OFF at 5 VDC maximum. It is the standard pick for high-density 24 VDC discrete inputs on a CJ rack, where field wiring runs from sensors, push-buttons, limit switches, and relay contacts into the same module.
Choosing between the CJ1W-ID input units
The CJ1W-ID line splits by point count and connector. At 8 points there is the CJ1W-ID201 (terminal block). At 16 points there is the CJ1W-ID211 (terminal block, 12-24 VDC, 7 mA per point). At 32 points there are two connector styles: CJ1W-ID231 (MIL connector) and CJ1W-ID232 (Fujitsu connector). At 64 points there are the CJ1W-ID261 (Fujitsu, static) and CJ1W-ID262 (Fujitsu, dynamic input, faster ON/OFF response). Pick the CJ1W-ID261 when standard static inputs and a Fujitsu-compatible connector are the goal; pick the CJ1W-ID262 when the application needs dynamic input or a faster response time on a 64-pt module.
Mounting and wiring notes
The unit snaps onto the DIN rail on the right side of the CPU, next to the power supply and other CJ modules. Each Fujitsu-compatible connector handles 32 inputs, so two connectors are needed for the 64 points. Use the Omron XW2Z connection cable or third-party Fujitsu FCN-360 / FCN-365 compatible plugs with shielded wiring on long cable runs. Allow 4.1 mA per input for power-supply sizing on the field 24 VDC rail.
Before ordering
Confirm the CPU has a free slot on the CJ rack. The CJ1M-CPU12 / CPU13 supports up to 10 modules per rack. Choose a 64-pt module only when field wiring really is 64 points; otherwise a 32-pt ID231 / ID232 is easier to fault-find. Pair the module with the CJ1W-PA202 (AC) or CJ1W-PD025 (DC) supply based on the cabinet supply.
Key Features
- 64 DC inputs on a single 31 mm wide CJ-series slice
- 24 VDC nominal input, 4.1 mA per point
- Fujitsu-compatible connector (one connector per 32 points)
- ON voltage 15 VDC min., OFF voltage 5 VDC max.
- Compatible with CJ1, CJ1M, and CJ2 CPU racks
- About 110 mA internal current draw at 5 VDC
- Suitable for sensors, push-buttons, limit switches, and relay contacts
- SKU: CJ1W-ID261
- Series: CJ1W basic I/O unit for CJ-series PLCs
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- High-density 24 VDC input scan on a CJ1M or CJ2 machine controller
- Aggregating 64 limit switches, push-buttons, or proximity sensors per slice
- Automotive body-in-white or transfer line I/O drop
- Conveyor and palletiser I/O landing on a single 31 mm module
- Retrofit of legacy 32-pt blocks where rack space is tight
Buying Checklist
- Choose CJ1W-ID261 for 64-pt static input on a Fujitsu-compatible connector.
- Choose CJ1W-ID262 for 64-pt dynamic / high-speed input at the same count.
- Choose CJ1W-ID231 for a 32-pt MIL-connector version of this I/O class.
- Choose CJ1W-ID232 for a 32-pt Fujitsu-connector version at half the density.
- Choose CJ1W-ID211 for a 16-pt terminal-block version when only a few points are needed.
- Confirm the CPU rack has a free slot and that 24 VDC at 4.1 mA per point is on the field rail.
Technical Specifications
| Series | CJ1W basic I/O unit for CJ-series PLCs |
|---|---|
| Function | Digital input, 64 points, static |
| Input Voltage | 24 VDC nominal (12-24 VDC range) |
| Rated Input Current | 4.1 mA per point at 24 VDC |
| ON Voltage / Current | 15.0 VDC min., 3.0 mA min. |
| OFF Voltage / Current | 5.0 VDC max., 1.0 mA max. |
| ON Response Time | 8.0 ms max. (default), settable to 0/0.5/1/2/4/8/16/32 ms |
| OFF Response Time | 8.0 ms max. (default), settable as above |
| Connection | Fujitsu-compatible connector, one per 32 points |
| Internal Current Draw | 110 mA at 5 VDC |
| Compatible CPUs | CJ1, CJ1M, CJ2 (any CJ-series CPU) |
| Dimensions (W x H x D) | 31 x 90 x 89 mm |
Resources & Downloads
FAQ for CJ1W-ID261
What is the difference between CJ1W-ID261 and CJ1W-ID262?
Both are 64-point DC input units on the same Fujitsu connector pattern. The CJ1W-ID261 is the static-input model with 8 ms default response. The CJ1W-ID262 adds dynamic-input capability and a faster response, which is useful on high-speed counting or indexing lines. Pick ID261 for standard machine I/O; pick ID262 when the application needs the dynamic input feature.
Which connector fits the CJ1W-ID261?
The CJ1W-ID261 uses a Fujitsu-compatible 40-pin connector (one per 32 points). The matching Omron option is the XW2Z series cable, and the field side is normally a Fujitsu FCN-360 or FCN-365 compatible plug. Two connectors are needed for the full 64 inputs. Pre-wired terminal blocks are also available through Omron's XW2B / XW2D lines.
Can the CJ1W-ID261 be used with a CJ2 CPU?
Yes. The CJ1W I/O family is supported on CJ1, CJ1M, and CJ2 CPU racks. Up to three CJ1W expansion racks can be added to a CJ2 system, and the I/O tables in CX-Programmer / Sysmac Studio register CJ1W-ID261 modules automatically. The unit draws 110 mA at 5 VDC from the rack.
