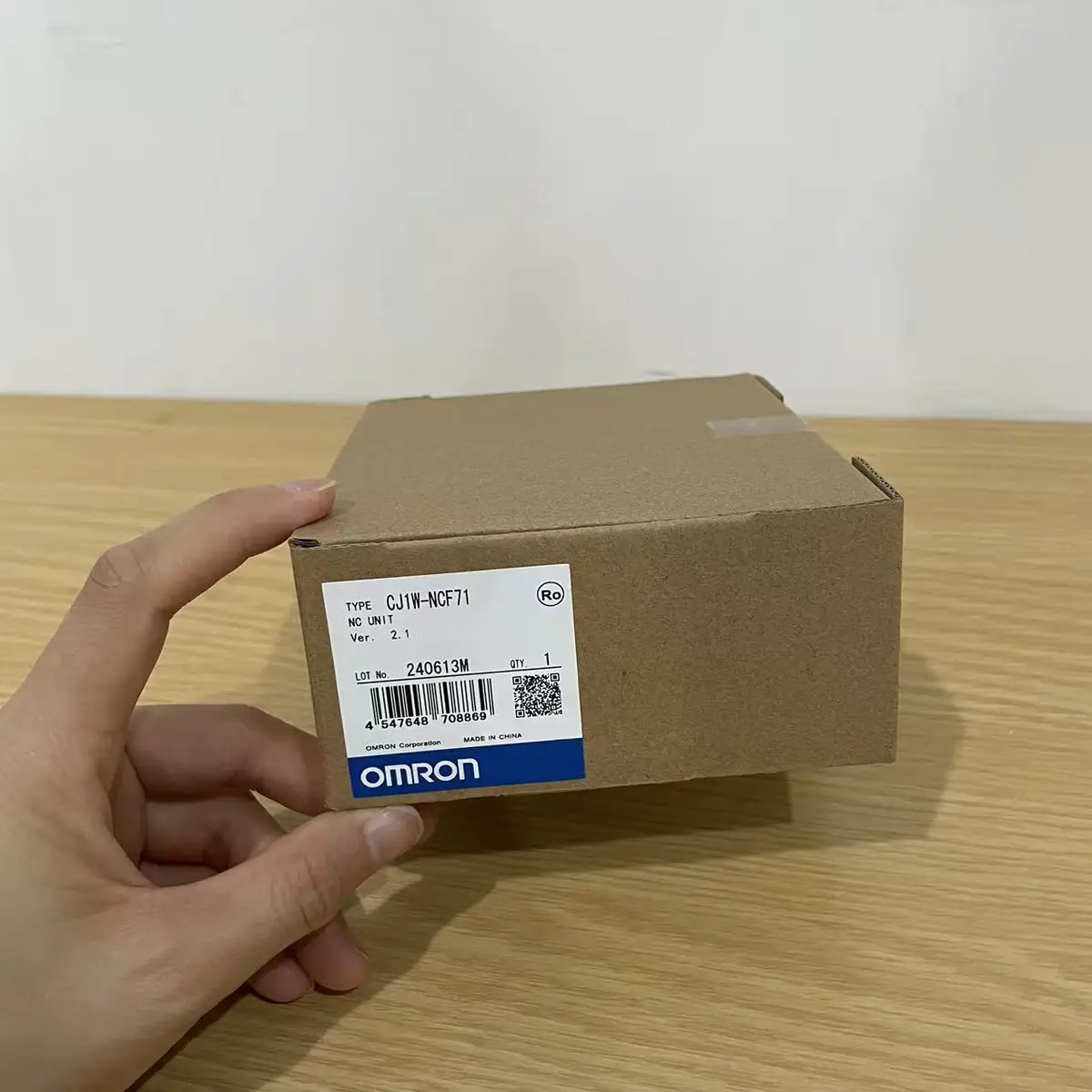

Omron CJ1W-NCF71 — brown Omron cardboard shipping carton held in hand on a wooden surface showing the white label TYPE CJ1W-NCF71 / NC UNIT / Ver. 2.1 / LOT No. 240613M / QTY. 1 / barcode 4 547648 708869 / OMRON Corporation / MADE IN CHINA / blue OMRON band

Omron CJ1W-NCF71 — MECHATROLINK II Motion Unit, 16

SKU: CJ1W-NCF71

USD 245.00

CJ-series MECHATROLINK-II Position Control Unit, up to 16 servo axes on a 10 Mbps motion bus. 360 mA at 5 VDC, slim 31 x 90 mm body.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CJ1W-NCF71 is a CJ-series CPU Bus Unit that runs up to 16 axes of position, speed, or torque control over a MECHATROLINK-II motion network. It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's CJ-series Fieldbus Unit documentation.

17-byte or 32-byte frames; Manchester encoding; bus topology Transmission cycle selectable 0.25 ms / 0.5 ms / 1 to 8 ms per network

Pairs with Omron W-series MECHATROLINK-II servo drives (R88D-WN[]-ML2) and Sigma-II drives with JEPMC-W602 interface Transmission cycle selectable 0.25 ms / 0.5 ms / 1 to 8 ms per network

CX-Motion-NCF (under CX-One V4) is the configuration tool.

Key Features

  • Pairs with Omron W-series MECHATROLINK-II servo drives (R88D-WN[]-ML2) and Sigma-II drives with JEPMC-W602 interface
  • Transmission cycle selectable 0.25 ms / 0.5 ms / 1 to 8 ms per network
  • Slim 31 x 90 x 65 mm CJ CPU-bus body at ~95 g; 360 mA at 5 VDC backplane draw
  • 17-byte or 32-byte frames; Manchester encoding; bus topology
  • SKU: CJ1W-NCF71
  • Series: CJ-series CPU Bus Unit, MECHATROLINK-II Position Control Unit

Best-Fit Applications

  • Replacement of multiple per-axis CJ1W-NC413 / NC433 pulse PCUs when the cabinet migrates to MECHATROLINK-II servos
  • Pair with the CJ1W-NC271 (2-axis MECHATROLINK-II) on the same CJ rack for a small-budget 2-axis line and room to grow to 16
  • Palletizer or pick-and-place rig with 8 to 16 axes where centralized MECHATROLINK-II motion outperforms per-axis pulse PCUs

Buying Checklist

  • Pick the CJ1W-NCF71 for the dedicated 16-axis MECHATROLINK-II motion slot on a CJ CPU rack
  • Pick the CJ1W-NC413 / NC433 instead when the cabinet has stepper / pulse-input drives without a MECHATROLINK-II interface
  • Pick the CJ1W-NC271 / NC471 instead for 2 or 4 axes (lower-cost entry points in the same MECHATROLINK-II family)

Technical Specifications

Series CJ-series CPU Bus Unit, MECHATROLINK-II Position Control Unit
Model CJ1W-NCF71
Max Controlled Axes 16 axes (MECHATROLINK-II bus)
Bus Protocol MECHATROLINK-II, 10 Mbps synchronous, 17 or 32 byte frames
Transmission Cycle 0.25 ms / 0.5 ms / 1 to 8 ms (selectable)
Bus Length Up to 50 m total (30 m with 16 slaves), bus topology
Control Modes Position, speed, torque control per axis
Position Range -2,147,483,648 to +2,147,483,647 command units
Compatible Servos Omron R88D-WN[]-ML2 W-series MECHATROLINK-II drives; Sigma-II with JEPMC-W602 interface unit
Current Draw 360 mA at 5 VDC from CJ backplane
Dimensions 31 x 90 x 65 mm slim CJ CPU-bus body, 95 g
Configuration CX-Motion-NCF under CX-One V4; supports CJ-series ladder; not for NJ-series

FAQ for CJ1W-NCF71

What is the difference between CJ1W-NCF71 and CJ1W-NC413?
Different control method. The NCF71 talks to MECHATROLINK-II servo drives over a 10 Mbps synchronous motion bus; up to 16 axes per unit; no pulse output. The NC413 is a 4-axis pulse-train Position Control Unit with up to 500 kpps open-collector pulse output to stepper or pulse-input drives. NCF71 is for centralized MECHATROLINK-II builds; NC413 is for pulse-input builds on older drives.
Does the CJ1W-NCF71 do linear or circular interpolation?
The bare CJ1W-NCF71 does NOT do linear or circular interpolation; it sends position / speed / torque commands to each axis independently. For G-language linear / circular interpolation, pick the CJ1W-NCF71-MA (the -MA suffix adds the MA interpolation feature set and 100-position macros per axis).
What servo drives work with the CJ1W-NCF71?
Omron W-series MECHATROLINK-II servos (R88D-WN[]-ML2) are the native pairing. Sigma-II / MECHATROLINK-II servos (with the JEPMC-W602 interface unit or equivalent) also work on the same bus. Drives from other vendors that carry a MECHATROLINK-II interface can be added when their ESI / GSD is registered, but stick to the Omron W-series for like-for-like spare replacement.
What is the MECHATROLINK-II bus cycle on the CJ1W-NCF71?
0.25 ms / 0.5 ms / 1 to 8 ms per network (selectable in CX-Motion-NCF). 0.25 ms or 0.5 ms is the cycle for high-speed multi-axis synchronization; 1 to 8 ms cycles are used for looser coordinated moves. The bus is 10 Mbps Manchester-encoded over shielded twisted-pair cable (FNY-W6003-[]). Maximum 50 m cable length (30 m when all 16 slaves are connected); 0.5 m minimum between stations.
