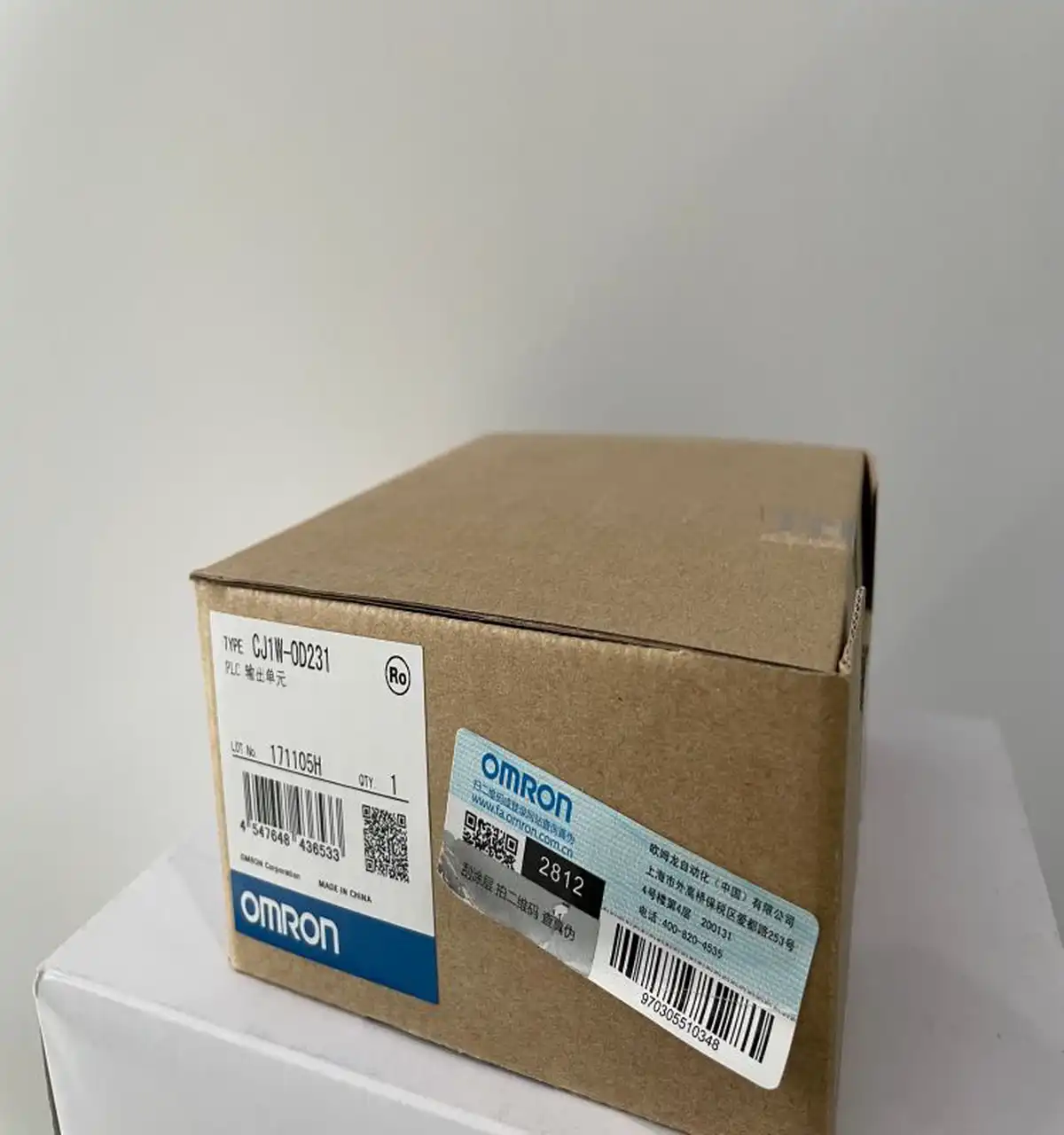

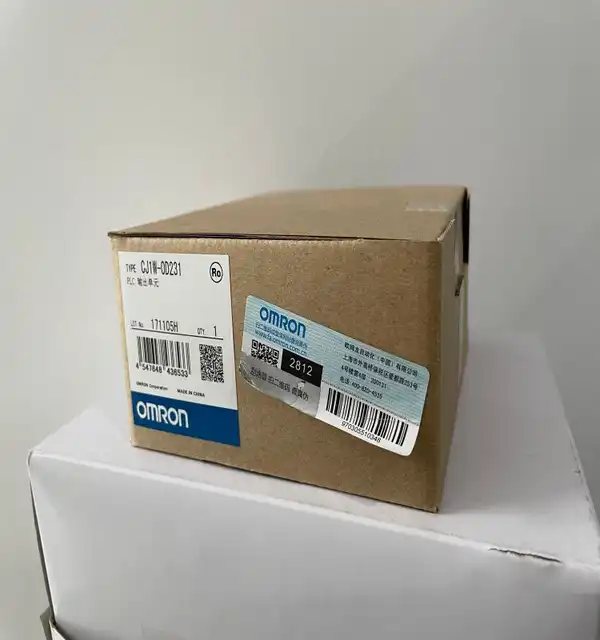

Omron CJ1W-OD231 — 32-Pt Sinking Output, Fujitsu Connector
SKU: CJ1W-OD231USD 50.00
32-point NPN sinking output for CJ-series PLCs. 12-24 VDC, 0.5 A/point, Fujitsu connector, 31 mm slim width.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CJ1W-OD231 adds 32 transistor outputs to a CJ-series PLC rack in a 31 mm slot — half the width of two 16-point OD211 units side-by-side. Each output is NPN sinking rated 0.5 A at 12-24 VDC, which is the typical Asian wiring convention (+24 VDC common, output pulls to 0 V to switch the load on). The front face carries a Fujitsu FCN-361J040-AU 40-pin connector that mates with a standard FCN-360 series pre-wired cable (Omron G79-O@@@) for fast panel wiring.
When to pick this vs the other 32-point siblings
Pick OD231 (this SKU) when your field devices are NPN-style (relay coils or solenoid valves with a common +24 V) and the panel is wired with FCN-360 series cables. Pick OD232 when you need PNP sourcing outputs, or a MIL connector, or built-in short-circuit protection on each point. Pick OD233 for high-speed pulse-train outputs. Pick OD211 if you only need 16 points and prefer removable terminal blocks over a connector cable.
Before ordering
This unit has no built-in short-circuit protection — fit a 1 A fast-blow fuse per output common (two groups of 16) or per point if a fault on one output must not affect others. The connector and cover are sold separately — order one FCN-361J040-AU socket and one FCN-360C040-J2 cover per unit, plus the appropriate G79-O@@@ pre-wired cable length. For AC loads, use the CJ1W-OC211 relay output unit instead of a transistor output.
Key Features
- 32-point transistor output for CJ-series PLCs in 31 mm width
- NPN sinking outputs, 12-24 VDC, 0.5 A per point
- Fujitsu FCN-361J040-AU 40-pin connector (sold separately)
- Accepts FCN-360 series pre-wired cable assemblies (G79-O@@@)
- 0.1 ms ON / 0.8 ms OFF response time
- 16 points per common (2 commons per unit)
- Max 4 A per unit total output current
- Orange LED per point for status
- No built-in short-circuit protection (provide external fuse)
- SKU: CJ1W-OD231
- Series: CJ1W-OD231
- Voltage: 12-24 VDC
Best-Fit Applications
- 32 solenoid valves on a pneumatic manifold (packaging, bottling, assembly)
- 32 indicator lamps on a stack-light or tower-light array
- Heater-zone switching via 32 solid-state relay inputs
- Conveyor divert / sortation with 32 pneumatic diverters
- Replacement for legacy C200H-OD216 / C200H-OD218 NPN output units
Buying Checklist
- Pick CJ1W-OD231 (this SKU) for 32-pt NPN sinking with Fujitsu connector
- Pick CJ1W-OD211 (already done) for 16-pt NPN sinking with removable TB
- Pick CJ1W-OD232 for 32-pt PNP sourcing with MIL connector and short-circuit protection
- Pick CJ1W-OC211 (already done) for 16-pt relay output (for AC loads)
- Order the FCN-361J040-AU connector and FCN-360C040-J2 cover separately
- Fit a 1 A fast-blow fuse per output common (no built-in protection on this SKU)
Technical Specifications
| Model | CJ1W-OD231 |
|---|---|
| Type | 32-point NPN sinking transistor output |
| Load Voltage | 12-24 VDC (10.2-26.4 VDC operating) |
| Max Current | 0.5 A/point, 2.0 A/common, 4.0 A/unit |
| Response Time | ON 0.1 ms / OFF 0.8 ms max |
| Connector | Fujitsu FCN-361J040-AU (sold separately) |
| Short-Circuit Protection | No (fit external fuse) |
| Dimensions | 31 x 90 x 65 mm |
| Compatible CPUs | CJ1M, CJ2M, CJ2H, NJ-series |
Resources & Downloads
FAQ for CJ1W-OD231
What's the difference between CJ1W-OD231 and CJ1W-OD232?
Same 32-point count and 0.5 A rating, but the OD231 (this SKU) is NPN sinking with a Fujitsu connector and no short-circuit protection, while the OD232 is PNP sourcing with a MIL connector and built-in short-circuit protection on each point. OD231 fits Asian-style wiring (+24 V common, NPN loads); OD232 fits North American / European PNP wiring.
Does the CJ1W-OD231 have short-circuit protection?
No. Provide external protection: a 1 A fast-blow fuse per output common (the unit has two 16-point groups) protects both groups against shorts, or a 0.5 A fuse per point for point-by-point protection. If you need built-in protection, use the CJ1W-OD232 (PNP) instead.
What connector and cable do I need?
A Fujitsu FCN-361J040-AU 40-pin socket on the unit. Order the FCN-360C040-J2 cover and a G79-O@@@ pre-wired cable (1 m to 10 m lengths available). The connector and cable are sold separately.
Can the CJ1W-OD231 switch AC loads?
No — it's a DC transistor output (12-24 VDC). For AC loads (AC relays, solenoids, lamps), use the CJ1W-OC211 relay output unit (16-pt, 2 A, 250 VAC) or add an interposing relay between the OD231 output and the AC load.
Is the CJ1W-OD231 compatible with NJ-series CPUs?
Yes — it works on a CJ expansion rack behind any NJ101 / NJ301 / NJ501 CPU. Sysmac Studio allocates the 2 CIO output words automatically when you drag the unit onto the rack diagram.
