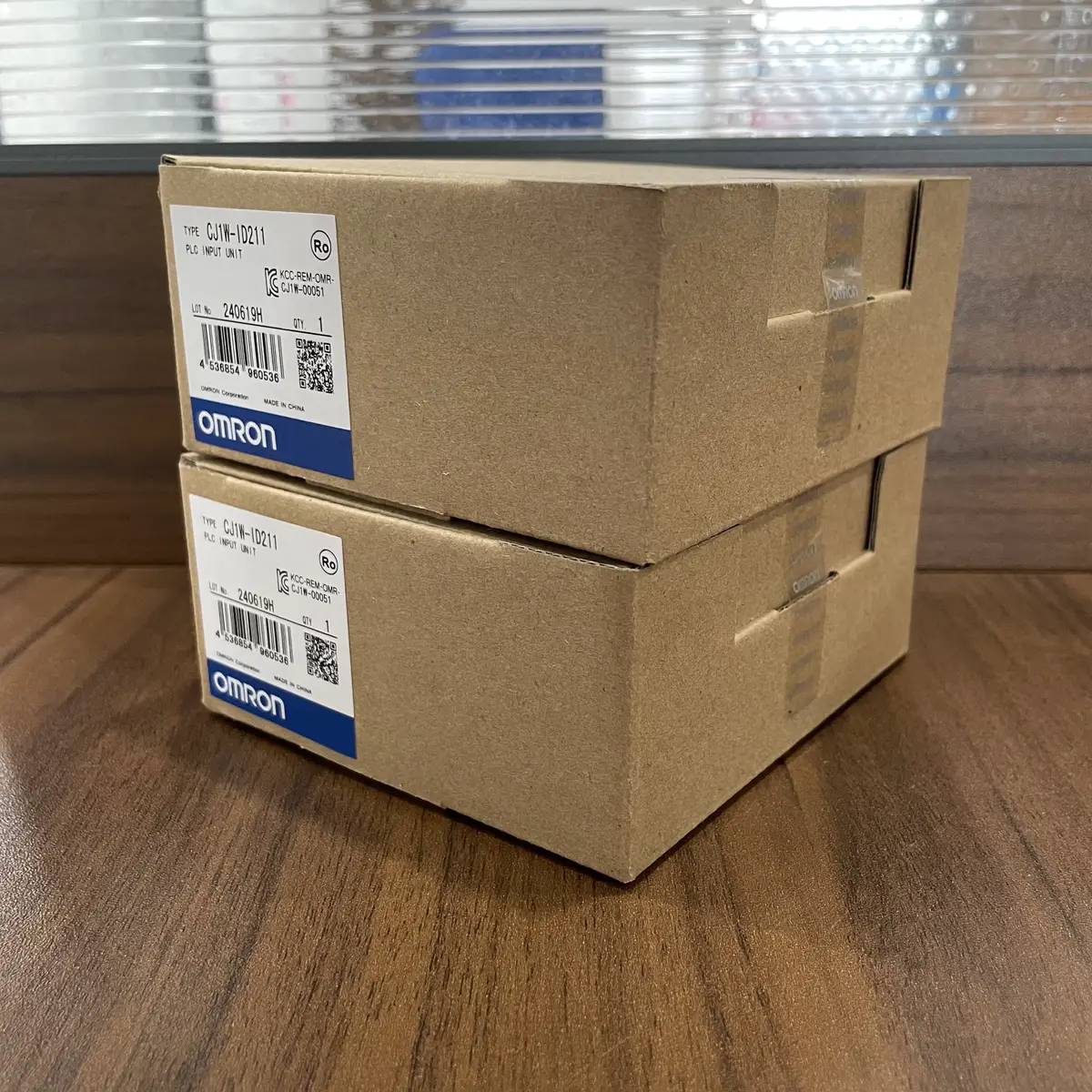

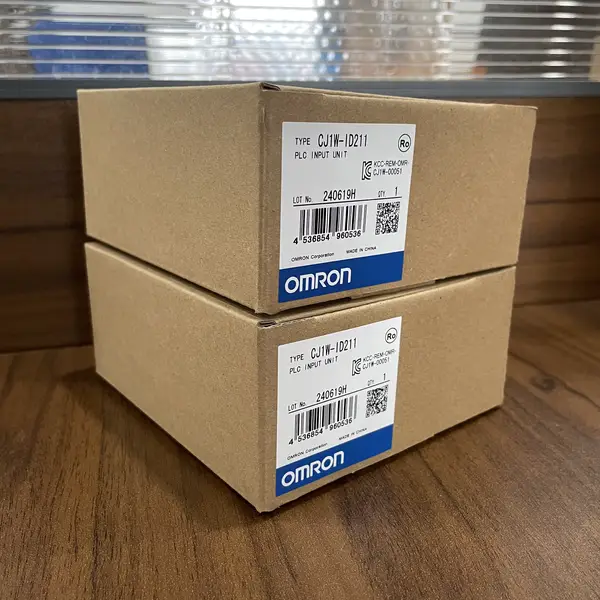

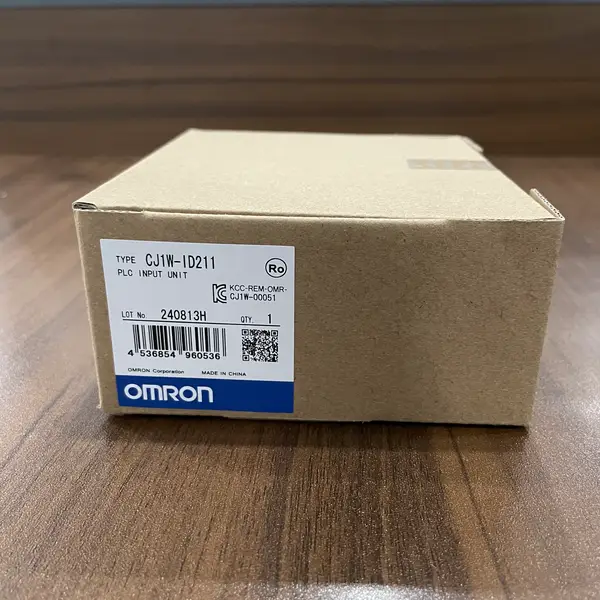

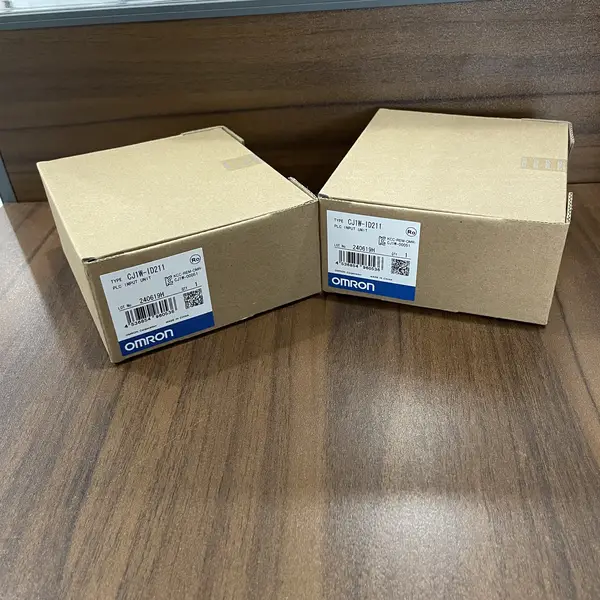

Omron CJ1W-ID211 — 16-Point DC Input Unit, 24 VDC
SKU: CJ1W-ID211USD 30.00
CJ-series 24 VDC 16-point DC input unit with screw terminal block. Rated 7 mA input current, 3.3 kΩ input impedance. Used as basic I/O on CJ1M / CJ2M / CJ2H / NJ-series racks. 8.0 ms ON response (default) adjustable to 0-32 ms in PLC setup.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CJ1W-ID211 is the standard 16-point 24 VDC sinking (NPN-compatible) DC input unit for Omron's CJ-series PLC family — the workhorse I/O module that connects push-buttons, limit switches, proximity sensors, and other 24 VDC digital devices to a CJ1, CJ2, or NJ-series CPU. Each of the 16 input points accepts a 24 VDC signal (operating range 20.4 to 26.4 VDC) and draws 7 mA typical per point at 24 VDC through a 3.3 kΩ input impedance. The module presents 16 inputs in one 16-bit I/O word (16 points allocated in the CJ I/O memory map as either CIO 0xxx or work area Wxxx depending on slot).
CJ1W-ID211 family context (ID201 / ID212 / ID231 / ID233)
The CJ1W-ID2xx family splits along four axes: point count (8 / 16 / 32 / 64), input voltage (12-24 VDC vs 24 VDC vs 100/200 VAC), response speed (standard 8 ms vs high-speed 15 µs / 30 kHz), and connector type (screw terminal block vs MIL connector vs high-density connector). The CJ1W-ID211 (this SKU) sits at the standard-speed / 16-point / 24 VDC / screw-terminal intersection. For 8-point needs pick the CJ1W-ID201 (saves a half slot of panel space). For 32-point / MIL connector pick the CJ1W-ID231 (34-pin MIL, 32 inputs). For 64-point / high-density connector pick the CJ1W-ID261 (64 inputs across 2 CIO words).
Wiring, indicators, and setup parameters
Wiring uses a removable M3 screw terminal block (24 terminals: 16 input + 2 × common + 4 spare) — strip 7 mm of insulation from each conductor and tighten to 0.25 N·m. The polarity on the input side is polarity-independent (a bridge rectifier at each input), but the COM terminal must be returned to +24 VDC for sinking-sensor operation (NPN sensors) or to 0 V for sourcing-sensor operation (PNP sensors). 16 green input LEDs on the front face show the live state of each point (lit when the input is ON).
Interrupt inputs and high-speed counter compatibility
Although the CJ1W-ID211 is marketed as a 'standard speed' input unit, four of its inputs (CIO 0xx00 to 0xx03, configurable) can be reassigned in the PLC Setup as direct interrupt inputs to trigger high-priority tasks — useful for very fast emergency-stop or registration-mark detection without waiting for the normal scan cycle. The interrupt response on CJ2-series CPUs is 0.2 ms; on CJ1M-CPU21/CPU22 it's 0.5 ms; on CJ1G-CPU4[]H it's 1.0 ms.
Key Features
- 16-point 24 VDC digital input module for CJ-series PLCs
- Single 16-point group with one shared common terminal
- Rated input voltage 24 VDC, operating range 20.4 to 26.4 VDC
- Input impedance 3.3 kΩ, rated input current 7 mA per point
- ON voltage 14.4 VDC min / 3 mA min
- OFF voltage 5.0 VDC max / 1 mA max
- ON response time 8.0 ms max
- Supports quick-response inputs for first 4 inputs
- SKU: CJ1W-ID211
- Series: CJ1W CJ-series Basic I/O — DC Input
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Push-button and selector-switch wiring panel for a machine operator console — 16 inputs wired to indicator lamps and start/stop buttons.
- Proximity-sensor interface on a conveyor — 16 E2B-M18 inductive sensors detecting part-present at 16 inspection stations, each wired to one.
- Limit-switch and safety-door switch interface — D4N-112G roller-lever switches wired into 16 inputs for end-of-stroke detection across multiple axes
- Discrete sensor multiplexing panel — E3Z-D82 diffuse sensors, EE-SX674 slot sensors, and E2E inductive sensors all sharing one 16-input module.
Buying Checklist
- Pick CJ1W-ID211 for a 24 VDC 16-point NPN/PNP input module with screw terminal block
- Pick CJ1W-ID201 for an 8-point version of this SKU
- Pick CJ1W-ID212 for high-speed 16-point DC input — 15 µs ON response for high-speed counters up to 30 kHz
- Pick CJ1W-ID232 for 32-point DC input with 40-pin MIL connector — saves panel space at higher density
- Pick CJ1W-ID261 for 64-point DC input with Fujitsu-compatible high-density connector
- Pick CJ1W-IA201 for 200 VAC inputs — needed for legacy AC-sensor installations
Technical Specifications
| Model | CJ1W-ID211 |
|---|---|
| Series | CJ1W CJ-series Basic I/O — DC Input |
| Type | 16-point DC input unit, screw terminal, removable |
| Rated Input Voltage | 24 VDC |
| Operating Voltage Range | 20.4 to 26.4 VDC |
| Input Impedance | 3.3 kΩ |
| Rated Input Current | 7 mA typical per point (at 24 VDC) |
| ON Voltage / ON Current | 14.4 VDC min / 3 mA min |
| OFF Voltage / OFF Current | 5.0 VDC max / 1 mA max |
| Common Type | Single common (16 points share 1 COM terminal) |
| Interrupt Input Response | 0.2 ms on CJ2-CPU[], 0.5 ms on CJ1M-CPU21/22, 1.0 ms on CJ1G-CPU[]H (first 4 inputs) |
| Terminal Wire Range | 0.2 to 1.5 mm² (AWG 24 to 16) |
| 5 VDC Backplane Current | 0.08 A |
| Internal Current Consumption | 0.08 A at 5 VDC |
| Operating Temperature | 0 to +55 °C |
Resources & Downloads
FAQ for CJ1W-ID211
Can the CJ1W-ID211 handle both NPN and PNP sensors?
Yes — the CJ1W-ID211 has a polarity-insensitive input bridge (each input has a diode bridge rectifier inside the module), so it accepts either NPN (sinking) sensors with their load output wired to the input terminal and the sensor's positive supply wired to +24 VDC, OR PNP (sourcing) sensors with their load output wired to the input terminal and the sensor's negative supply wired to 0 V.
What's the difference between CJ1W-ID211 and CJ1W-ID212?
Both are 16-point 24 VDC input modules in the same form factor. The CJ1W-ID211 (this SKU) is the standard-speed model with default 8.0 ms ON response time configurable 0-32 ms in the PLC Setup — suitable for general-purpose limit switches, push-buttons, proximity sensors, and any input that does not need sub-millisecond response.
Can I use the CJ1W-ID211 inputs as high-speed counters?
Only on specific CPUs and only at limited counting rates. The first 4 inputs (CIO 0xx00 to 0xx03) of the CJ1W-ID211 can be assigned as high-speed counter inputs on CJ1M-CPU21/22/23 (maximum counting rate 1 kHz with single-phase / 500 Hz with two-phase) and CJ2M-CPU3[] (maximum 50 kHz single-phase / 50 kHz two-phase when using the built-in HSC function).
How do I configure the 0-32 ms input filter on the CJ1W-ID211?
In CX-Programmer (for CJ1/CJ2 CPUs) or Sysmac Studio (for NJ-series), navigate to the PLC Setup / IO Table / Module Configuration, select the CJ1W-ID211, and find the 'Input Filter Time' or 'Input Response Time' parameter — the default is 8.0 ms.
