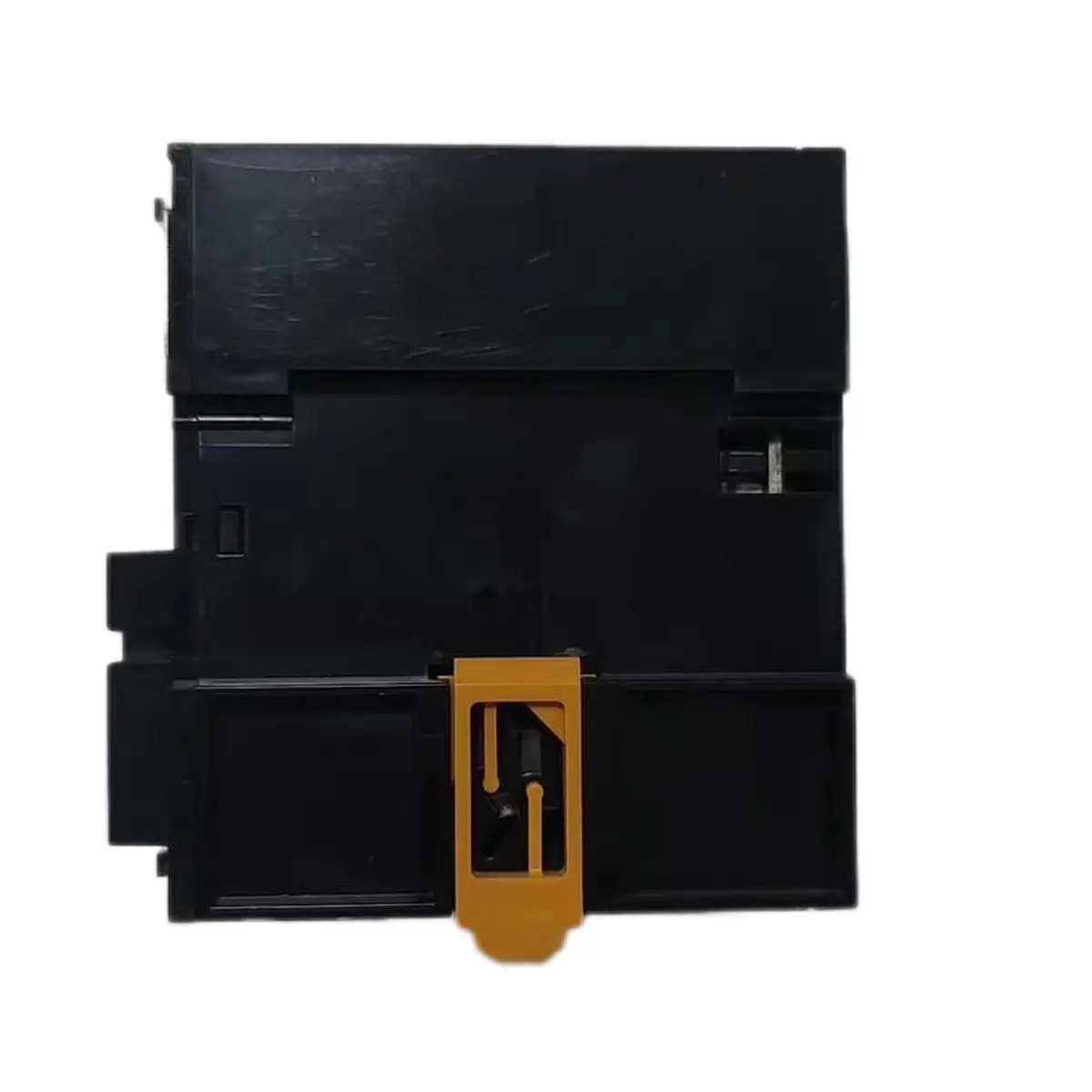

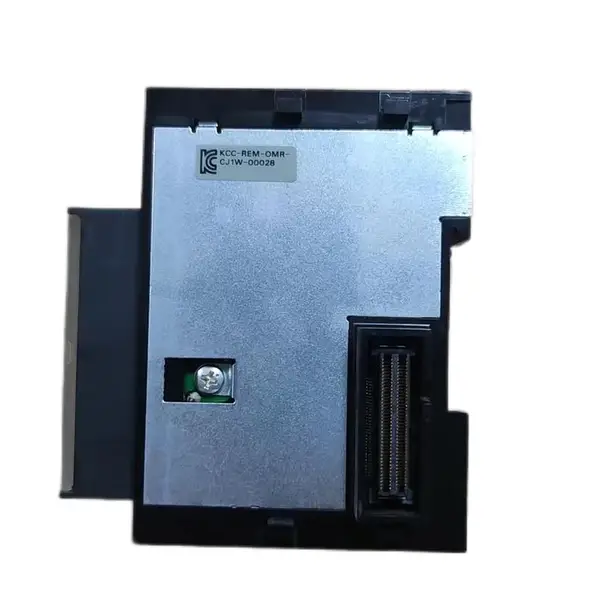

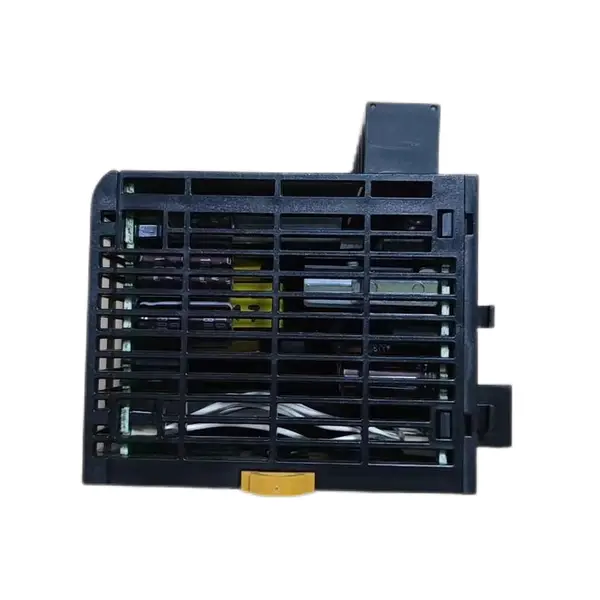

Omron CJ1W-PA205R — 25W AC PSU with RUN Output
SKU: CJ1W-PA205RUSD 49.00
25 W AC power supply for CJ-series PLCs. 100-240 VAC input, 5 V/5 A plus 24 V/0.8 A outputs, RUN contact for CPU-status indication.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-PA205R is the 25 W AC power supply for a CJ-series PLC rack, with a built-in RUN output contact that closes while the CPU is in RUN mode. It takes 100-240 VAC from the cabinet mains and feeds the rack with 5 VDC at 5 A for the CPU bus plus a 24 VDC at 0.8 A service supply for sensors or relay coils (25 W total). At 80 mm wide, it sits between the slim PA202 (14 W, 45 mm) and the wider CPU units to its right.
When to pick this over the PA202 or PA205C
The R in PA205R is the giveaway: it has a RUN output — a relay contact that closes while the CPU is in RUN mode and opens on stop or fault. Use it to drive an external "system running" lamp, a master enable signal to a downstream station, or a redundant-shutdown input on a safety relay. The PA205C swaps the RUN output for a replacement-notification function — pick that one when the controller needs to know when the PSU is approaching end of life. The PA202 is 14 W at 45 mm with no extra features — pick it for tight-cabinet builds that don't need the RUN signal.
Before ordering
Add up the 5 V current draw of every module on the rack. The PA205R delivers 5 A at 5 V — enough for a CJ1M or CJ2M CPU plus roughly 30 basic 16-/32-point I/O units, but heavy racks with analog or CPU-bus units can still push past 3 A. The 24 VDC service supply is 0.8 A — enough for sensor LEDs and indicator lamps, but not enough to drive solenoid valves or contactors. Add a separate S8VK-G06024 or S8VK-G12024 for those loads. If the cabinet only has 24 VDC available, choose the CJ1W-PD025.
Key Features
- 25 W AC power supply for CJ-series PLC racks (CPU + I/O)
- 100-240 VAC wide-range input (85-264 VAC operating range)
- 5 VDC output: 5.0 A (for CJ bus + CPU)
- 24 VDC service supply: 0.8 A (for sensors, lamps, small relay coils)
- RUN output relay contact (SPST-NO) — closes while CPU is in RUN
- RUN contact rating: 250 VAC 2 A resistive / 24 VDC 2 A
- 80 mm DIN-rail width (mid-size; PA202 is 45 mm, PA205C same as this)
- Finger-safe input and output terminals
- Green DC ON status LED on the front face
- Compatible with CJ1M, CJ1H, CJ2M, CJ2H, and NJ-series expansion racks
- SEMI-F47 compliant; UL 508 / cUL / CE / Lloyd's / RCM
- SKU: CJ1W-PA205R
- Series: CJ1W-PA205R
- Voltage: 100-240 VAC
- I/O: 100 I/O
Best-Fit Applications
- Mid-size CJ-series PLC rack where an external indicator needs to confirm CPU is in RUN
- Standalone machine controller where one PSU feeds the CJ bus plus a small 24 VDC sensor load
- Migration replacement for legacy C200HW-PA204S in C200H-to-CJ1 retrofits
- OEM machine build where the customer-facing HMI has a "system running" lamp driven by the RUN contact
- Compact control panel feeding CPU, basic I/O, and a handful of 24 VDC photo eyes from one supply
Buying Checklist
- Pick CJ1W-PA205R (this SKU) for 25 W with a RUN output contact for CPU-status indication
- Pick CJ1W-PA202 for the slim 14 W AC PSU when you don't need the RUN signal and the rack is small
- Pick CJ1W-PD025 for 25 W capacity when the cabinet only supplies 24 VDC (no AC mains)
- Pick CJ1W-PD022 for a smaller 24 VDC-input PSU on a tight CJ expansion rack
- Confirm total 5 VDC rack current is under 5 A before sizing this PSU
- Use the 24 VDC 0.8 A service supply only for sensors and lamps — add an S8VK-G06024 for solenoid valves
Technical Specifications
| Model | CJ1W-PA205R |
|---|---|
| Type | AC Power Supply Unit, 25 W |
| Input Voltage | 100-240 VAC, 50/60 Hz (85-264 VAC operating) |
| Power Consumption | 100 VA max |
| Output (5 VDC) | 5.0 A (for CPU + I/O bus) |
| Output (24 VDC Service) | 0.8 A |
| Total Output | 25 W max |
| RUN Output Contact | SPST-NO, 250 VAC 2 A / 24 VDC 2 A resistive |
| Compatible CPUs | CJ1M / CJ1H / CJ2M / CJ2H / NJ-series expansion |
| Dimensions (W × H × D) | 80 × 90 × 81.6 mm |
| Operating Temperature | 0 to 55 °C |
| Certifications | UL 508, cUL, CE, Lloyd's, RCM; SEMI-F47 |
Resources & Downloads
FAQ for CJ1W-PA205R
What's the difference between CJ1W-PA205R and CJ1W-PA205C?
Both are 25 W CJ-series 100-240 VAC power supplies at 80 mm wide. The PA205R (this SKU) has a RUN output — a relay contact that closes while the CPU is in RUN mode. The PA205C has a replacement-notification function instead, which signals when the PSU is nearing end of service life. Pick PA205R for an external RUN-status lamp or master-enable signal; pick PA205C when the system does predictive maintenance.
How do I wire the RUN output contact?
The RUN terminals are a single SPST-NO relay contact — they have no polarity and are fully isolated from the PSU's internal circuits. Wire them like any small relay: one side to your indicator lamp, downstream device, or PLC input; the other to the supply for that load. Rated 250 VAC 2 A resistive or 24 VDC 2 A.
How many CJ1W I/O units can the CJ1W-PA205R power?
The 5 VDC output is 5 A. A typical CJ2M-CPU + 10 basic 16-/32-point I/O units draws around 1.5–2 A — well within the limit. Racks with analog I/O, communication units, or CPU-bus units draw more; plan for roughly 3 A for a full 30-unit CPU rack. For expansion racks with mostly special I/O, use a second PA205R on the expansion rack instead of daisy-chaining.
Is the CJ1W-PA205R compatible with NJ-series CPUs?
Yes — it works as the PSU on a CJ1W expansion rack behind an NJ101, NJ301, or NJ501 CPU. For a new NJ installation, the dedicated NJ-PA3001 PSU is the preferred choice on the CPU rack itself; use the PA205R when adding a CJ expansion rack to an existing NJ system or migrating from CJ2M.
