Omron CJ1W-PRM21 — CJ PROFIBUS-DP Master Unit
SKU: CJ1W-PRM21USD 486.00
CJ-series PROFIBUS-DP master unit with DP-V1 support, CX-PROFIBUS configurator, baud rates to 12 Mbit/s, up to 125 slaves. 0.40 A at 5 VDC.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-PRM21 is the CJ-series PROFIBUS-DP master unit. Pick it when a CJ or CS PLC needs to act as the class-1 master on a PROFIBUS-DP network to read / write distributed I/O, VFDs, encoder blocks, or third-party PROFIBUS slaves.
The unit supports both the classic PROFIBUS-DP class-1 cyclic data exchange and DP-V1 acyclic services (process data, parameter read / write, alarm handling). All standard PROFIBUS baud rates from 9.6 kbit/s up to 12 Mbit/s are selectable from the CX-PROFIBUS configurator, per EN50170 Volume 2 / IEC 61158. The PROFIBUS address is also set from the configurator (0-125), up to 125 slaves per bus. Max 7,168 words of I/O across the network and 244 bytes in / 244 bytes out per slave.
The 25-word control and status area in the CJ CPU memory handles the standard PROFIBUS services -- Data_Exchange, Slave_Diag, Set_PRM, Chk_Cfg, and Global_Control (Sync / Unsync / Freeze / Unfreeze / Clear). The CJ1W-PRM21 pulls 400 mA at 5 VDC from the CJ backplane, sits in one CJ CPU-bus slot, and weighs 100 g in a 90 x 65 x 31 mm slim body.

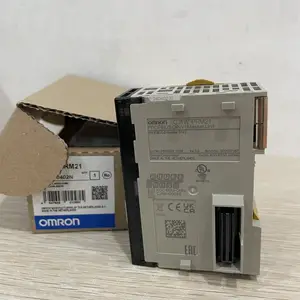

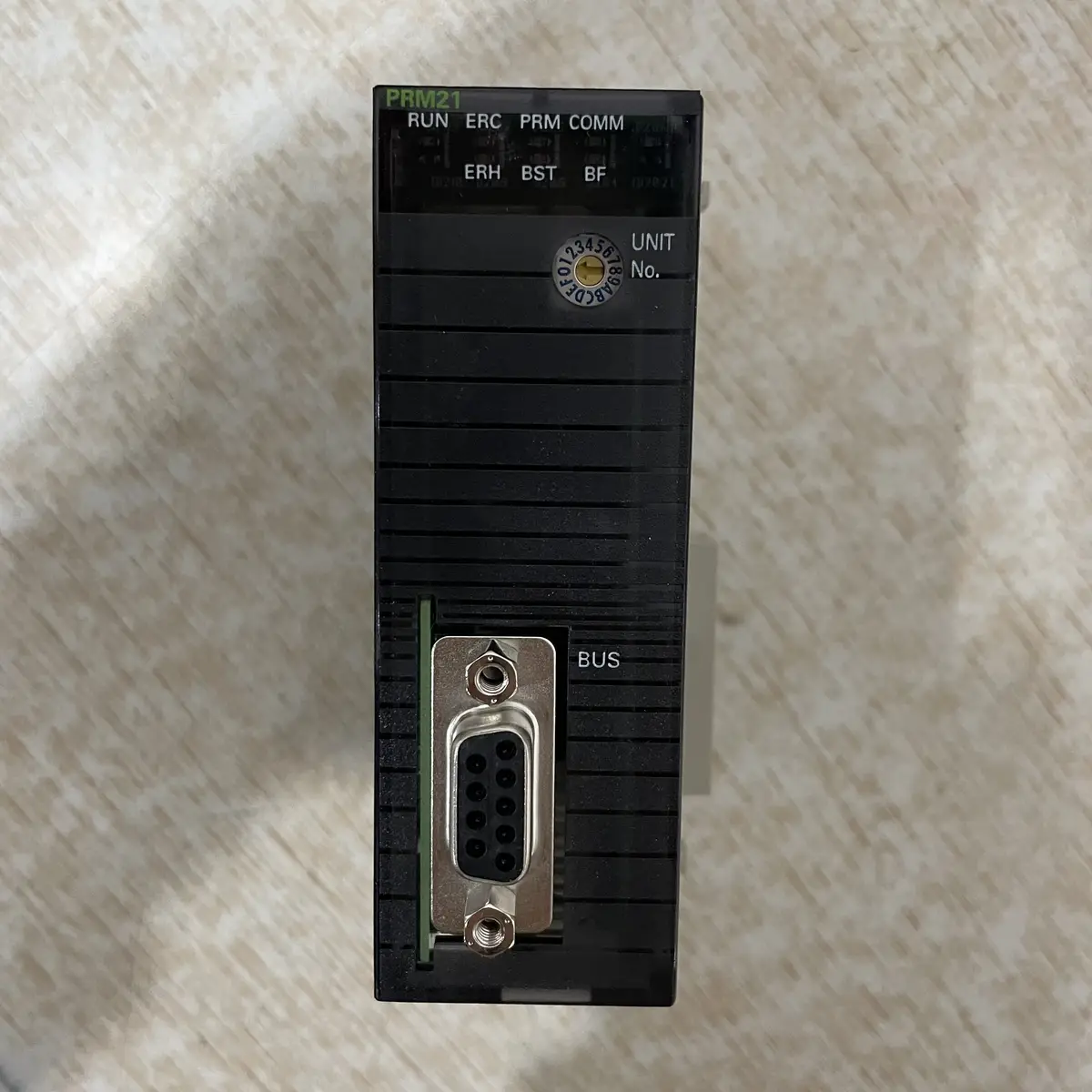

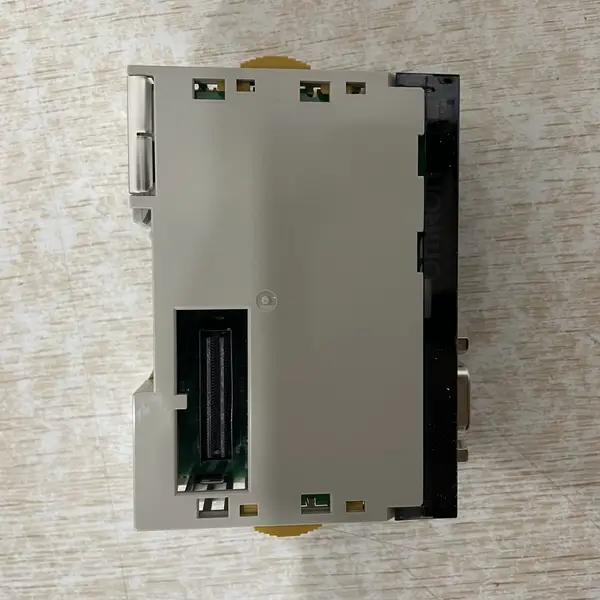

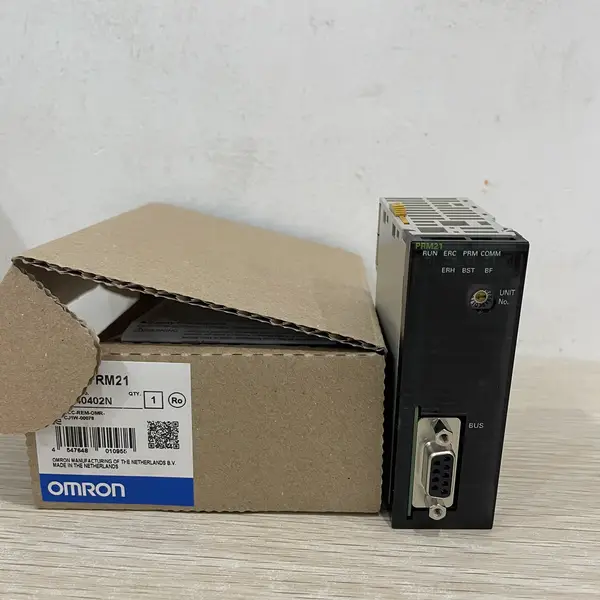

The front face carries PROFIBUS Address rotary (UNIT No. 0-F), seven status LEDs (RUN / ERC / PRM / COMM / ERH / BST / BF), and a D-Sub 9-pin PROFIBUS connector labelled BUS. CX-PROFIBUS (an add-on under CX-One) plus the Generic DTM is the configuration tool for both the master and for any GSD-file based third-party slave. Simple backup and interrupt notification are not supported on the PRM.
The matching CS-series counterpart is CS1W-PRM21 for CS1 / CS1D racks. CJ1W-PRM21 is manufactured by Omron Manufacturing B.V. in the Netherlands. 0 to +50 °C operating.
Key Features
- CJ-series CPU-bus PROFIBUS-DP master unit (NOT protocol macro -- protocol macro lives on the SCU21-V1 / SCU22 / SCU31-V1 / SCU32 / SCU41-V1 / SCU42 family)
- PROFIBUS-DP master class 1 with DP-V1 acyclic data types supported
- All standard PROFIBUS-DP baud rates from 9.6 kbit/s to 12 Mbit/s per EN50170 Vol. 2 / IEC 61158
- PROFIBUS address 0-125 selectable per slave, up to 125 PROFIBUS slaves per bus
- Max 7,168 words of I/O across the network
- 244 bytes in / 244 bytes out per PROFIBUS slave
- 25-word control / status area in the CJ CPU memory
- Global_Control (Sync, Unsync, Freeze, Unfreeze, Clear) via CX-PROFIBUS
- CX-PROFIBUS / FTD/DTM-based configurator with Generic DTM for GSD-file based slaves
- Up to 16 PRM21 units per CJ PLC (depends on CJ CPU type)
- 400 mA at 5 VDC from CJ backplane, 90 x 65 x 31 mm slim body at 100 g
- Simple backup and interrupt notification functions NOT supported on the PRM21
- SKU: CJ1W-PRM21
- Series: CJ-series CPU-bus Special I/O / high-function unit
- I/O: 7 I/O
Best-Fit Applications
- CJ or CS PLC acting as class-1 PROFIBUS-DP master for distributed I/O racks on a plant bus
- Reading / writing third-party PROFIBUS-DP slaves (VFDs, valves, weigh scales, encoder blocks) via GSD file import
- Mixed CJ / CS / NSJ / NJ panel where a subset of field devices is PROFIBUS-DP and the rest is Ethernet
- Replacing an older CS1W-PRM21 on a CS-series rack with the slim CJ1W-PRM21 on a CJ-series rack
- DP-V1 acyclic parameter read / write for VFD commissioning and diagnostics
- Building a CJ CPU as a PROFIBUS-DP master gateway between a higher-level Ethernet / EtherNet/IP and a PROFIBUS-DP sub-network
Buying Checklist
- Pick the CJ1W-PRM21 when the CJ / CS PLC must act as a PROFIBUS-DP class-1 master with DP-V1 acyclic support
- Pick the CS1W-PRM21 instead for a CS-series CPU bus unit (same functionality, CS1 / CS1D rack)
- Pick the CJ1W-DRM21 for a DeviceNet master when PROFIBUS-DP is not in scope
- Pick the CJ1W-ETN21 / CJ1W-EIP21 for Ethernet / EtherNet/IP upstream networks (the PRM21 covers the PROFIBUS-DP side only)
- Pick the CJ1W-SCU21-V1 / SCU31-V1 / SCU22 / SCU32 / SCU42 when the cabinet needs a serial / Modbus-RTU bridge instead of PROFIBUS-DP
- Confirm CX-PROFIBUS (and the CX-One / CX-Programmer licence) is on the engineering PC -- PROFINET / EtherNet/IP DTM downloads are a separate purchase
Technical Specifications
| Series | CJ-series CPU-bus Special I/O / high-function unit |
|---|---|
| Model | CJ1W-PRM21 |
| Function | PROFIBUS-DP master class 1 + DP-V1 acyclic data types |
| Bus Connector | 1 x D-Sub 9-pin PROFIBUS-DP connector on front face (BUS) |
| Baud Rates | 9.6 k / 19.2 k / 45.45 k / 93.75 k / 187.5 k / 500 k / 1.5 M / 3 M / 6 M / 12 Mbit/s per EN50170 Vol. 2 / IEC 61158 |
| PROFIBUS Address | 0-125 per master / slave, set via CX-PROFIBUS |
| Slaves per Bus | Up to 125 PROFIBUS slaves |
| I/O Capacity | 7,168 words total / 244 bytes in + 244 bytes out per slave |
| Control / Status Area | 25 words in the CJ CPU memory area |
| Current Draw | 0.40 A at 5 VDC from CJ backplane |
| Per-rack Limit | Up to 16 PRM21 units per CJ PLC (depends on CPU type) |
| Dimensions / Weight / Origin | 90 x 65 x 31 mm slim body, 100 g, MADE IN THE NETHERLANDS by Omron Manufacturing B.V.; 0 to +50 °C operating |
Resources & Downloads
FAQ for CJ1W-PRM21
Is the CJ1W-PRM21 a protocol macro module?

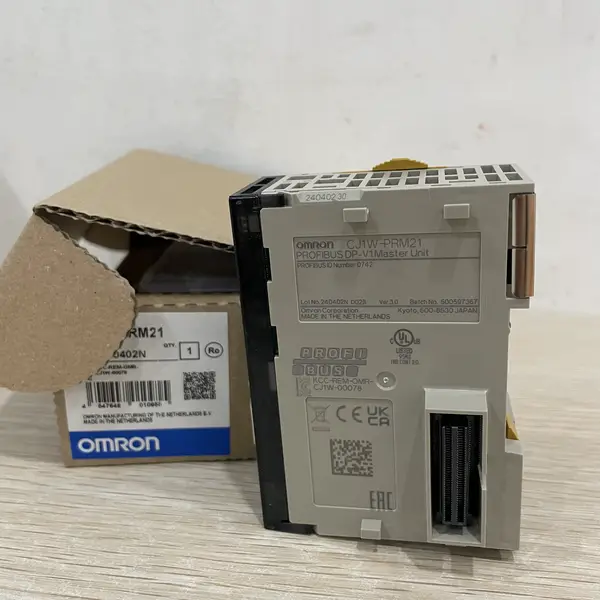

No. The PRM21 is a PROFIBUS-DP master unit. The protocol macro feature lives on the CJ1W-SCU21-V1 / SCU31-V1 (and the SCU@2 high-speed SCU22 / SCU32 / SCU42) serial communication units. The PRM21 is a dedicated PROFIBUS-DP master class 1 with DP-V1 acyclic data types -- the actual nameplate on the unit reads 'PROFIBUS DP-V1 Master Unit'.
How many PROFIBUS slaves can the CJ1W-PRM21 handle?
Up to 125 PROFIBUS-DP slaves per bus at 244 bytes in + 244 bytes out per slave, for 7,168 words of total I/O across the network. Up to 16 PRM21 units can sit on one CJ PLC (final count depends on the CJ CPU type), so multi-master PROFIBUS-DP sub-networks from a single CJ rack are supported.
What software configures the CJ1W-PRM21?
CX-PROFIBUS, an FTD/DTM-based configurator under CX-One. The master is set up in CX-PROFIBUS and any third-party slave is imported via its GSD file and configured through the Generic DTM. CX-Programmer alone is not enough for the PROFIBUS-DP master and slave configuration.
Does the CJ1W-PRM21 support DP-V1 acyclic services?
Yes. The PRM21 lists 'Basic PROFIBUS-DP master Class 1 functions plus DP-V1 data types support' on the Omron specification page, so acyclic parameter read / write and alarm handling are supported.
