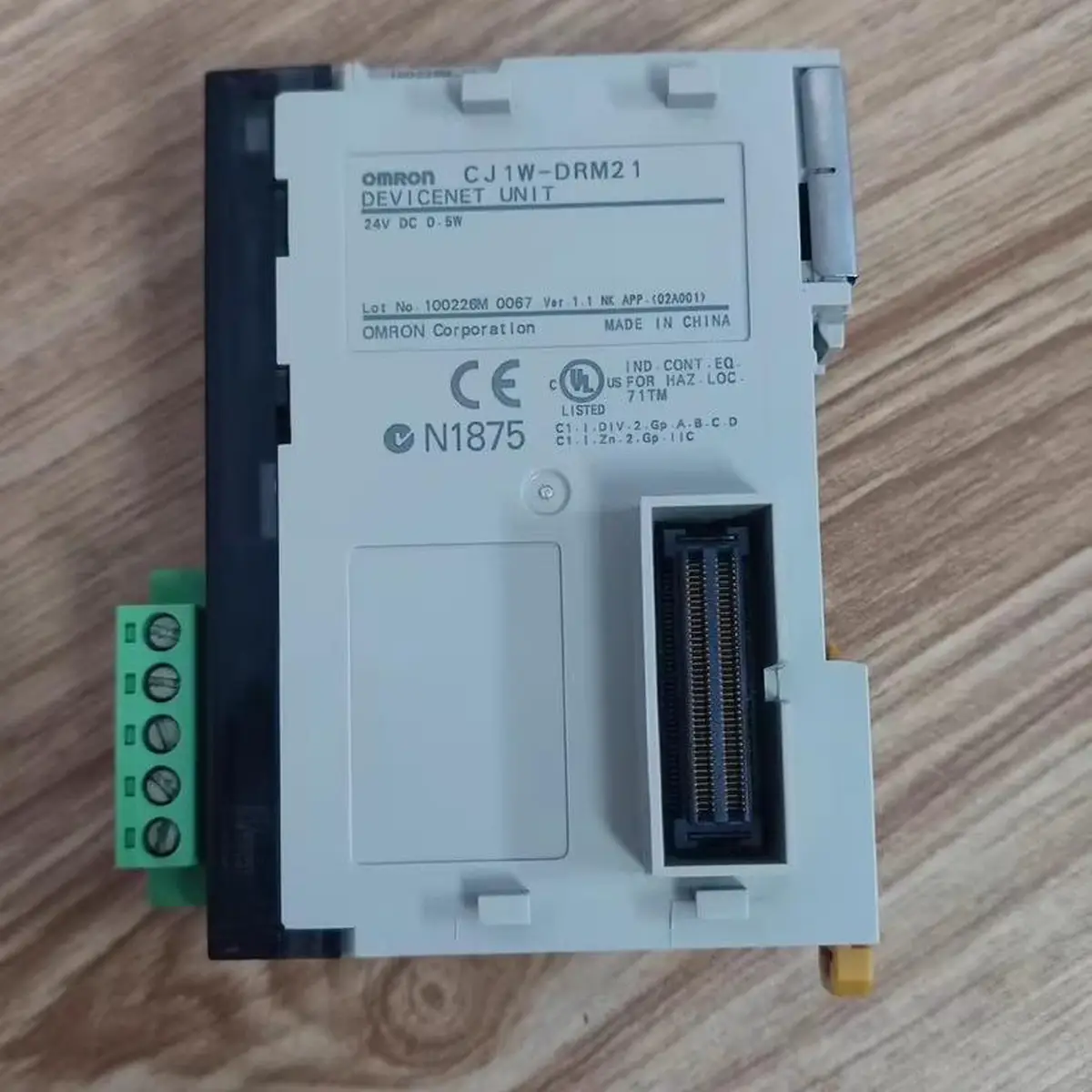

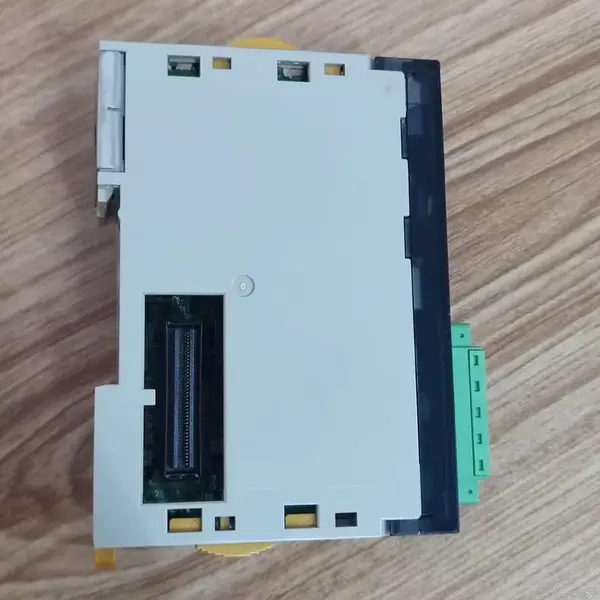

Omron CJ1W-DRM21 — DeviceNet Master/Slave Unit, 63 Nodes
SKU: CJ1W-DRM21USD 125.00
CJ-series DeviceNet CPU Bus Unit that operates as both master and slave simultaneously. 500/250/125 kbps, 63-node capacity, 2,048 fixed / 16,000 user-set I/O points as master, 32/3,200 as slave. EDS-based configuration via DeviceNet Configurator software.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CJ1W-DRM21 is Omron's CJ-series DeviceNet CPU Bus Unit, the standard DeviceNet interface for connecting CJ1M / CJ2M / CJ2H / NJ-series PLCs to a DeviceNet fieldbus network. It can operate as both a DeviceNet master (controlling up to 63 slave devices) and a DeviceNet slave (exposing its own I/O to a higher-level master) simultaneously, which makes it the workhorse for hierarchical networks where a main PLC controls a DeviceNet sub-network of remote I/O blocks (DRT2 / DRT1 / GRT1 series) and AC drives (MX2 / RX-series VFDs), while also being visible to a higher-level controller (e.g., an NJ-series machine controller exposing its machine status to a plant-wide SCADA via DeviceNet).
Why DeviceNet in 2024+ when EtherNet/IP exists
DeviceNet is older (1990s ODVA standard) and slower (500 kbps max) than EtherNet/IP, but it remains dominant in three contexts: (a) Brownfield retrofits — many existing machines have DeviceNet field devices already wired, and replacing them with EtherNet/IP would require re-wiring the entire plant; (b) Cost-sensitive applications — DeviceNet slaves (DRT2-ID16 remote I/O blocks, MX2 VFDs) are typically 20-30% cheaper than EtherNet/IP equivalents, so for low-bandwidth discrete I/O applications where DeviceNet's 500 kbps is sufficient, the cost savings add up; (c) Specific industries — automotive assembly, material handling, and tier-1 OEM machines are heavy DeviceNet users for legacy reasons.
Decoding the CJ1W-DRM21 model within the DeviceNet family
The CJ1W-DRM21 is the CJ-series standard DeviceNet unit. Predecessors and alternatives: C200HW-DRM21-V1 (legacy SYSMAC C200H series, 32 nodes max, less I/O — supersedes for new designs), CS1W-DRM21 (CS-series equivalent, 63 nodes, same I/O capacity — drop-in compatible for CS-series PLCs), CS1W-DRM21-V1 (CS-series with enhanced features), CJ1W-DRM21 (this SKU, CJ-series 63 nodes), CJ1W-DRM21-V1 (later revision with minor firmware enhancements). The DR suffix stands for DeviceNet Remote I/O Master; the M21 indicates the standard master unit. For new CJ-series installations, also consider the CJ1W-EIP21 (EtherNet/IP unit, 32 CIP connections, much higher bandwidth) or the CJ1W-PNT21 (PROFINET master for European installations).
Master + slave simultaneous operation
The CJ1W-DRM21 can be both a master on one DeviceNet network and a slave on another at the same time. Practical example: a main PLC in a plant control room runs a CJ1W-DRM21 as a master for a DeviceNet sub-network of 30 remote I/O blocks (DRT2-ID16S for digital inputs, DRT2-OD16-1 for digital outputs) on a packaging line. The same PLC also reports its status to a higher-level PLC via a second DeviceNet network, where the higher-level PLC's CJ1W-DRM21 acts as master and the main PLC's CJ1W-DRM21 acts as slave. This dual-role capability is unique to the CJ1W-DRM21 and CS1W-DRM21; the older C200HW-DRM21-V1 was master-only.
Key Features
- CJ-series DeviceNet CPU Bus Unit
- Acts as both DeviceNet master AND slave simultaneously
- 63 nodes maximum
- Baud rates: 500 kbps / 250 kbps / 125 kbps
- I/O capacity as master: 2,048 points max
- I/O capacity as master: 16,000 points max
- I/O capacity as slave: 32 points max
- I/O capacity as slave: 3,200 points max
- SKU: CJ1W-DRM21
- Series: CJ1W CPU Bus Units (CJ-series specialty communications)
- Voltage: 11 TO 25 VDC
- I/O: 2 I/O
Best-Fit Applications
- Distributed I/O consolidation on a packaging machine — 30 DRT2-ID16S 16-point digital input blocks and 12 DRT2-OD16-1 16-point digital output.
- Variable-frequency drive network on a conveyor system — 12 Omron 3G3MX2-A4007-V2 VFDs connected via DeviceNet, with the CJ1W-DRM21 as master.
- Sensor / actuator junction boxes on a bottling line — 8 DRT2-MD16S mixed I/O junction boxes distributed along the line.
- Hierarchical control in a plant — bottom-level CJ1W-DRM21 acts as master for local slaves, while also being a slave to.
Buying Checklist
- Pick CJ1W-DRM21 for CJ-series DeviceNet master + slave — supports 63 nodes, 32,000 I/O points, dual-role master/slave
- Pick CS1W-DRM21 for CS-series DeviceNet — same capabilities, drop-in compatible for CS-series PLCs
- Pick CJ1W-EIP21 for EtherNet/IP — for new designs, higher bandwidth, modern alternative with 32 CIP connections
- Pick CJ1W-PNT21 for PROFINET master — for European installations requiring PROFINET-based field devices
- Pick CJ1W-PRM21 for PROFINET I/O controller — for PROFINET-based field devices
- Pick CJ1W-DRM21-V1 for the later firmware revision — minor enhancements over the original DRM21
Technical Specifications
| Model | CJ1W-DRM21 |
|---|---|
| Series | CJ1W CPU Bus Units (CJ-series specialty communications) |
| Type | DeviceNet Master + Slave Unit |
| Communications Protocol | DeviceNet (ODVA standard, CIP-based) |
| Master / Slave Capability | Both simultaneously |
| Baud Rates | 500 kbps / 250 kbps / 125 kbps (selectable via rotary switch) |
| Maximum Slave Nodes | 63 nodes |
| I/O as Master (Fixed Allocation) | 2,048 points max |
| Communications Power Supply Voltage | 11 to 25 VDC (from DeviceNet bus) |
| Current Consumption | Communications: 18 mA max; Internal circuit: 290 mA max |
| Communications Distance (Trunk) | 500 m at 125 kbps, 250 m at 250 kbps, 100 m at 500 kbps |
| Slot Type | CPU Bus Unit (not Basic I/O or Special I/O) |
| Mounting | CJ-series DIN-rail mount, occupies one slot on CJ bus (CPU rack or expansion rack) |
| Dimensions (W × H × D) | 31 × 90 × 78.7 mm |
| Operating Temperature | 0 to +55 °C |
Resources & Downloads
FAQ for CJ1W-DRM21
Can the CJ1W-DRM21 act as both a master and a slave at the same time?
Yes. The CJ1W-DRM21 (and its CS1W-DRM21 predecessor) is unique among Omron DeviceNet units in supporting dual-role master + slave simultaneously. This is configured in the DeviceNet Configurator Ver. 2.1: the master scan list defines which slaves the unit polls on its local DeviceNet network, and the slave's exposed I/O areas define which I/O points the unit exposes to a higher-level master on a separate DeviceNet network.
What's the difference between fixed allocation and user-set allocation on the CJ1W-DRM21?
Fixed allocation is the simpler DeviceNet I/O mapping: each slave's I/O is mapped to a fixed block in the CJ CPU's CIO area (e.g., slave 1 = CIO 2000, slave 2 = CIO 2001, slave 3 = CIO 2002, etc.). The mapping is automatic and predictable — you know exactly where each slave's I/O is in memory. The limitation is that the total I/O is constrained to 2,048 points as master (32 fixed blocks of 64 points each).
How do I configure the CJ1W-DRM21 with the DeviceNet Configurator?
Install the DeviceNet Configurator Ver. 2.1 (or later) on a Windows PC. Connect the PC to the DeviceNet network via a USB-to-DeviceNet interface (e.g., Omron DRT1-COM or 3G3AX-DX-EIP-COM). In the Configurator: (1) Upload the network — the tool scans the DeviceNet bus and discovers all slaves, reading their EDS files for I/O footprint.
What's the maximum number of I/O points and slaves on the CJ1W-DRM21?
The CJ1W-DRM21 supports up to 63 slave nodes per master (the DeviceNet standard maximum), with up to 2,048 I/O points using fixed allocation, or up to 16,000 I/O points using user-set allocation (using DM area words). The total per master is up to 32,000 points (2,000 words). Common slave configurations: DRT2-ID16S (16 digital inputs per slave, 16 IN consumed) → 63 slaves × 16 IN = 1,008 IN per master (well within fixed allocation limit).
Similar Products
Explore related Omron models often viewed alongside this product.
