Omron CJ2H-CPU65-EIP — CJ2H CPU, 50K Steps, EtherNet/IP
SKU: CJ2H-CPU65-EIPUSD 720.00
Omron CJ2H-CPU65-EIP CJ2H CPU with built-in EtherNet/IP, 50K-step program memory, 160K-word data memory. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

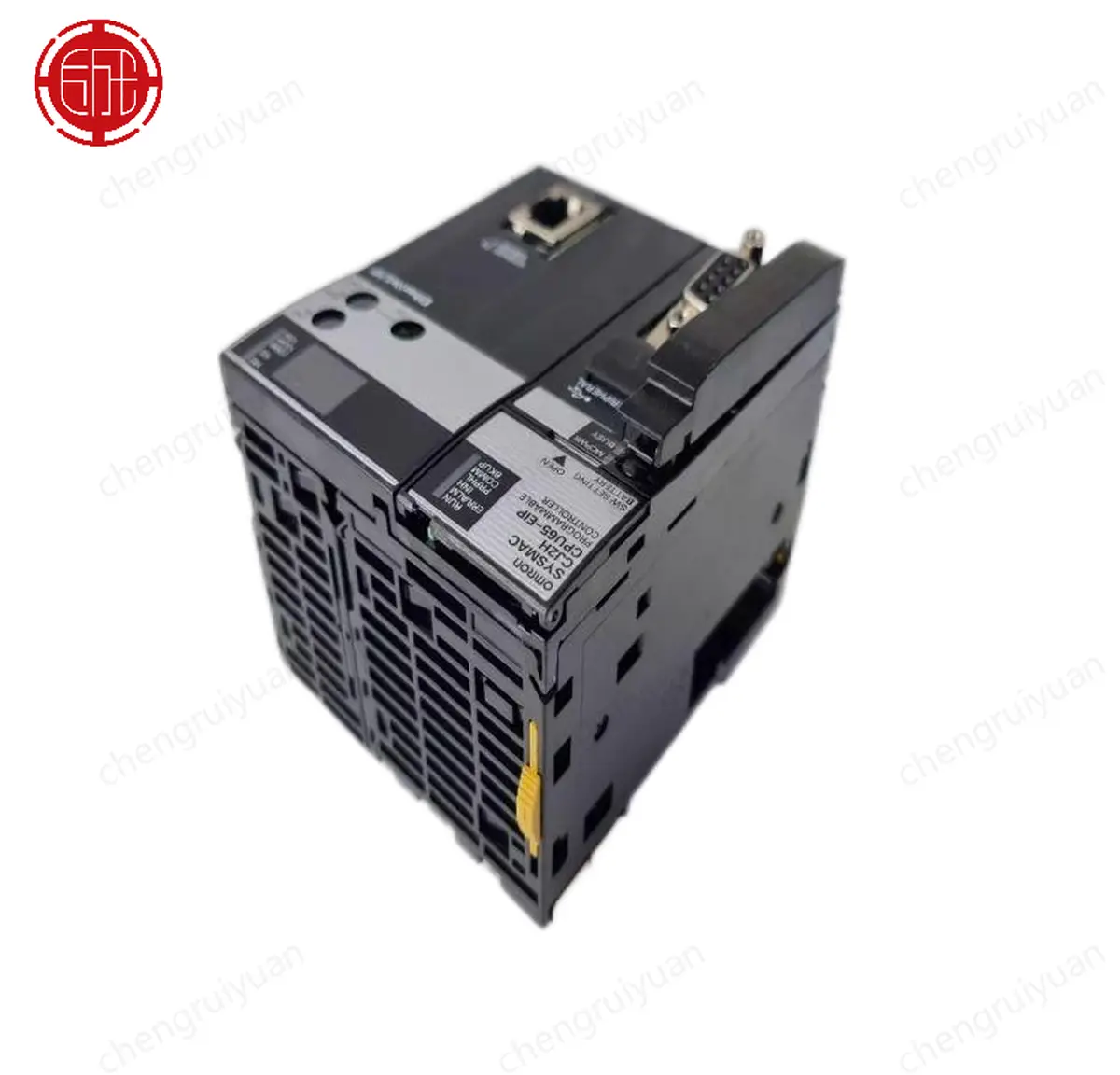

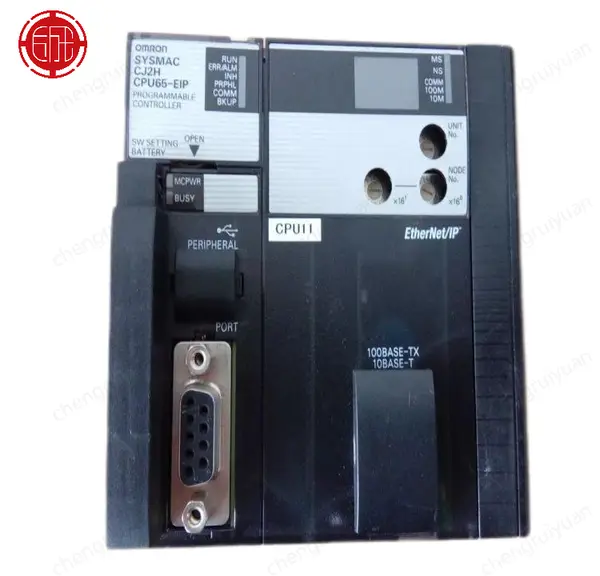

The Omron CJ2H-CPU65-EIP is the CJ2H-series flagship PLC CPU with built-in EtherNet/IP, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It runs ladder and structured-text programs out of 50K steps of user memory with 160K words of data memory. The LD instruction executes in 0.016 microseconds, fast enough for high-speed packaging and motion control. Three on-board ports handle EtherNet/IP, RS-232C serial, and USB programming. Up to 2,560 local I/O points and 40 Units across three Expansion Racks.
For a smaller mid-range CPU with built-in I/O, pick the CJ2M-CPU35. Programming uses CX-One / CX-Programmer. Production of the CJ2H-CPU65-EIP is planned to end on 2027-03-31; the modern Sysmac NJ-series replacement is the NJ501-1300. The 100K-step and 250K-step siblings share the same body and EtherNet/IP port.
Key Features
- CJ2H-series CPU with 50K-step program memory, 160K-word data memory, 0.016 microsecond LD execution time
- Built-in EtherNet/IP, Ethernet TCP/IP, RS-232C serial, and USB programming ports
- Up to 2,560 I/O points across the CPU Rack and three Expansion Racks, up to 40 Units
- Backward-compatible with existing CJ1-series I/O and Expansion Racks for in-place upgrades
- SKU: CJ2H-CPU65-EIP
- Series: CJ2H-series (CJ2 high-performance platform with built-in EtherNet/IP)
- I/O: 2 I/O
Best-Fit Applications
- Line control on a high-speed bottling line where the CJ2H-CPU65-EIP runs 50K steps of motion and recipe code over EtherNet/IP to ten R88D-1SN drives
- Mid-size machine control where the cabinet reuses existing CJ1W-PA power supplies, CJ1W-ID211 inputs, and CJ1W-OC211 outputs from a previous CJ1M install
- Spare replacement on a process skid where the original CJ1M-CPU23 is upgraded for the CJ2H-CPU65-EIP to gain built-in EtherNet/IP for a remote SCADA tie-in
Buying Checklist
- Pick the CJ2H-CPU65-EIP for a CJ2H flagship CPU with built-in EtherNet/IP at the 50K-step program memory size.
- Pick the CJ2H-CPU66-EIP instead when the cabinet needs 100K steps of user memory on the same built-in EtherNet/IP body.
- Pick the CJ2H-CPU68-EIP instead when the program must exceed 100K steps and the application needs the 250K-step EtherNet/IP flagship.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | CJ2H-series (CJ2 high-performance platform with built-in EtherNet/IP) |
| Model / SKU | CJ2H-CPU65-EIP |
| Program Memory | 50K steps user memory, ladder / structured-text / function-block programming in CX-Programmer |
| Data Memory | 160K words total (DM 32K words + EM 32K words x 4 banks) |
| I/O Capacity | 2,560 local I/O bits, 40 Units max per PLC, 3 Expansion Racks max |
| Built-in Ports | EtherNet/IP, Ethernet TCP/IP, RS-232C serial, USB programming port |
| Execution Speed | 0.016 microsecond LD instruction, 0.048 microsecond special instruction, 200 microsecond overhead processing |
| Current Draw | 5 VDC at 0.82 A from the CJ1W-PA / CJ1W-PD PSU on the CPU Rack |
| Battery | CJ1W-BAT01, 5-year life at 25 C ambient |
| Dimensions (W x H x D) | 79.8 × 90 × 74.5 mm on the CPU Rack, 280 g with end cover and battery |
| Approvals / Environment | cULus, NK, LR, EC Directives; 0 to 55 C operating, 10 to 90 percent humidity (no condensation); planned discontinuation 2027-03-31 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CJ2H-CPU65-EIP
What is the Omron CJ2H-CPU65-EIP used for?
It is the CJ2H-series flagship CPU with built-in EtherNet/IP, used in mid-size automation cells that need fast scan times and network connectivity. It runs ladder and structured-text programs out of 50K steps with 160K words of data memory and up to 2,560 I/O points. It is a drop-in upgrade for CJ1M-CPU2x installs that adds EtherNet/IP without an extra CJ1W-ETN21 module.
CJ2H-CPU65-EIP vs CJ2H-CPU66-EIP - what is the difference?
Both share the same CJ2H body, built-in EtherNet/IP, RS-232C, USB, 2,560 I/O, 0.016 microsecond LD execution time, and 0.82 A current draw. The -CPU65-EIP has 50K steps of program memory and 160K words of data memory; the -CPU66-EIP has 100K steps and 160K words. Pick the -65 for cells under 50K steps; pick the -66 when the program needs the extra 50K.
Does the CJ2H-CPU65-EIP need an Expansion Rack?
Not always. The CJ2H-CPU65-EIP supports up to three Expansion Racks and 40 Units total, but most cells fit on the CPU Rack alone. Add a CJ1W-IC101 I/O Control Unit on the CPU Rack and a CJ1W-II101 I/O Interface Unit on each Expansion Rack when the cell exceeds 10 Units on the CPU Rack.
Can the CJ2H-CPU65-EIP be programmed in Sysmac Studio?
No. The CJ2H-series uses CX-One / CX-Programmer for ladder, structured text, and function blocks. Sysmac Studio programs the NJ / NX Sysmac controllers only. For an NJ-series upgrade path that uses Sysmac Studio, pick the NJ301-1200 (4 axes) or NJ501-1300 (16 axes).
Is the CJ2H-CPU65-EIP still in production?
Production of the CJ2H-CPU65-EIP is planned to end on 2027-03-31. Hengyixin stocks the part for the existing install base and can ship the modern NJ5 replacement NJ501-1300 alongside the legacy CPU for phased cabinet upgrades.
