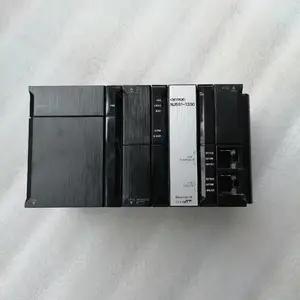

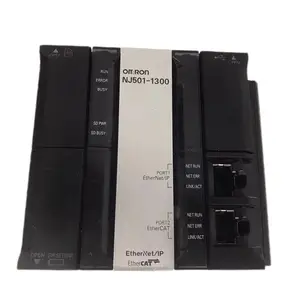

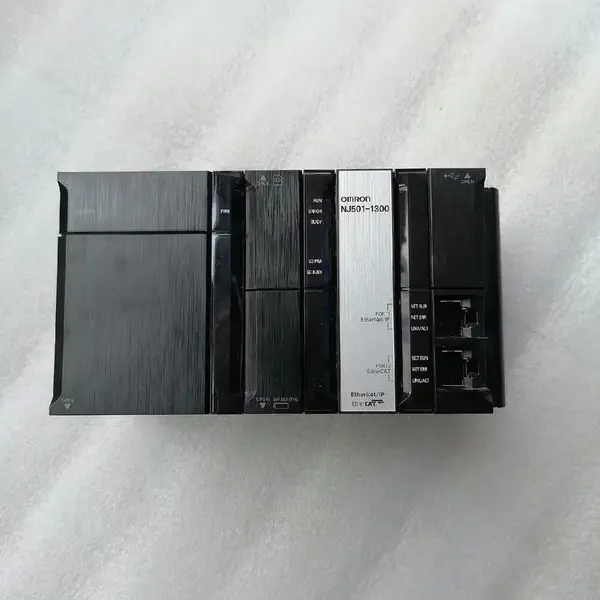

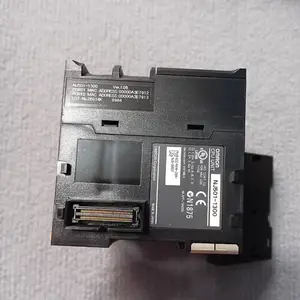

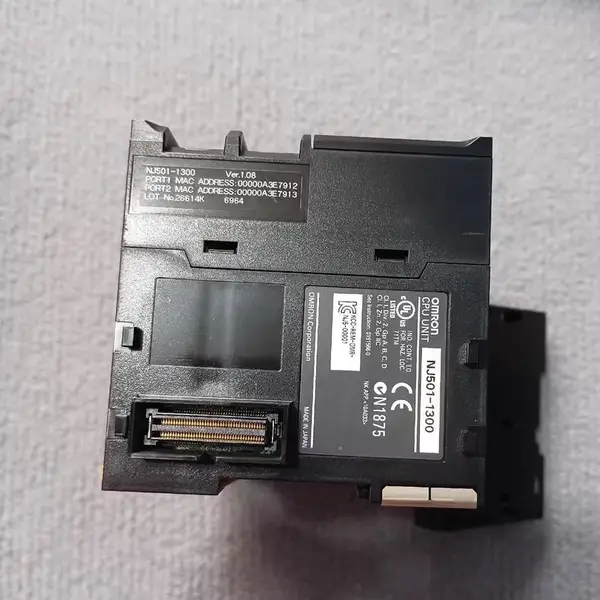

Omron NJ501-1300 — NJ5 CPU, 20 MB, 16 EtherCAT Axes
SKU: NJ501-1300USD 920.00
Omron NJ501-1300 Sysmac NJ5 CPU, 20 MB program memory, 16 EtherCAT axes, EtherNet/IP, 0.5 ms cycle. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NJ501-1300 is a Sysmac NJ5-series machine automation controller CPU, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It runs motion control, sequence control, and an OPC-UA server from a single program. The built-in EtherCAT master handles up to 16 servo axes (192 total EtherCAT nodes). The built-in EtherNet/IP port connects to HMIs and remote I/O. Primary task cycle time is 0.5 ms, with 20 MB of program and 6 MB of variable memory.
Programming is in Sysmac Studio (IEC 61131-3 plus CFC and structured text). The unit is 90 x 96 x 150 mm, 550 g. The NJ501-1500 sibling adds CIP-Safety (SL3); the NJ501-1400 is the 16-axis variant with safety; the NJ301-1200 is a smaller 4-axis NJ3 CPU. The NJ101-1000 is the entry NJ1-series 2-axis controller.
Key Features
- Sysmac NJ5-series machine automation controller, 20 MB program memory, 6 MB variable memory, 0.5 ms primary task cycle
- Built-in EtherCAT master handles up to 16 servo axes (192 total nodes) for Accurax G5 / 1S servo drives
- Built-in EtherNet/IP port, OPC-UA server, USB Type-B slave for Sysmac Studio programming, SD card slot for project transfer
- Up to 40 NX-series I/O units on the local rack, 90 x 96 x 150 mm DIN-rail body, 550 g, CE / cULus / KC listed
- SKU: NJ501-1300
- Series: Omron Sysmac NJ5-series machine automation controller (NJ501 family)
- I/O: 40 I/O
Best-Fit Applications
- Motion controller on a 16-axis carton-packing line running 1S servo drives over EtherCAT and reporting to a NA5 HMI
- Mid-volume machine-build where the NJ5 replaces a CJ2H plus EtherCAT slave module and consolidates into one Sysmac Studio project
- Spare replacement on an automotive assembly cell where the existing NJ501-1300 fails and the project loads directly from SD card
Buying Checklist
- Pick the NJ501-1300 for a Sysmac NJ5 CPU with 20 MB memory, 16 EtherCAT axes, and EtherNet/IP, with no safety.
- Pick the NJ501-1500 instead when the cell needs CIP-Safety (SL3) integrated safety on top of the same 16-axis EtherCAT.
- Pick the NJ301-1200 instead when the application only needs 4 axes of motion and a smaller NJ3 CPU on the same Sysmac Studio platform.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron Sysmac NJ5-series machine automation controller (NJ501 family) |
| Model / SKU | NJ501-1300 |
| Program / Variable Memory | 20 MB program memory, 6 MB variable memory, retentive variables held by built-in battery |
| Primary Task Cycle | 0.5 ms (125 us / 250 us / 500 us / 1 ms / 2 ms / 4 ms / 8 ms selectable) |
| Motion Control | Up to 16 synchronous axes, 16 axes total including virtual axes, max 4 robots via 0 driver model |
| EtherCAT Master | Built-in, up to 192 nodes, DC sync supported for Accurax G5 and 1S servo drives |
| EtherNet/IP | Built-in 10/100 Mbps port for HMI / NS-series / NA-series / remote I/O / message communication |
| OPC-UA / Function Blocks | OPC-UA server built in (DA profile), function block library, structured text / ladder / CFC programming |
| Option Boards | Up to 2 CJ1W-IC101 I/O control units for serial (RS-232C / RS-422 / RS-485), DeviceNet, PROFIBUS, PROFINET, CompoNet, MODBUS |
| Local I/O | Up to 40 NX-series I/O units on the local rack (NX-EC, NX-EIC, NX-ILM, NX-AD, NX-DA, NX-OD, NX-ID series) |
| Dimensions / Environment | 90 (W) x 96 (H) x 150 (D) mm, 550 g, 0 to +55 C operating, IP20, DIN-rail mount, CE / cULus / KC / RCM listed |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NJ501-1300
What is the Omron NJ501-1300 used for?
It is the Sysmac NJ5-series machine automation controller with 20 MB program memory, a built-in EtherCAT master for up to 16 servo axes, a built-in EtherNet/IP port, and an OPC-UA server. It replaces a separate PLC + motion controller + network gateway pair and runs everything from a single Sysmac Studio project.
NJ501-1300 vs NJ501-1500 - what is the difference?
Both are NJ5 CPUs with 20 MB memory, 16 EtherCAT axes, and EtherNet/IP. The 1300 is the basic NJ5; the 1500 adds CIP-Safety (SL3) for integrated safety over the same EtherCAT port. Pick the 1300 for non-safety machines; pick the 1500 when the cabinet needs integrated safety without adding a separate safety controller.
What software does the NJ501-1300 run?
Sysmac Studio version 1.0 or later. The package supports IEC 61131-3 languages (ladder, structured text, function block), CFC, and the Sysmac motion toolkit for configuring 1S / G5 servo drives and Accurax inverters. Project files transfer over USB or SD card.
Can the NJ501-1300 connect to a CJ-series I/O rack?
Yes, with a CJ1W-IC101 I/O control unit on the option-board slot. The IC101 maps a CJ-series expansion rack onto the NJ5's I/O table, so existing CJ1W special I/O modules and CJ1W basic I/O can stay in the cabinet during a migration.
How many EtherCAT nodes can the NJ501-1300 address?
Up to 192 EtherCAT nodes in total, with a firm cap of 16 synchronous servo axes. The remaining 176 are typically distributed NX-IO slaves, I/O terminals, and 1S servo drives running in non-synchronous mode. The number of physical nodes is also limited by the cycle time and the node count of each slave.
