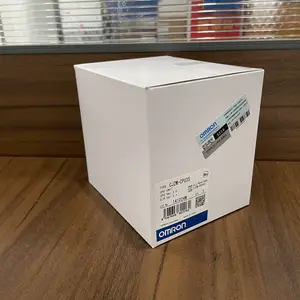

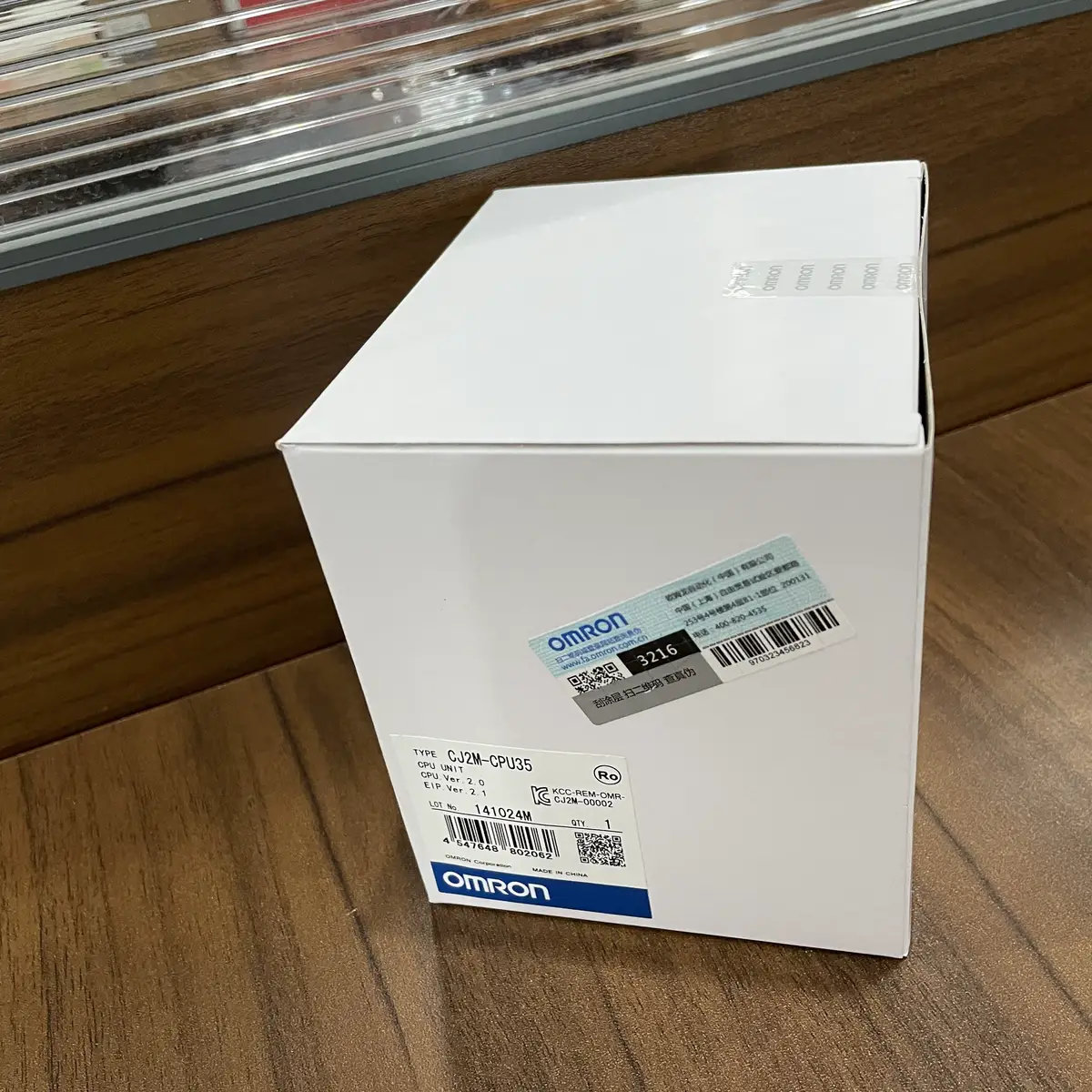

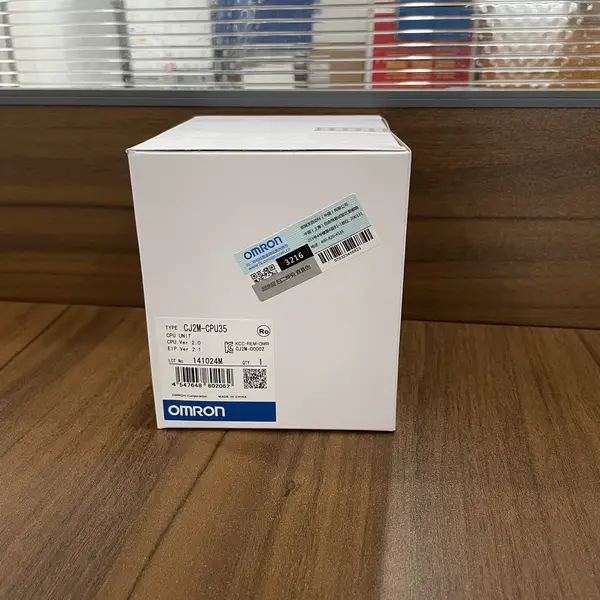

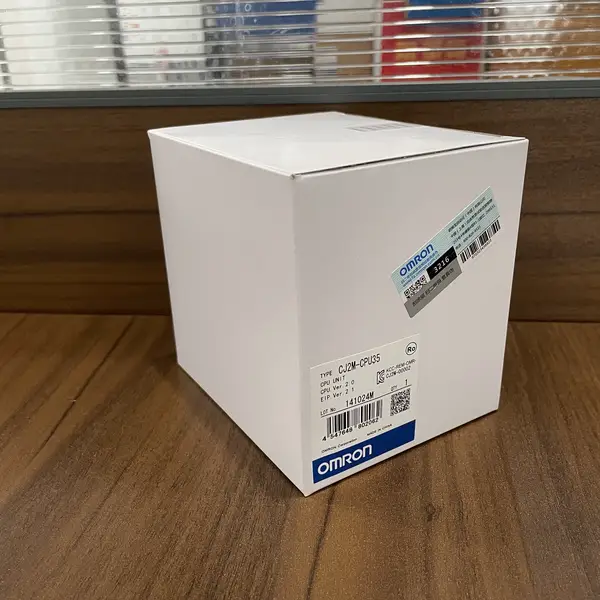

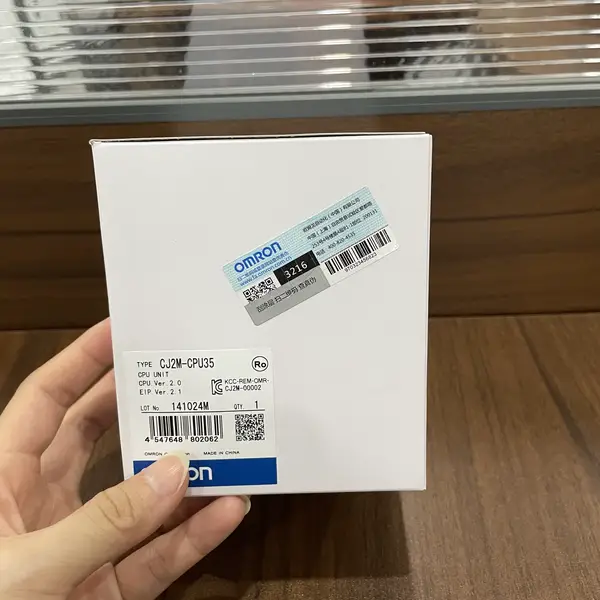

Omron CJ2M-CPU35 — CJ2M CPU, 60K Steps, EtherNet/IP
SKU: CJ2M-CPU35USD 345.00
Omron CJ2M-CPU35 CJ2M CPU with built-in EtherNet/IP, 60K-step program, 160K data memory, option board slot. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ2M-CPU35 is the top unit in the CJ2M CPU3x lineup, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Program capacity is 60K steps plus 20K steps of function-block memory. Data memory is 160K words, split as 32K DM plus 32K words EM across four banks. The CPU addresses up to 2560 local I/O across 40 mountable units and three expansion racks. Basic LD instruction execution is 0.04 microseconds. Built-in ports are EtherNet/IP and USB; the option board slot accepts CP1W-CIF01 (RS-232C) or CP1W-CIF11 / CP1W-CIF12-V1 (RS-422A/485).
Current draw is 5 V at 0.7 A. The unit is 90 x 62 x 84.5 mm and weighs 190 g. Programming runs in CX-Programmer. For the same 60K-step capacity without EtherNet/IP, pick the CJ2M-CPU15. For a smaller program, pick the CJ2M-CPU34 (30K steps) or CJ2M-CPU12 (5K steps). Add the CJ2M-MD211 for high-speed counter and pulse outputs.
Key Features
- CJ2M CPU3x with 60K-step program plus 20K-step function-block memory
- 160K-word data memory (DM 32K + EM 32K x 4 banks), 0.04 us LD instruction execution
- Built-in EtherNet/IP and USB ports; option board slot for CP1W-CIF01 / CIF11 / CIF12-V1
- 2560 I/O points across 40 units and 3 expansion racks, 5 V 0.7 A, 90 x 62 x 84.5 mm, 190 g
- SKU: CJ2M-CPU35
- Series: Omron CJ2M-series CPU Unit (CPU3x line, built-in EtherNet/IP)
- I/O: 2560 points
Best-Fit Applications
- Packaging line where the existing CJ2M-CPU15 has filled its program memory and the cabinet needs EtherNet/IP for the new HMI
- Spare CPU drop-in for a CJ2M rack where the field bus is EtherNet/IP and the existing slot is empty for a CP1W-CIF11 serial option
- Machine cell with a CJ1W-PA202 power supply and a CJ1W-II101 expansion interface on the left side of the rack to reach the third expansion rack
Buying Checklist
- Pick the CJ2M-CPU35 for the largest CJ2M CPU with built-in EtherNet/IP and an option board slot for serial comms.
- Pick the CJ2M-CPU15 instead when the cabinet has no EtherNet/IP and the option board slot is not needed.
- Pick the CJ2M-CPU34 instead when 30K steps of program is enough and the cost difference matters more than the FB memory.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CJ2M-series CPU Unit (CPU3x line, built-in EtherNet/IP) |
| Model / SKU | CJ2M-CPU35 |
| Program Capacity | 60K steps + 20K steps function-block memory |
| Data Memory | 160K words (DM 32K words + EM 32K words x 4 banks) |
| LD Execution Time | 0.04 us (basic instruction) |
| Local I/O / Mountable Units | 2560 points / 40 units / 3 expansion racks |
| Built-in Communication | EtherNet/IP (RJ45) + USB; option board slot for CP1W-CIF01 / CIF11 / CIF12-V1 |
| Current Consumption | 5 VDC, 0.7 A |
| Compatible I/O Family | CJ1W-series Basic I/O, Special I/O, and CPU Bus Units |
| Programming Software | CX-Programmer (CX-One suite) |
| Dimensions / Weight | 90 (H) x 62 (W) x 84.5 (D) mm; 190 g |
FAQ for CJ2M-CPU35
What is the difference between CJ2M-CPU35 and CJ2M-CPU15?
Both have 60K steps of program memory. The CPU35 is on the CPU3x line with built-in EtherNet/IP and an option board slot for CP1W-CIF01 / CIF11 / CIF12-V1. The CPU15 is on the CPU1x line with RS-232C + USB only and no option board slot.
How much current does the CJ2M-CPU35 draw?
0.7 A at 5 VDC from the rack power supply. Add 0.005 A, 0.030 A or 0.075 A when using the CP1W-CIF01, CIF11 or CIF12-V1 option boards respectively.
Can the CJ2M-CPU35 run a CJ1M program from an older rack?
Yes. CX-Programmer imports the CJ1M project and the CJ2M CPU runs it with the same I/O addresses. Variables that referenced legacy registers should be verified against the extended EM banks on the CJ2M.
Which power supply pairs with the CJ2M-CPU35?
A CJ1W-PA202 (100-240 VAC, 14 W) or CJ1W-PD022 (24 VDC, 19.6 W). For 25 W output with a RUN relay, pick the CJ1W-PA205R.
