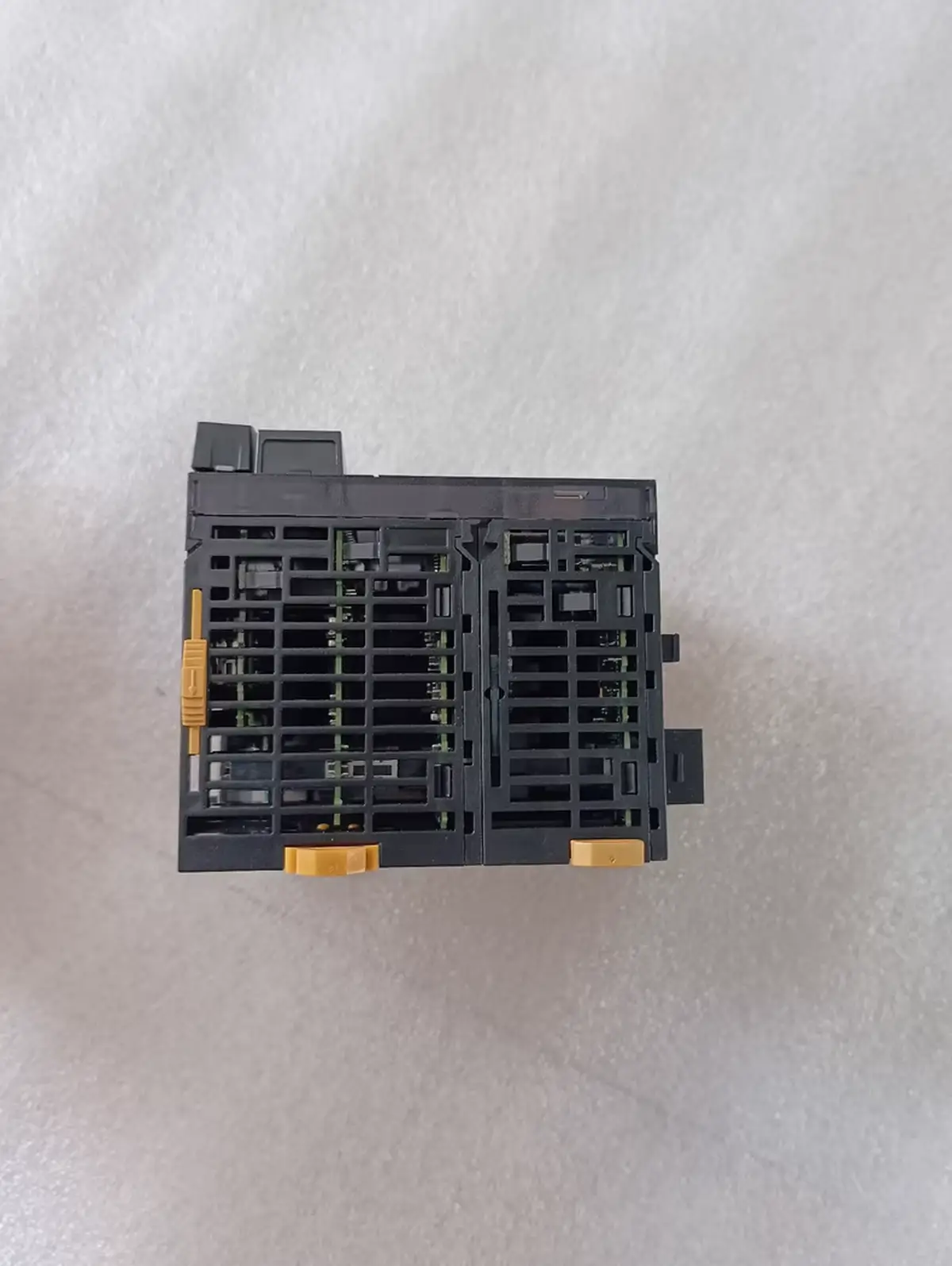

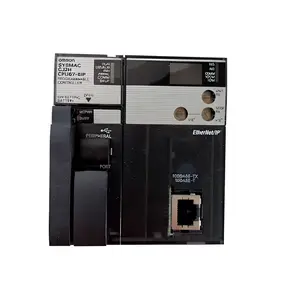

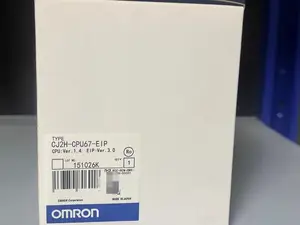

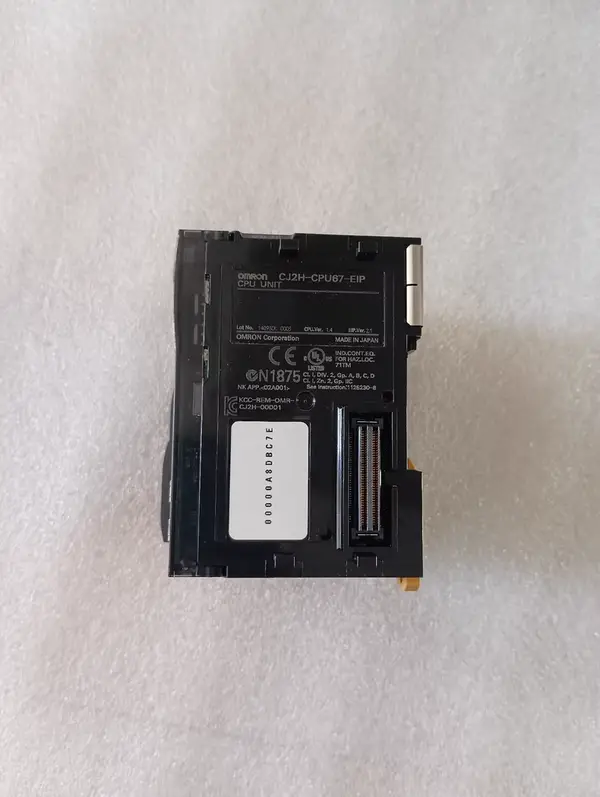

Omron CJ2H-CPU67-EIP — CJ2H CPU, 250K Steps, EtherNet/IP
SKU: CJ2H-CPU67-EIPUSD 1700.00
CJ2H CPU with built-in EtherNet/IP, 250K steps program, 512K words DM. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ2H-CPU67-EIP is a high-end CJ2H CPU with built-in EtherNet/IP It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Program capacity is 250K steps and data memory is 512K words (32K words DM plus 32K words EM across 15 banks). Local I/O tops out at 2560 points across 40 Units and 3 Expansion Racks.
For more program, choose the CJ2H-CPU68-EIP at 400K steps. Key specs: Program Capacity 250K steps; Data Memory 512K words (32K DM + 32K EM x 15 banks); LD Instruction Time 0.016 us; Local I/O Points 2560 points max (40 Units, 3 Expansion Racks); Communication Ports EtherNet/IP, Ethernet TCP/IP, RS-232C, USB; Current Consumption 0.82 A at 5 VDC (from CJ power supply); Battery CJ1W-BAT01, 5-year life at 25 degC; Dimensions 79.8 x 90 x 74.5 mm (H x W x D), 280 g.
Key Features
- CJ2H CPU with built-in EtherNet/IP, 250K steps program, 512K words data
- 0.016 us LD instruction execution, 2560 I/O points, 40 Units / 3 racks
- Built-in EtherNet/IP, Ethernet TCP/IP, RS-232C and USB ports
- 0.82 A at 5 VDC, 79.8 x 90 x 74.5 mm, 280 g, EOL 2027-03-31
- SKU: CJ2H-CPU67-EIP
- Series: CJ2H-series CPU unit with built-in EtherNet/IP
- I/O: 2560 points
Best-Fit Applications
- Cell controller linking two CJ2H expansion racks over EtherNet/IP for a multi-station stamping press line.
- Machine builder shipping a CJ2H skid with built-in Ethernet for remote diagnostics from the OEM service centre.
- Retrofit of an older CJ1M CPU where EtherNet/IP replaces a serial SCADA link to the same NS HMI screen.
Buying Checklist
- Choose the CJ2H-CPU68-EIP instead when the program needs 400K steps or 25 EM banks.
- Choose the CJ2H-CPU66-EIP instead when 150K steps is enough and you want to keep cost down.
- Choose the CJ2H-CPU67-EIP when 250K steps is enough and the cabinet already runs on a CJ1W-PA202 PSU.
Technical Specifications
| Series | CJ2H-series CPU unit with built-in EtherNet/IP |
|---|---|
| Program Capacity | 250K steps |
| Data Memory | 512K words (32K DM + 32K EM x 15 banks) |
| LD Instruction Time | 0.016 us |
| Local I/O Points | 2560 points max (40 Units, 3 Expansion Racks) |
| Communication Ports | EtherNet/IP, Ethernet TCP/IP, RS-232C, USB |
| Current Consumption | 0.82 A at 5 VDC (from CJ power supply) |
| Battery | CJ1W-BAT01, 5-year life at 25 degC |
| Dimensions | 79.8 x 90 x 74.5 mm (H x W x D), 280 g |
| Operating Temperature | 0 to 55 degC, 10 to 90 percent RH (non-condensing) |
| Approvals | cULus, NK, LR, EC Directives |
| End of Production | 2027-03-31 (planned) |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CJ2H-CPU67-EIP
Is the CJ2H-CPU67-EIP still in production?
End of production is planned for 2027-03-31 per the official Omron product page. Service and spare parts will remain available after that date for several years. If you need a longer lifecycle, the modern replacement is the NJ or NX-series Sysmac platform with EtherCAT motion built in.
What software programs the CJ2H-CPU67-EIP?
CX-Programmer as part of the CX-One suite handles ladder and structured text editing. CX-Configurator sets up the EtherNet/IP port and tag data links. Both tools run on Windows 10 or 11 and connect over USB or Ethernet to upload and monitor the program.
Does the CJ2H-CPU67-EIP need a battery?
Yes - the CJ1W-BAT01 lithium battery backs up the DM, EM, HR and counter areas when power is off. Battery life is 5 years at 25 degC ambient. Always replace the battery while the CPU is powered so program and data memory are not cleared during the swap.
What power supply pairs with the CJ2H-CPU67-EIP?
Any CJ-series PSU works. The CJ1W-PA202 (100-240 VAC, 14 W output) is the standard pick. For higher output or a 24 VDC supply, use CJ1W-PD022 (19.6 W) or CJ1W-PD025 (25 W). The CPU draws 0.82 A at 5 VDC.
How is the CJ2H-CPU67-EIP different from the NJ501-1300?
The CJ2H-CPU67-EIP is a classic CJ2 ladder CPU with EtherNet/IP added. The NJ501-1300 is a Sysmac controller with structured text, motion axes, OPC-UA and EtherCAT built in. Pick the CJ2H for legacy CJ cabinets; pick the NJ for new Sysmac builds.
