Omron CK3M-CPU121 — CK3M CPU, 8 EtherCAT Axes

SKU: CK3M-CPU121

USD 1743.00

Omron CK3M-CPU121 programmable multi-axis motion controller, 1 GB RAM, 8 EtherCAT axes, expandable to 16. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

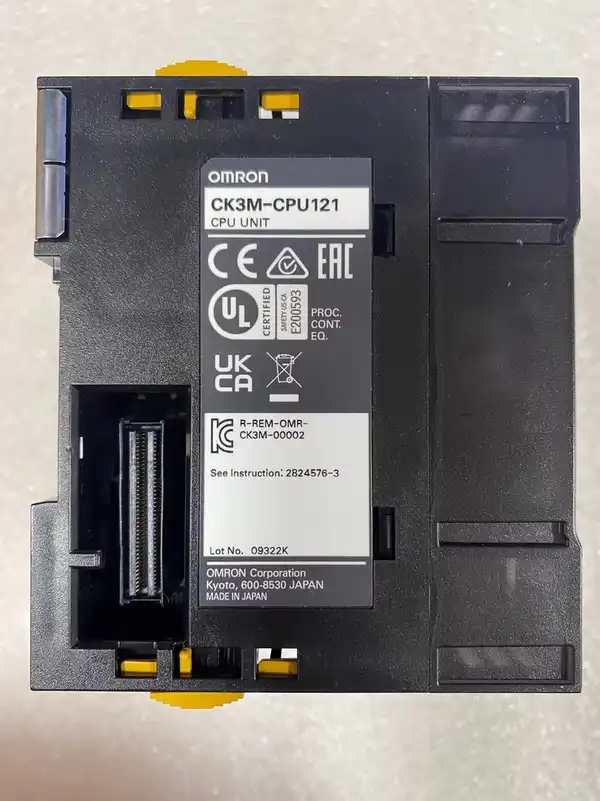

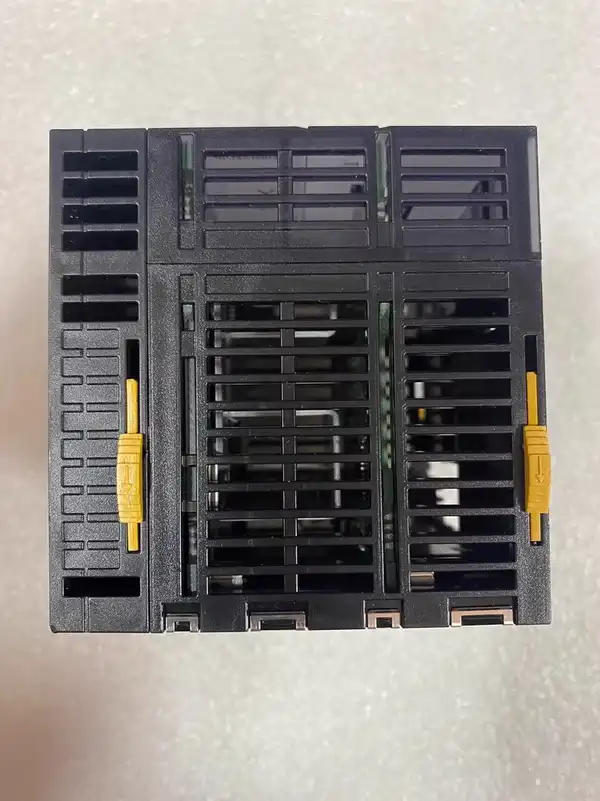

The Omron CK3M-CPU121 is a CK3M-series programmable multi-axis motion controller CPU, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

It runs up to 8 EtherCAT synchronous servo axes from a dual-core 1 GHz CPU with 1 GB RAM and 1 GB flash (2 GB on firmware rev 2.8 and later). Adding up to 4 CK3W-AX axis interface units expands local axis control to 16 axes. The built-in EtherCAT port runs at 250 us min communications cycle with DC sync for Accurax G5 and 1S servo drives.

Programming is in Sysmac Studio (G-code, ANSI C, and PMAC Script languages). Optional Power PMAC-NC SDK targets CNC machines with HMI customisation. The CPU draws 24 VDC at 20.4 to 26.4 V from a CK3W-PD048 power supply. The 4-axis sibling is the CK3M-CPU111; the no-EtherCAT sibling is the CK3M-CPU101; the 16-axis CK5M upgrade is the CK5M-CPU131 with 1.6 GHz quad-core CPU.

Key Features

  • CK3M-series programmable multi-axis motion controller CPU, dual-core 1 GHz, 1 GB RAM, 1 GB / 2 GB flash
  • Built-in EtherCAT master with DC sync for 8 synchronous servo axes, 250 us minimum communications cycle
  • Up to 16 local axes via 4 CK3W-AX axis interface units (DirectPWM / analog output / stepper pulse)
  • Open protocols MQTT publisher / subscriber, OPC-UA server, EtherNet/IP adapter, Modbus TCP client / server
  • SKU: CK3M-CPU121
  • Series: Omron CK3M-series programmable multi-axis motion controller
  • Voltage: 24 VDC
  • I/O: 2 I/O

Best-Fit Applications

  • Precision laser-cutting controller on a sheet-metal cell where the CK3M-CPU121 runs 8 EtherCAT servo axes and one CK3W-AX1515N 4-axis analog interface for the galvo scanner
  • CNC retrofit on a small machining centre where the CK3M-CPU121 replaces a legacy controller and Power PMAC-NC SDK runs the G-code interpreter over 8 axes
  • Spare replacement on a packaging line where the previous CK3M-CPU111 (4 axes) is swapped for the CK3M-CPU121 to add 4 more axes for one infeed

Buying Checklist

  • Pick the CK3M-CPU121 for an 8-EtherCAT-axis CK3M motion controller with a CK3W-AX expansion path to 16 axes.
  • Pick the CK3M-CPU111 instead when the cell only needs 4 EtherCAT axes on the same dual-core 1 GHz CK3M platform.
  • Pick the CK3M-CPU101 instead when the cabinet drives local axes only via CK3W-AX units and does not need an EtherCAT master.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CK3M-series programmable multi-axis motion controller
Model / SKU CK3M-CPU121
CPU / Memory Dual-core 1 GHz, 1 GB RAM, 1 GB built-in flash (firmware rev 2.8 and later: 2 GB flash)
EtherCAT 1 EtherCAT port (RJ45, 100BASE-TX), DC sync, 250 us minimum cycle, max 32 slaves, node addresses 1 to 32
Maximum Axes 8 EtherCAT synchronous axes, expandable to 16 axes total via up to 4 CK3W-AX axis interface units (4 axes each)
Axis Interface Units CK3W-AX1313N / P (DirectPWM), CK3W-AX1414N / P (filtered PWM), CK3W-AX1515N / P (true DAC), CK3W-AX2323N / P (sinusoidal)
Ethernet 1 EtherNet/IP port (10/100 Mbps, RJ45), EtherNet/IP tag data links 32 connections, RPI 1 to 1000 ms, 3200 pps per Unit
USB / I/O USB 2.0 host Type A for external memory, optional CK3W-MD7110 (16-in / 16-out NPN) or CK3W-MD7120 (PNP) digital I/O
Programming Sysmac Studio (free download, G-code / ANSI C / PMAC Script), optional Power PMAC-NC SDK for CNC HMI customisation
Power Supply 24 VDC at 20.4 to 26.4 V from a CK3W-PD048 PSU (5 VDC / 24 VDC, 5 V 23 W, 24 V 55 W)
Environment / Weight 0 to 55 C operating, 10 to 95 percent humidity (no icing / condensation), 90 (H) x 63.2 (W) x 80 (D) mm, 230 g, DIN-rail mount, cULus / EN 61326 / RCM / KC listed

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for CK3M-CPU121

What is the Omron CK3M-CPU121 used for?
It is the CK3M-series programmable multi-axis motion controller CPU with a dual-core 1 GHz processor, 1 GB RAM, 1 GB flash, and a built-in EtherCAT master for 8 synchronous servo axes. Typical uses are precision laser cutting, CNC retrofits, semiconductor motion platforms, and high-axis-count packaging machines. Programming is in Sysmac Studio using G-code, ANSI C, or PMAC Script languages.
CK3M-CPU121 vs CK3M-CPU111 - what is the difference?
Both share the same dual-core 1 GHz CPU, 1 GB RAM, EtherNet/IP port, USB port, and Sysmac Studio support. The -121 is the 8-EtherCAT-axis variant; the -111 is the 4-EtherCAT-axis variant. Pick the -121 for 5 to 8 EtherCAT axes on a typical machine; pick the -111 when 4 axes are enough on the same CK3M body.
What software does the CK3M-CPU121 run?
Sysmac Studio (free download from OMRON) with G-code, ANSI C, and PMAC Script languages. The IDE handles configuration, programming, and debugging. For CNC machines with custom HMI, the optional Power PMAC-NC SDK and Power PMAC-NC Runtime add G-code interpreter and HMI extension support. Project transfer is via USB memory or Ethernet.
Can the CK3M-CPU121 drive local servo axes without EtherCAT?
Yes. The CK3M-CPU121 accepts up to 4 CK3W-AX axis interface units, each of which adds 4 local axes controlled by analog output (CK3W-AX1414 / 1515), DirectPWM (CK3W-AX1313), or stepper pulse output. The total axis limit is 16 local + 8 EtherCAT, with up to 24 synchronous axes. Each CK3W-AX unit is powered from the CK3W-PD048 PSU and connects to the CPU via the side expansion connector.
