Omron CK3W-PD048 — CK3W PSU, 24 V In, 5 V / 24 V Out
SKU: CK3W-PD048USD 116.00
Omron CK3W-PD048 CK3W power supply for CK3M controllers, 24 VDC in, 5 V 23 W + 24 V 55 W out, 45 mm wide. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

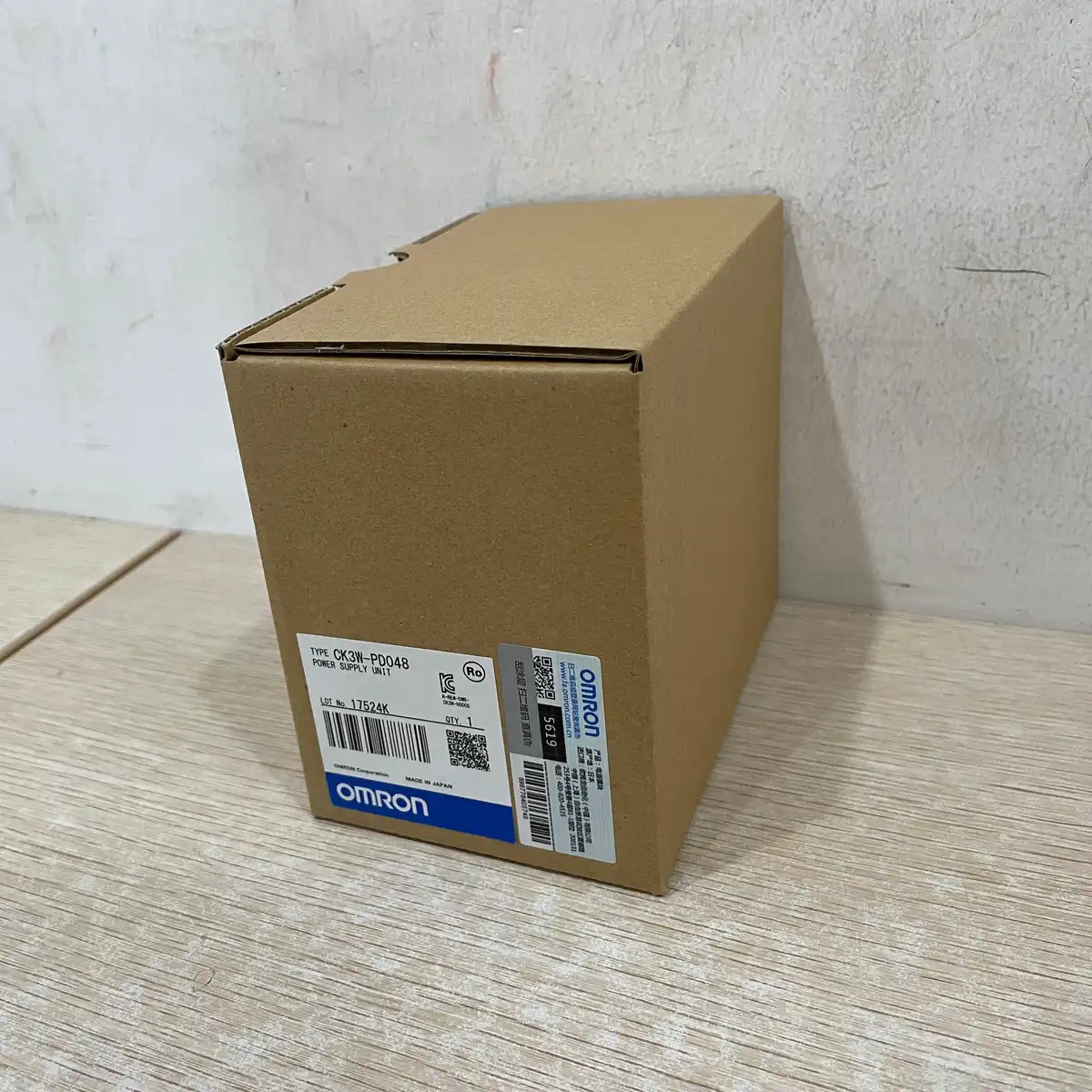

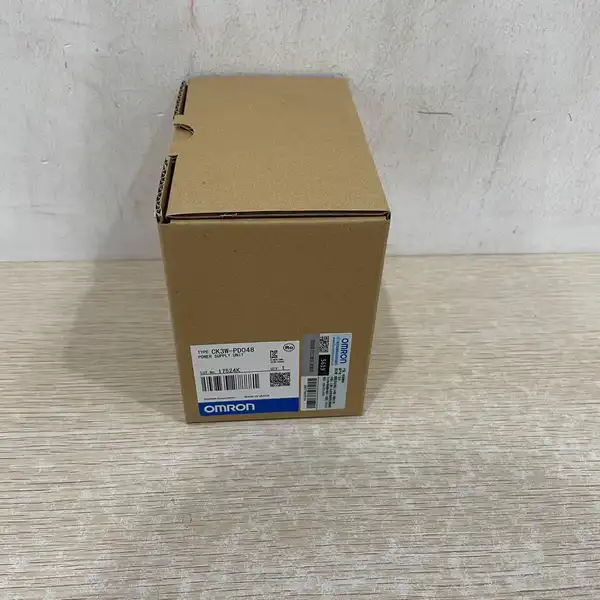

The Omron CK3W-PD048 is a dedicated 24 VDC power supply for the CK3M and CK5M multi-axis motion controllers, manufactured by Omron Corporation. Hengyixin Automation stocks this power supply in Xiamen and ships within 3-5 business days in original Omron packaging.
The unit takes 24 VDC input (20.4 to 26.4 VDC allowable) and delivers two outputs: 5 VDC at 23 W and 24 VDC at 55 W. Maximum input consumption is 101.7 W. The output is not isolated from the input. Wiring uses screwless ferrules (Phoenix AI or Weidmuller H series, 0.2 to 2.5 mm stranded or 0.2 to 4 mm solid).

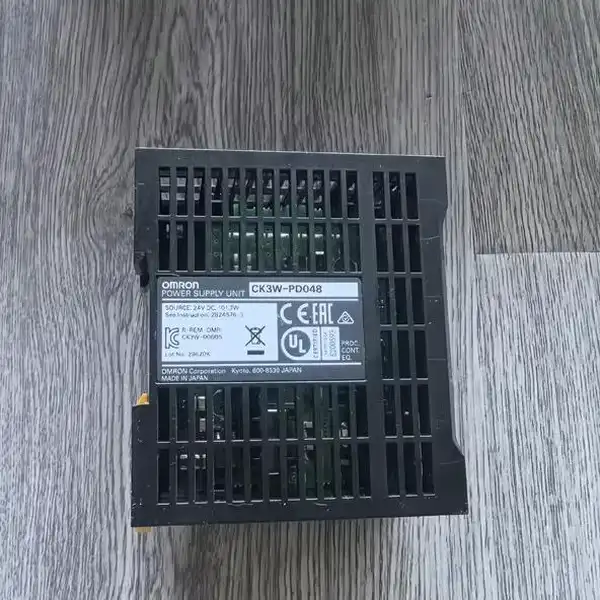

The 90 x 80 x 45 mm body fits the CK3M CPU rack footprint and weighs 130 g. Operating range is 0 to 55 degC and storage is -25 to +70 degC. Standards include cULus, EN 61326, RCM, KC and EAC. The PSU pairs with the CK3M-CPU101, CK3M-CPU111 and CK3M-CPU121 controllers. For the AX / EX expansion units, the same PD048 sits on the rack.
Key Features
- CK3W PSU for CK3M / CK5M controllers, 24 VDC in, 5 V 23 W + 24 V 55 W out
- Screwless ferrule wiring, 0.2 to 2.5 mm stranded or 0.2 to 4 mm solid
- Non-isolated, 90 x 80 x 45 mm, 130 g, 0 to 55 degC

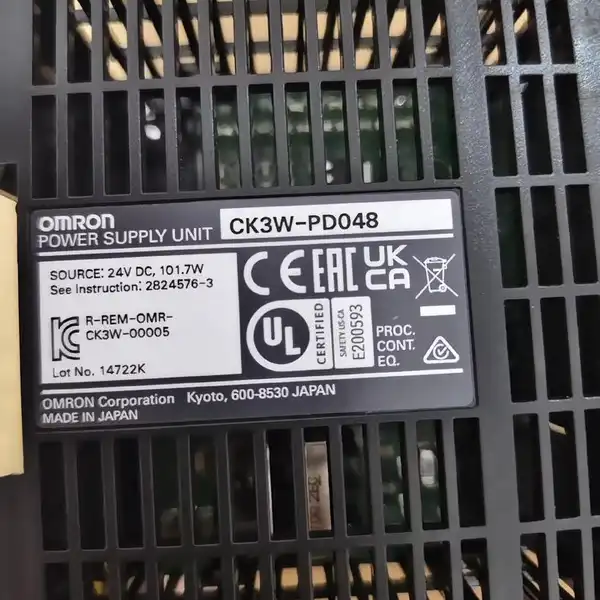

- Standards cULus, EN 61326, RCM, KC, EAC, dielectric 510 VAC
- SKU: CK3W-PD048
- Series: Omron CK3W-series power supply unit
- Voltage: 24 VDC
Best-Fit Applications
- Powering a CK3M-CPU111 5-axis motion controller in a CNC mill where the 5 V rail feeds the CPU logic
- Retrofit panel where the original CK3W PSU failed and the new CK3W-PD048 drops onto the same 45 mm slot with no rewiring
- Spare drop-in for a CK5M-CPU141 32-axis EtherCAT controller where the 24 VDC supply powers the CPU and the AX rack
Buying Checklist
- Pick the CK3W-PD048 for the dedicated 24 VDC PSU of a CK3M or CK5M multi-axis motion controller rack.
- Pick the CK3W-EXM01 instead when the rack needs an End Cover module after the PSU on the right-hand side.
- Pick the CK3W-AX1515N instead when the next slot needs a 2-axis analog / pulse interface unit on the same CK3W bus.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CK3W-series power supply unit |
| Model / SKU | CK3W-PD048 |
| Input Voltage | 24 VDC (20.4 to 26.4 VDC allowable) |
| Output Voltage | 5 VDC + 24 VDC |
| Maximum Output Power | 5 VDC 23 W + 24 VDC 55 W |
| Maximum Input Consumption | 101.7 W |
| Isolation | Not isolated between input and output |
| Wiring | Screwless ferrule (Phoenix AI / Weidmuller H series) |
| Compatible CPUs | CK3M-CPU101, CK3M-CPU111, CK3M-CPU121, CK5M-CPU141 |
| Operating Temperature | 0 to 55 degC, -25 to 70 degC storage |
| Dimensions / Weight | 90 (H) x 80 (D) x 45 (W) mm; 130 g |
FAQ for CK3W-PD048
Which CK3M CPUs work with the CK3W-PD048?
All CK3M CPUs (CPU101, CPU111, CPU121) and the CK5M-CPU141. The PSU sits on the left side of the CPU and powers the rack.
Is the CK3W-PD048 isolated?
No. The 5 V and 24 V outputs are not isolated from the 24 V input. If isolation is needed, add a DC-DC isolator on the input side.
What ferrule fits the CK3W-PD048?
Phoenix Contact AI0,25-8 to AI1,5-8 or Weidmuller H0,25/12 to H1,5/14. Conductor cross-section 0.2 to 2.5 mm stranded, 0.2 to 4 mm solid. Stripping length 8 mm.
