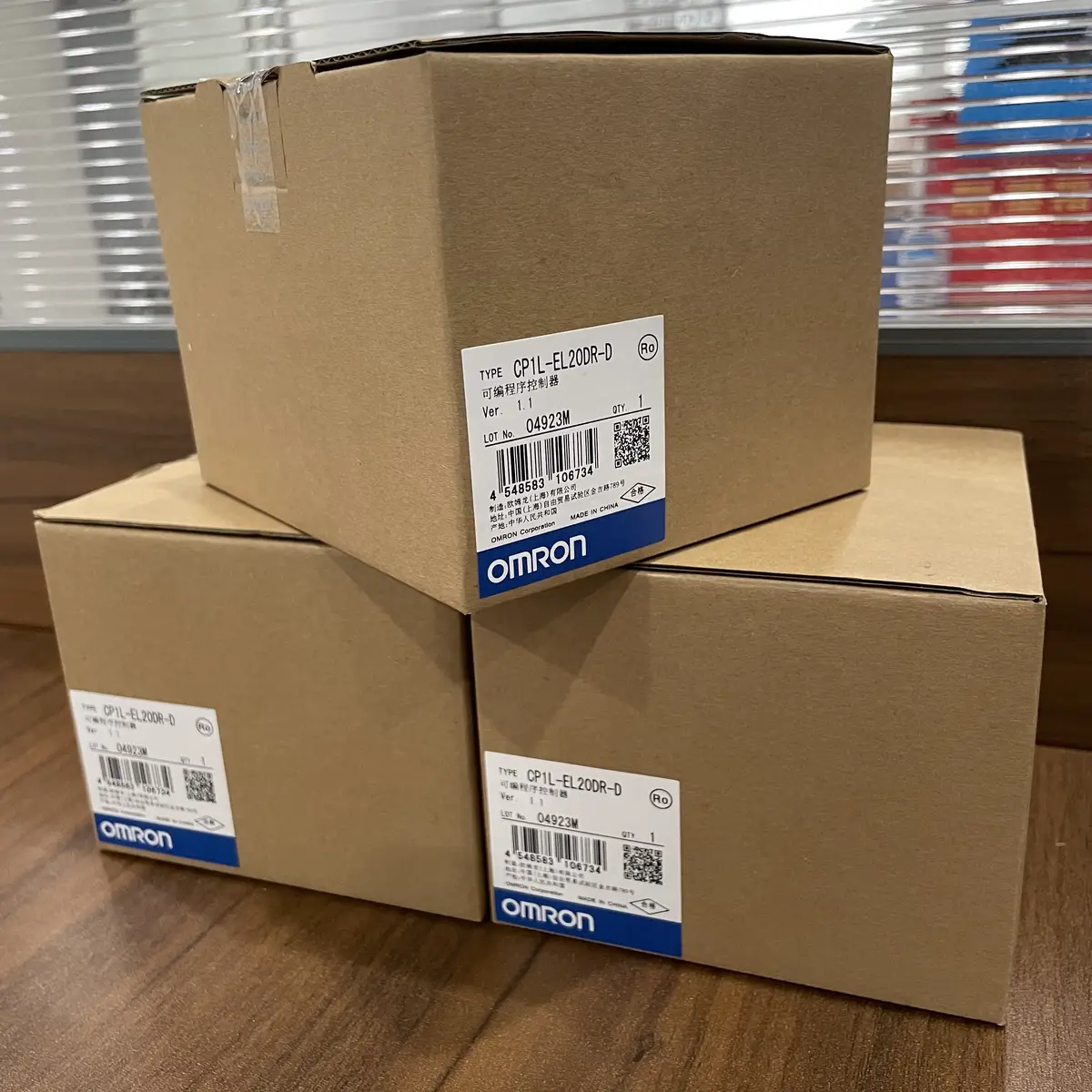

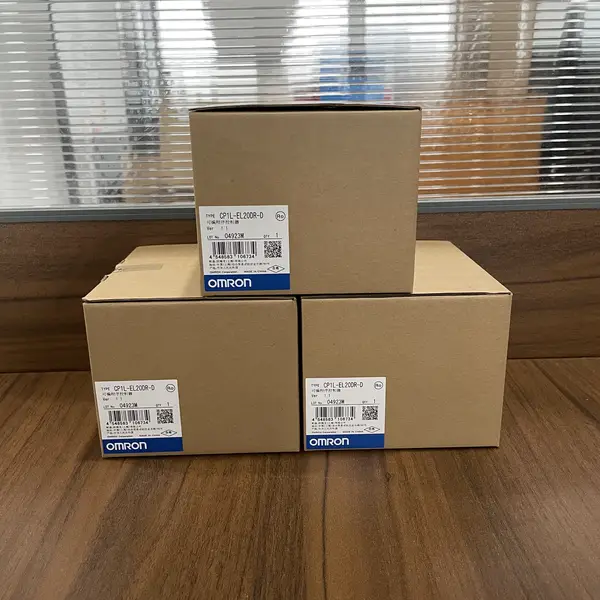

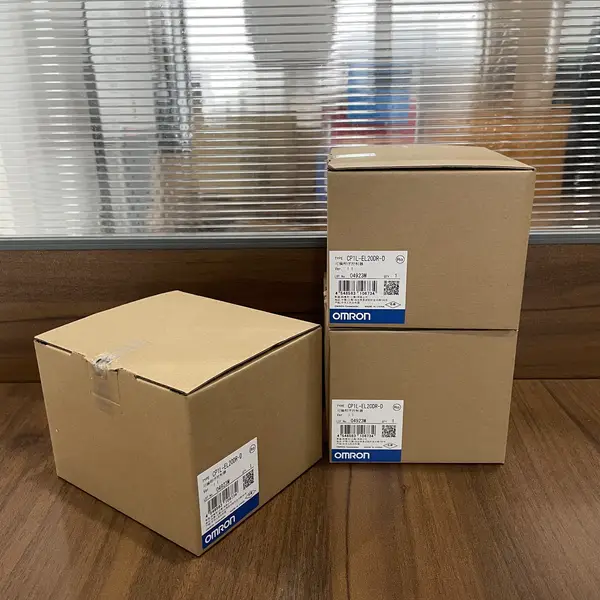

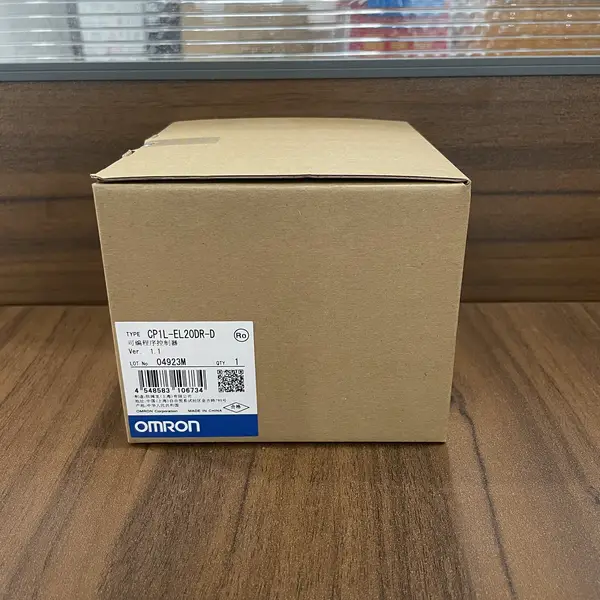

Omron CP1L-EL20DR-D — 20-Point PLC, Ethernet, Relay, 24 VDC
SKU: CP1L-EL20DR-DUSD 185.00
CP1L-EL compact PLC, 12 DC inputs / 8 relay outputs, 24 VDC supply, built-in Ethernet, DIN-rail mount, CX-Programmer.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1L-EL20DR-D is a 20-point compact PLC from the CP1L-EL family — 12 DC inputs, 8 relay outputs, 24 VDC supply, and a built-in Ethernet port on the underside for HMI / SCADA / PLC-to-PLC networking without an extra comms module. It sits in Omron's CP1 line between the entry-level CP1E (no Ethernet, fewer instructions) and the modular CP1H — small enough to fit in a tight cabinet, capable enough to run a small packaging or transfer machine on its own.
The "EL" suffix means Ethernet + relay outputs are both standard — the EM suffix is the same body with transistor (sourcing) outputs for high-speed pulse positioning. The "D" at the end of the part number means 24 VDC supply; the equivalent "A" version (CP1L-EL20DR-A) runs from 100–240 VAC and is the pick for retrofitting AC-supplied cabinets.
Where the CP1L-EL20DR-D fits
This CPU is sized for small standalone machines: a packaging-line infeed, a slide-gate operator, a tunnel-oven indexer, a small dosing skid, a conveyor junction, or a building-services utility panel. Relay outputs let it switch solenoid valves, motor contactors, pilot lamps, and small heating elements directly without an interposing relay — useful when the load mix is mixed AC/DC. The built-in Ethernet avoids a CP1W-CIF41 module just to talk to an NS / NB HMI.
Choosing this variant over its siblings
The CP1L-EL20DR-D holds 5K steps of program and 32K words of data memory, four 100 kHz single-phase high-speed counter inputs, and one 100 kHz pulse output for simple positioning. If the application does not need Ethernet, save cost with the CP1L-L20DR-D (USB only). If transistor sinking outputs are acceptable — for instance to switch a DC load directly — use CP1L-EL20DT-D. If the cabinet is fed with AC mains, use CP1L-EL20DR-A. For a 40-point head with more built-in I/O and capacity for three expansion modules, step up to a CP1L-EM40DR-D.
Before ordering
Confirm the panel really has 24 VDC available — the "D" suffix is DC-only. Plan for one CP1W expansion slot if anything more than the 12 inputs / 8 outputs is needed. Programming is via CX-Programmer (part of CX-One), and the option-board slot on top accepts RS-232C or RS-485 / 422 serial boards for legacy devices. The relay contacts are rated 2 A per point (8 A per common) — larger motor contactor coils should still get an interposing relay.
Key Features
- CP1L-EL family, 20 I/O compact PLC
- 12 DC24V inputs / 8 relay outputs (2 A per point, 8 A common)
- 24 VDC supply ("D" suffix)
- Built-in 100 Mbps Ethernet port — FINS/UDP, FINS/TCP, socket service
- 5K-step program capacity, 32K-word data memory
- 4 × 100 kHz high-speed counters, 1 × 100 kHz pulse output
- Up to 1 CP1W expansion module
- Peripheral USB programming port
- DIN-rail or panel mount
- SKU: CP1L-EL20DR-D
- Series: CP1L-EL20DR-D
- Voltage: 24 VDC
- I/O: 20 I/O
Best-Fit Applications
- Standalone small packaging, sorting, or assembly-machine controller with HMI over Ethernet
- Material-handling conveyor junction logic with mixed AC and DC loads
- Building-services or utility-skid controller (water, HVAC, dosing) with remote status
- Retrofit for an older CPM2A / C20 in a small panel where Ethernet is now required
- OEM machine base controller distributed across a production line
Buying Checklist
- Confirm the cabinet supplies 24 VDC, not 100–240 VAC — for AC mains supply pick the CP1L-EL20DR-A instead.
- Pick the EL (Ethernet, relay) when you need both networking and direct AC/DC load switching; switch to EM (Ethernet, transistor) for high-speed pulse positioning, or L (USB, relay) if Ethernet is not needed.
- Plan for one CP1W expansion slot if the application may grow — the EL20 head accepts one CP1W module for up to 60 extra I/O points.
- Install CX-Programmer (CX-One) before wiring — the option-board slot accepts RS-232C, RS-485, or RS-422 boards for legacy devices.
- Verify the relay load ratings — 2 A per point and 8 A per common are the figures to check against motor contactor coils and solenoid valves.
Technical Specifications
| Model | CP1L-EL20DR-D (CP1L-EL, Ethernet + Relay) |
|---|---|
| Total I/O | 20 points (12 DC inputs / 8 relay outputs) |
| Output | Relay, 2 A per point, 8 A per common |
| Power Supply | 24 VDC |
| Program Capacity | 5K steps |
| Data Memory | 32K words |
| Built-in Ethernet | 100 Mbps (FINS/UDP, FINS/TCP, socket service) |
| High-Speed Counters | 4 × 100 kHz single-phase |
| Pulse Output | 1 × 100 kHz |
| Expansion | Up to 1 CP1W module (≤60 extra I/O points) |
| Programming | CX-Programmer (CX-One) |
| Operating Temperature | 0 to +55 °C |
Resources & Downloads
FAQ for CP1L-EL20DR-D
What is the difference between CP1L-EL20DR-D and CP1L-L20DR-D?
The EL version has a built-in 100 Mbps Ethernet port for HMI, SCADA, and PLC-to-PLC networking — the L version has only a peripheral USB programming port. Use the EL when you want the HMI to talk to the PLC over the LAN; use the L and save the cost when nothing on the machine needs Ethernet.
Can the CP1L-EL20DR-D drive a VFD or servo drive?
Yes, in two ways. For Modbus RTU over serial, fit a CP1W-CIF11 or CP1W-CIF12 option board and run Modbus to a 3G3MX2 / 3G3JE inverter. For step/direction drives, use the built-in 100 kHz pulse output on transistor siblings (CP1L-EL20DT-D / -EM). The DR (relay) version is the better fit for VFDs that only need start/stop and frequency-command contacts.
What software programs the CP1L-EL20DR-D?
CX-Programmer, included in the CX-One suite. Programming can be done over the USB peripheral port, over Ethernet from a laptop on the same LAN, or via an NS / NB HMI with the Sysmac Studio / CX-Designer tools. Retain a copy of CX-Programmer 9.x if your project is stable — latest CX-One may not include legacy CP1 support.
Can I expand the CP1L-EL20DR-D beyond 20 I/O?
Yes — one CP1W expansion module can be fitted to the right of the CPU (CP1W-8ED, 20EDR, 20EDT, 40EDR, AD041, DA021, TS, etc.). Total addresses cap out at 60 extra I/O points. For more I/O, step up to a CP1L-EM40DR-D head, which accepts three CP1W modules.
