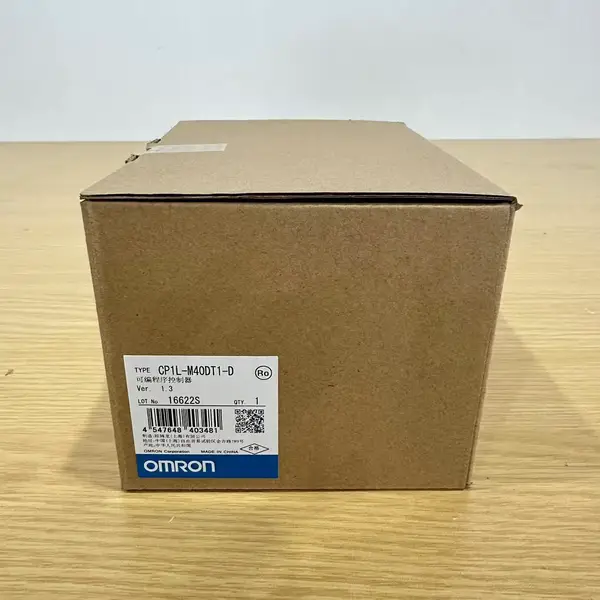

Omron CP1L-M40DT1-D — 40 I/O PLC, PNP, 24 VDC
SKU: CP1L-M40DT1-DUSD 180.00
Omron CP1L-M40DT1-D CP1L compact PLC, 24 inputs, 16 PNP sourcing outputs, 24 VDC, USB. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1L-M40DT1-D is a compact DC-powered PLC from the CP1L M-series, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit ships with 24 DC inputs and 16 PNP sourcing transistor outputs on a 24 VDC supply. Each output switches up to 0.3 A per point and 0.9 A per common. Program capacity is 10 K steps, data memory 32 K words, logic execution 0.55 us. Built-in port is USB 1.1 only; serial or Ethernet need a CP1W-CIF01, -CIF11, or -CIF41 option board.
Four high-speed counters cover two axes at 100 kHz single-phase or 50 kHz differential. Function block programming, battery-free flash backup, and a real-time clock are built in. Up to three CP-series expansion units add 160 max local I/O. CP1L-M40DT-D has a published 2027-06-30 production end; confirm this variant with Omron. For sinking NPN outputs, pick the CP1L-M40DT-D; for relay outputs, the CP1L-M40DR-A.
Key Features
- CP1L M-series compact PLC, 24 DC inputs / 16 PNP sourcing transistor outputs, 24 VDC supply (20.4 to 26.4 VDC)
- 10 K-step program, 32 K-word data memory, 0.55 us logic execution, USB 1.1 programming port
- Four 100 kHz high-speed counters / 2 axes, two 100 kHz pulse outputs, function block programming and structured text
- Up to three CP-series expansion units, 160 max I/O points, battery-free flash backup and real-time clock
- SKU: CP1L-M40DT1-D
- Series: Omron CP1L M-series DC compact PLC
- Voltage: 24 VDC
Best-Fit Applications
- Solenoid-valve bank on a packaging line where the M40 drives 16 PNP sourcing outputs that source 24 VDC to the load common
- Indexer station on a bottling conveyor where four 100 kHz high-speed counters track the encoder and two pulse outputs drive the stepper
- Spare replacement on a small machine where an existing CP1L-M40DT1-D has been discontinued and the cabinet must keep running until 2027-06-30
Buying Checklist
- Pick the CP1L-M40DT1-D for a 40-I/O DC-powered CP1L PLC with 16 PNP sourcing outputs and a USB programming port.
- Pick the CP1L-M40DT-D instead when the panel needs NPN sinking outputs rather than PNP sourcing.
- Pick the CP1L-M40DR-A instead when the panel needs relay outputs and a 100-240 VAC supply.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1L M-series DC compact PLC |
| Model / SKU | CP1L-M40DT1-D |
| Power Supply | 24 VDC (20.4 to 26.4 VDC) |
| Inputs / Outputs | 24 DC inputs / 16 PNP sourcing transistor outputs |
| Output Current | 0.3 A per point / 0.9 A per common / 3.6 A per unit |
| Program Capacity | 10 K steps program, 32 K-word data memory |
| Programming Port | USB 1.1 (no Ethernet / RS-232 / RS-485 built in) |
| High-Speed Counters | 4 channels / 2 axes, 100 kHz single-phase, 50 kHz differential |
| Pulse / PWM Outputs | 2 pulse outputs up to 100 kHz |
| Expansion | Up to 3 CP-series expansion units, 160 max I/O |
| Dimensions / Weight | 150 (W) x 90 (H) x 85 (D) mm, 550 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1L-M40DT1-D
What is the Omron CP1L-M40DT1-D used for?
It is a compact DC-powered PLC for small to mid-size machines. The 24 inputs and 16 PNP sourcing outputs drive solenoid valves, indicators, and motor starters on packaging, conveyor, and assembly equipment.
CP1L-M40DT1-D vs CP1L-M40DT-D - what is the difference?
DT1 means sourcing transistor (PNP) outputs that drive the load to 24 VDC. DT means sinking transistor (NPN) outputs that pull the load to common. Pick the version that matches your load wiring.
Does the CP1L-M40DT1-D have built-in Ethernet?
No. The only built-in programming port is a USB 1.1 socket. For Ethernet, drop in a CP1W-CIF41 option board in either of the two option-board slots on the CPU.
Is the CP1L-M40DT1-D being discontinued?
Yes. Omron publishes 2027-06-30 for CP1L-M40DT-D specifically; confirm this variant with Omron. A common migration is the CP2E-N40DT1-D for similar I/O count and PNP sourcing outputs.
