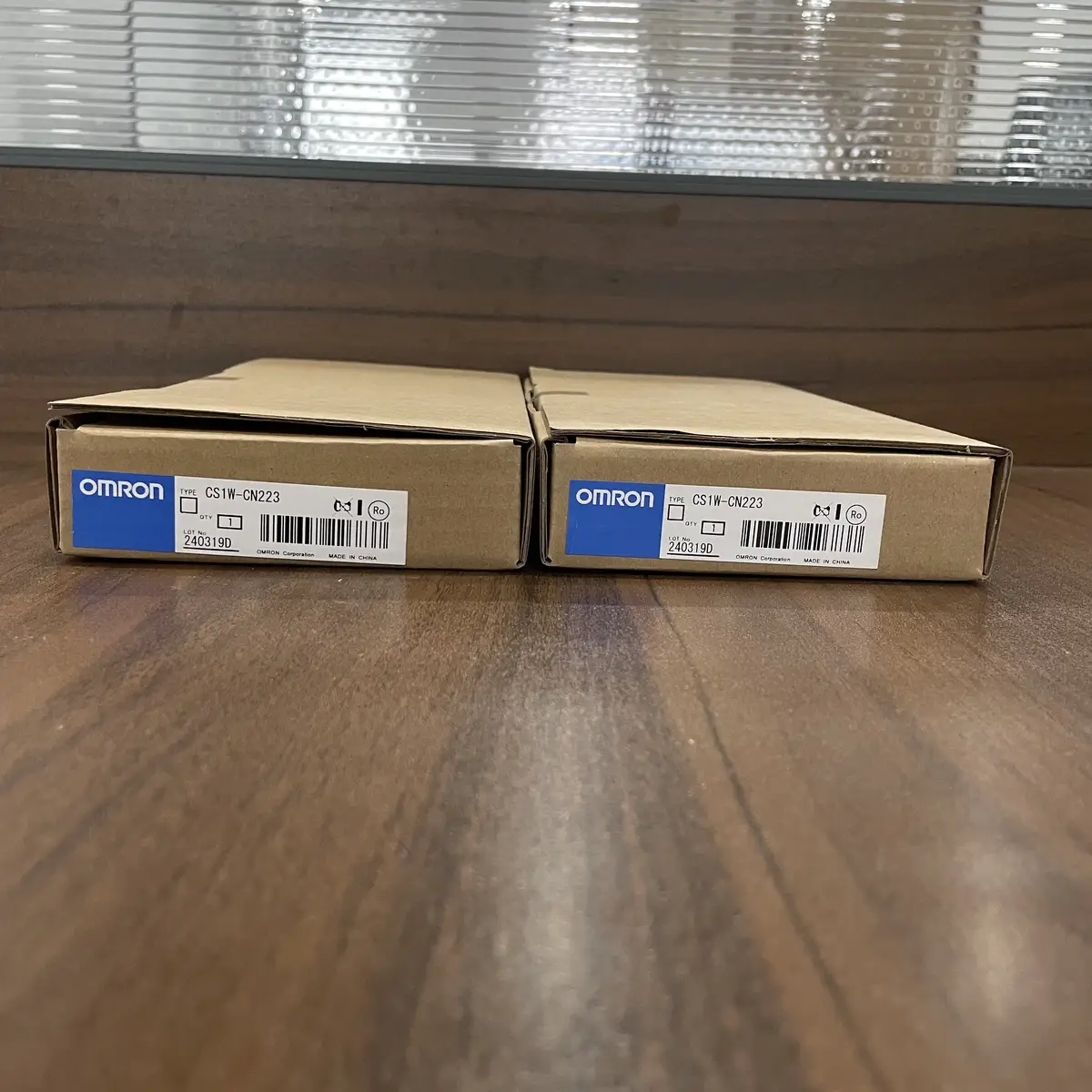

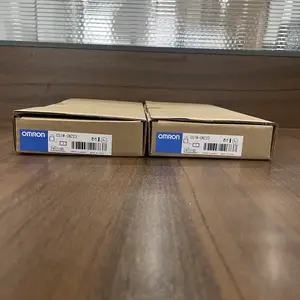

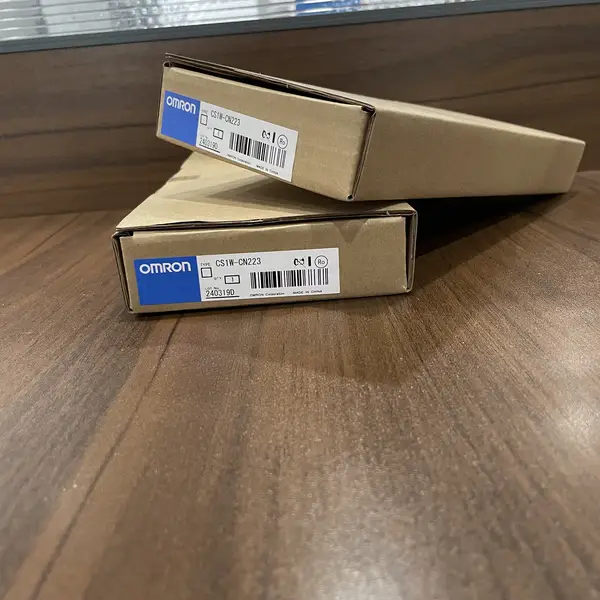

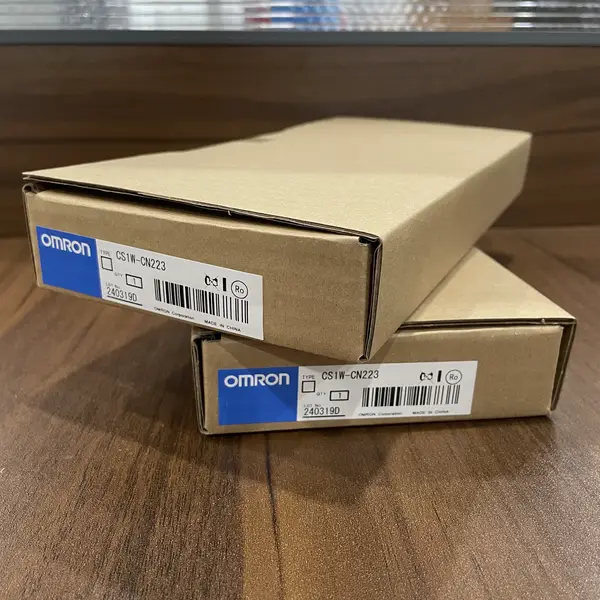

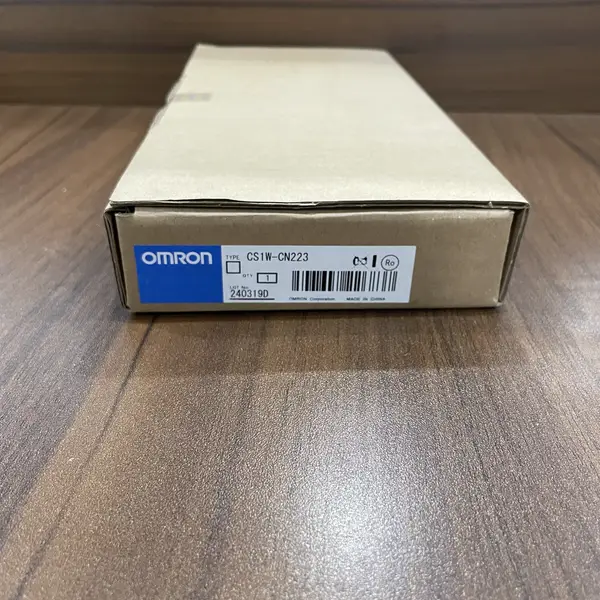

Omron CS1W-CN223 — CS1 I/O Connecting Cable, 2 m
SKU: CS1W-CN223USD 100.00
2 m I/O connecting cable for CS1 series expansion racks, links CPU rack to first expansion rack or daisy-chains expansion racks up to 12 m total expansion. Used with CS1W-BC backplanes.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CS1W-CN223 is a 2-metre I/O connecting cable in the CS1W-CN@@3 family, used to link a CS1 CPU rack to a CS1 expansion rack, or to daisy-chain multiple CS1 expansion racks together. Both ends use the same high-density connector that mates with the I/O bus connector on the CS1W-BC@@3 expansion backplanes and on the right-hand side of the CPU rack. Maximum total expansion distance with all CS1W-CN@@3 cables summed together is 12 m — for anything longer, you need a CS1W-IC101 I/O Control Unit + CS1W-II101 I/O Interface Units in long-distance expansion mode, which lets you reach 50 m per segment.
Naming convention: what the @@ in CS1W-CN@@3 means
All CS1W-CN@@3 cables share the same connector pinout and electrical spec — only the length changes. The @@ digits are a length code in decimetres: CS1W-CN313 is 0.3 m, CS1W-CN713 is 0.7 m, CS1W-CN223 is 2 m (this SKU), CS1W-CN323 is 3 m, CS1W-CN523 is 5 m, CS1W-CN133 is 10 m, and CS1W-CN133B2 is 12 m.
CS1W-CN223 in the rack-to-rack daisy chain
A CS1 system can have up to 7 expansion racks per CPU rack, with up to 12 Units per expansion rack (CS1W-BC083 / BC093 8-slot or 9-slot backplanes are most common). The CPU rack's right-hand I/O connector cables out to the first expansion rack's left-hand I/O connector (CS1W-CN223 covers this span when the racks are about 2 m apart); the first expansion rack's right-hand connector then cables out to the second expansion rack, and so on.
When CS1W-CN223 is the wrong cable
Three common pitfalls. First, the CS1W-CN223 is not a peripheral-port or RS-232C programming cable — the CS1W-CN226 (2 m, peripheral port to DB-9) and CS1W-CN626 (6 m) are the cables used to connect CX-Programmer to the CPU's peripheral USB/peripheral serial port. The connectors look similar but the pinout is different. Second, do not use a C200H-CN@@1 cable in a CS1 expansion — C200H I/O cables were for the older C200H/C200HS racks and have a different connector pitch.
Key Features
- 2 m I/O connecting cable for CS1 series expansion rack systems
- CS1W-CN@@3 family member — same connector pinout as 0.3 m, 0.7 m, 3 m, 5 m, 10 m.
- Links CPU rack to first expansion rack or expansion rack to expansion rack
- Maximum total expansion distance 12 m across all CS1W-CN@@3 cables combined
- Mates with I/O bus connector on CS1W-BC@@3 expansion backplanes
- Shielded construction for industrial EMC environments
- In-cabinet use only — connectors are not IP-rated for exterior routing
- Maximum 7 expansion racks per CPU rack
- SKU: CS1W-CN223
- Series: CS1W-CN@@3 (CS1 I/O Connecting Cable family)
Best-Fit Applications
- Connecting a CS1H CPU rack to a CS1W-BC083 expansion rack in a two-cabinet layout
- Replacing a degraded CS1W-CN@@3 cable during troubleshooting of intermittent I/O bus errors
- Standardised spare for legacy CS1 installations still in active service
- Cabinet rework when relocating a CS1 expansion rack by ~1.5 to 2 m
Buying Checklist
- Pick CS1W-CN223 when CPU rack and first expansion rack are ~1.5–2 m apart
- Pick CS1W-CN313 when both racks are in the same cabinet close together
- Pick CS1W-CN713 when racks are in the same cabinet with a wiring channel between
- Pick CS1W-CN323 or CS1W-CN523 for larger cabinet separations
- Pick CS1W-CN133 or CS1W-CN133B2 for maximum allowed separation
- Do NOT use CS1W-CN223 as a programming cable — that is CS1W-CN226 or CS1W-CN626
Technical Specifications
| Model | CS1W-CN223 |
|---|---|
| Series | CS1W-CN@@3 (CS1 I/O Connecting Cable family) |
| Type | I/O connecting cable for rack expansion |
| Length | 2 m (6.56 ft) |
| Connector Type | High-density I/O bus connector, both ends |
| Compatible Backplanes | CS1W-BC@@3 (CS1 expansion backplanes) |
| Compatible CPUs | CS1G and CS1H CPU units |
| Maximum Total Expansion Distance | 12 m (all CN@@3 cables combined) |
Resources & Downloads
FAQ for CS1W-CN223
Is the CS1W-CN223 cable 0.3 m or 2 m long?
The CS1W-CN223 is 2 metres long, not 0.3 m. The '3' at the end of the part number denotes the CS1W-CN@@3 cable family (rack-to-rack I/O cable), not the length. The 0.3 m cable in the same family is the CS1W-CN313 — the '3' there indicates 3 decimetres (30 cm). The length code for the CS1W-CN223 is '22' = 2.2 m rounded to 2 m nominal.
What is the difference between CS1W-CN223 and CS1W-CN226?
They are different cable families for different jobs. CS1W-CN223 is an I/O connecting cable — it carries the rack-to-rack I/O bus signal between a CS1 CPU rack and a CS1 expansion rack. CS1W-CN226 (2 m) and CS1W-CN626 (6 m) are peripheral-port cables — they connect a programming console (CX-Programmer on a PC) to the CS1 CPU's peripheral serial port for online programming.
What is the maximum total length of CS1W-CN@@3 cables I can use?
12 metres total, summed across all CS1W-CN@@3 cables in the expansion chain. So you can mix CS1W-CN313 (0.3 m) + CS1W-CN713 (0.7 m) + CS1W-CN223 (2 m) + CS1W-CN523 (5 m) + CS1W-CN223 (2 m) for a total of 12 m between the CPU rack and the farthest expansion rack. Beyond 12 m the I/O bus signal degrades and the CS1 CPU will report an I/O bus error (I/O Verification Error or I/O Bus Error) at startup.
Can I use a CS1W-CN223 cable with a CS1G CPU or only CS1H?
Both — CS1W-CN223 works with CS1G-CPU@@@-EV1 and CS1H-CPU@@@-EV1 CPU units, with all CS1W-BC@@3 expansion backplanes, and with CS1W-BI@@@ long-distance expansion backplanes. It also works with the newer CJ2M-CPU@@@ CPUs in CS/CJ-series expansion interconnection mode, where a CJ2M CPU rack expands into a CS1 expansion rack (used during phased CS1-to-CJ2 migration). The CS1W-CN223 cannot be used with C200H or C200HS legacy racks — those used the C200H-CN@@1 cable family with a different connector pitch.
