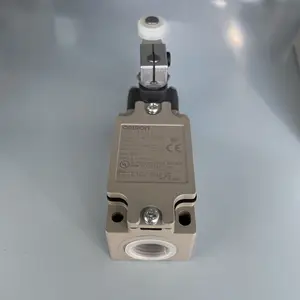

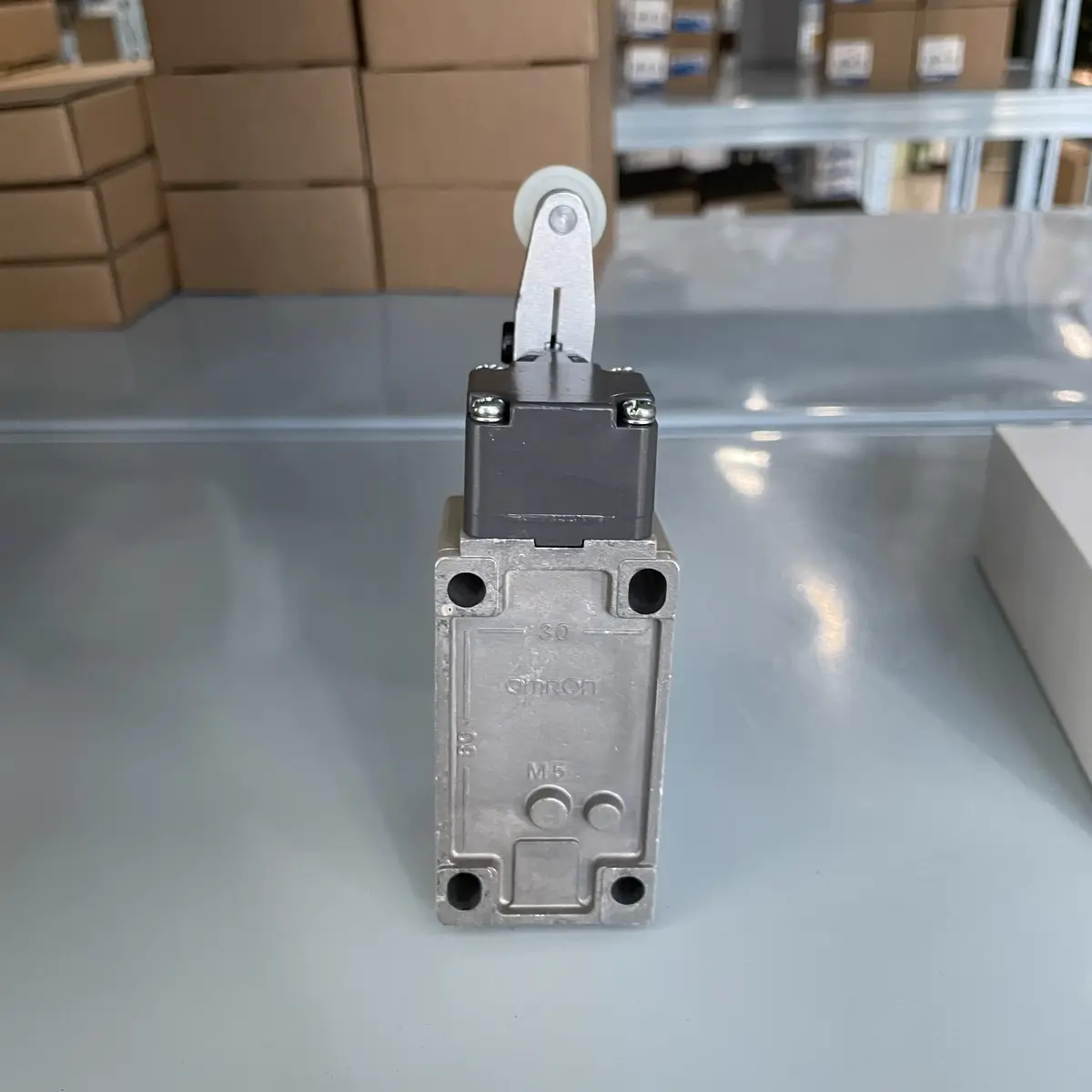

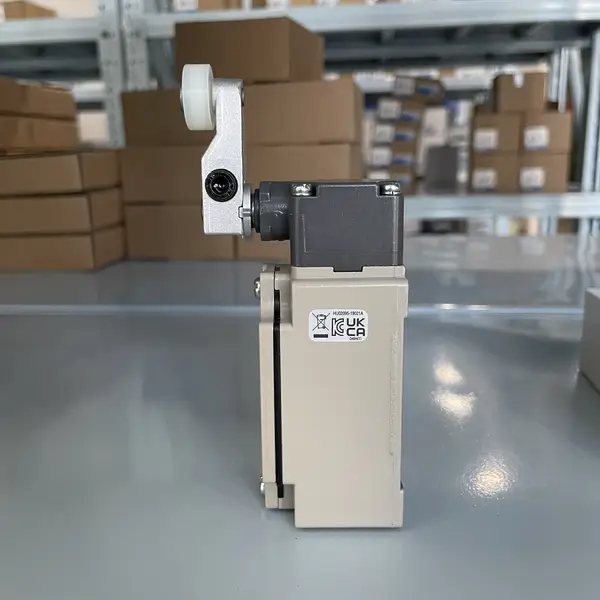

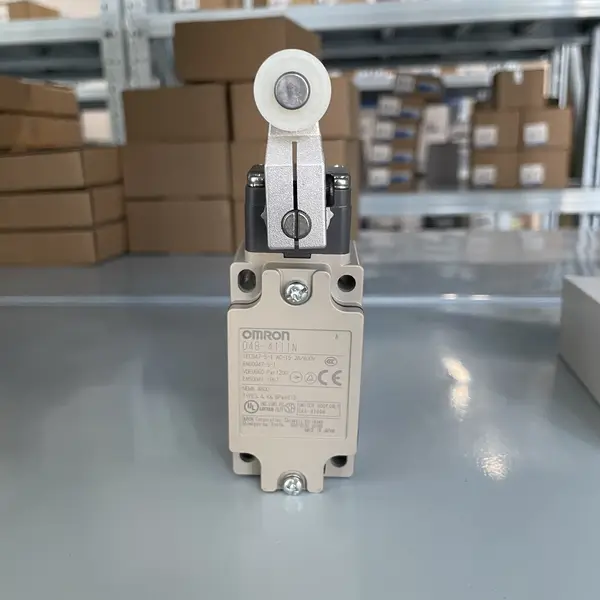

Omron D4B-4111N — Safety Limit Switch, 1NC/1NO, Roller Lever
SKU: D4B-4111NUSD 22.00
Aluminum-body safety limit switch with 1NC/1NO snap-action contacts, resin roller lever actuator, M20 conduit, direct opening mechanism, 4 A 250 VAC, IP67, -40 to +80 °C operating range. Certified EN 60947-5-1.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The D4B-4111N is the resin-roller-lever variant of Omron's D4B-@N safety limit switch family — a robust aluminum die-cast housing with a direct-opening mechanism (DOM) and 1NC/1NO snap-action contacts, suitable for industrial guard-door interlock applications up to Cat 1 / PL c. The aluminum housing stands up to mechanical impact, oil splash, and outdoor weather where the plastic-body D4N series would fail. The direct-opening mechanism means the NC contact is mechanically forced open when the actuator is withdrawn — even if the contact is welded closed by an over-current fault, the next mechanical operation will positively break the circuit.
Decoding the D4B-4111N model number
The D4B-@N model code: D4B = D4B series safety limit switch (aluminum body); 4 = contact arrangement '1NC / 1NO snap-action' (vs 1 = 1NC slow-action, 2 = 2NC slow-action, 5 = 1NC snap-action, etc.); 1 = snap-action mode (vs 2 = slow-action with same contacts); 1 = roller-lever actuator type (vs 0 = plain plunger, 2 = plain roller, 3 = cross-roller, etc.); 1 = general-purpose lever (vs 7 = adjustable-length lever, 9 = long lever); N = conduit size M20 with screw terminals (other variants: A = G1/2 conduit, B = PG13.5 conduit, C = M12 connector). Common variant pairings: D4B-4111N (this SKU, M20), D4B-4111A (G1/2), D4B-2111N (2NC, M20), D4B-4511N (same with stainless lever).
Direct opening mechanism (DOM) — required for Cat 1 / PL c
The D4B-@N family has a certified direct-opening mechanism (DOM) per EN 60947-5-1 — the NC contact is mechanically linked to the actuator lever such that if the actuator is forcibly withdrawn, the contact MUST open even if the contact has welded closed by a fault. The DOM provides 20 N minimum direct-opening force and 50° minimum direct-opening travel — verified by TÜV SÜD during certification. This positive-break capability is the key feature that allows the D4B-@N to be used in personnel-protection safety chains where a stuck contact could be deadly (e.g., robotic-cell guard door).
Aluminum housing vs plastic D4N
The aluminum die-cast housing of the D4B-4111N handles environments that plastic-body D4N series cannot: (1) mechanical impact on a moving guard or machine-tool fixture — the aluminum body resists denting at 10 J impact; (2) outdoor installations (valve actuators, outdoor cabinet doors) where UV degradation of plastic is a concern — the aluminum body is unaffected; (3) high-temperature environments up to +80 °C (D4N plastic is limited to +70 °C); (4) cold climates down to -40 °C (D4N plastic is limited to -30 °C).
Key Features
- Heavy-duty aluminum die-cast housing
- 1NC / 1NO snap-action contact configuration
- Direct opening mechanism certified per EN 60947-5-1
- 20 N minimum direct-opening force, 50° minimum direct-opening travel
- TÜV SÜD certified for use in Cat 1 / PL c safety chains
- Resin roller lever actuator
- M20 × 1.5 conduit entry for armored cable or cable gland
- Screw terminals with self-lifting clamps
- SKU: D4B-4111N
- Series: D4B-@N Safety Limit Switch (aluminum body, direct-opening)
- Voltage: 250 VAC
Best-Fit Applications
- Robotic-cell guard door interlock — D4B-4111N mounted on the door frame with the lever actuated by the closed door; NC.
- Conveyor section guard — D4B-4111N at each conveyor-access panel, NC contact wired in series to a Cat 3 G9SB-200-B safety.
- Outdoor cabinet door position — D4B-4111N aluminum body handles outdoor weather better than plastic D4N, NC contact signals intrusion or.
- Heavy-machine-tool guard interlock — D4B-4111N's high mechanical life handles the constant door cycling of a production machine
Buying Checklist
- Pick D4B-4111N for aluminum-body 1NC/1NO snap-action safety limit switch with roller lever and M20 conduit
- Pick D4B-4111A if you have a G1/2 conduit on your existing wiring
- Pick D4B-2111N for 2NC slow-action — pick for dual-state light-curtain reset logic
- Pick D4B-4511N for stainless steel lever — pick for high-temperature or food-grade stainless requirements
- Pick D4N-112G if plastic-body is acceptable and you need a lighter switch for a small machine
- Pick D4NS-1AF for plastic tongue-operated safety door switch
Technical Specifications
| Model | D4B-4111N |
|---|---|
| Series | D4B-@N Safety Limit Switch (aluminum body, direct-opening) |
| Type | Safety limit switch with roller lever, snap-action |
| Contact Configuration | 1NC / 1NO (snap-action) |
| Snap-Action Characteristic | < 5 ms transfer time once operating point reached |
| Direct Opening Mechanism | Certified per EN 60947-5-1 (force-guided contacts) |
| Direct Opening Force | 20 N min |
| Direct Opening Travel | 50° min |
| Actuator Type | Resin roller lever (R14 roller, 14 mm dia) |
| Rated Voltage | 250 VAC max / 30 VDC max |
| Rated Current | 4 A resistive, 3 A inductive (AC-15) |
| Operating Temperature | -40 to +80 °C (no icing) |
| Certifications | CE, cULus listed, TÜV SÜD EN 60947-5-1 |
Resources & Downloads
FAQ for D4B-4111N
What does "direct opening mechanism (DOM)" mean on the D4B-4111N?
Direct-opening mechanism (DOM) means the NC contact is mechanically linked to the actuator in such a way that if the actuator is forcibly withdrawn, the NC contact MUST open — even if the contact has welded closed due to over-current or contact failure. Without DOM, a stuck contact would prevent the safety system from detecting guard-open. With DOM, the next mechanical operation of the actuator (e.g., opening the guard) guarantees the NC contact breaks.
Can the D4B-4111N be used for Cat 4 / PL e safety?
The D4B-4111N is suitable for Cat 1 / PL c as a single switch in a single-channel safety chain.
How is the D4B-4111N different from the D4N-112G?
Both are 1NC/1NO safety limit switches with direct-opening mechanism — the difference is housing material. The D4B-4111N has an aluminum die-cast housing (better mechanical impact resistance, wider temperature range -40 to +80 °C, suitable for outdoor use); the D4N-112G has a plastic housing (lighter weight ~80 g vs ~250 g, suitable for indoor use, limited to -30 to +70 °C). For indoor machines with low mechanical impact (most assembly machines, packaging equipment, light conveyors), the D4N-112G is the cost-effective pick.
How do I wire the D4B-4111N to a safety relay?
The D4B-4111N has a 1NC / 1NO snap-action contact set, accessible via screw terminals in the M20 conduit housing. Wire the NC contact (typically terminal 1-2) to the safety relay's input channel (e.g., T11-T12 on a G9SE-201), and the NO contact (typically terminal 3-4) is typically used for monitoring (feedback loop to the safety relay's EDM input to confirm the relay's contactors drop out before re-energizing).
