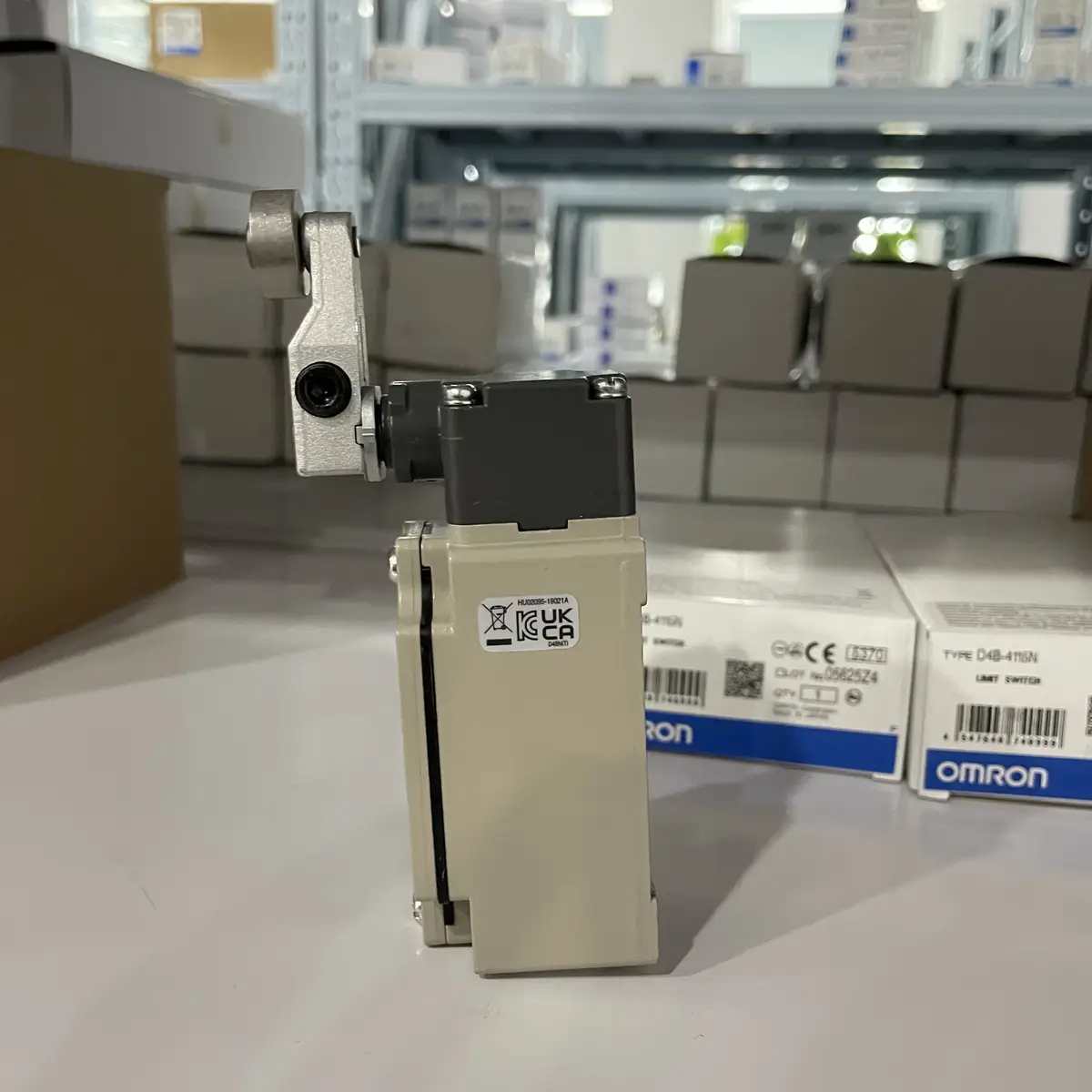

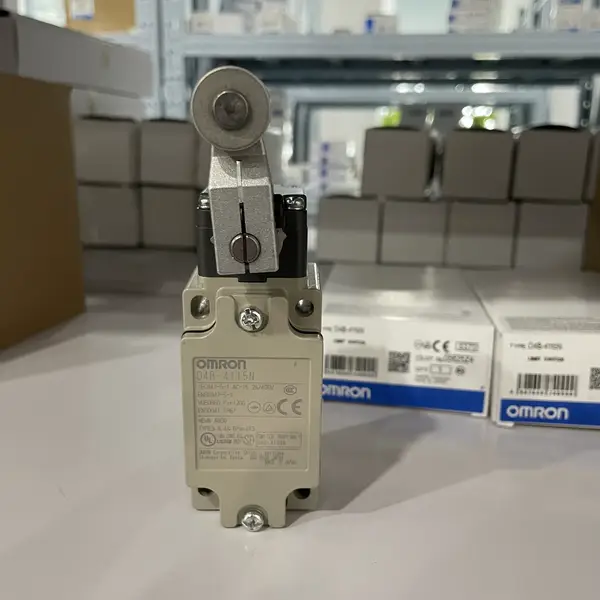

Omron D4B-4115N — Safety Limit Switch, Roller, M20
SKU: D4B-4115NUSD 22.00
D4B-N safety limit switch, 1NC/1NO snap-action with direct opening, stainless steel roller lever, M20 conduit, IP67 die-cast aluminum.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron D4B-4115N is the stainless-steel-roller safety limit switch in the D4B-N family. The die-cast aluminum body, the 30 million mechanical / 500,000 electrical operations life, and the IP67 sealing put it on the outside of a machine where dust, oil, and water spray would damage a smaller plastic limit switch. The 1NC/1NO snap-action contact with certified direct opening on the NC per EN 60947-5-1 lets the switch contribute to a Cat 1 / PL c interlock when wired single-channel, or a Cat 3 / PL d interlock when wired dual-channel with a second switch and a G9SA / G9SP safety controller. The stainless steel roller suits food-and-beverage, pharmaceutical, and chemical washdown areas.
Why the metal body and stainless roller
Pick the D4B-4115N when the limit switch is on the outside of the machine guard, where it takes mechanical impact, washdown spray, and chemical exposure. The die-cast aluminum body and the M20 conduit are the heavy-duty choices over the plastic D4N-112G. Pick the D4B-4111N instead when a standard resin roller is acceptable; pick the D4B-4116N when the lever position needs to be adjustable on the camshaft.
Single-channel vs dual-channel safety wiring
The D4B-4115N is a single switch with one NC + one NO contact form. For a Cat 1 / PL c interlock, wire the NC contact in series with the contactor coil. For a Cat 3 / PL d interlock, use two D4B-4115N switches (one on each guard door) and a G9SA-301 or G9SP-N20S safety controller. For Cat 4 / PL e, pair dual-channel wiring with a D4SL-N6EFA-DN (6-contact) or use the D4SL safety door switch with a G9SP.
Before ordering
Confirm the conduit is M20 (the "4" code); for a G1/2 / PF1/2 North American cabinet, pick the D4B-2115N. Confirm the actuator is the stainless steel roller (the "5" code); for a standard resin roller, pick the D4B-4111N. Confirm the switch is wired to a safety controller -- the D4B alone with single-channel wiring can only claim Cat 1 / PL c.
Key Features
- D4B-N-series compact safety limit switch, die-cast aluminum body at ~250 g
- 1NC/1NO snap-action contact form with certified direct opening on the NC per EN 60947-5-1
- Stainless steel roller lever actuator (the "5" code in the family table)
- M20 conduit entry (the "4" code; the "2" code is G1/2 / PF1/2)
- 5 A at 250 VAC / 4 A at 30 VDC microload (gold-plated) contact rating, 10 A carry
- 300 V rated insulation voltage, conditional short-circuit current 100 A
- 30 million mechanical operations / 500,000 electrical operations minimum
- IP67 protection per EN 60947-5-1, operating speed 1 mm/s to 0.5 m/s
- Operating temperature -30 to +70 C, 95% humidity max, no icing
- UL 508 / CSA / TUV Rheinland (EN 60947-5-1, EN ISO 14119) / CCC / GS-ET-15 approved
- SKU: D4B-4115N
- Series: D4B-4115N
- Voltage: 300 V
Best-Fit Applications
- Guard door position feedback on a small machine tool with a G9SA-301 safety relay
- Conveyor limit / end-of-travel stop on a washdown packaging line with stainless roller for chemical resistance
- Robotic cell perimeter door interlock with two D4B-4115N switches and a G9SP-N20S safety controller
- Heavy-industry position feedback on a steel-mill or foundry line where plastic limit switches would fail
- Food-and-beverage line guard interlock with stainless roller and IP67 washdown rating
Buying Checklist
- Pick D4B-4115N for a 1NC/1NO snap-action safety limit switch with stainless steel roller and M20 conduit in the D4B-N family.
- Pick D4B-4111N instead when a standard resin roller is acceptable (cheaper, but not for washdown).
- Pick D4B-2115N when the cabinet has G1/2 / PF1/2 conduit (North American / Japan standard).
- Pick D4N-112G for a smaller plastic-body safety limit switch when the application is lighter-duty.
- Pair the D4B-4115N with a G9SA-301 safety relay for a typical Cat 1 / PL c or Cat 3 / PL d interlock circuit.
- Add a second D4B-4115N for a dual-channel Cat 3 / PL d interlock; the D4B alone with single-channel wiring cannot claim Cat 3 / PL d.
Technical Specifications
| Contact Form | 1NC/1NO snap-action with direct opening on the NC (EN 60947-5-1) |
|---|---|
| Actuator | Roller lever with stainless steel roller |
| Conduit | M20 (single entry) |
| Contact Rating | 5 A at 250 VAC / 4 A at 30 VDC microload, gold-plated contacts |
| Carry Current | 10 A (Ith) |
| Rated Insulation Voltage | 300 V |
| Conditional Short-Circuit | 100 A (EN 60947-5-1) |
| Mechanical Life | 30 million operations minimum |
| Electrical Life | 500,000 operations minimum |
| Operating Speed | 1 mm/s to 0.5 m/s |
| Protection | IP67 (EN 60947-5-1), die-cast aluminum body ~250 g |
| Operating Temperature | -30 to +70 C, 95% RH max, no icing |
Resources & Downloads
FAQ for D4B-4115N
What is the difference between D4B-4115N and D4B-4111N?
Roller material. The D4B-4115N has a stainless steel roller -- the right pick for food-and-beverage, pharmaceutical, and chemical washdown areas where a standard resin roller would absorb chemicals and swell. The D4B-4111N has a standard resin roller -- the cheaper pick for general industrial use. Both share the same 1NC/1NO snap-action contact, M20 conduit, IP67 housing, 30 million mechanical / 500,000 electrical operations life, and UL / CSA / TUV / CCC approvals. The only difference is the roller material.
What is the difference between D4B-4115N and D4B-2115N?
Conduit thread. The D4B-4115N has M20 conduit (the "4" code in the family table, European / global standard). The D4B-2115N has G1/2 / PF1/2 conduit (the "2" code, North American / Japan standard). Both share the same 1NC/1NO snap-action contact with direct opening, stainless steel roller, IP67 die-cast aluminum body, and the same approvals. Pick the M20 for a European cabinet; pick the G1/2 for a North American cabinet.
Does the D4B-4115N reach Cat 4 / PL e by itself?
No. The D4B-4115N is a single switch with one NC + one NO contact. For Cat 1 / PL c (the lowest safety category), wire the NC contact in series with the contactor coil. For Cat 3 / PL d, use two D4B-4115N switches (one on each guard door) wired dual-channel with a G9SA-301 or G9SP-N20S safety controller. For Cat 4 / PL e, pair the dual-channel wiring with a D4SL-N6EFA-DN (6-contact safety door switch) and a G9SP safety controller. The D4B alone with single-channel wiring cannot claim Cat 3 / PL d.
What is the difference between D4B-4115N and D4N-112G?
Body and capacity. The D4B-4115N is a heavy-duty die-cast aluminum safety limit switch at ~250 g, IP67, 30 million mechanical / 500,000 electrical operations minimum. The D4N-112G is a compact plastic-body safety limit switch at ~82 g, IP67, 15 million mechanical / 500,000 electrical operations minimum. Pick the D4B when the limit switch is on the outside of the machine guard with mechanical impact and washdown; pick the D4N for a lighter-duty cabinet-interior position feedback. Both have 1NC/1NO snap-action with direct opening on the NC.
