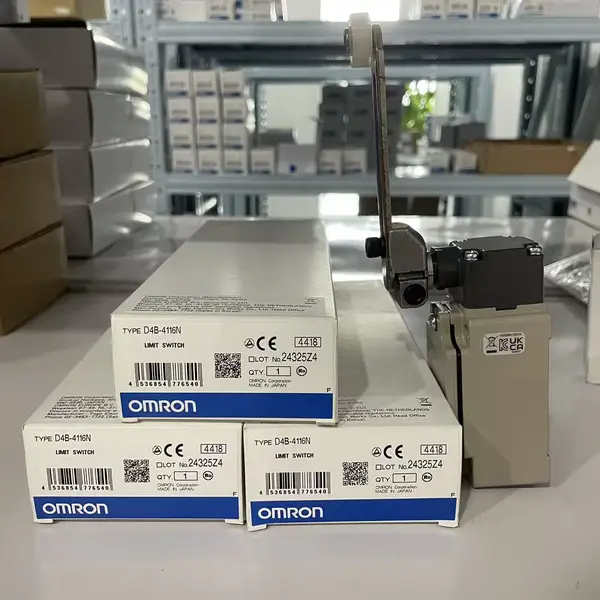

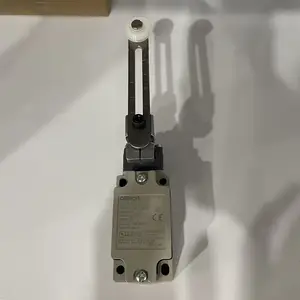

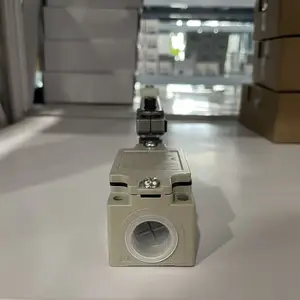

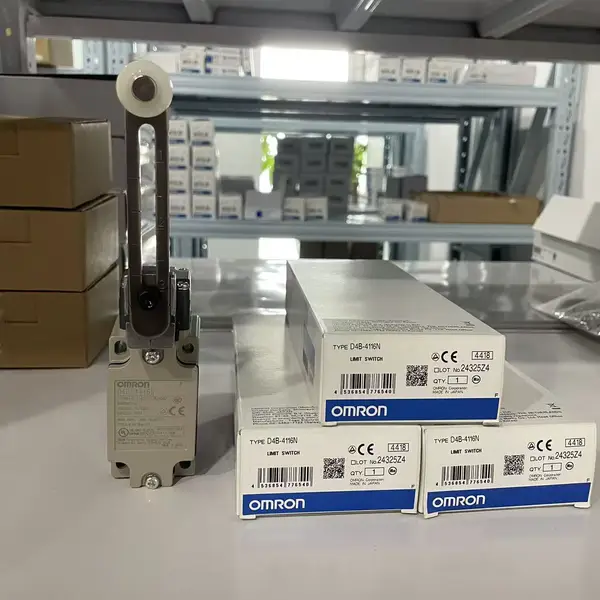

Omron D4B-4116N — Limit Switch, Adj. Roller Lever, M20
SKU: D4B-4116NUSD 22.00
D4B-N general-purpose limit switch with adjustable roller lever, M20 conduit, 1NC/1NO snap-action, IP67 metal housing, -40 to +80 °C.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron D4B-4116N lives in the D4B-N product family but belongs to the general-purpose subgroup, not the safety subgroup. It uses the same heavy-duty aluminum die-cast housing, M20 conduit, IP67 sealing, and -40 to +80 °C operating range as the safety-rated D4B-4111N, but it does not carry the certified direct-opening mechanism. It is the right pick for general machine position feedback where EN ISO 13849 or EN 60947-5-1 safety certification is not required.
Decoding the model code
On the D4B-N lineup, the third digit picks the conduit (1 = M20, 2 = G1/2 / PF1/2), the fourth digit picks the actuator (1 = resin roller lever, 5 = stainless roller lever, 6 = adjustable roller lever, 7 = adjustable rod lever, 70 = plain plunger, 71 = roller plunger). D4B-4116N reads as: M20 conduit (4), adjustable roller lever (6), 1NC/1NO snap-action, general-purpose subgroup.
When to pick this over the safety 4111N
If the limit-switch signal drives a safety relay, guard interlock, or E-stop circuit, you need the certified direct-opening mechanism — use D4B-4111N. If the switch is sending a position signal to a PLC, signaling an end-of-travel on a non-safety door, or providing feedback to a non-safety counter, the 4116N's snap-action contact is enough.
Before ordering
Verify the conduit size: the 4116N is M20 (the G1/2 / PF1/2 equivalent is D4B-2116N). The A600 rating is 10 A carry, 7,200 VA make, 720 VA break — well above the 4 A to 5 A the switch will see in typical control duty.
Key Features
- D4B-N series, adjustable roller lever actuator
- 1NC / 1NO snap-action contact
- M20 conduit entry
- Aluminum die-cast housing, IP67 (EN 60947-5-1)
- Rated 10 A resistive at 250 VAC; A600 (UL/CSA)
- Mechanical life 30,000,000 operations min
- Operating temperature -40 to +80 °C
- General-purpose subgroup — does NOT carry certified direct opening
- SKU: D4B-4116N
- Series: D4B-N (general-purpose limit switch, metal body)
Best-Fit Applications
- End-of-travel detection on non-safety sliding gates and machine doors
- Position feedback on conveyor transfer arms
- Travel limit cut-off on cranes, hoists, and lifts
- Full-open / full-close signals on loading-dock doors
- General position sensing on industrial machinery
Buying Checklist
- Choose D4B-4116N for non-safety limit duty in metal-body harsh environments.
- Choose D4B-4111N for a safety-rated interlock (Cat 1 / PL c) with direct opening.
- Choose D4B-4117N for an adjustable rod lever rather than a roller.
- Choose D4B-2116N if your cabinet uses G1/2 / PF1/2 conduit instead of M20.
- Choose D4N-112G if you want a smaller snap-action plastic-body limit switch.
- Use an M20 cable gland rated for the environment (IP67 minimum).
Technical Specifications
| Series | D4B-N (general-purpose limit switch, metal body) |
|---|---|
| Actuator | Adjustable roller lever |
| Conduit | M20 |
| Contact Form | 1NC + 1NO, snap-action |
| Rated Load | 10 A resistive at 250 VAC; 4 A inductive (AC-15 / DC-13 class) |
| UL/CSA Rating | A600: 10 A carry, 7,200 VA make, 720 VA break |
| Inrush Current | 30 A max |
| Mechanical Life | 30,000,000 operations min |
| Electrical Life | 500,000 operations min (10 A resistive at 250 VAC) |
| Operating Speed | 1 mm/s to 0.5 m/s |
| Operating Frequency | 120 mech / 30 elec operations per min |
| Contact Resistance | 25 mΩ max (initial) |
| Degree of Protection | IP67 (EN 60947-5-1); NEMA 3, 4, 4X, 6P, 13 |
| Housing | Aluminum die-cast |
| Operating Temperature | -40 to +80 °C (no icing) |
| Weight | Approx. 250 g |
Resources & Downloads
FAQ for D4B-4116N
Is D4B-4116N a safety limit switch?
No. The 4116 code is in the D4B-N general-purpose subgroup. It does NOT carry the certified direct-opening mechanism required for safety guard-door interlocks. For Cat 1 / PL c and higher safety applications, choose D4B-4111N (resin roller lever) or D4B-4115N (stainless roller lever) — both of which carry the certified DOM.
What is the difference between D4B-4116N and D4B-4117N?
D4B-4116N uses an adjustable roller lever — best for cam and angled approach. D4B-4117N uses an adjustable rod lever — best for linear push applications where you cannot fit a cam profile. The contacts, body, and ratings are otherwise identical.
What conduit size does D4B-4116N take?
M20. The G1/2 / PF1/2 equivalent is sold as D4B-2116N. Use an M20 cable gland rated at least IP67 for the application environment.
